10/20/50/100 Meters 12K Floor Warm Heating Cable 33 Ohm/M Infrared Floor Heating Film 220V Carbon Fiber Heating Wires Coil

Description:

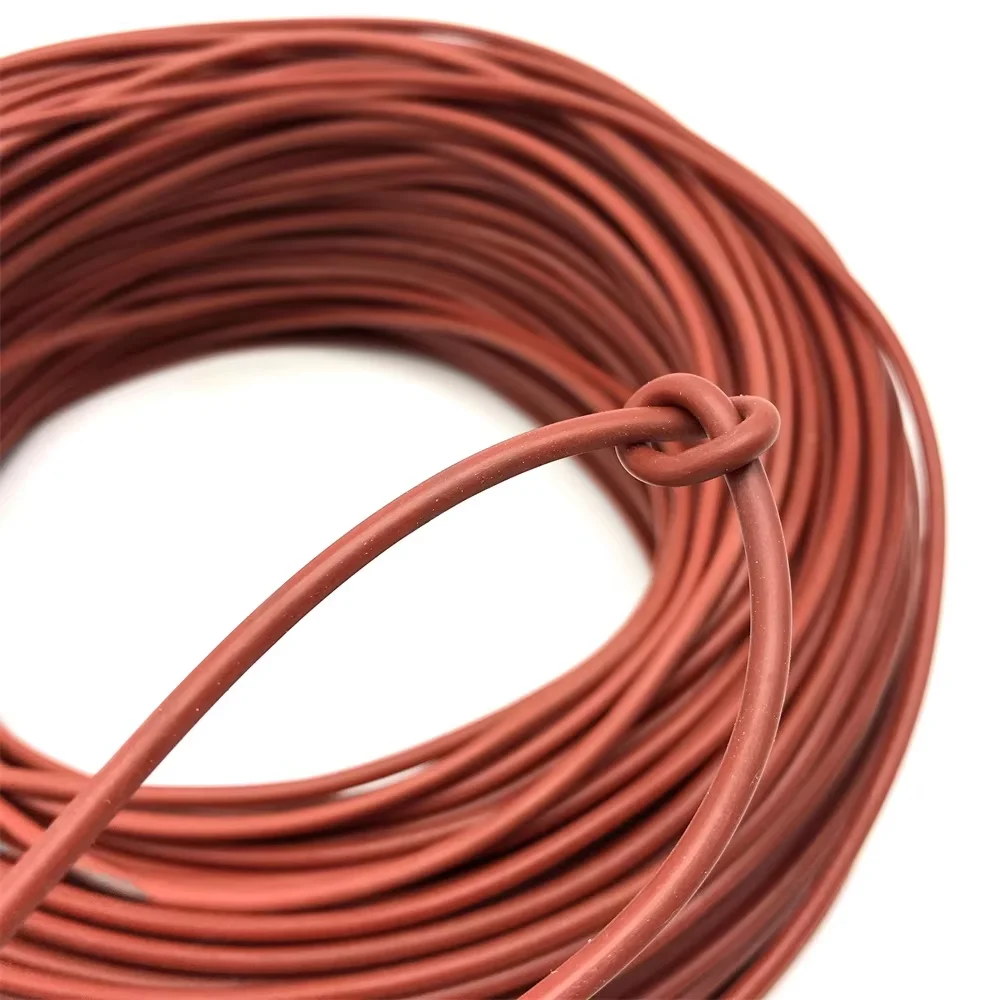

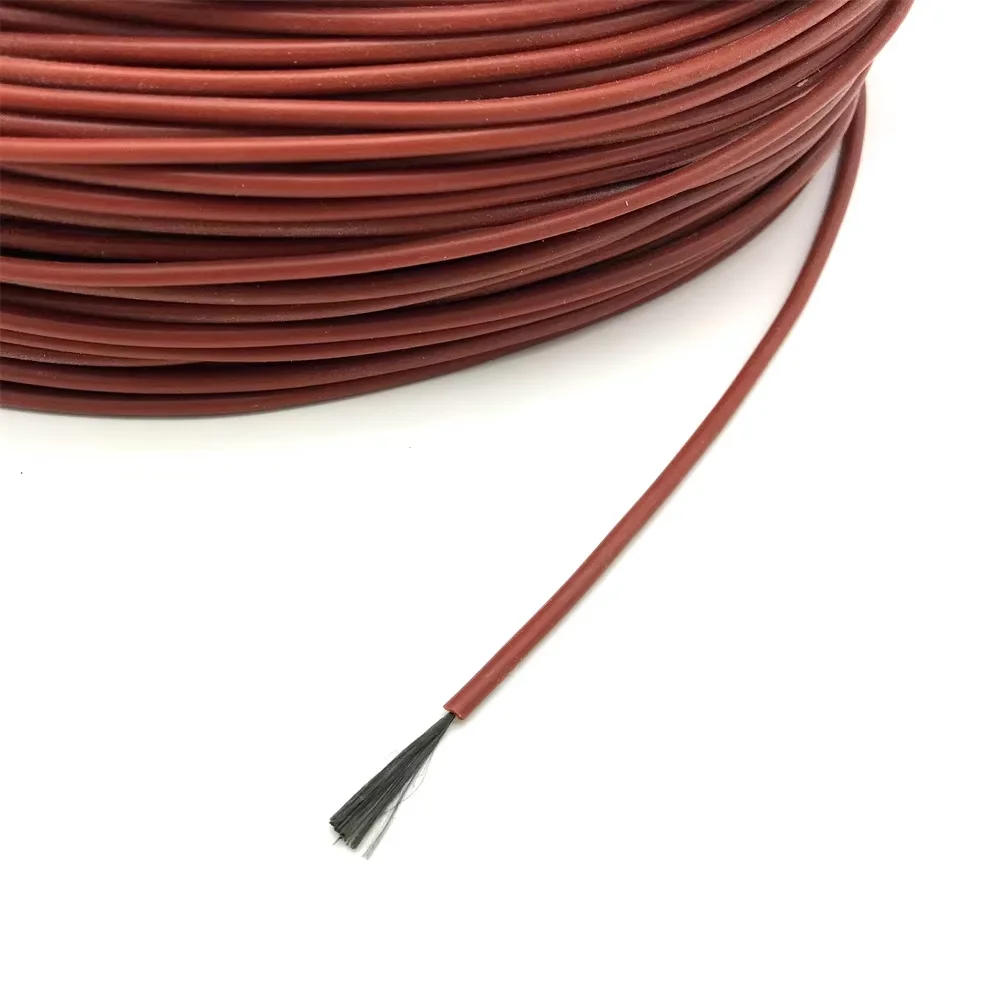

Product Name: Carbon fiber heating wire
Material: Silicone rubber/ Carbon fiber
Max enduring temperature: 200C degrees
Heating temperature: Based on the using length
Heating conductor: 12K
Leakage current: 0.05mA/m
The product can withstand max power: 25W/M
Diameter: 3±0.1 MM (Thicker and Safer )
Color: Red
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10% /m

Product Advantages:

1. High energy-efficient: Don’t need other transmission medium, the electrothermal conversion efficiency is above 98%.
2. Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.
3. Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.

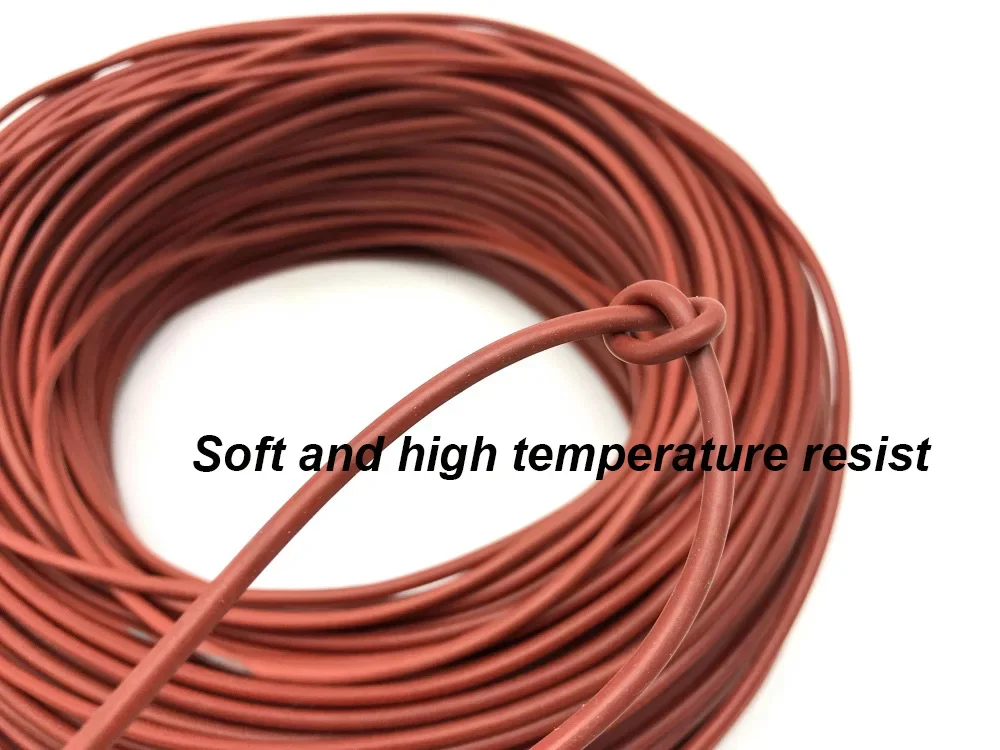

4. Excellent heat resistance, good insulation, stable performance
5. corrosion resistance, anti-magnetic field

Scenes to be used:

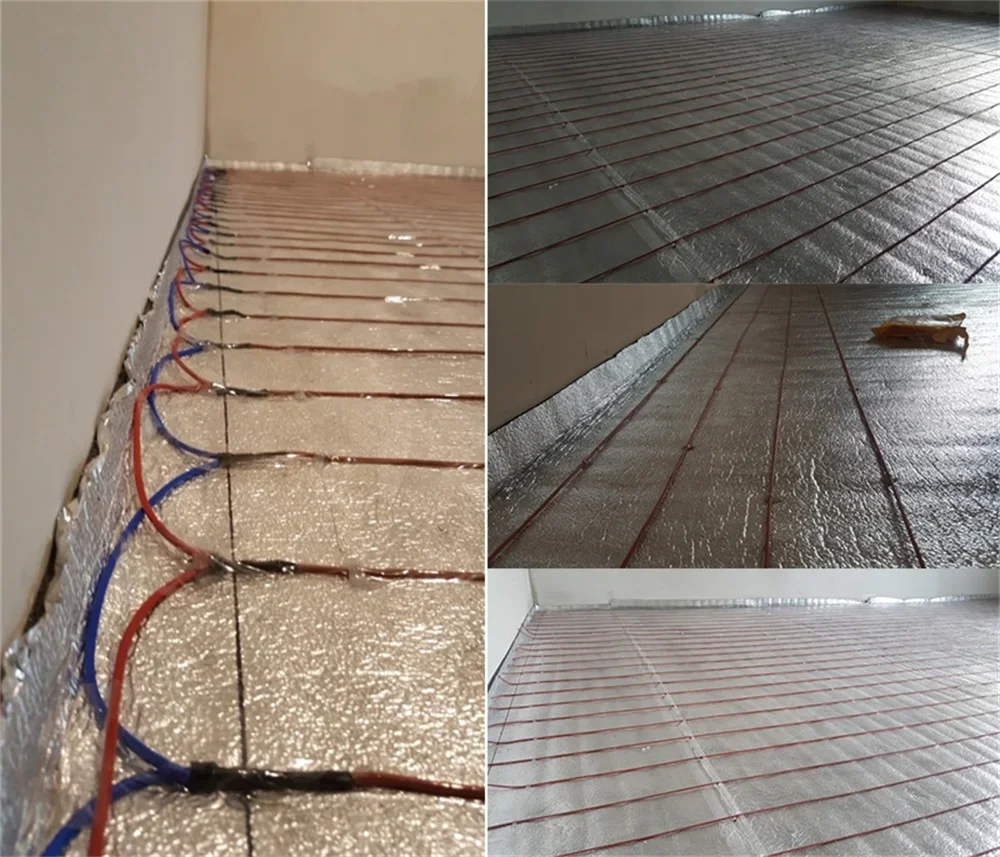

Farms, piglet insulation boards, electric blankets, pet mats, incubators, floor heating

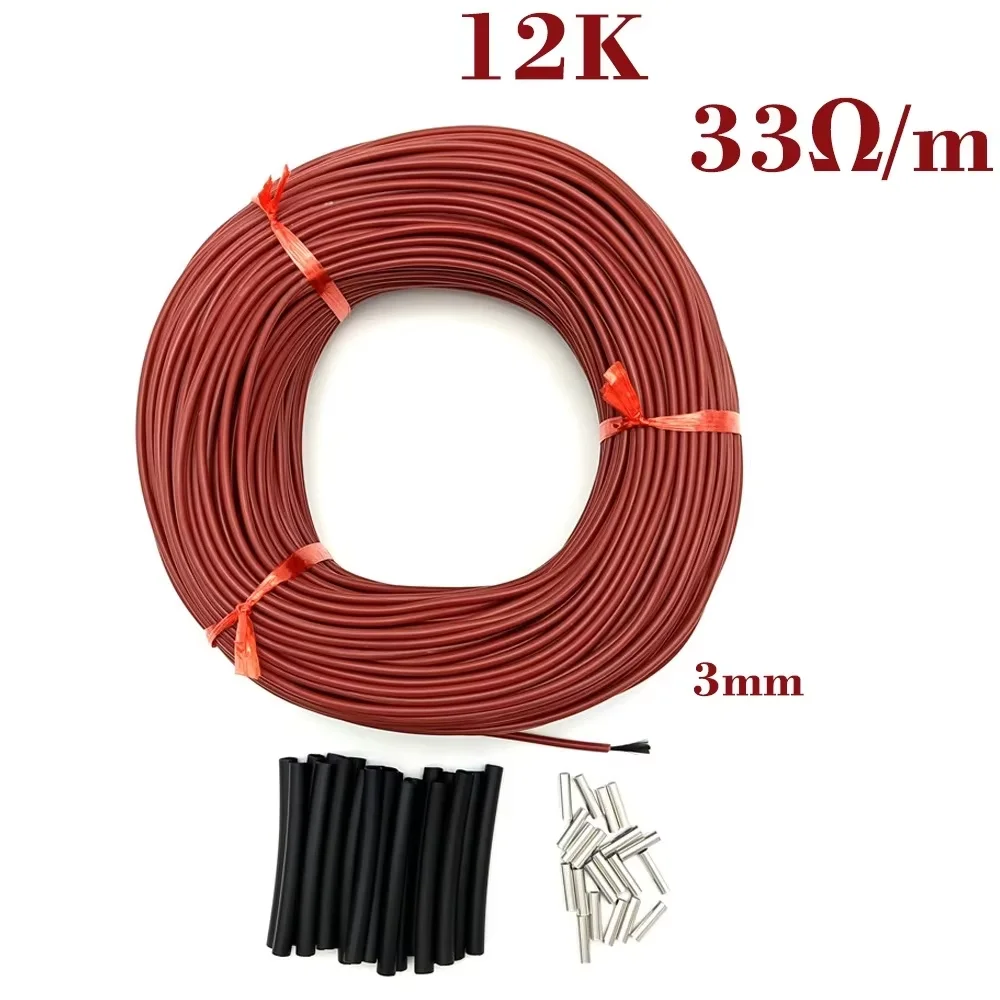

Package Includes:

1. Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
1. Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
1. Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
1. Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 10 m = 10m cable + 2 pcs copper tube + 2 pcs sleeves

Note:

1. When the silica gel is heated for the first time, there may be an odor, which can be eliminated by itself in 5-6 hours
2. The heating wire cannot overlap or cross when in use to prevent the surface from being burnt due to excessive temperature
