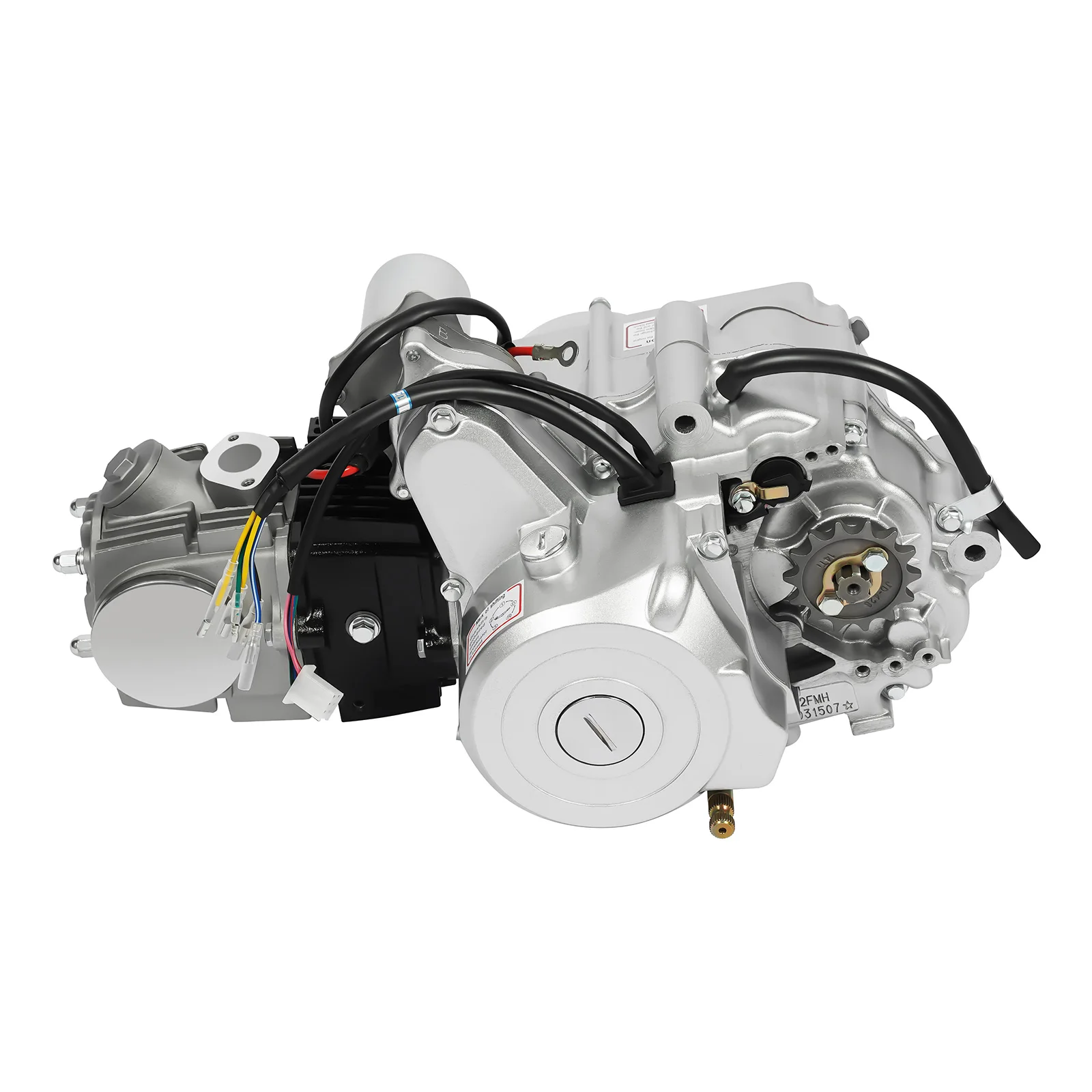

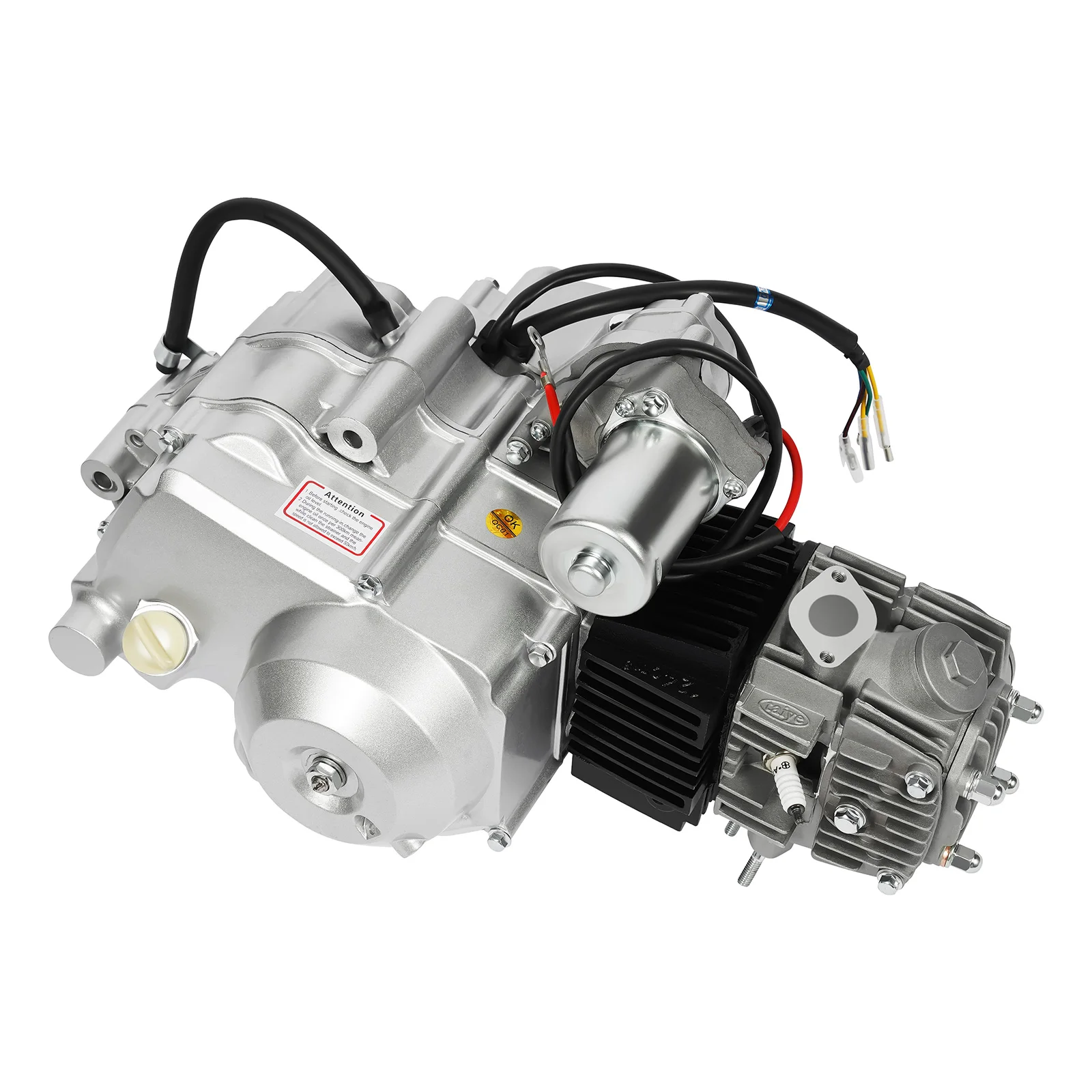

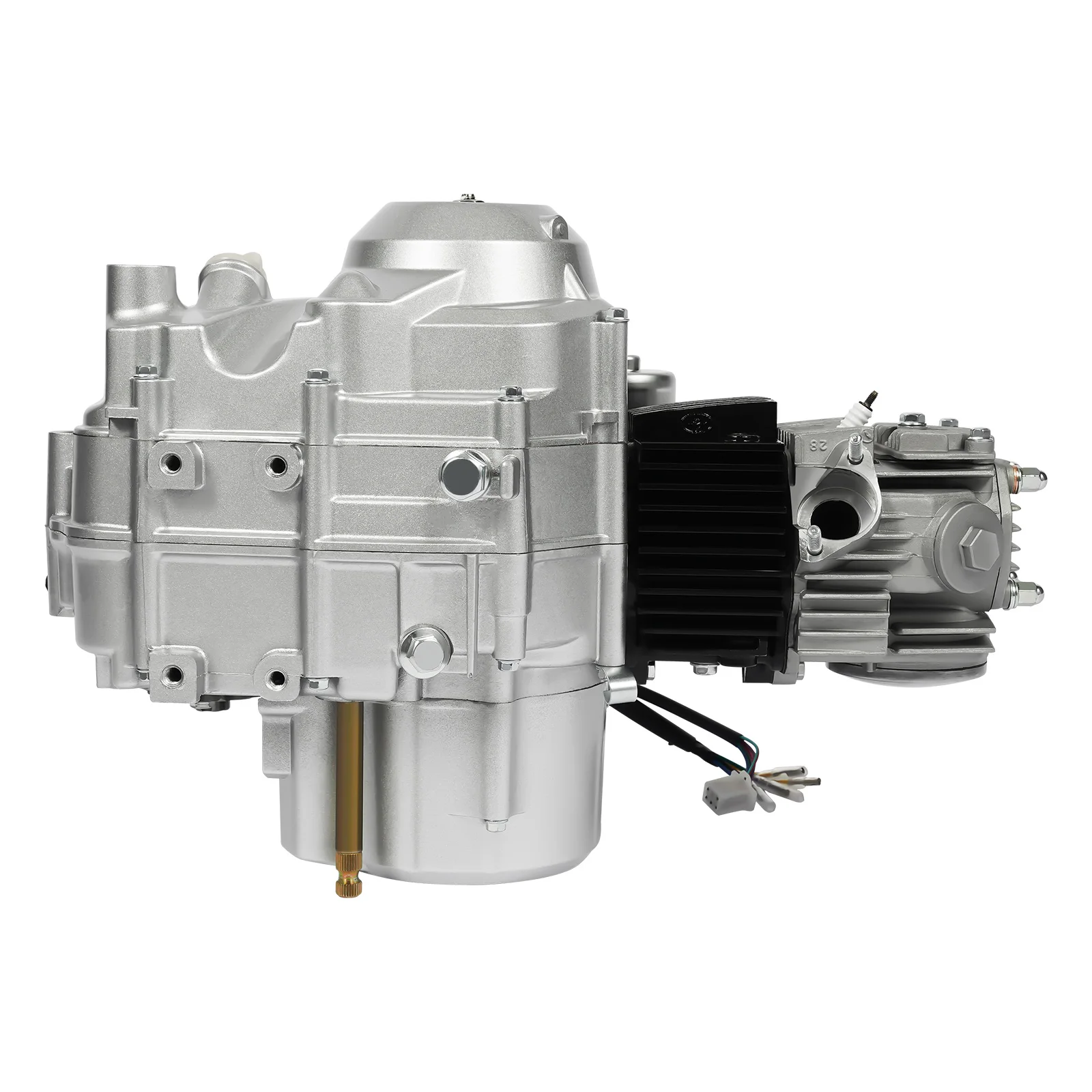

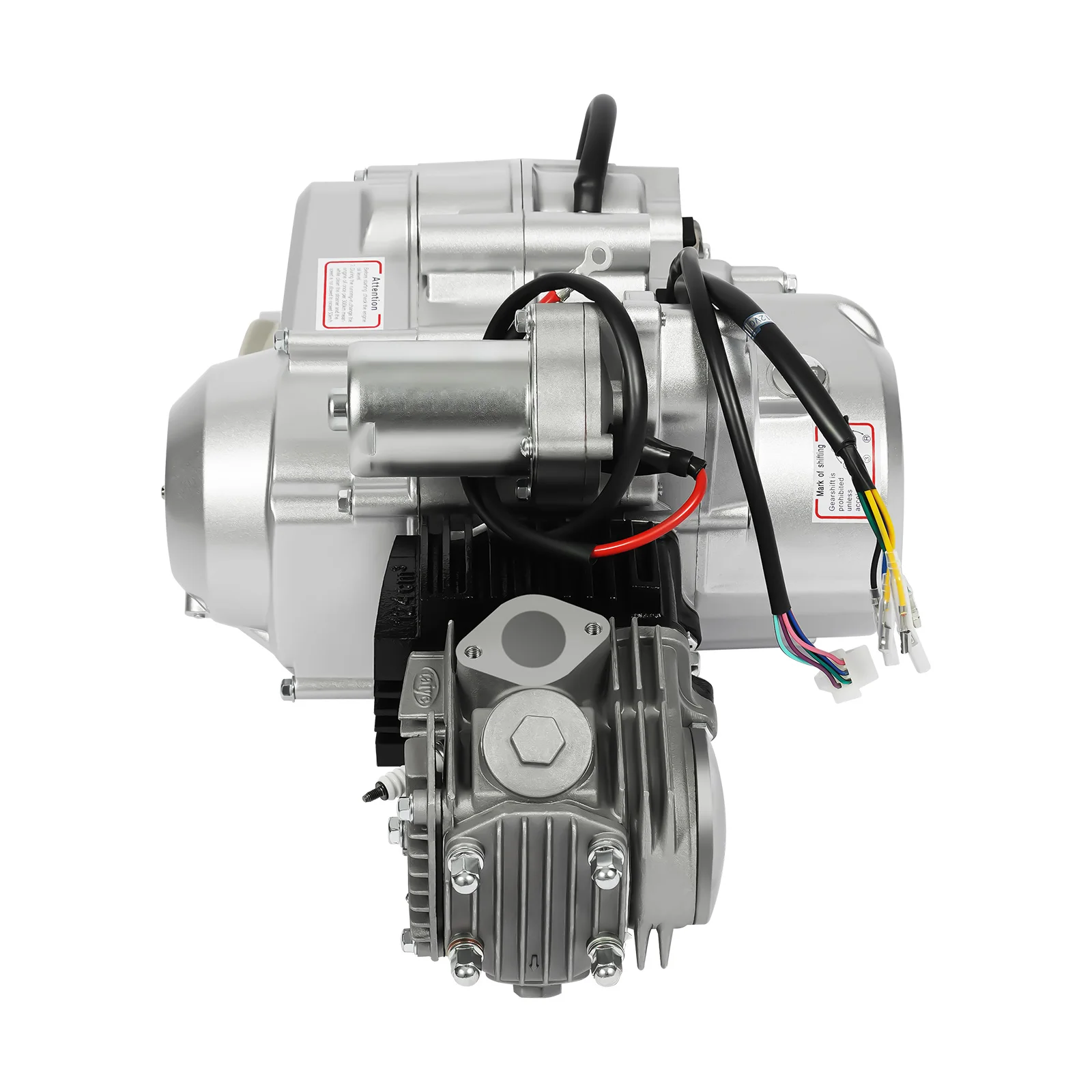

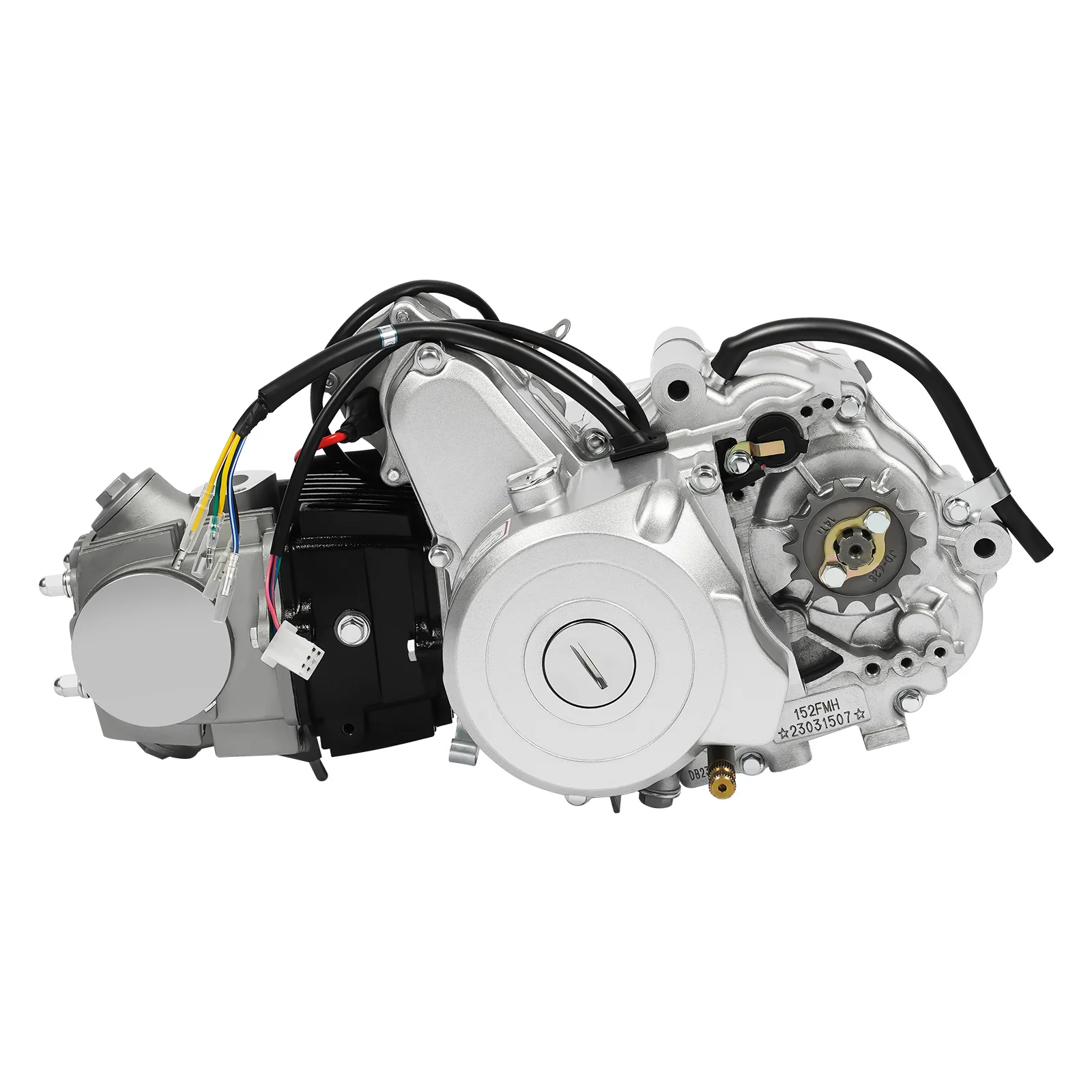

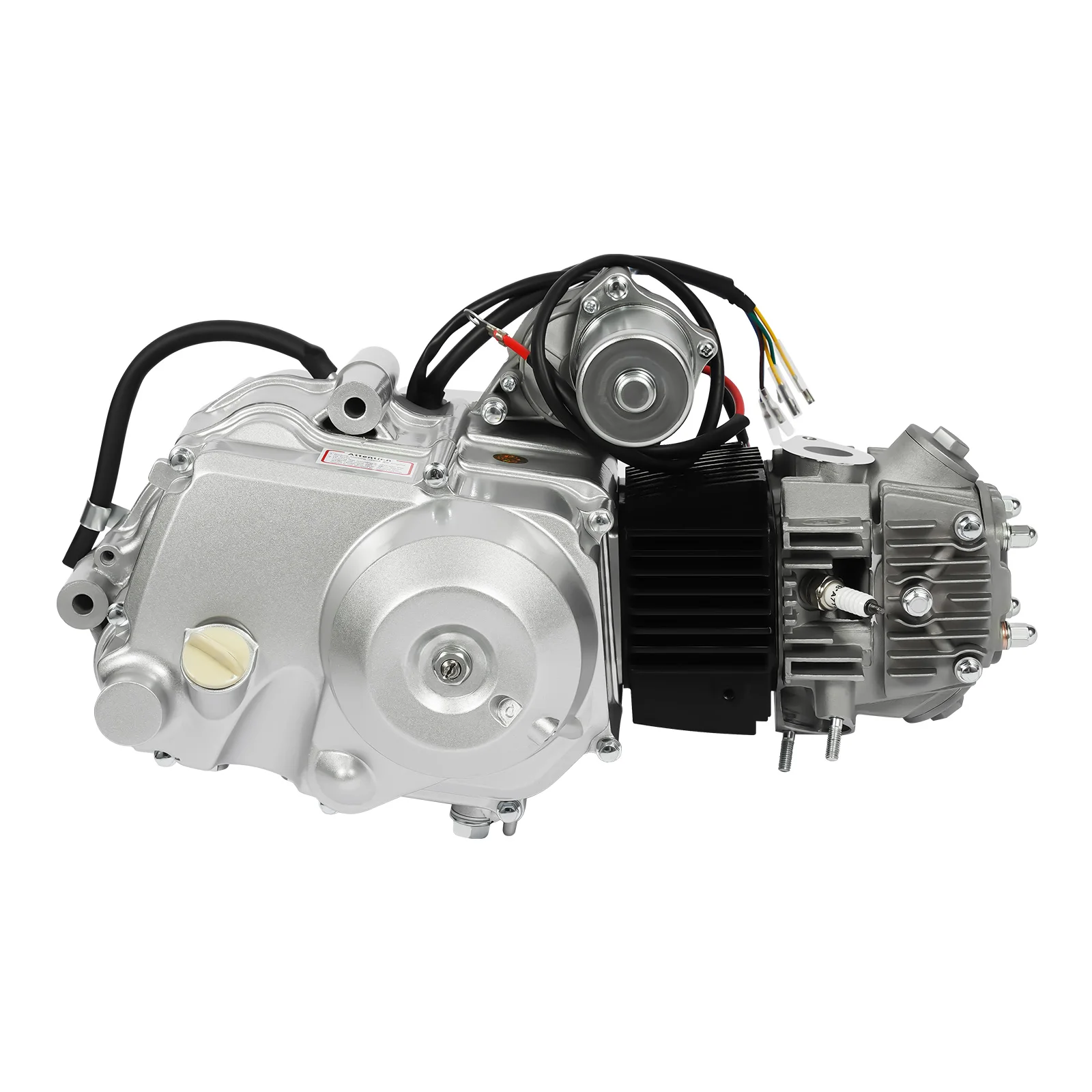

125CC 4-Stroke Engine Motor Kit, 5.5KW Electric Start with 3+1 Reverse, Compatible for ATV Quad Dirt Pit Bike Go Kart

Description

Specifications

Applicable Models: For Atomik, Pitpro, TDR, Hummer, Orion, Xmoto, Lei, Dmx, Swd, Tomahawk, Go Kart, Quad, Dirt Bike, ATV, Pit Bike, Buggy, Rocket Car

For 125cc Engine Size

Condition: New

Material: Iron, Aluminum

Process: Die Casting, Painting

Color: Silver

Engine Type: Parallel 4-Stroke Single-Cylinder Engine

Transmission System: Forward-Neutral-Reverse

Starting Method: Electric Start

Ignition Device: CDI

Cooling Method: Air Cooling

Starter Type: Foot Start

Lubrication Method: Pressure/Splash

Fuel Type: Gasoline

Carburetor: PZ19

Displacement: 125CC

Maximum Power: 5.5KW

Compression Ratio: 9:1

Max. Speed: 7500±375RPM

Idle Speed: 1500±100RPM

Max. Torque: 8.5 N.m

Front Sprocket: 420-17mm-14T

Fuel Tank Capacity: 900ml/0.24gal

Air Filter Diameter: 35mm/1.38in

Cylinder Diameter*Stroke: 52.4*55.5mm/2.06*2.19in

Top Mounting Hole Spacing: 92mm/3.62in

Bottom Mounting Hole Spacing: 82mm/3.23in

Bolt Spacing: 152mm/5.98in

Way of Use: Direct Replacement

Product Size: 48*36*30cm/18.9*14.17*11.81in

Package Size: 50*37.5*32cm/19.69*14.76*12.6in

Gross Weight: 21.95kg/48.39lbs

Net Weight: 21kg/46.3lbs

Key Features

Build to Last: It is made of high-quality iron and aluminum with die casting and paint spraying processes, which is rustproof, impact-resistant, not easy to crack, and can ensure a long service life.

Robust Power: The 5.5KW high-power parallel 4-stroke single-cylinder engine has a maximum speed of 7500 ± 375RPM, coupled with a torque of 8.5N. m, allowing you to easily shuttle through various terrains.

Highlights

Brand New, With High Quality

Strong Power

Trouble-free Installation

Exquisite Craftsmanship

Direct Replacement

Long Service Life

Improving Vehicle Safety

Comfortable Driving

The Functions Corresponding to Different Colored Cords

1. Five Wires (Plug): Gear Indicator

2. Yellow Wire: Charging Wire

4. Black & Red Wire: Battery Wire

5. Green Line: Neutral Wire

Notes

1. We strongly recommend professional installation.

2. Please double-check compatibility before purchasing to ensure proper fit.

3. Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.

Fits (As a Reference)

For Atomik, Pitpro, TDR, Hummer, Orion, Xmoto, Lei, Dmx, Swd, Tomahawk, Go Kart, Quad, Dirt Bike, ATV, Pit Bike, Buggy, Rocket Car

For 125cc Engine Size

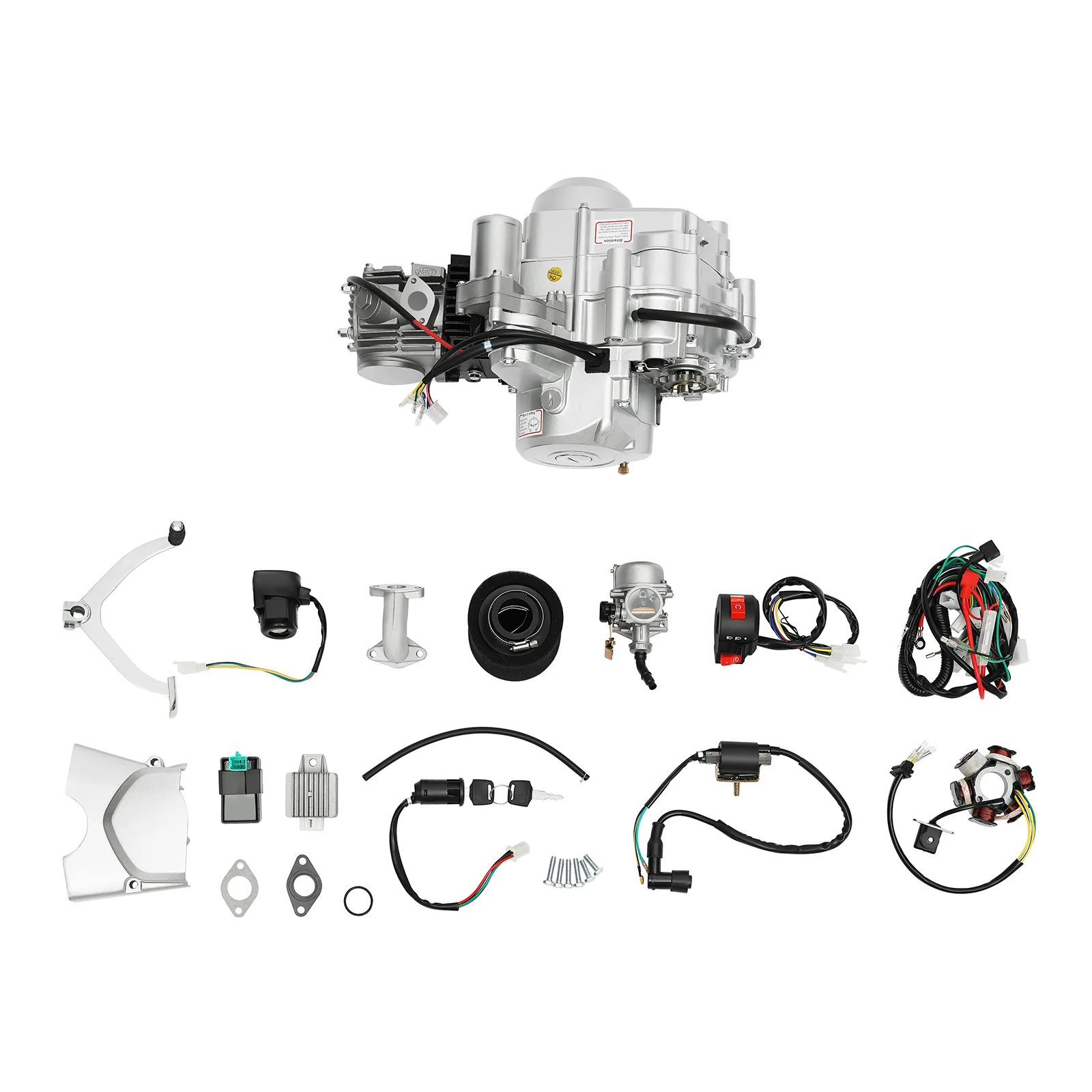

Package Included

1 * 125CC 4 Stroke Engine Motor

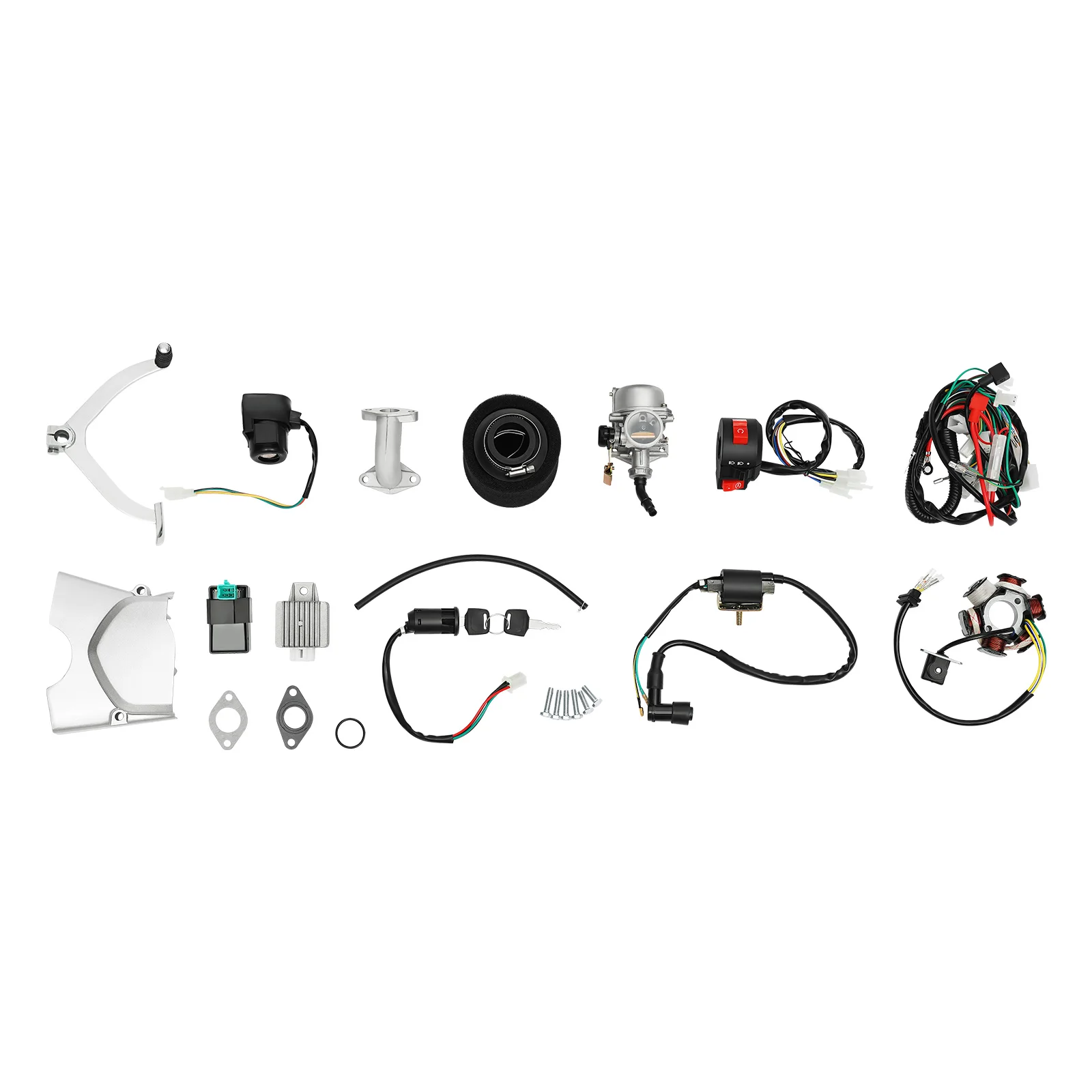

All Accessories for Assembly
