12th Gen Intel N150 N100 Firewall Router 4x i226-V 2.5G LAN N6415 N5105 J6412 Fanless Mini PC Barebone Computer OPNsense pfSense
Description
- High-concerned chemical: None
- Processor Main Frequency: Depends on CPU
- Use: Commercial
- Memory Capacity: ≥ 4GB
- Hard Drive Capacity: 1TB
- Model Number: X2B
- Processor Brand: Intel
- Processor Model: Intel
- Type: Mini Desktop
- Graphics Card Type: Integrated Card
- Brand Name: Topton
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Type: Mini PC
Please read item description and choose CPU model you want from "Color" carefully:
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
|
Intel N150 |
4 cores, 4 threads |
6M |
|
3.60 GHz |
6W |
|
Intel N100 |
4 cores, 4 threads |
6M |
|
3.40 GHz |
6W |
|
Celeron 6305 |
2 cores, 2 threads |
4M |
1.80 GHz |
|
15W |
|
Celeron N6415 |
4 cores, 4 threads |
4M |
1.20 GHz |
3.00 GHz |
6.5W |
|
Celeron N5105 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.90 GHz |
10W |
|
Celeron J6412 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.60 GHz |
10W |
|
Pentium Silver J5005 |
4 cores, 4 threads |
4M |
1.50 GHz |
2.80 GHz |
10W |

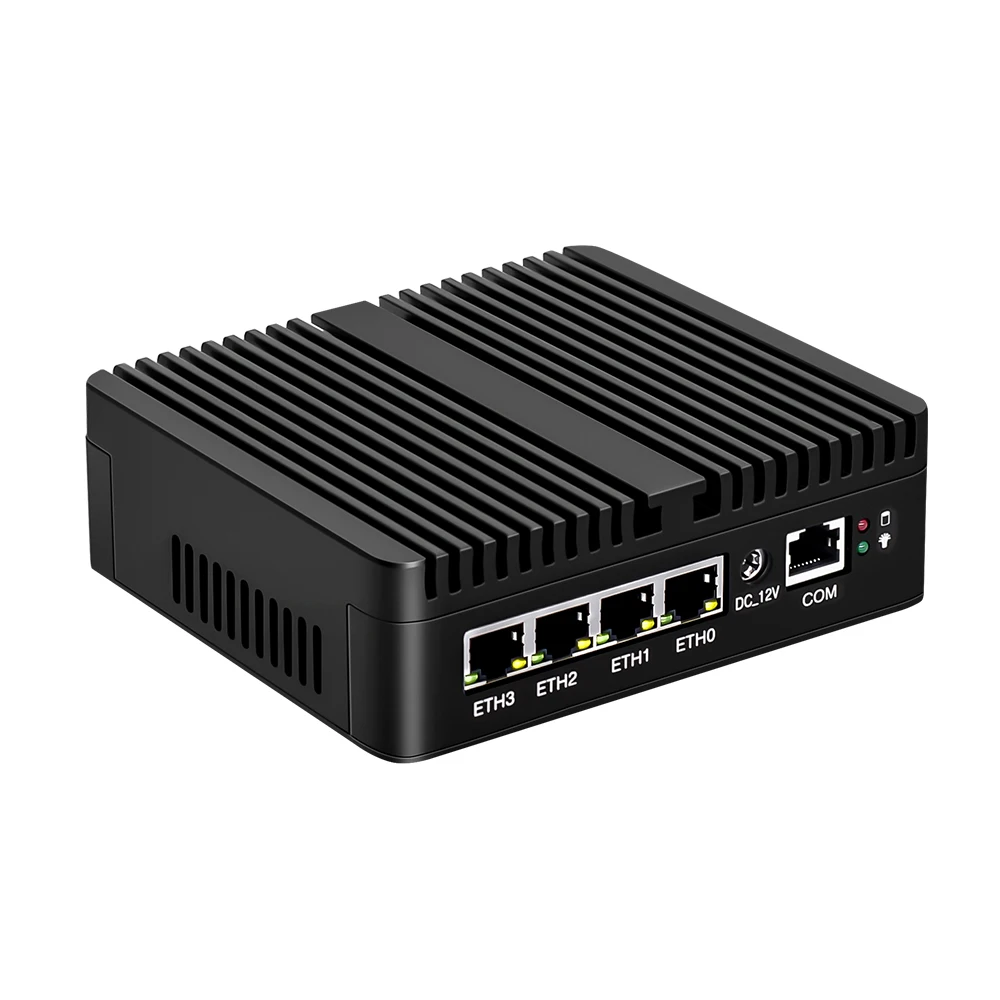

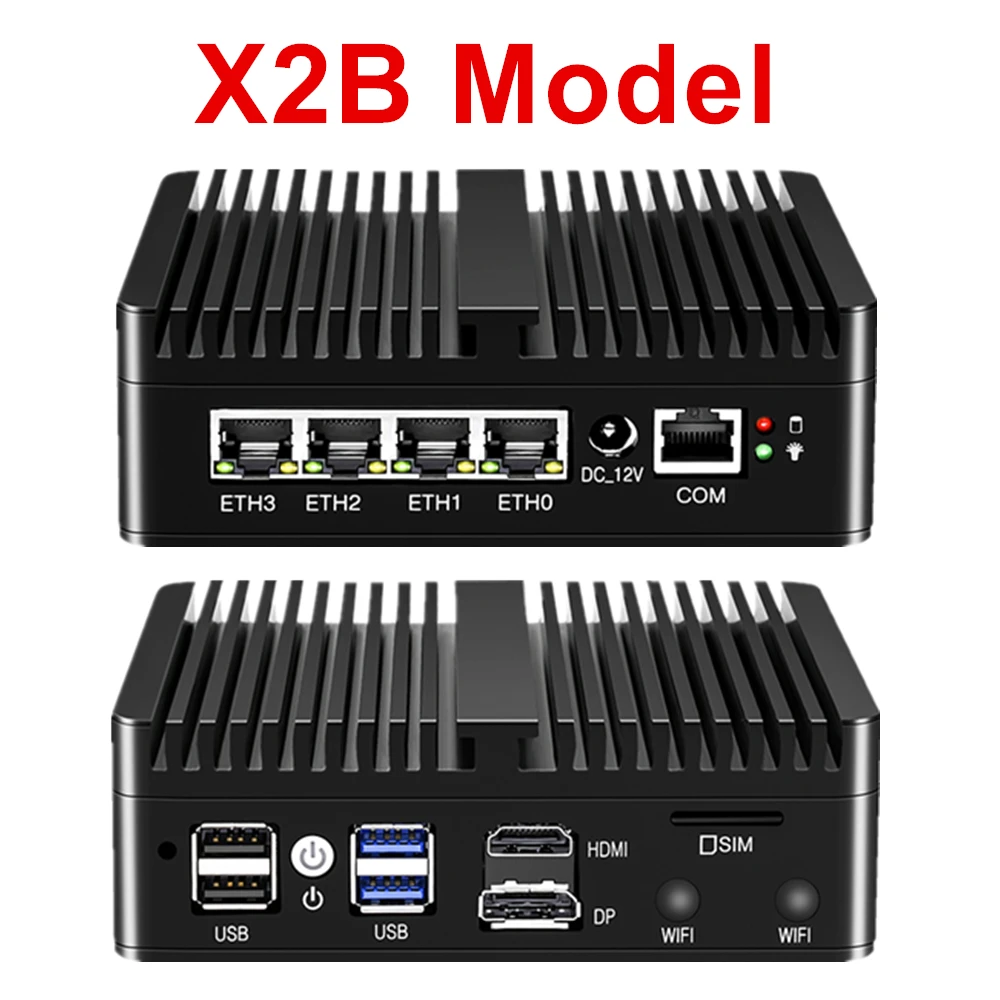

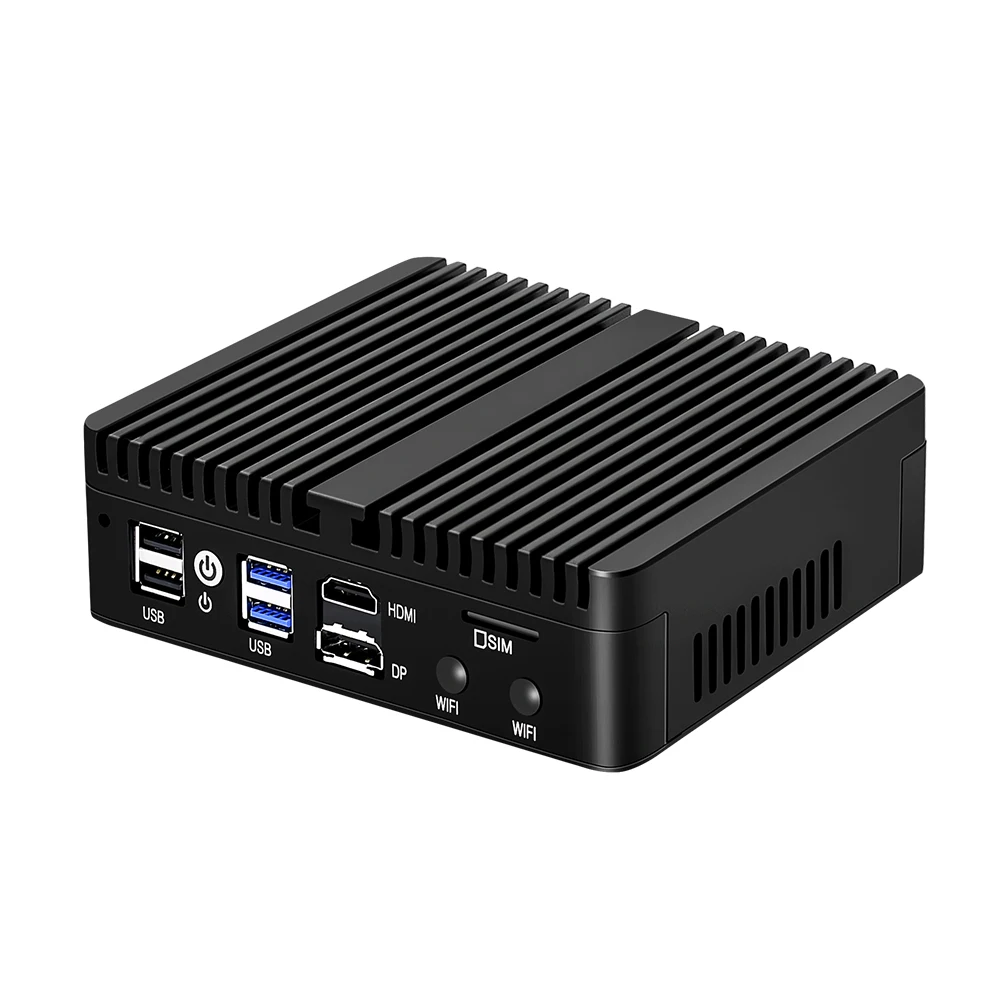

-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot.
N150/N100 model:1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
6305/N6415/N5105/J6412/J5005 model: 2xDDR4 SODIMM non-ecc ram slots, support 2400/2666MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(USB signal, 3 choose 1) connection.
-Support 1xHDMI and 1xDP dual 4K video display.
-Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-All aluminum alloy fanless system with longer fins has better cooling efficiency with a temperature 10-15℃ lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7×24 hours. Also it is a good option to add a USB fan if you have.
-It can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
Suggest to install pfSense, OPNsense etc routing system.Suggest to add extra fan for ram and hard drive cooling if you install Proxmox, ESXi etc virtual machine system to avoid overheating crash.
Welcome to click the picture of VESA Bracket to order together if you need:
Additional information
| High-concerned chemical | None |
|---|---|
| Processor Main Frequency | Depends on CPU |
| Use | Commercial |
| Memory Capacity | ≥ 4GB |
| Hard Drive Capacity | 1TB |
| Model Number | X2B |
| Processor Brand | Intel |
| Processor Model | Intel |
| Type | Mini PC |
| Graphics Card Type | Integrated Card |
| Brand Name | Topton |
| Origin | Mainland China |
| Certification | CE,FCC,RoHS |
| Color | Celeron 6305 DDR4, Celeron J6412 DDR4, Celeron N4000 DDR4, Celeron N5105 DDR4, Celeron N6415 DDR4, Intel N100 DDR5, Intel N150 DDR5, Pentium J5005 DDR4 |
| Bundle | 16GB Ram 256GB NVMe, 32GB Ram 1TB NVMe, 8GB Ram 128GB NVMe, No RAM No Storage |
