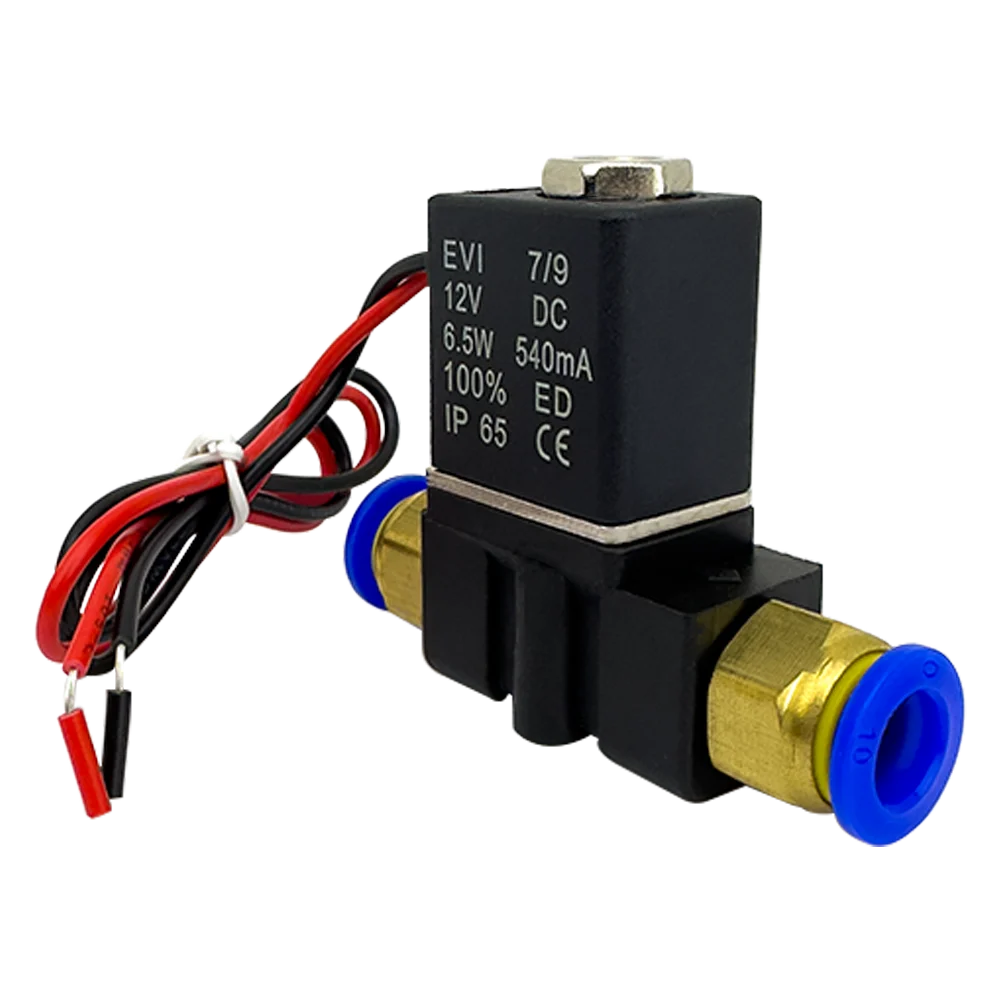

12V 24V 220V Pneumatic Electric Solenoid Valve 2 Position 2 Port Normally Closed Air Magnetic Valve 6mm 8mm Hose Barb Connection
11.47$ – 14.30$Price range: 11.47$ through 14.30$
In Stock
Loading...
Description
- High-concerned chemical: None
- Motivity Type: Hydraulic fluid power
- Type: Valves
- Model Number: –
- Origin: Mainland China
- Certification: CE
- Voltage: DC 12/24V,AC 110/220V
- Solenoid valve internal thread: 1/4
Specifications:
-
Valve Type: 2 Way Normally Closed (Valve opens with energized)
-
Port Size: 1/4" Female Port
-
Diameter of the outlet of the brass joint: 4/6/8/10/12/14/16MM
-
Coil Voltage: DC12V/DC24V/AC110V/AC220V
Material:
-
Body Material: Engineering plastics
-
Seal Material: NBR (Buna N)
-
Armature Tube Material: Brass
-
Plunger & Spring Material: Stainless Steel
-
Working temperature: 0~60℃
-
Applying pressure: 0.15~0.8Mpa
-
Ensure pressure: 1.0Mpa
-
Protection level: IP65
-
Working method: Internal leading approach
Additional information
| High-concerned chemical | None |
|---|---|
| Motivity Type | Hydraulic fluid power |
| Type | Valves |
| Model Number | – |
| Origin | Mainland China |
| Certification | CE |
| Voltage | DC 12/24V,AC 110/220V |
| Solenoid valve internal thread | 1/4 |
| Color | 10mm, 12mm, 14mm, 16mm, 4MM, 6mm, 8mm, No Fittings |
| Specification | AC110V, AC220V, DC12V, DC24V |
