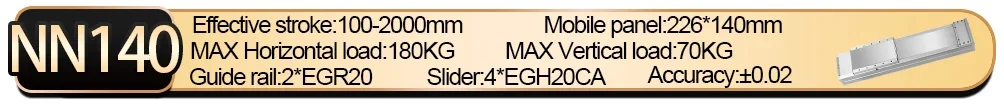

Description
- High-concerned chemical: None
- Model Number: NN140
- Guide Width or Diameter: 140mm
- Origin: Mainland China
- Certification: CE
- Effective Stroke: 100mm-2000mm Optional
- Ballscrew type: SFU2005/SFU2010/SFU2020
- Horizontal load: 180KG (Max)
- Vertical load: 70KG (Max)
- Module material: Industrial Aluminum Profile
- Module width: 140mm
- Repeat positioning accuracy: ±0.012mm
- Ballscrew accuracy: C7
- Guide Type: 2*EGR20
- Slider Type: 2*EGH20CA
- Guide width: 20mm
- Product type 1: Nema23 Slide Table kit
- Product type 2: Slide Table motor kit
- Product type 3: 57mm motor linear guide
- Product type 4: Linear Guide Rail Stage
- Product type 5: CNC slide kit
- Product type 6: SFU2005/2010/2020 sliding table
●If you choose "57 Motor Bracket":
1* 140mm Wide Steel Strip Slide Module
1* 8mm Coupling For Nema 23 57mm Stepper Motor
●If you choose "86 Motor Bracket":
1* 140mm Wide Steel Strip Slide Module
1* 14mm Coupling For Nema 34 86mm Stepper Motor
●If you choose "60 Motor Bracket":
1* 140mm Wide Steel Strip Slide Module
1* 14mm Coupling For 60mm Servo Motor
●If you choose "80 Motor Bracket":
1* 140mm Wide Steel Strip Slide Module
1* 19mm Coupling For 80mm Servo Motor
●If you choose "With 57 Motor Driver":
1* 140mm Wide Steel Strip Slide Module

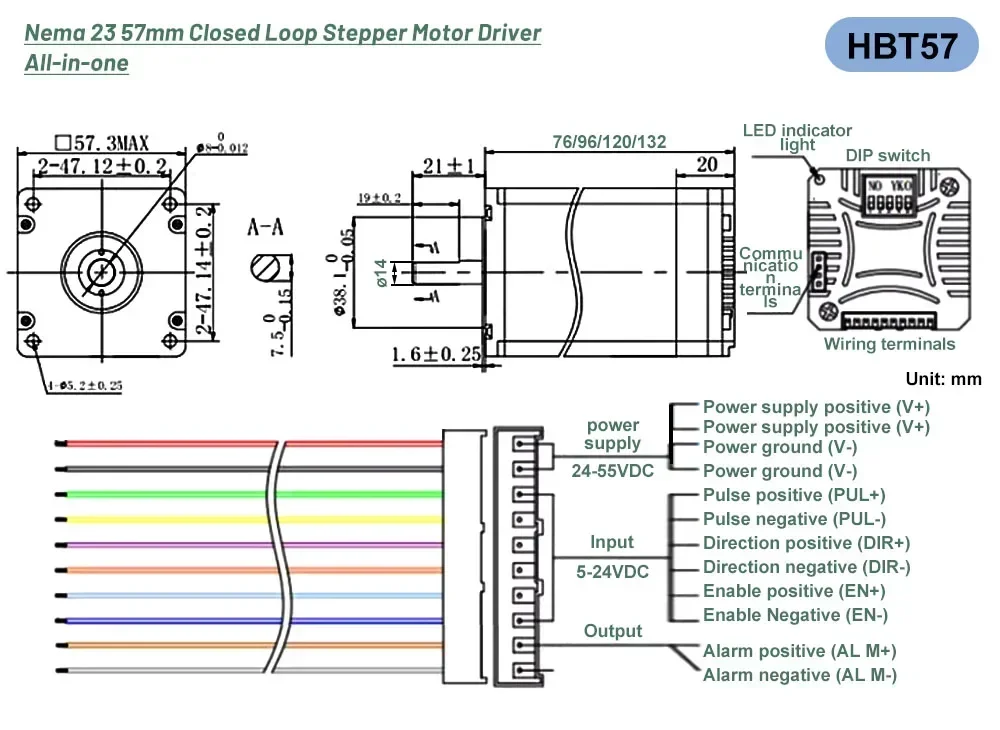

1* 1.5Nm Nema 23 57mm Closed-loop Stepper Motor Driver All-in-one
1* 8mm Coupling

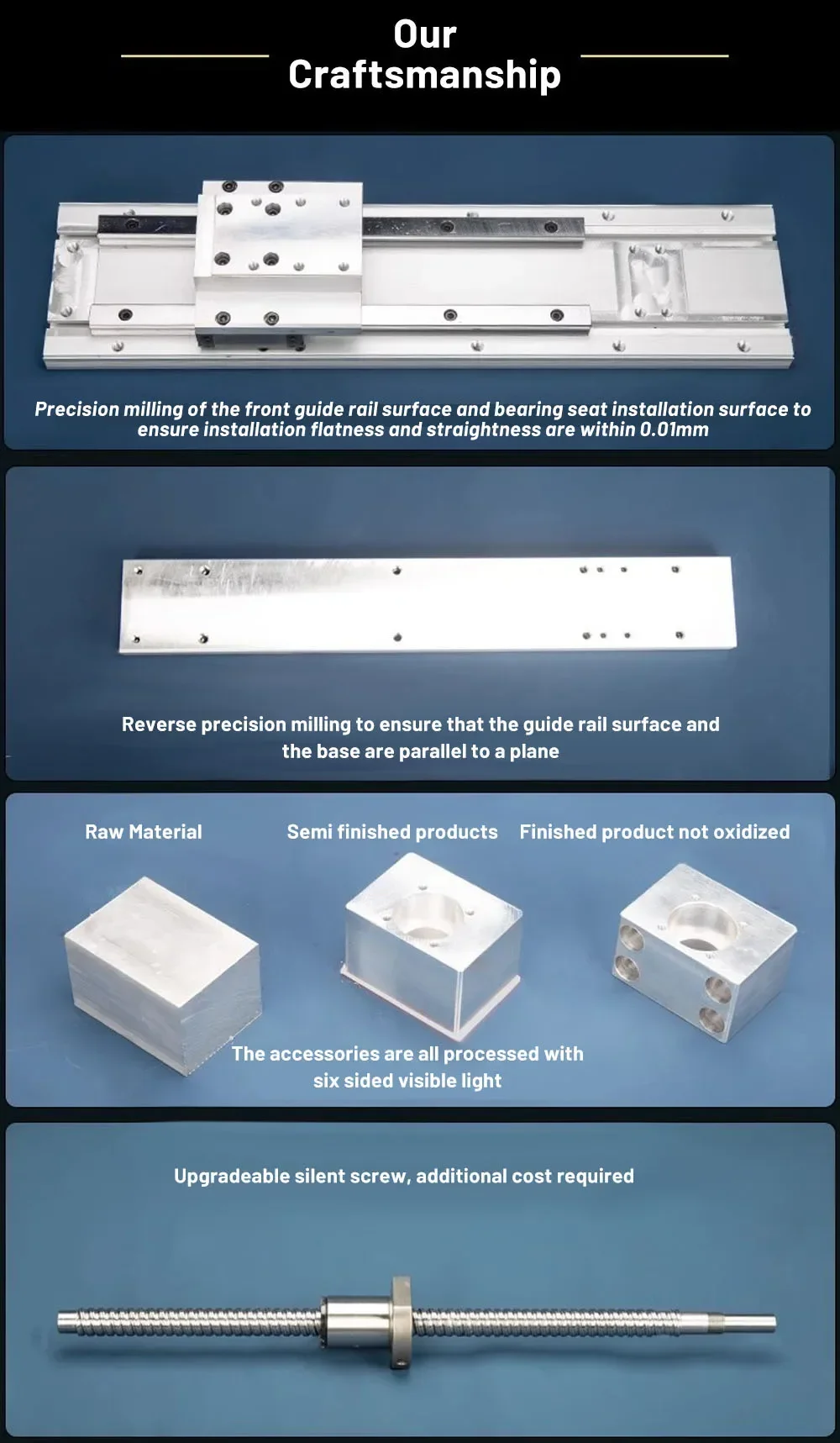

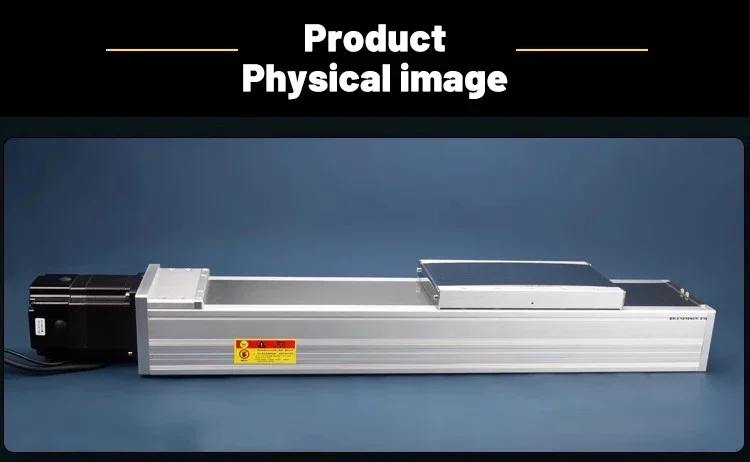

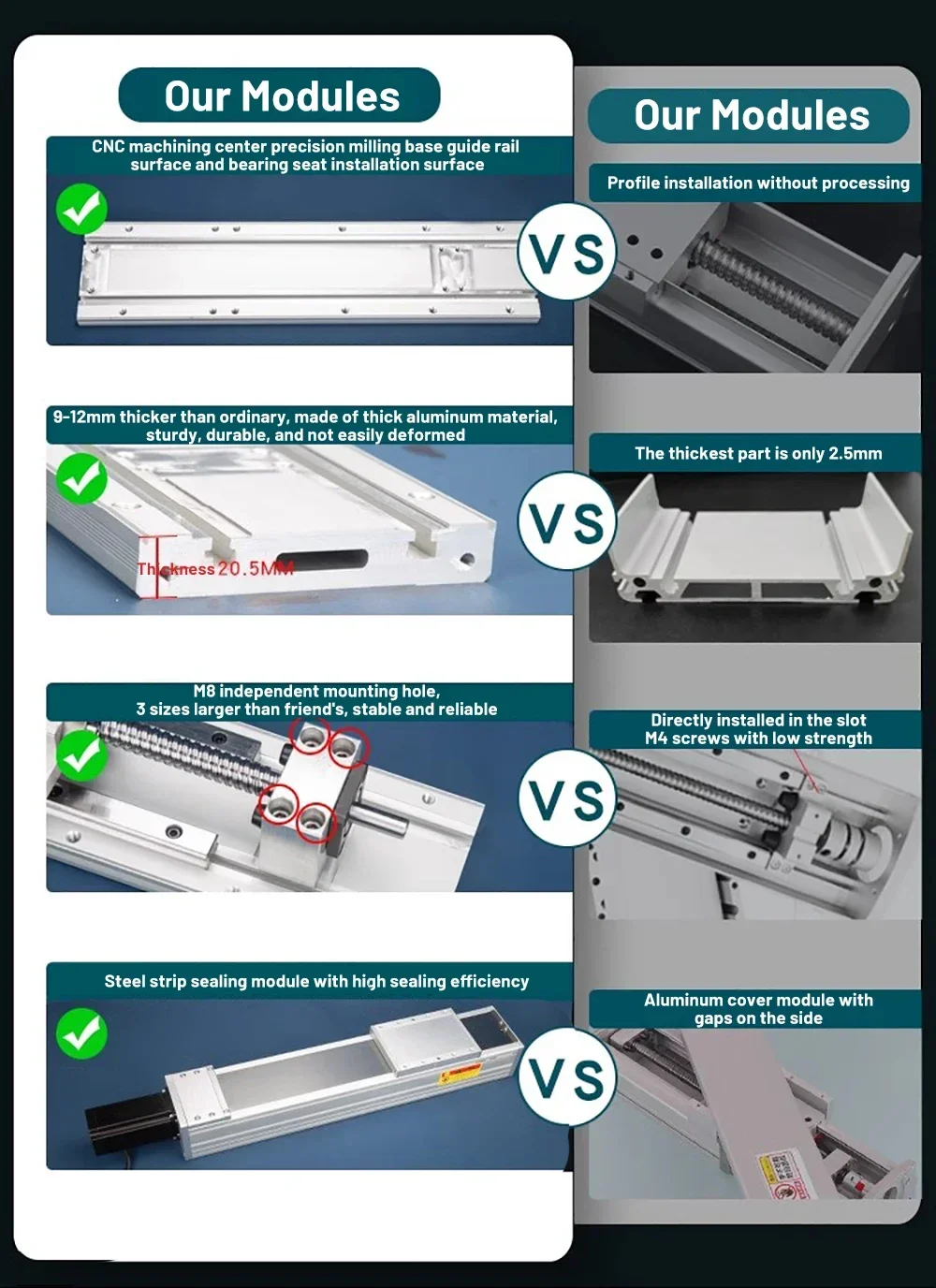

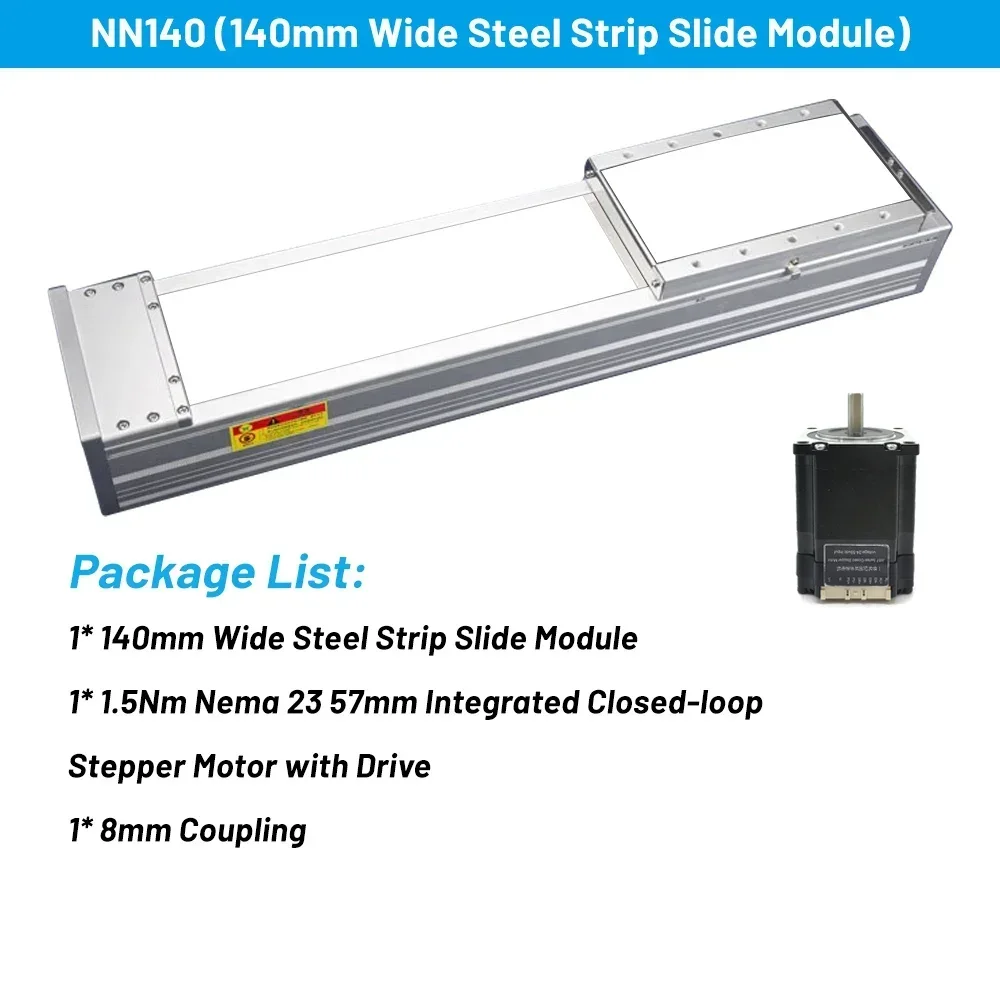

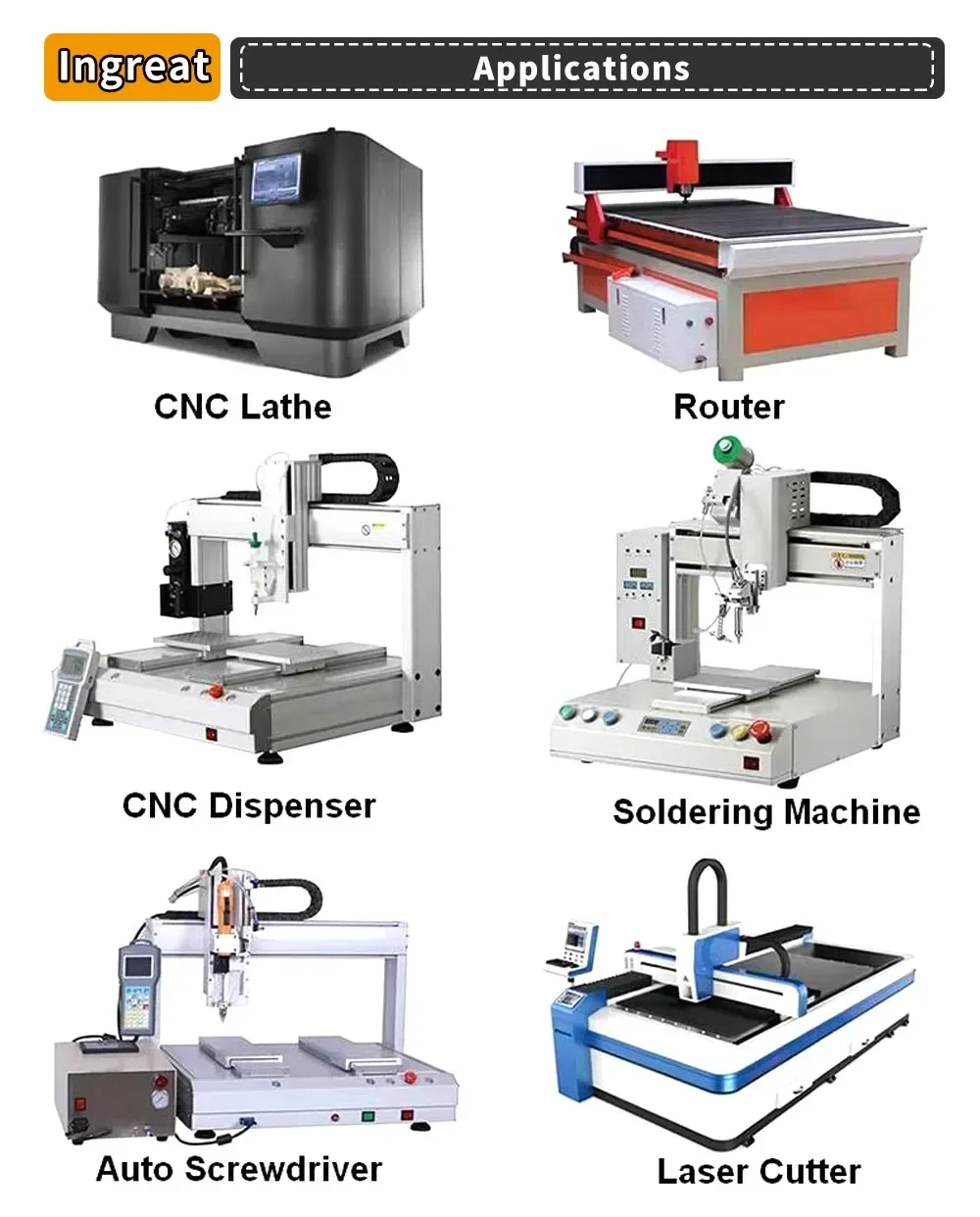

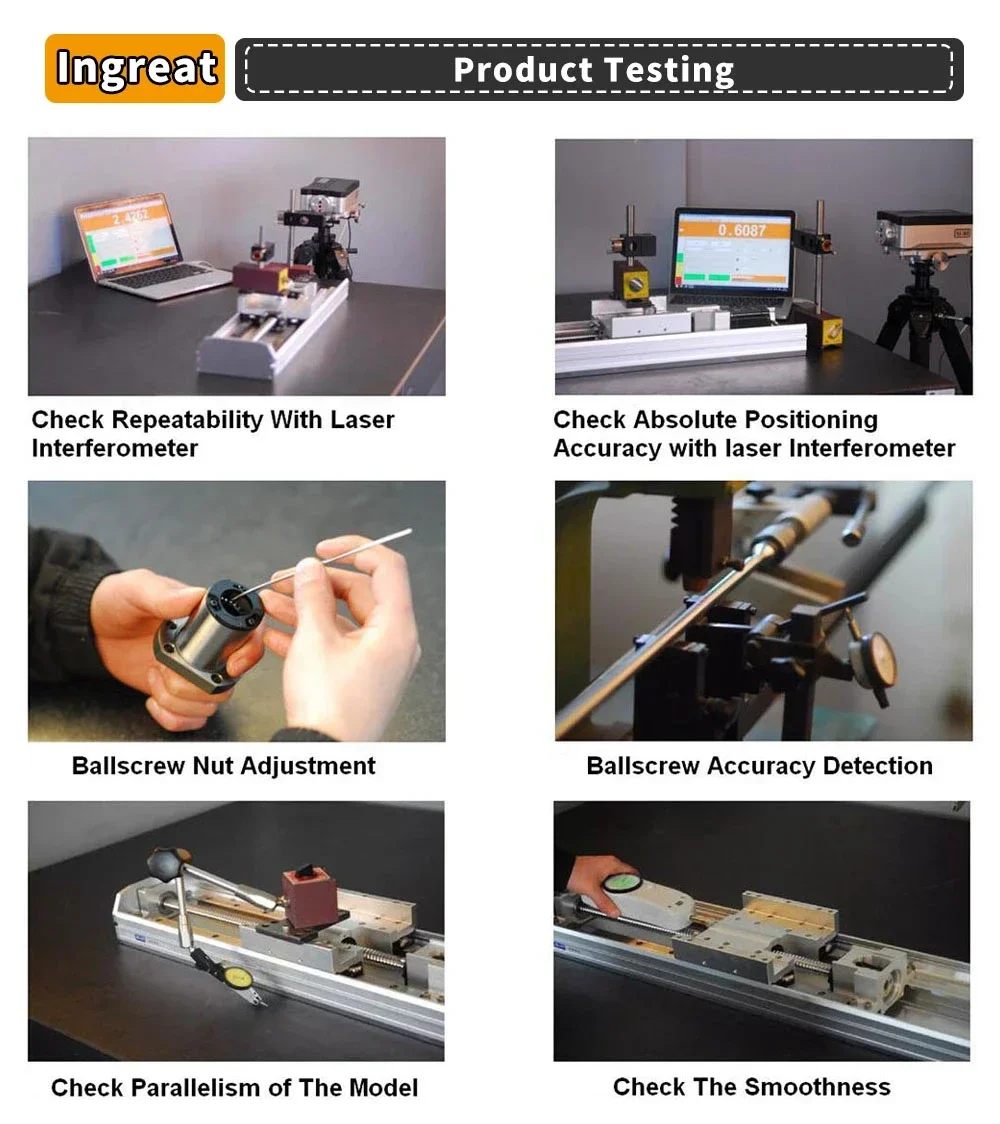

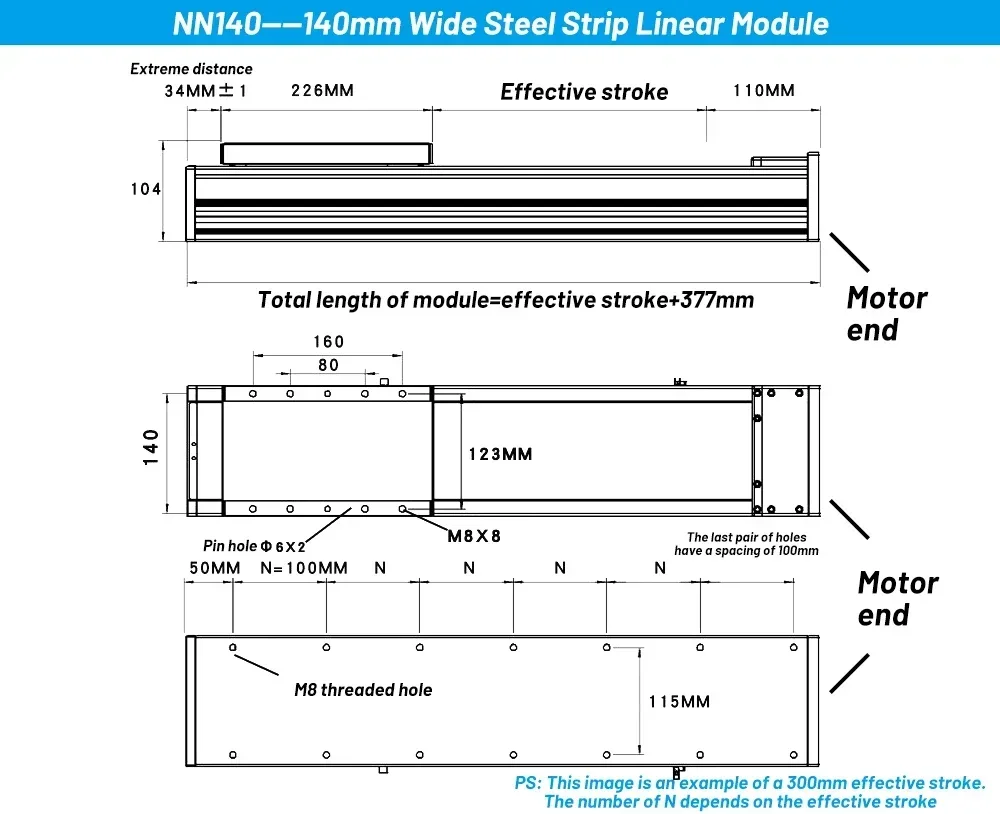

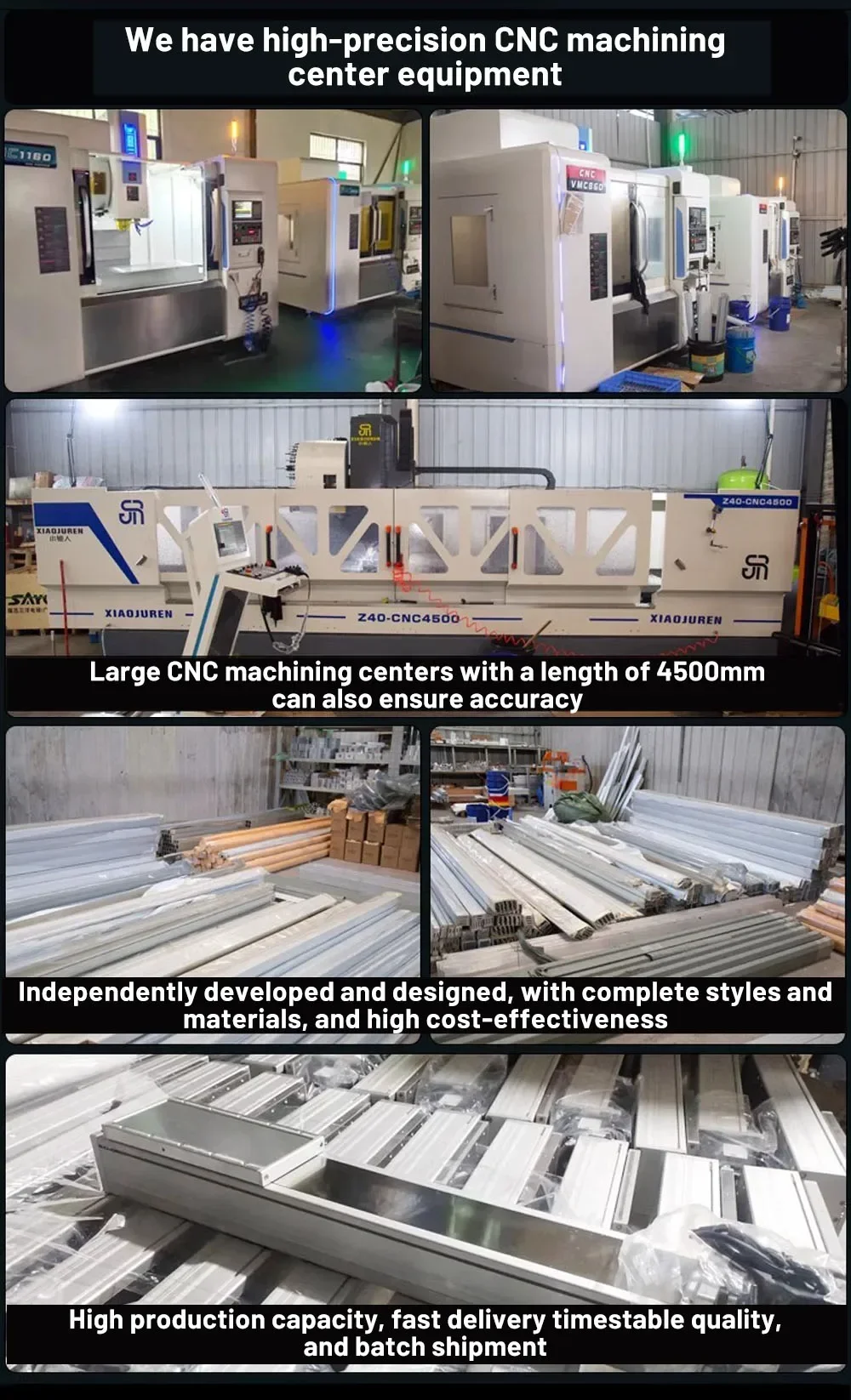

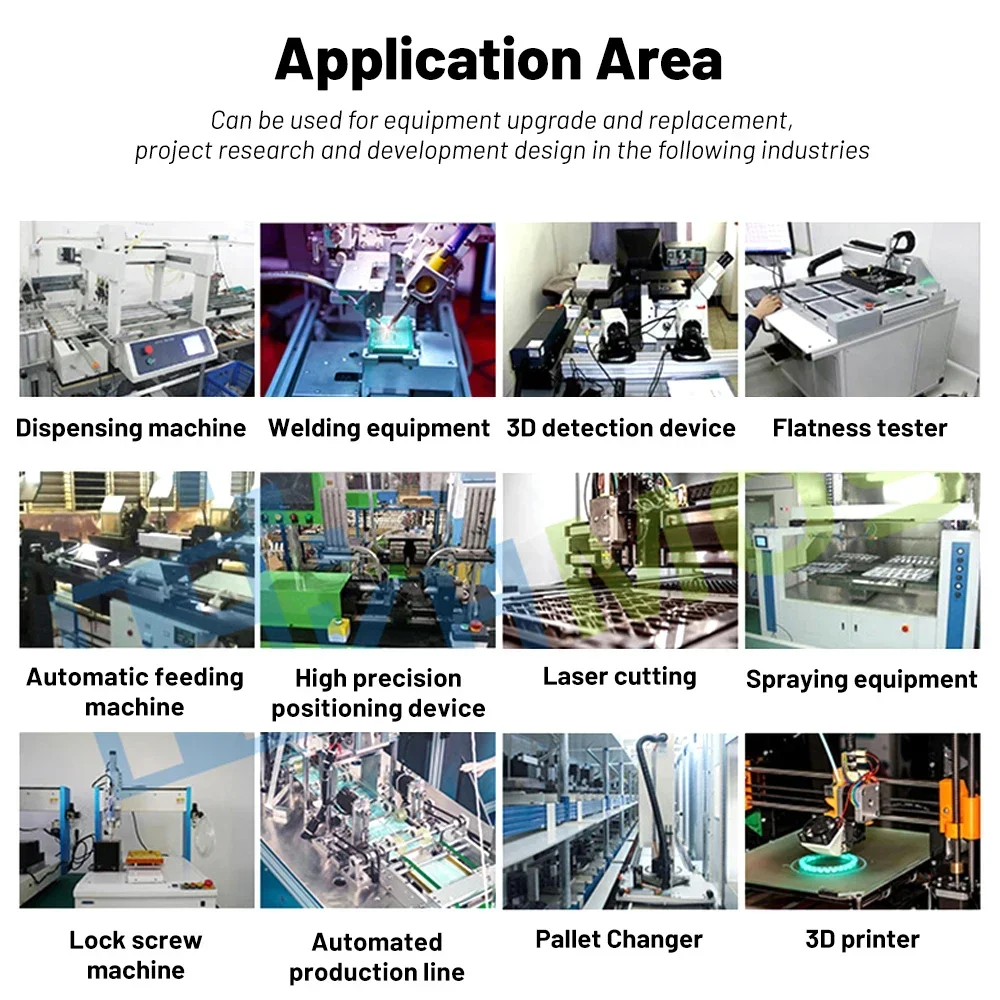

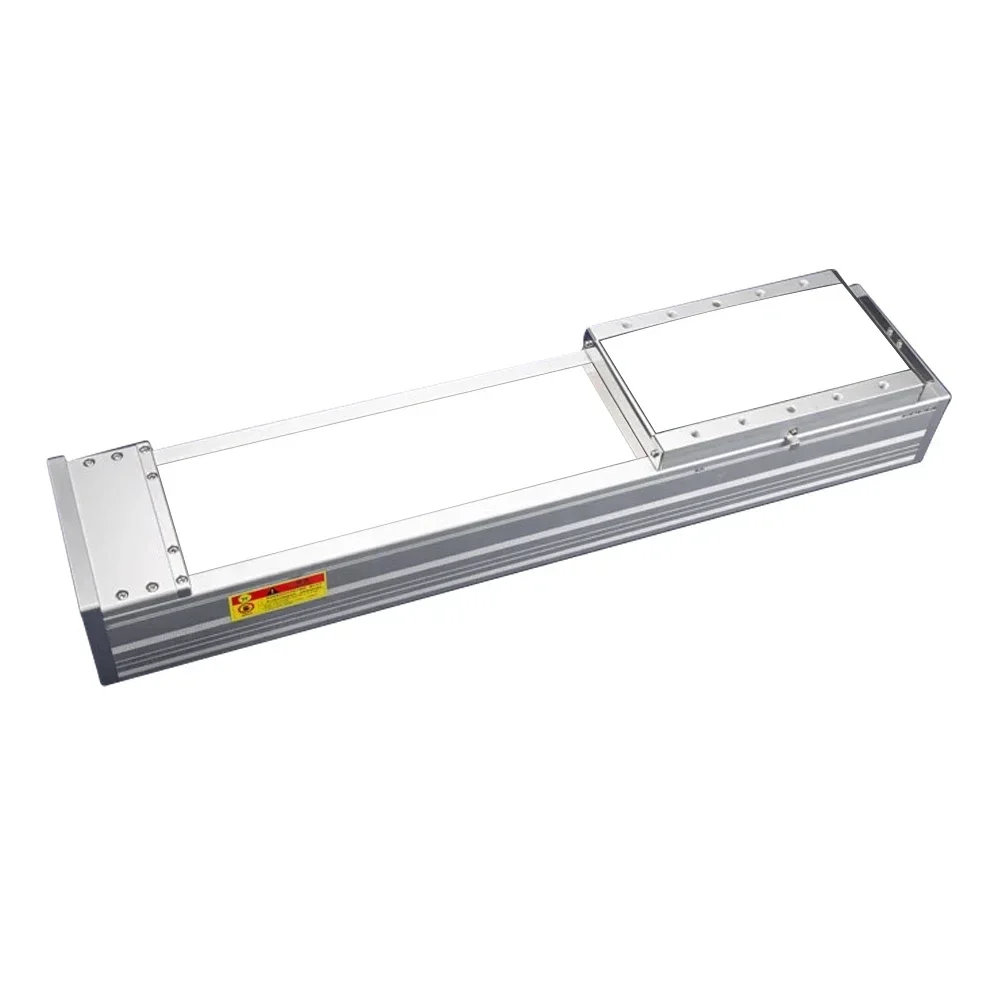

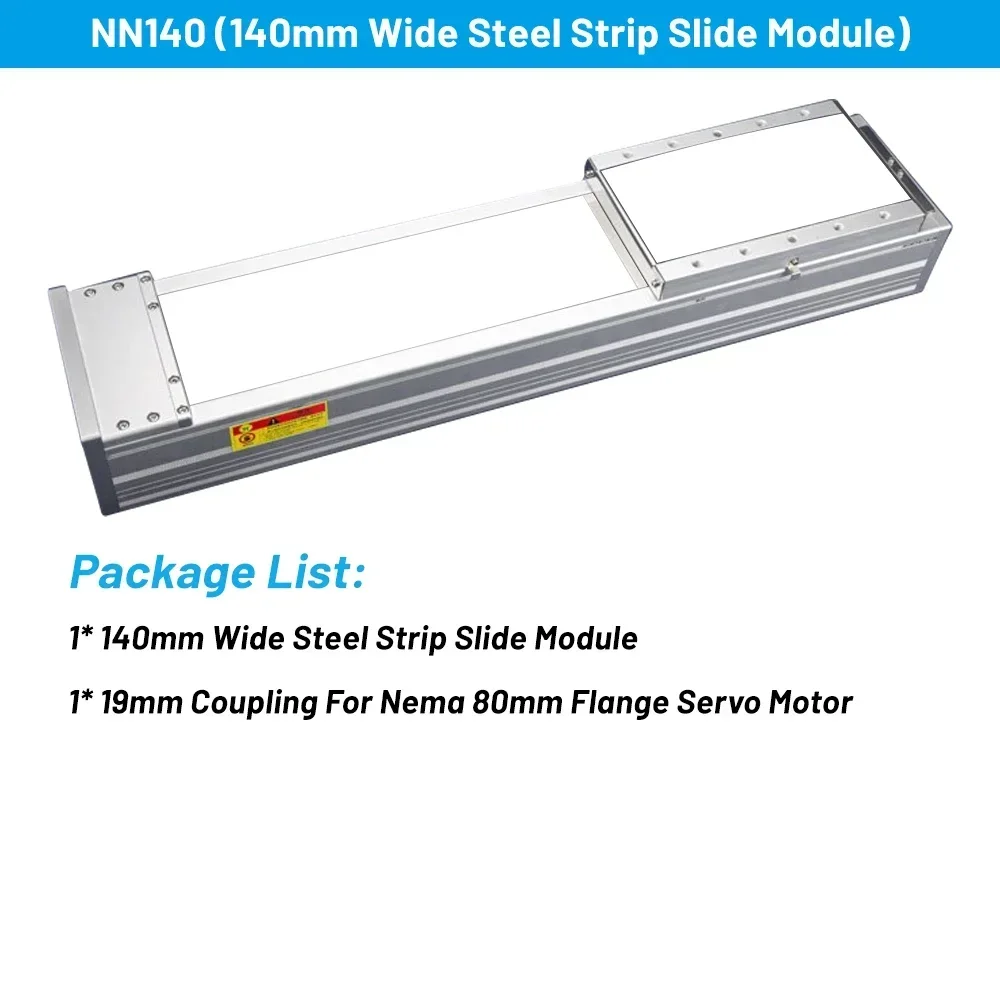

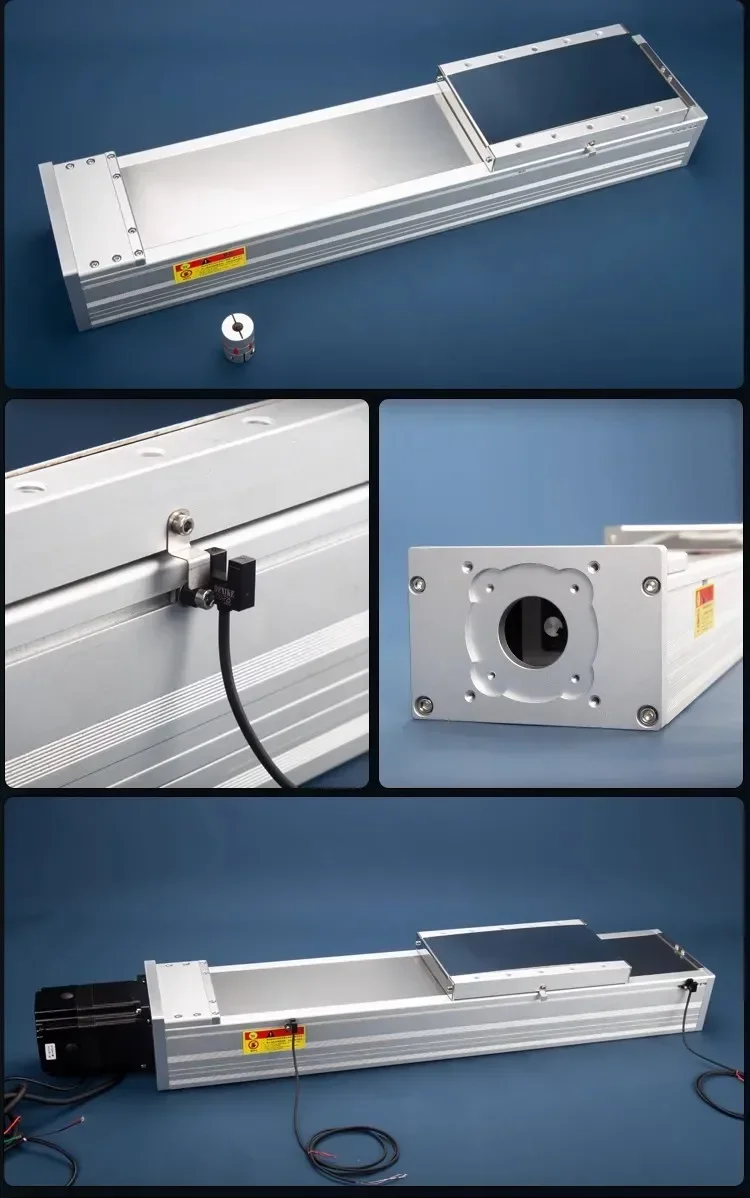

NN140 (140mm Wide Fully Enclosed Steel Strip Slide Module) | ||||||||||||
Effective stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
Total length (mm) | 477 | 577 | 677 | 777 | 877 | 977 | 1077 | 1177 | 1277 | 1377 | 1477 | 1577 |
Horizontal load (kg) | 180 | 175 | 170 | 165 | 160 | 155 | 150 | 145 | 140 | 135 | 130 | 125 |
Vertical load (kg) | 70 | 68 | 67 | 66 | 65 | 64 | 62 | 58 | 54 | 50 | 46 | 42 |
Module weight (kg) | 11.6 | 12.9 | 14.2 | 15.5 | 16.8 | 18.1 | 19.4 | 20.7 | 22 | 23.3 | 24.6 | 25.9 |
Ball screw | SFU2005 | SFU2010 | SFU2020 | Adapted motor | 60/80mm Servo | Nema 23 57mm/ | ||||||
Screw diameter (mm) | 20 | 20 | 20 | Linear Guide | 2*EGR20 | |||||||
Rotate per revolution (mm) | 5 | 10 | 20 | Square slider | 4*EGH20CA | |||||||
Repetitive positioning accuracy(mm) | ±0.012 | ±0.012 | ±0.012 | Mobile panel size (mm) | 226*140 | |||||||
3000rpm Extreme speed (mm/s) | 250 | 500 | 1000 | Ball screw accuracy | C7 | |||||||

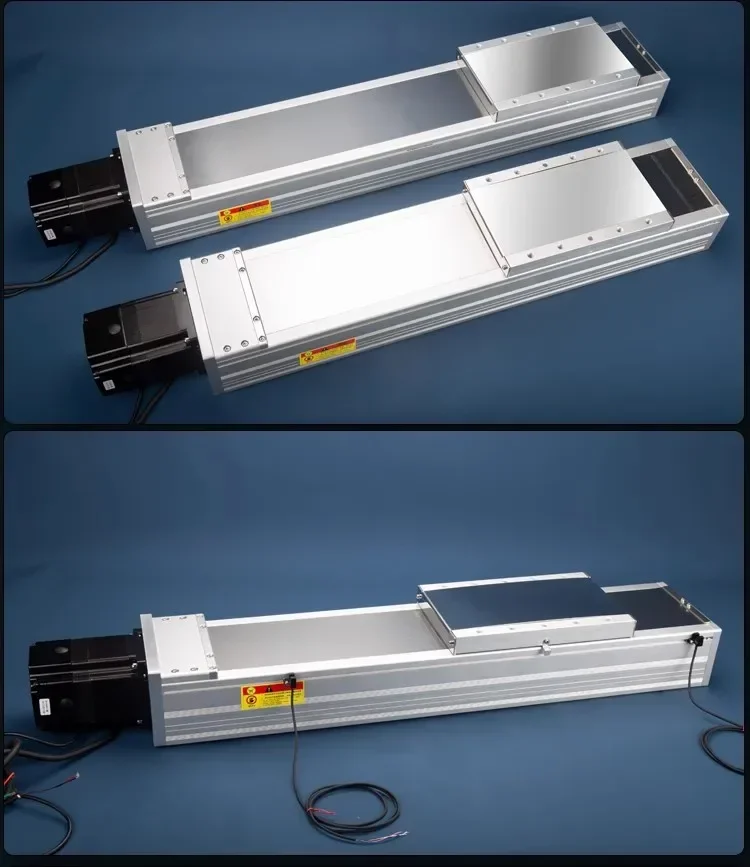

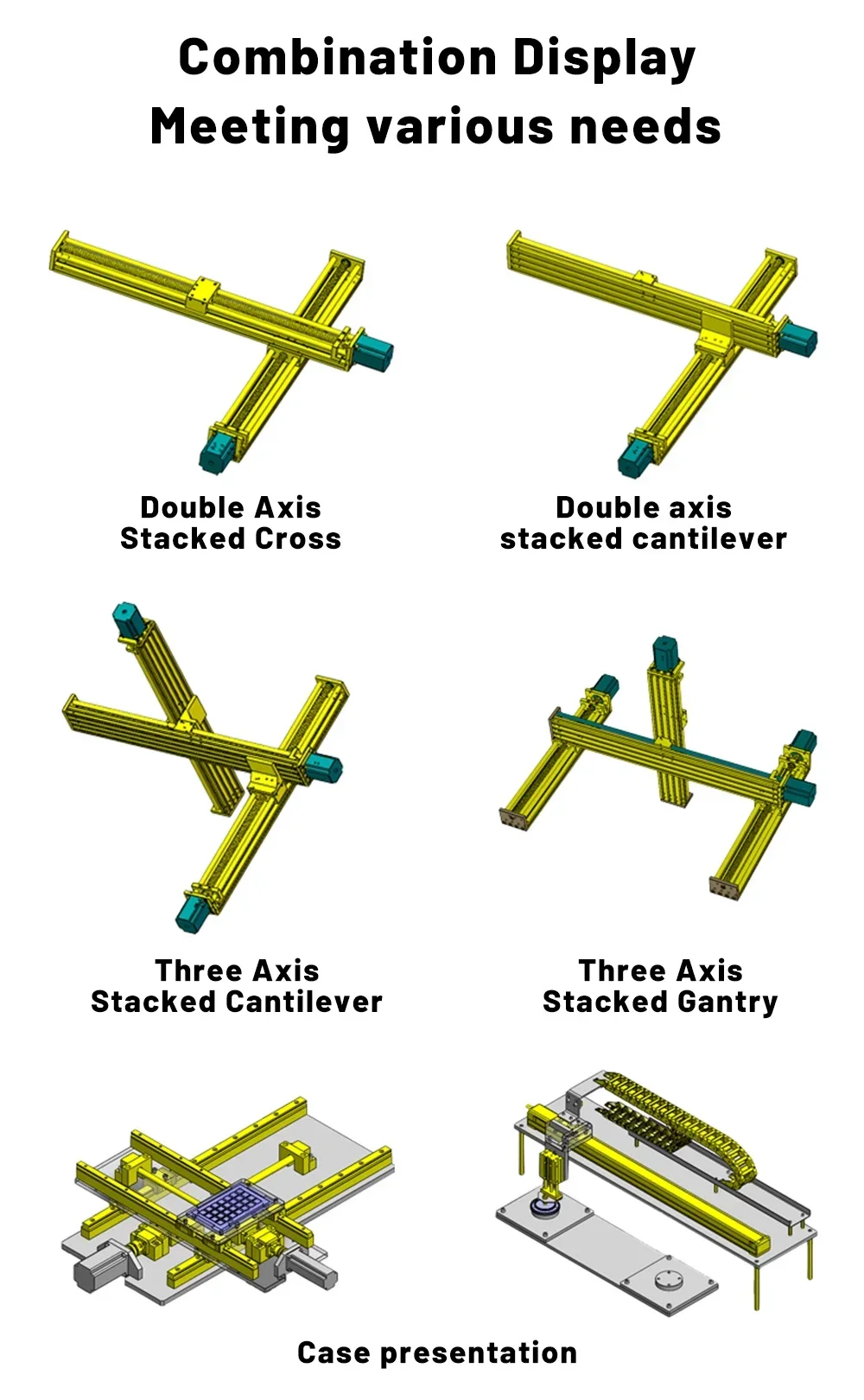

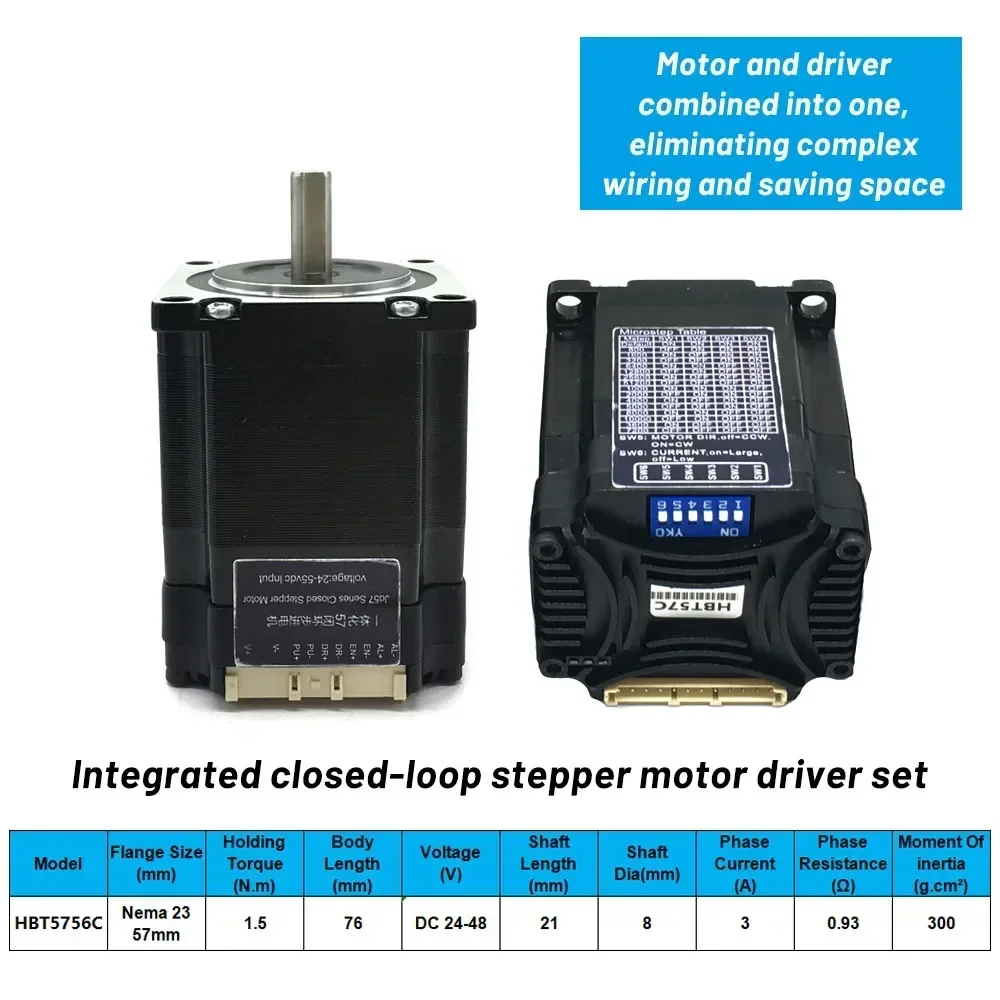

Model | Flange Size (mm) | Holding Torque | Body Length | Voltage | Shaft Length | Shaft Dia(mm) | Phase Current | Phase Resistance (Ω) | Moment Of inertia |
HBT5756C | Nema 23 | 1.5 | 76 | DC 24-48 | 21 | 8 | 3 | 0.93 | 300 |
