2/3/4 Multifamily 1080P TUYA WiFi Video Doorphone Building 7/10 Inch Monitor Family Apartment doorbell System Multi option DIY

Description

   4 Wire Video Door Phonefor 2,3,4 apartments（If you are an 3-family apartment Building, then you should purchase 1 pieces 3-family outdoor units doorbell and 3 pieces indoor units monitor screen ）

Note： this Building Intercom kit must have both indoor and outdoor units to form a complete system. Purchasing an outdoor Doorbell unit separately or an indoor monitor unit will not work properly！

Please note that the options are individually available in 1pcs, and you can choose the LCD color and size according to your needs. Combine your own doorbell system,

We usually do not recommend purchasing one piece separately. Our doorbell can only be combined with products from our manufacturer and cannot be connected to doorbells produced by other factories.

2/3/4 Multifamily 1080P TUYA WiFi Video Doorphone Building Intercom Kits 7/10 Inch Monitor Family Apartment doorbell System

Tuya 7 Inch Video Wifi Intercom Tuya Smart Home video 2 doorbell System 1080P 160°Wired Doorbell Camera Full Touch Monitor

Function

Doorbell Type2, 3, 4 Floors

Resolution: 2Mega pixels,150 Horizontal angle

Night vision :IR CUT no color deviation, B/W night vision

Unlock

Indoor monitor, mobile phone connected to APP IC card can unlock the door, and the IC card capacity can reach 1,000 cards

Screen :7 inch capacitive touch 1024*600 indoor monitor

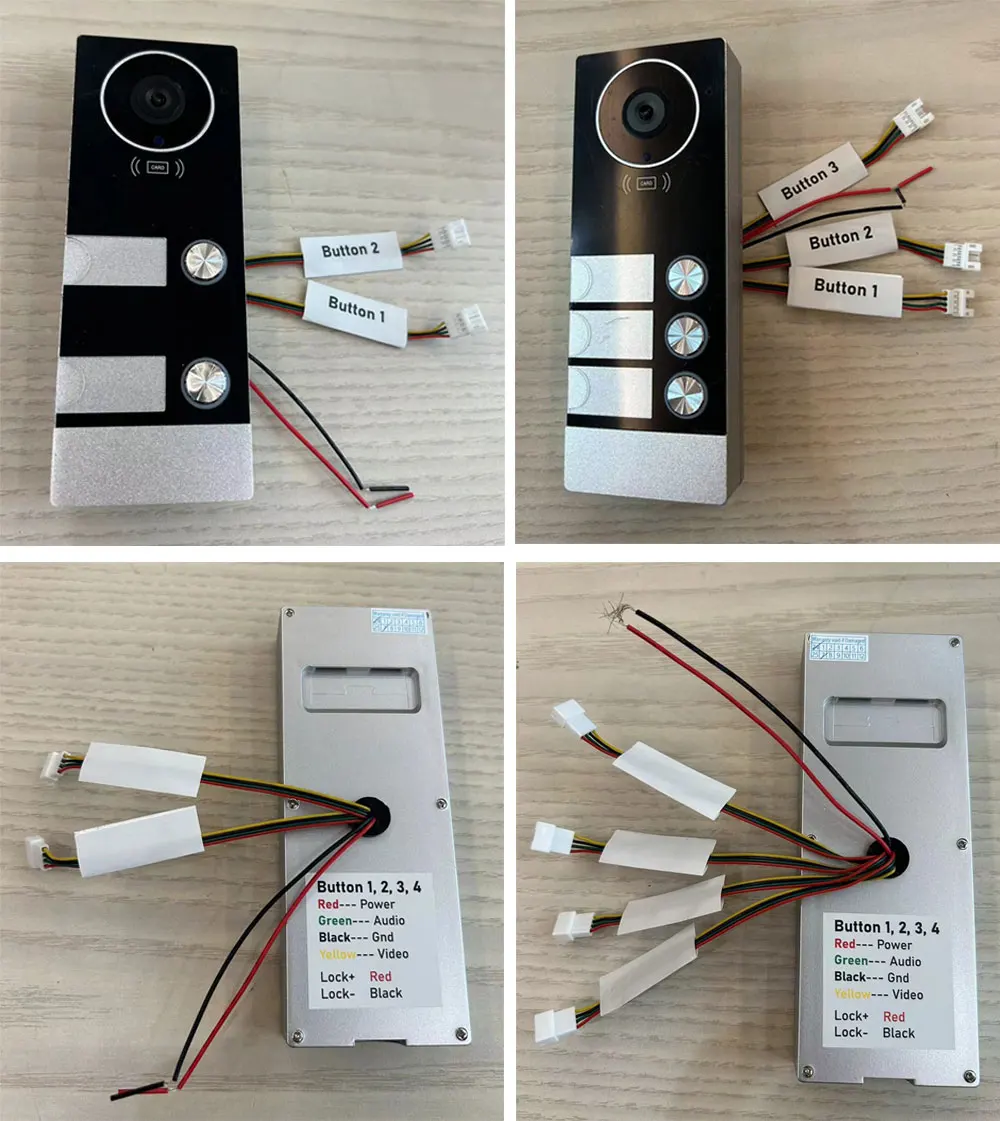

Connect: Each button connect up to 6 indoor monitors,each monitor connect up to 2 CCTV cameras.

Network :Master indoor monitor connects 2.4G WiFi 802.11 b/g/n

Power adapter:Each indoor monitor connect a 12V 2A power adapter, outdoordoorbell doesn’t need separate power supply；

Function:Take photo, take video, unlock, lock delay, ring setting

TF Card :External TF card to save photos or videos, leave messages

Tuya APP :Users can talk to visitors anytime and anywhere

Message Push photo to APP when call

lPlayback Video record after the call

Touch Screen Monitor

Screen :10 inch capacitive touch 1024*600 indoor monitor

Touch Sensor Button, Acrylic Wire Drawing Panel

Indoor Monitor is made of Acrylic Wire Drawing Panel and TFT Display with sensitive white light. This is very elegant design, and it adopts advanced touch technology.

3 in 1 Unlock

This device has various unlocking methods. You can unlock by monitor, card, and APP . It is very convenient and flexible.

Description

• High-Resolution Video Intercom :Experience clear and detailed visuals with the 1080P, 10-inch Color Touch Screen WiFi Video DoorBell. It ensures easy identification of visitors and enhances home security.

• Smart Home Integration :This video intercom system seamlessly integrates with the Tuya smart home platform, allowing for remote control and monitoring from anywhere, anytime.

• Advanced Security Features :Equipped with motion detection and ID unlocking, this video intercom system provides multiple layers of security to protect your home and family.

• Easy Installation :Designed for wall mounting, this video intercom system is easy to install, making it a convenient addition to any home or office.

• Expandable Storage :With a TF card record kit, this video intercom system can store and retrieve footage for review, ensuring you have all the information you need for your home's safety.

Generation wireless WIFI Smart Video Doorbell intercom system:

Wireless doorbell easily talks with visitors through the app, which supports IOS/Android smartphones and tablets. Support remote unlocking, monitoring, Two-way communication, video recording, etc. You can answer the door in your hand.

No Subscription Required:

Free smart platform TUYA APP,

About Wifi connection:

Please note the wifi video intercom system not mean it's don't need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired connect.

The doorbell and camera can be extended with RVV4/Cat5/Cat6/RG59 wire, Network cables. The maximum distance can exceed 300ft.

The indoor monitor and doorbell wired connections, works stably. You don't need to worry about the network signal anymore.

1. Use the drill bit to drill three holes. One hole is large enough to pass through the 4pin wire, use anchors if user install outdoor doorbell on brick or concrete.

2. Remove the screws from the back cover

3. The back cover is separated from the doorbell

4. The 4pin wire goes through the hole in the wall

5. Fasten the back cover with two screws

6. Plug the back cover on the doorbell and fix the bottom screws

7. Fix the hanging plate to the wall with two screws

8. Insert the MicroSD card to the slot of indoor monitor

9. Connect the other end of the 4pin wire to Door1 of the indoor monitor

10. Connect the indoor monitor to a 12V 2A power adapter

11. Hang the indoor monitor to the hanging plate

Rainproof and Night vision

IP65 waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel,Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.

Automatically Snapshot/Record

When visitor press the doorbell or triggered motion detection, the camera will automatically snapshot or record and save in a additional Micro SD card.

Free tuya smart app, Monitor anytime and anywhere.

After downloading the Tuya app, you can connect the monitoring device to your smartphone in less than two minutes.

The operation is simple and safe. enjoy using phone to control the whole house of smart home appliances!

About Wireless Connetion:

Please note the wifi video intercom system not mean it's don't need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired Connect.

·The monitor support WiFi network(only connect with 2.4GHZ router band), easily setup video doorbell by connecting to wifi via the Tuya app.

·The indoor monitor and doorbell is Wired connection. You can use RVV4/Cat5/Cat6 wires to extend the monitor to doorbell, or monitor to monitor according to your need,mounting in your desired location.maximum distance can exceed 300ft.

·Supports 5 mobile phones to share, APP free. Support 2 outdoor doorbell, 4 indoor monitors. Can be connected to all electronic locks.

·Not only conduct video intercom with guests, It is easy to talk between indoor units placed in different rooms and different floors, making communication easier and more convenient.

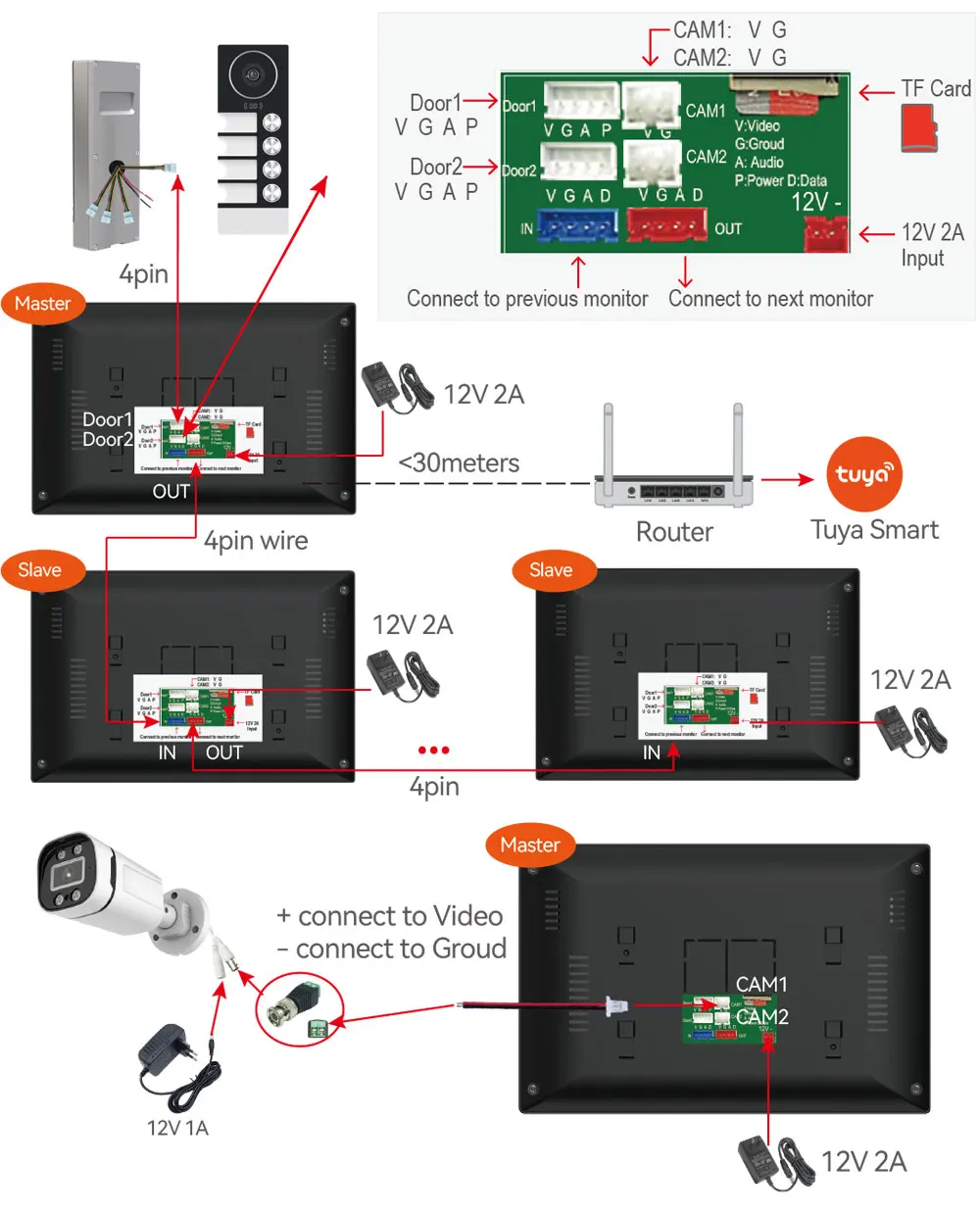

Connect CCTV Camera Master

1. Connect AHD1080/AHD720/TVI720/TVI1080/CVI720/CVI1080/CVBS camera, setting to CVBS if 1200TVL camera.

2. Connect up to 2 CCTV cameras, Insert the BNC male connector into the BNC female connector of the camera and tighten it to the right. Connect the 2P connect wire between the "+ -" of the BNC male connector and the CAM1 or CAM2 port.
