2 x 8dBi WiFi Antenna 2.4GHz 5.8GHz Dual Band RP-SMA Male +2 x 15CM I-P-E-X-1 to RP-SMA Female Pigtail Cable for Wireless Router
Description
- High-concerned chemical: None
- Connector Type: IPX1
- Pins: Yellow
- Gain(dB): 8dBi
- Model Number: WIFI Antenna
- Brand Name: NOWEPOCH
- Origin: Mainland China
Product Description

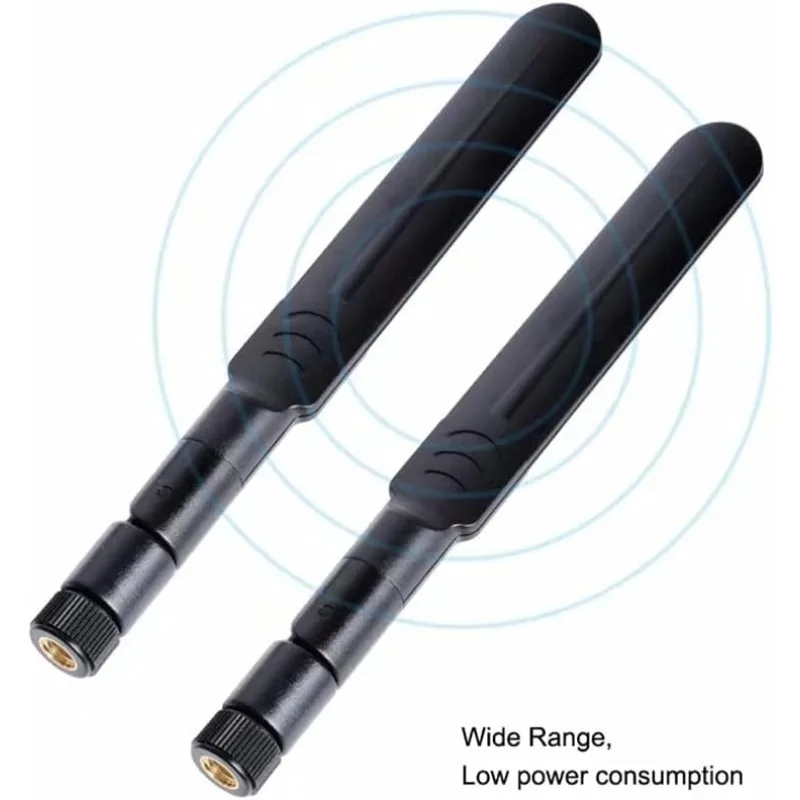

High gain Wifi Antenna – This 8dBi omni-directional Wifi Antenna is with 2.4GHz and 5.8GHz dual band. Equipped with RP-SMA male connector, it can reduce interfering signal to the minimum and extend wireless range to dead spot.
High quality product – The antenna surface is made of hard plastic, sturdy and stable. The interior of Wifi Antenna is used premium circuit board to ensure maximum and stable signal quality.

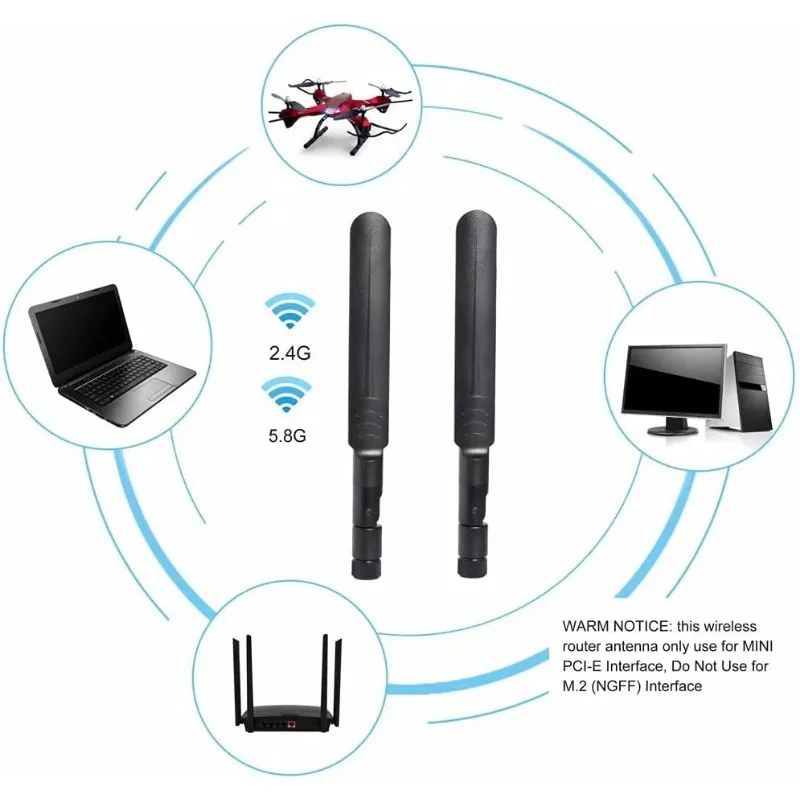

Wide application – This wireless antenna works with most wireless devices, such as Mini PCIE Wireless Card Routers / Repeater / Range Extender / Desktop PC / Mini ITX Build / PCI Card / FPV UAV Drone / PS4 Build.

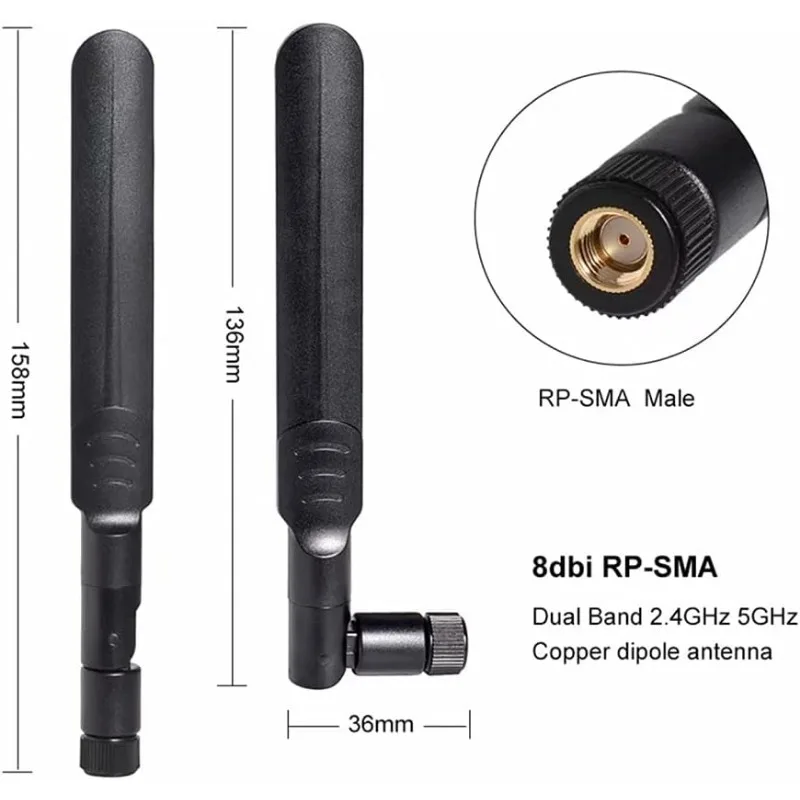

Antenna specifications
Color: Black
Radiation:Omni-directional
Gain: 8dBi
Frequency Range (MHz): 2400-2500&5150-5850
Connector Type: RP-SMA Male (with hole)
Adjustable Angle: 90°, 135°, 180°
Size: 16cm / 6.3"(straight)/13.5cm / 5.31"(bent)
Weight: 13.5g / 0.48 oz per antenna

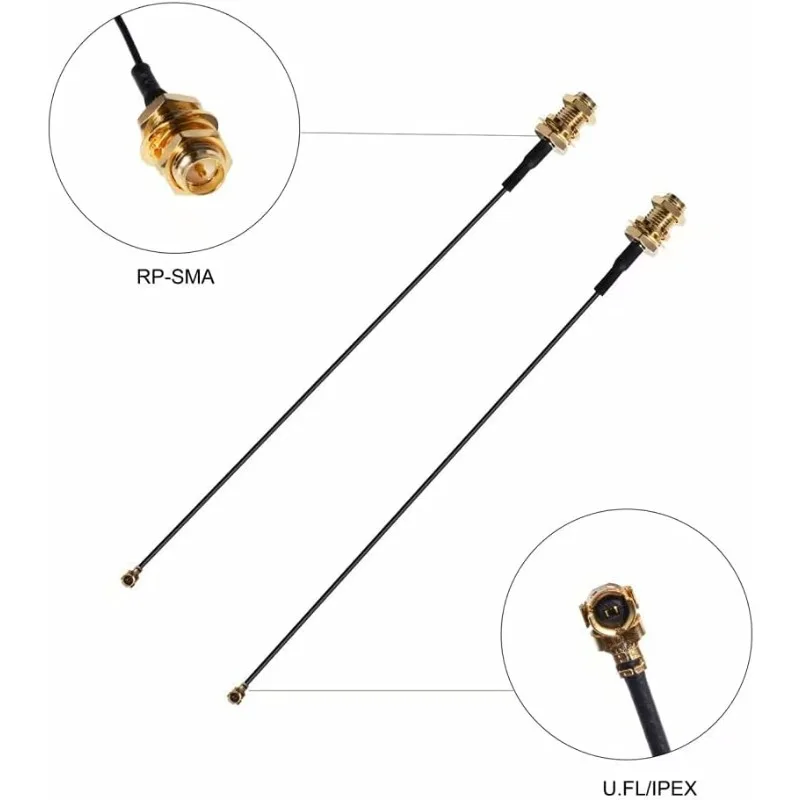

Cable Specification
Color: black and gold
Size: 15cm/ 5.9"
Weight: 4.4g/ 0.17oz per cable
Connector type: U.FL / IPEX to RP-SMA female
Package include:
2 X 8dBi Dual Band WiFi RP-SMA Male Antenna
2X 15cm U.FL/IPEX to RP SMA Female Pigtail Cable
Stable signal
This dual band wifi antenna provides broad coverage to extend wireless range to dead spot and make the signal be better and longer range.
Connector type
This wireless router antenna only use for MINI PCIE Interface, Do Not Use for M.2 (NGFF) Interface, please check your connectors before purchasing.
Easy installation
No soldering, simply replace your current antenna.
Additional information
| Color | RP SMA, RP SMA to IPEX1, SMA Male, SMA Male to IPEX1, White RP SMA to IPX1, White SMA to IPEX1 |
|---|---|
| High-concerned chemical | None |
| Connector Type | IPX1 |
| Pins | Yellow |
| Gain(dB) | 8dBi |
| Model Number | WIFI Antenna |
| Brand Name | NOWEPOCH |
| Origin | Mainland China |
Reviews
Vendor Information
Related Products
N***g (verified owner) –
As described. Excellent product and not too large. Perfect for my use. Prompt shipping and receipt. Thank you.
A***n (verified owner) –
Bought 4 pairs to replace the original antenna in my asus ax11000 it works as good if not better than the original.
r***r (verified owner) –
The product operates correctly in the 5.8GHz band. I recommend!! !
H***e (verified owner) –
All correct. Good connection and range. Tested on an ESP32.
T***p (verified owner) –
The pigtails are of very good quality, the antenna plastic is rough, the range is definitely better than before.
T***A (verified owner) –
No idea of the actual gain, but they work very well.
V***t (verified owner) –
I wasn’t expecting anything but my wifi connexion went from 100mbps to 350mbps, and i have done several test with an without the antenna, so it’s very good ! (msi b760p wifi motherboard)
w***r (verified owner) –
They were chosen for a itx mini pc to replace the flimsy antenna that came with the motherboard.
They are small enough to sit discretely behind the small case and signal is great.
Seller send the product on time, as described, so thank you, and if i need more i will buy again
Cheers
