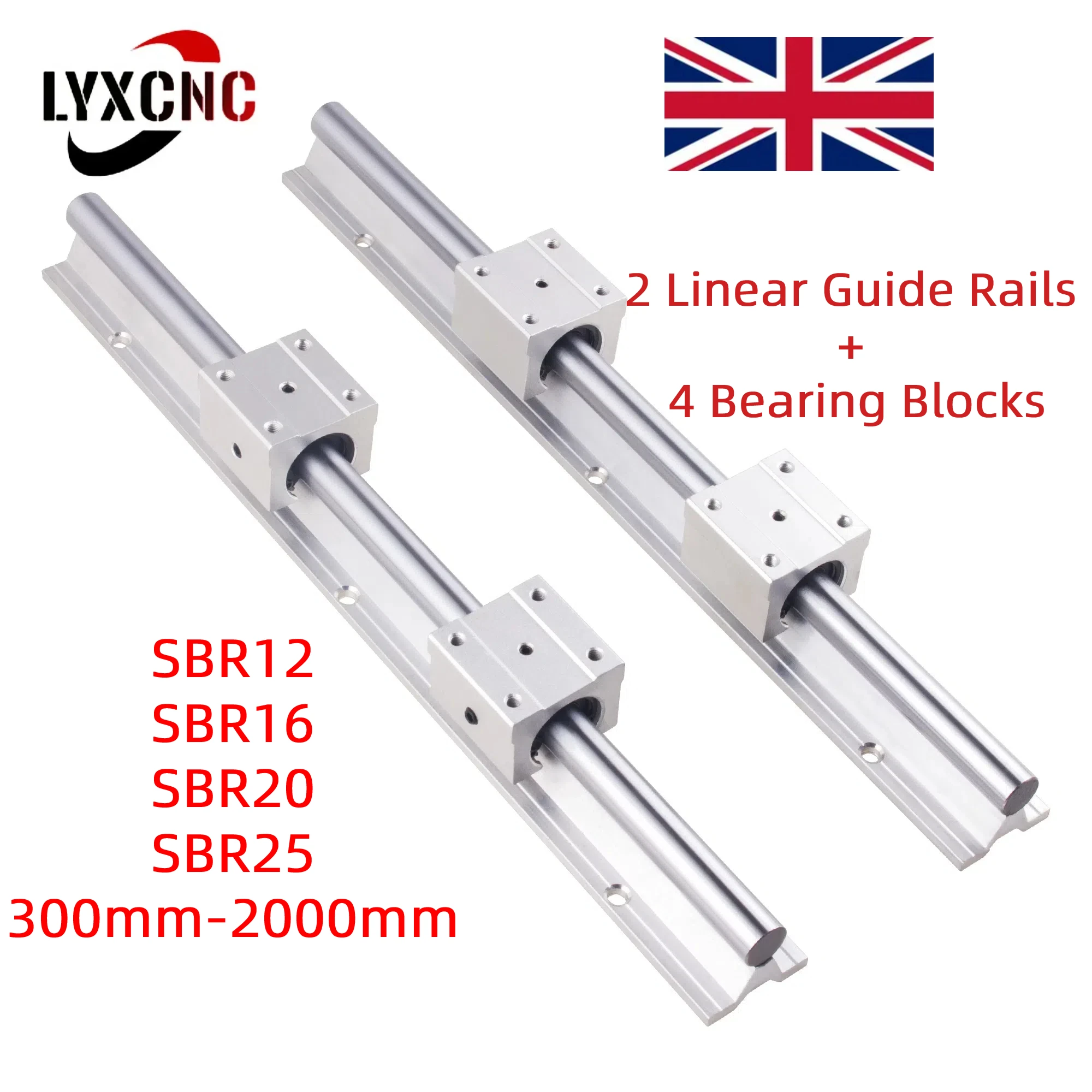

2PCS
Linear Guide Rails SBR12 SBR16 SBR20 SBR25 300-2000mm + 4PCS SBR12UU
SBR16UU SBR20UU SBR25UU Bearing Blocks Smooth Motion for DIY Mills CNC
Parts

We can customize the lengh whatever you want, pls contact us before buying.Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Because of point contact between ball and straight axis, so the load is small. The ball is spinning with the smallest friction, it can run a high precisionand smooth motion. Flangelinear bearings can be divided into: round flange type, oval flange, guide wheel flange, guide the oval flange type, plus long round flange type.

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit systemsand can be clamped simply tightening by bolt with high accuracy. The support rail unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.

Specification:

Model :SBR12 SBR16 SBR20 SBR25

Diameter：12mm 16mm 20mm25mm

Color: Silver

Material: Aluminium alloy

Length: 300mm 400mm 500mm 600mm 700mm 800mm 1000mm 1200mm 1300mm1500mm

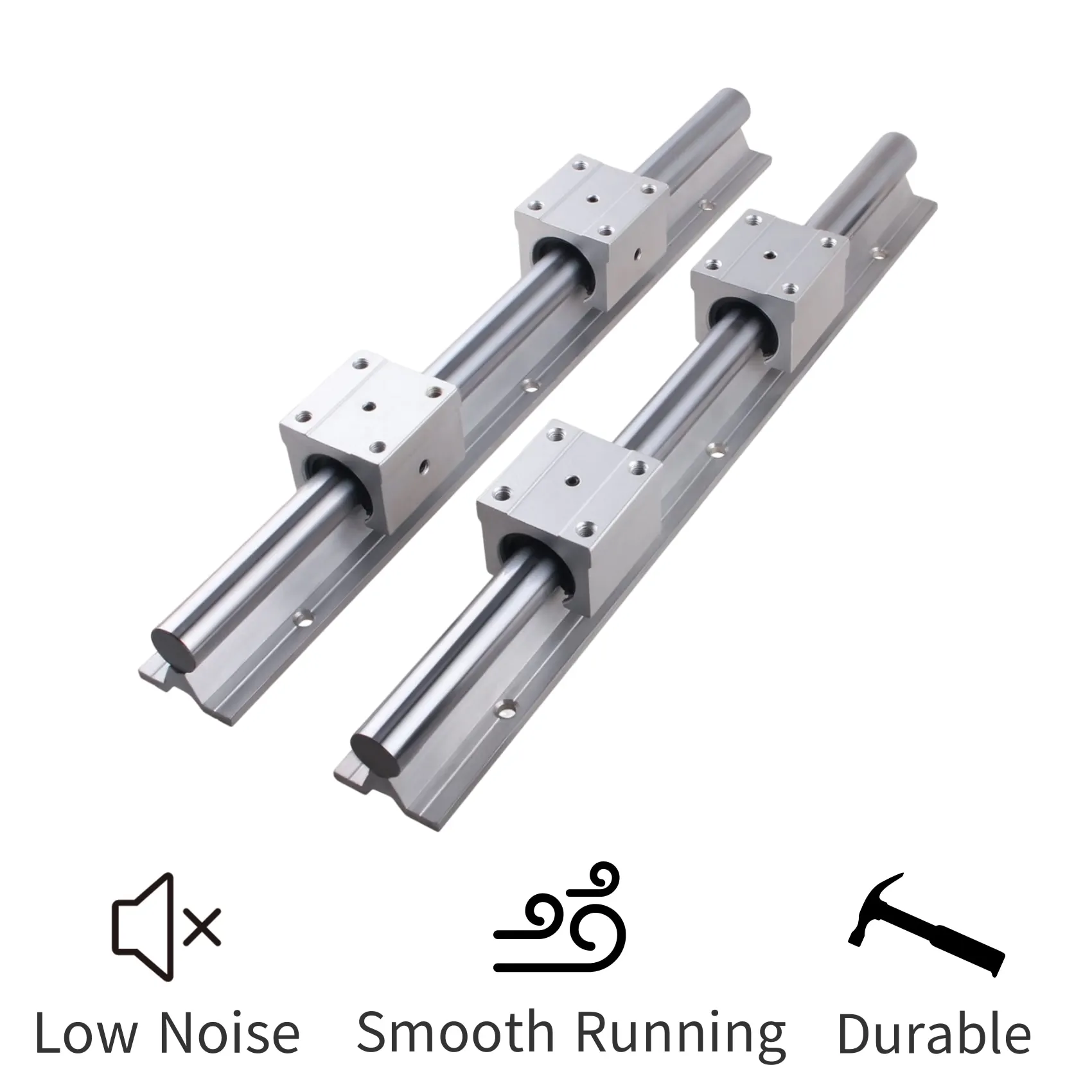

2pcs SBR12/16/20/25 Linear rail

4pcs SBR12/16/20/25UU Bearing Blocks

Attention！

If you order “only 4pcs block”,you will just receive 4pcs of SBR12/16/20/25UU Bearing Blocks.

If you want any length of the rails,please contact us before purchase.

Features：

1.The linear bearing can travel infinitely with the cylinder shaft.

2.Point contact between the ball and the straight axis makes operation smooth.

3.High precision to prevent deflection.
