2PCS/Pack Baofeng UV-5R Mini Dual Band Dual PTT Walkie Talkie 5RMINI Air Band Rx 5W Compact VOX FM Amateur Radio Type-C Charge
Description
- High-concerned chemical: None
- Use: others
- Output Power(w): 3w-5w
- Battery Capacity(mAh): 1600
- Waterproof / Water-Resistant: No
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 999
- Frequency Range: 108-136mhz,65-108mhz,400-470mhz,136 – 174 MHz
- Dimensions: 52(W)*107(H)*37(D)mm
- Model Number: 5R MINI
- Walkie Talkie Type: MINI Walkie Talkie
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE,FCC
2PCS/Pack Baofeng UV-5R Mini Dual Band Dual PTT Walkie Talkie 5RMINI Air Band Rx 5W Compact VOX FM Amateur Radio Type-C Charge
Photos:
Features:
Paired Package
65-108MHz FM commercial Radio Receive only
108-135.99750MHz Aviation Band Receive only
VHF:136-174MHZ TX&RX
UHF: 400-520MHz TX&RX
High Power (5W)/Low Power (2W) Select-able 5W/2W
1.44 inch TFT Color Display Screen
one key fast Channel Copy
APP Wireless Programming
Mini Compact size
Dual-PTT Switches Design
1000Hz/1450/1750/2100Hz alert
Built-in HI-FI Speaker 16Ω 1W
10 NoAA Weather Forecast Channels

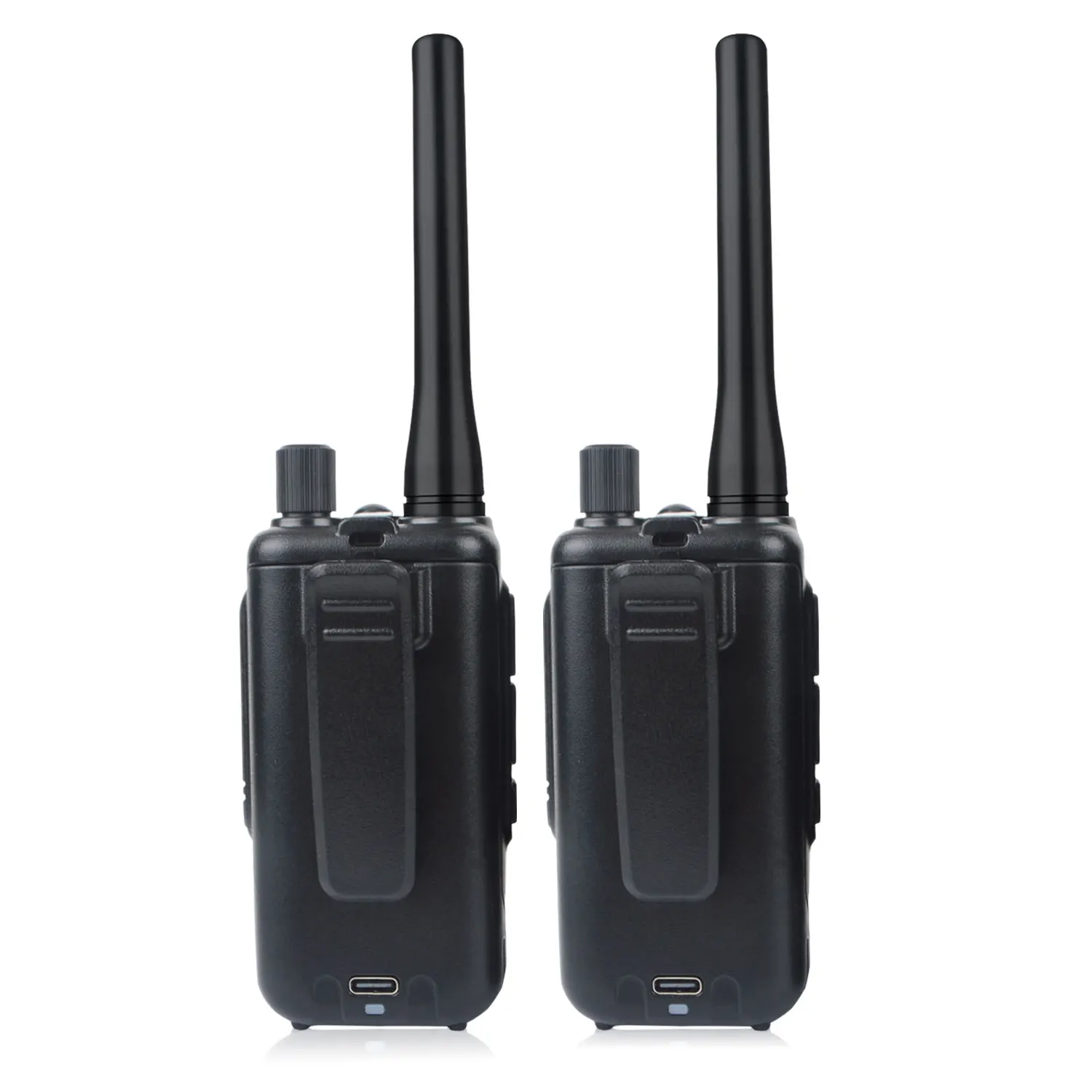

Direct Type-C cable charging port on the battery
1600mah ultra high battery power Capacity for a longer working time duration
High-illumination Flashlight
Scan
VOX
Roger Beep
Dual Watch
DTMF
PTT-ID PTT
SOS Alarm
Manual Programming
Technical Specifications:
|
General |
|
|
Channel Capacity |
999 |
|
Channel Spacing |
25KHz (Wide Band),12.5KHz(Narrow Band) |
|
Input Voltage |
DC7.4V(Rechargeable Lithium Battery) |
|
Frequency Stability |
±2.5ppm |
|
Antenna Impedance |
50Ω |
|
Radio Dimensions |
52(W)*107(H)*37(D)mm |
|
Radio Weight |
200g (including antenna and battery) |
|
Transmitter |
|
|
Transmit Current Drain |
≤1.6A |
|
Modulation |
16K0 F3E/11K0 F3E |
|
Max Frequency Deviation |
≤5KHz/≤2.5KHz |
|
FM Hum & Noise |
≥-45dB/≥-40dB |
|
Receiver |
|
|
Sensitivity |
≤0.25Uv (12dB SINAD) |
|
Rated Audio Power Output |
1W 10% |
|
FM Hum& Noise |
≥45dB |
Package Contentsof Each Unit:
2×UV-5R mini Radio Body
2×1600mAh Type-C Rechargeable Battery BC-5M
2×FM/136-174/400/520MHz SMA-Female Antenna
2×Belt Clip
2×USB-C Charging Cable
2×Lanyard
1×English Instruction Manual
Additional information
| Color | black, green, Grey, Yellow |
|---|---|
| High-concerned chemical | None |
| Use | others |
| Output Power(w) | 3w-5w |
| Battery Capacity(mAh) | 1600 |
| Waterproof / Water-Resistant | No |
| Battery Included | Yes |
| Material | Plastic |
| Storage Channel | 999 |
| Frequency Range | 108-136mhz,65-108mhz,400-470mhz,136 – 174 MHz |
| Dimensions | 52(W)*107(H)*37(D)mm |
| Model Number | 5R MINI |
| Walkie Talkie Type | MINI Walkie Talkie |
| Is_Display | Yes |
| Maximum Range | 3km-5km |
| Brand Name | BAOFENG |
| Origin | Mainland China |
| Certification | CE,FCC |
