30/50/80/120/200N lifting hydraulic air strut suitable for cabinet door hinges, kitchen cabinets with air springs

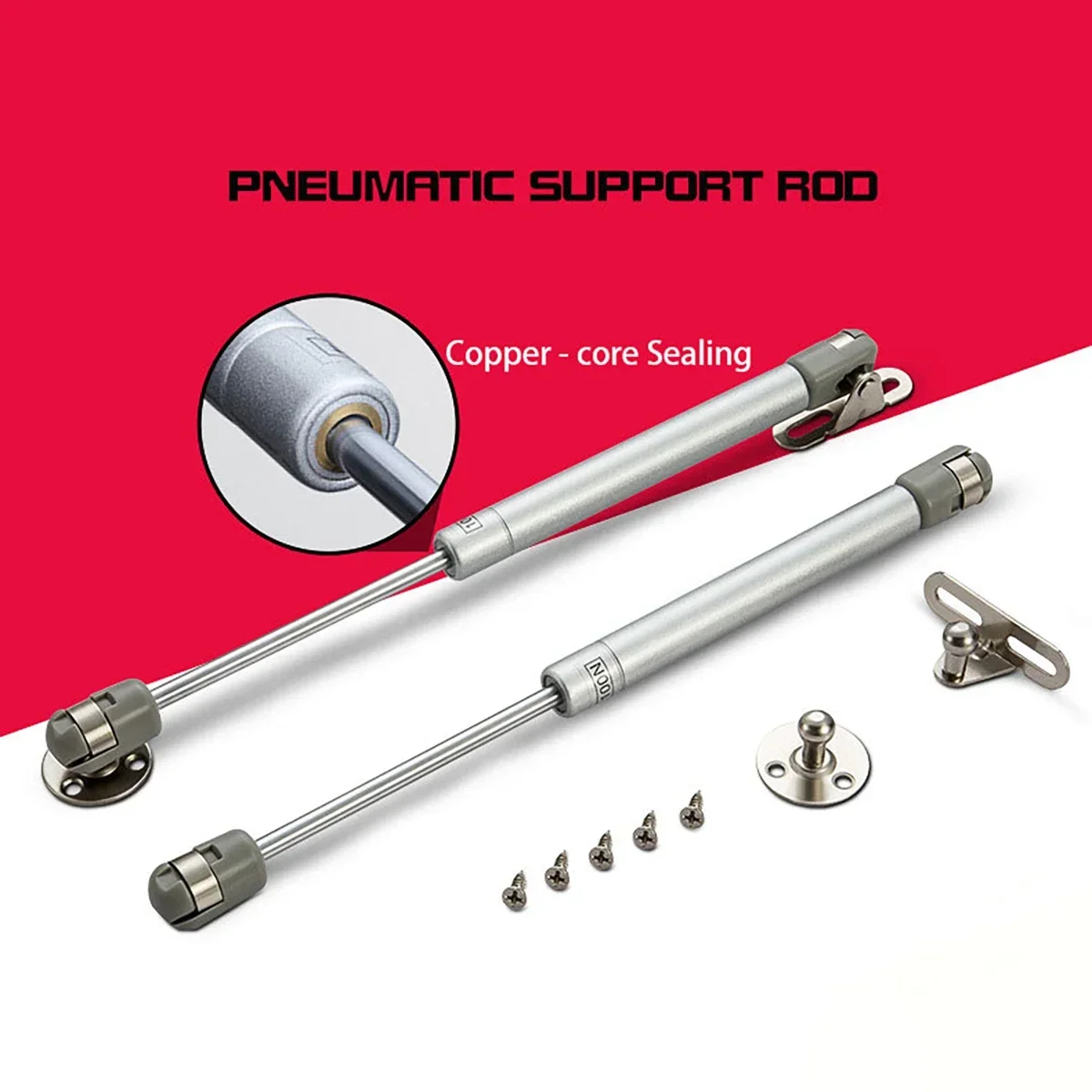

Product Name：Pneumatic Support Rod

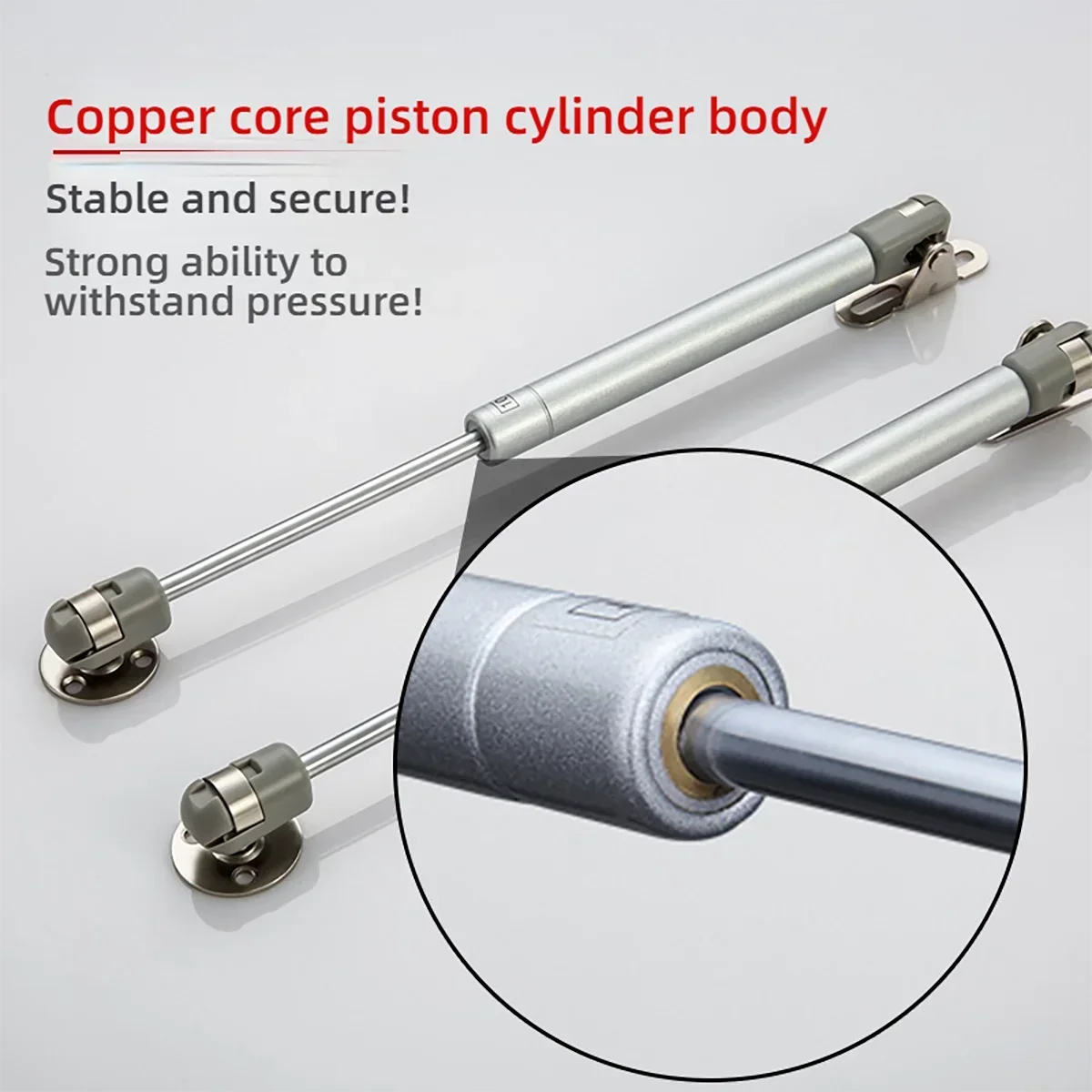

Material: Cold rolled steel tube, copper core piston cylinder body

Surface treatment: spray paint

Control mode: pneumatic

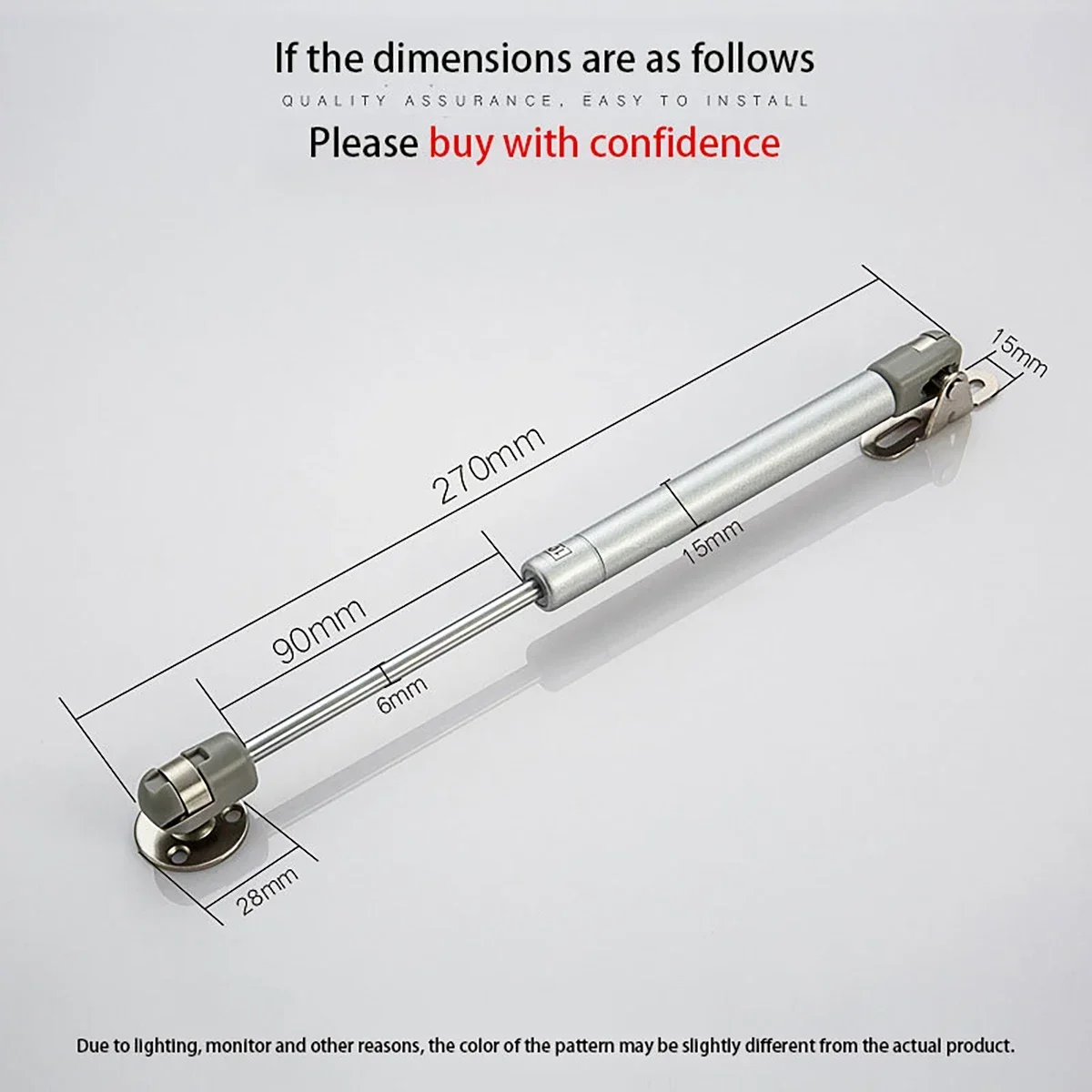

Size:

Mounting hole spacing 270mm

Total length 270mm (part of the labeled length 90mm, diameter 6mm, etc.)

Weight: 120g

Features:

Exquisite mounting head, accurate positioning holes, large contact area with the cabinet, strong stability.

Full copper hydraulic oil seal, the whole buffer, sealing effect is good, durable and anti-oil leakage.

Telescopic rod three-point positioning, solid installation.

Solid design, strong support, not easy to deform.

High quality mute.

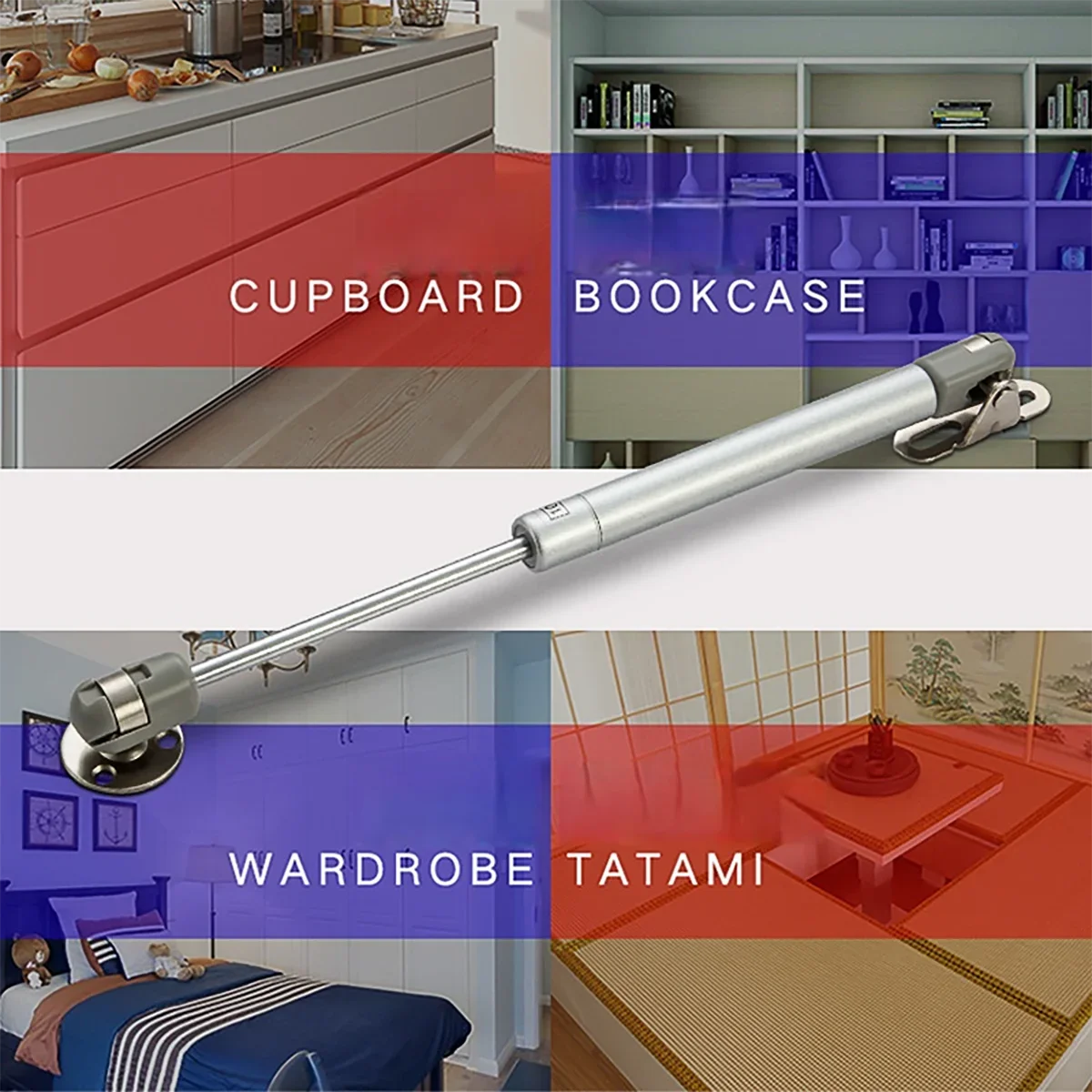

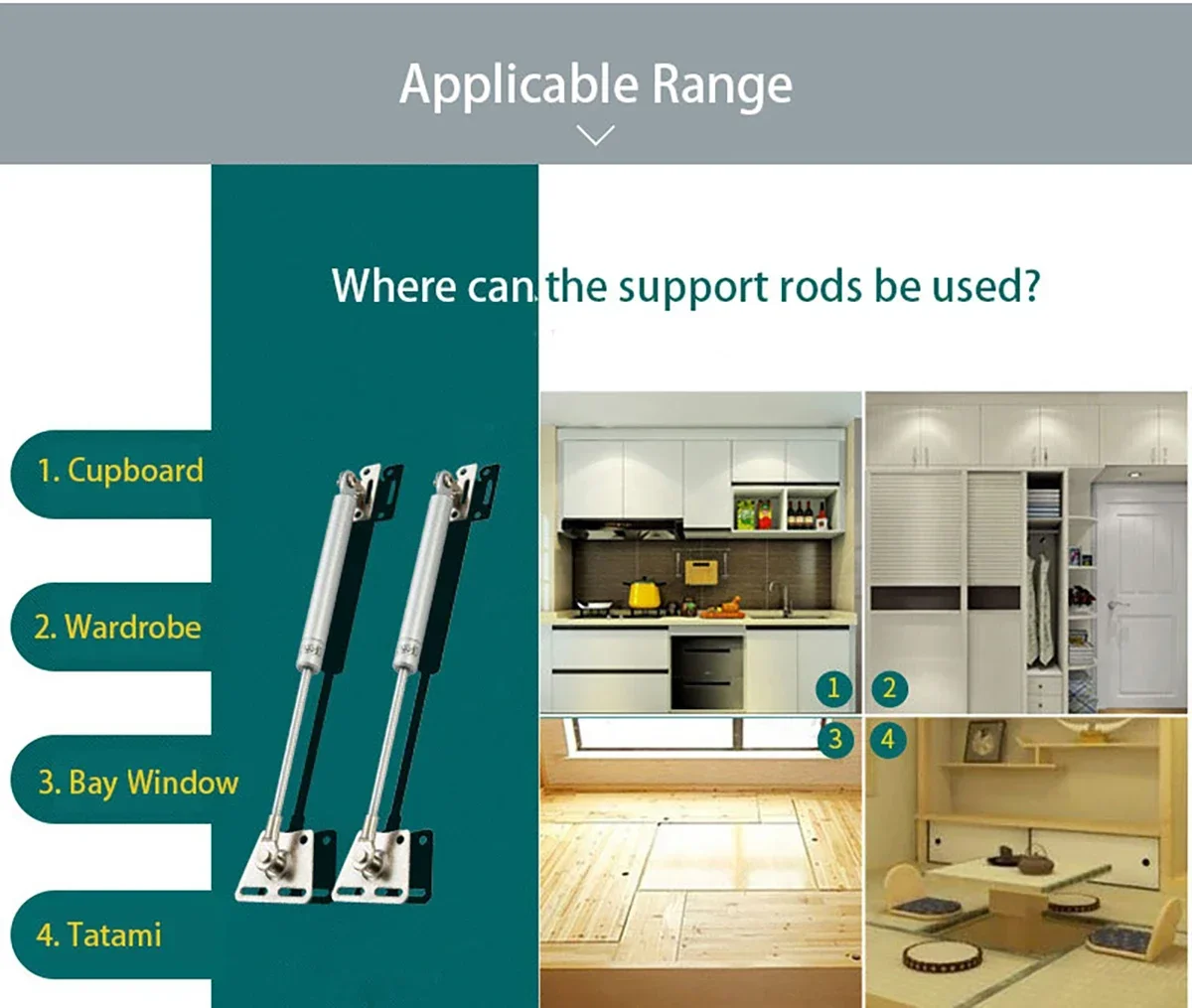

Application scope: suitable for flipping wooden doors, aluminum frame doors, can be used for cabinets, closets, floating windows, tatami mats, etc. .

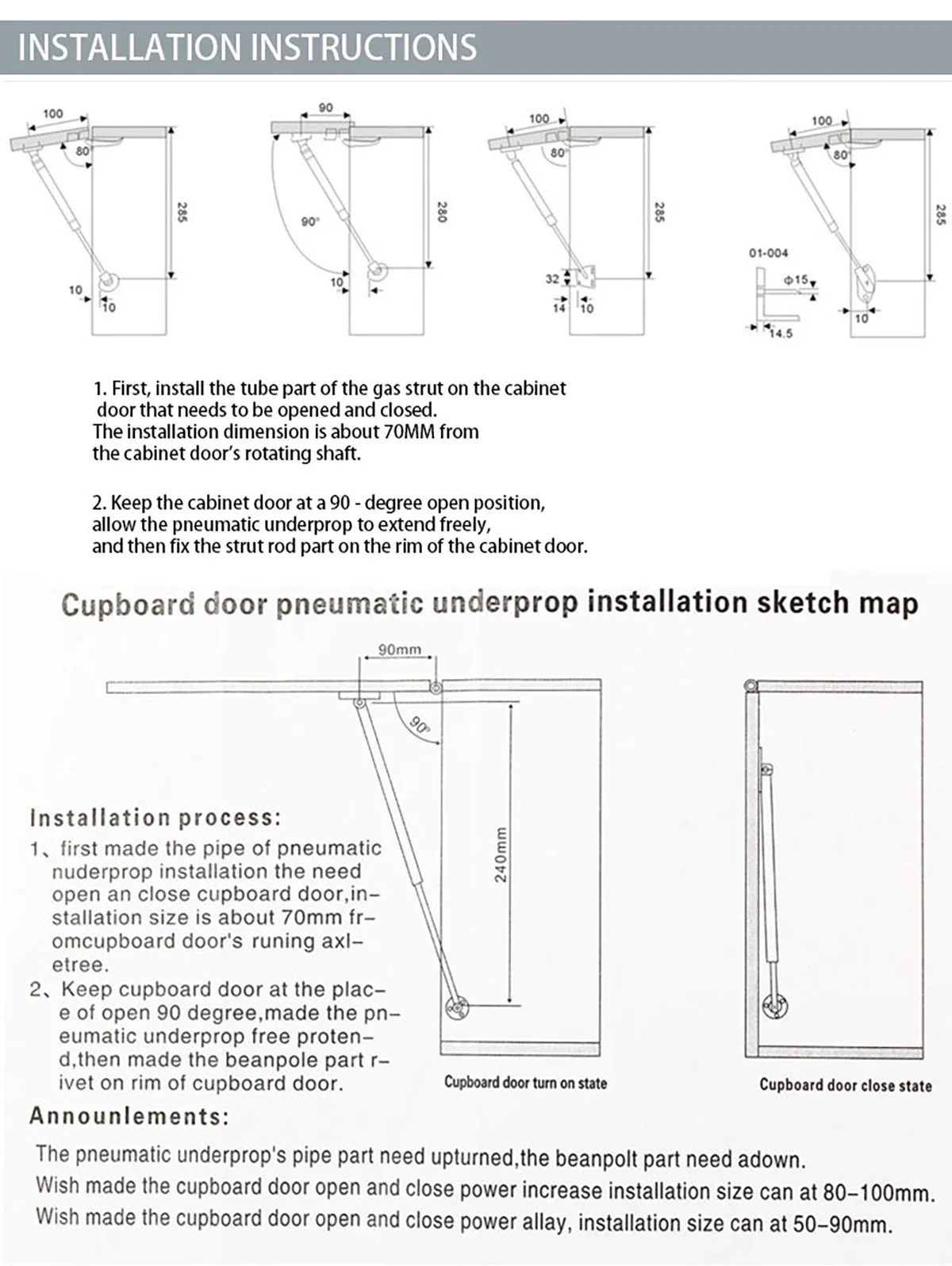

Installation points:

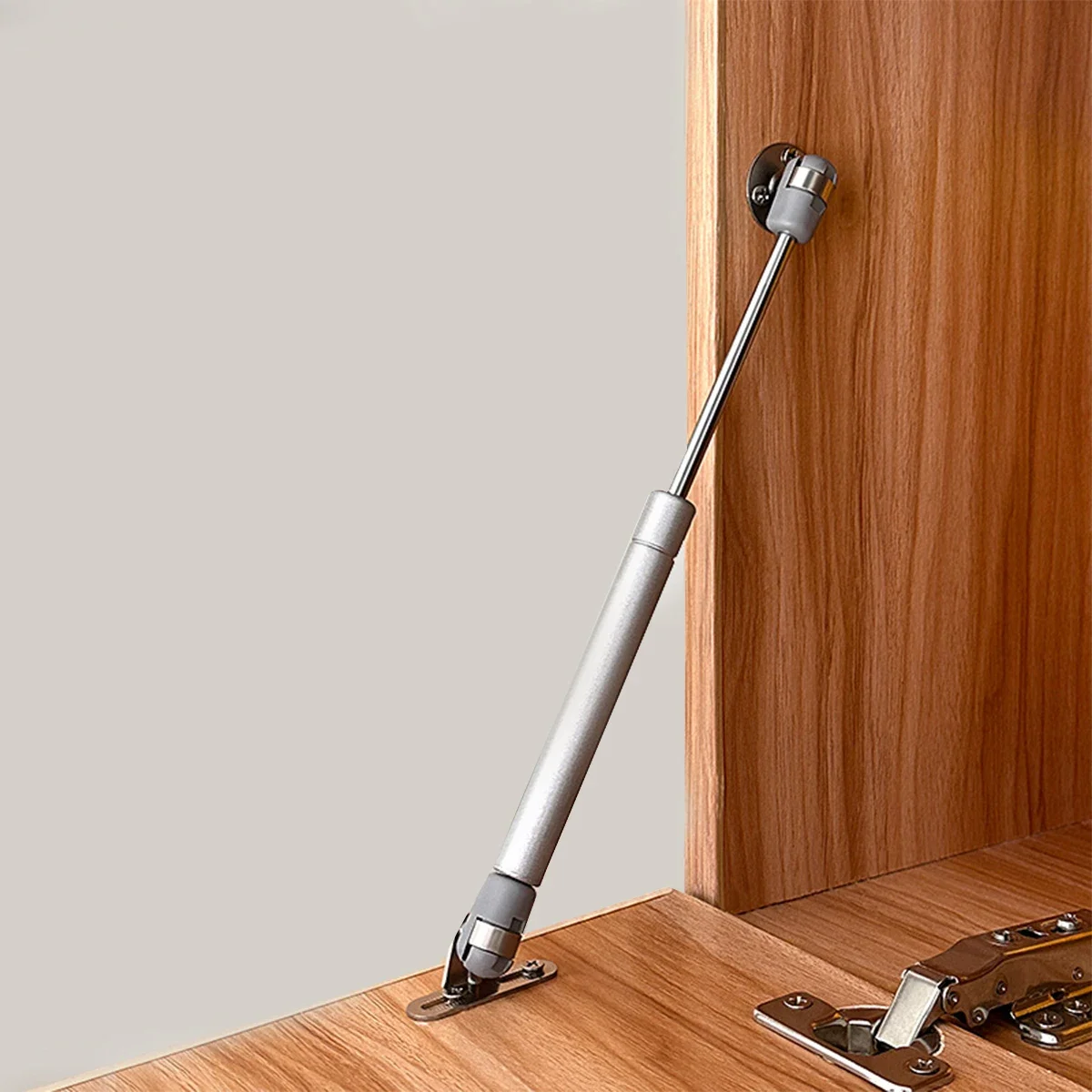

First install the gas support tube on the cabinet door to be opened and closed, the installation size is about 70MM from the rotating axis of the cabinet door.

Keep the cabinet door in 90 degrees open position, let the pneumatic lower support extend freely, and then fix the support rod on the edge of the cabinet door.
