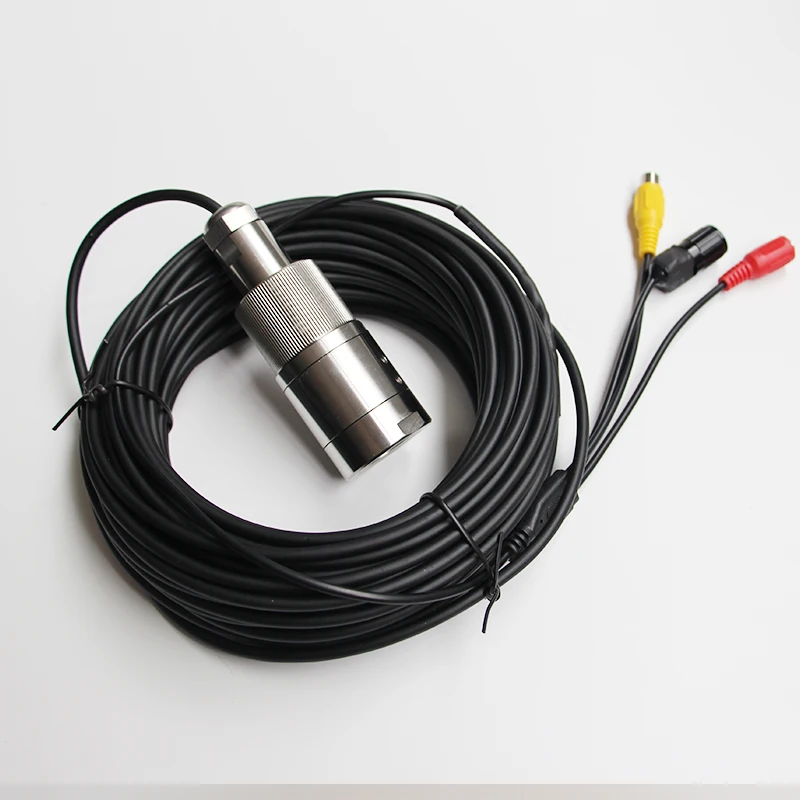

34MM Diameter Pipeline Camera With 12Pcs Led Lights Pipe Sewer Drain Inspection HDR Industrial Endoscope Camera
Description
- High-concerned chemical: None
- Power Supply: Normal
- Internal Storage: None
- Clarity: 1080p
- Supported Operating Systems: No
- Viewing Angle : 120°
- Lens (mm): 2.8mm
- Sensor Brand: Sony
- Horizontal Resolution: 800TVL
- Sensor Size: 1/2.8''
- Sensor: CMOS
- Focal Length: 2.8mm
- Installation: Normal
- Model Number: M2C3402
- Brand Name: 3RDEYE
- Origin: Mainland China
- Plug Type: CN Plug,EU Plug,US Plug,AU Plug,UK Plug
- Certification: CE,FCC
- Size: D:34*66.5mm
- HD video output: default AHD (CVBS for option)
- Video Compression Format: H.264
- Lamp: 12pcs LED
- Dynamic range: 90db
- housing material: 316L stainless steel housing
- min. illumination: 0.0001Lux
- Resolution: 1920*1080
- Image Sensor: 316L stainless steel housing
- Function: Weatherproof, Deep water security
- Application: Outdoor
34MM Diameter Pipeline Camera With 12Pcs Led Lights Pipe Sewer Drain Inspection HDR Industrial Endoscope Camera
Model: M2C3402
(The camera is with AHD output signal, LED brightness adjustable,other option, Please contact us.)
Description of our HDR Industrial Pipe Sewer Drain Inspection Endoscope Camera HDRM2C3402
1080P 2MP SONY underwater surveillance camera, IP68 waterproof rating, can withstand the water pressure of 200 meters deep, High strength seawater corrosion resistant ,316 stainless steel tubular shell, the whole structure is waterproof, no glue, Built-in 12 high-light LED. 120 degree view. Large depth of field lens, sapphire high-end lens, durable .The longest cable could be 200 meters
What is the feature of our HDR Industrial Pipe Sewer Drain Inspection Endoscope Camera HDRM2C3402
1080P Sony Sensor Camera
Angle:120°view angle
Light source: 12 LED, brightness is adjustable via monitor
Camera size: 34*66.5mm
Dynamic range: 90dB
sapphire high-end lens
Video Frame Rate:AHD PAL: 1080p@25fps AHD NTSC: 1080p@30fps
Video Output:1080P HD-AHD Default ,other format contact us.
Details of our HDR Industrial Pipe Sewer Drain Inspection Endoscope Camera HDRM2C3402

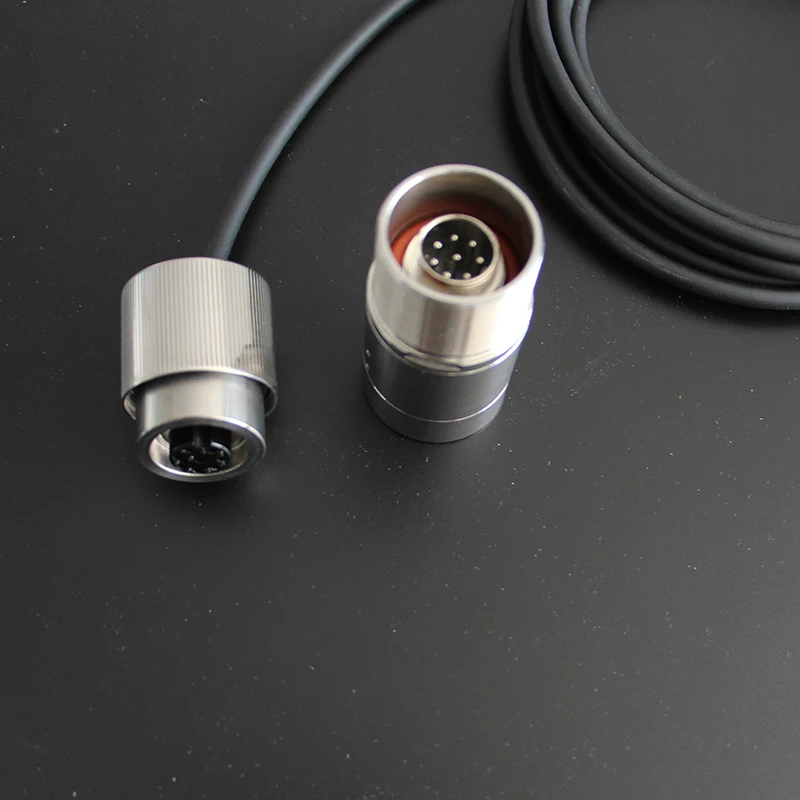

Professional plug type waterproof design, easy to change the lens
What is the Typical Applications of our HDR Industrial Pipe Sewer Drain Inspection Endoscope Camera HDRM2C3402
Additional information
| Color | 0.5M Cable, 100M Cable, 10M Cable, 20M Cable, 50M Cable |
|---|---|
| High-concerned chemical | None |
| Power Supply | Normal |
| Internal Storage | None |
| Clarity | 1080p |
| Supported Operating Systems | No |
| Viewing Angle | 120° |
| Lens (mm) | 2.8mm |
| Sensor Brand | Sony |
| Horizontal Resolution | 800TVL |
| Sensor Size | 1/2.8'' |
| Sensor | CMOS |
| Focal Length | 2.8mm |
| Installation | Normal |
| Model Number | M2C3402 |
| Brand Name | 3RDEYE |
| Origin | Mainland China |
| Plug Type | CN Plug,EU Plug,US Plug,AU Plug,UK Plug |
| Certification | CE,FCC |
| Size | D:34*66.5mm |
| HD video output | default AHD (CVBS for option) |
| Video Compression Format | H.264 |
| Lamp | 12pcs LED |
| Dynamic range | 90db |
| housing material | 316L stainless steel housing |
| min. illumination | 0.0001Lux |
| Resolution | 1920*1080 |
| Image Sensor | 316L stainless steel housing |
| Function | Weatherproof, Deep water security |
| Application | Outdoor |
