Description
- High-concerned chemical: None
- Capacity: 10 – 20Ah
- Voltage: 36v
- Type: Lithium battery
- Brand Name: ACEBEI-POWER
- Origin: Mainland China
- Certification: CE,RoHS
Current link is for item DCH-006
★★Attention!!!

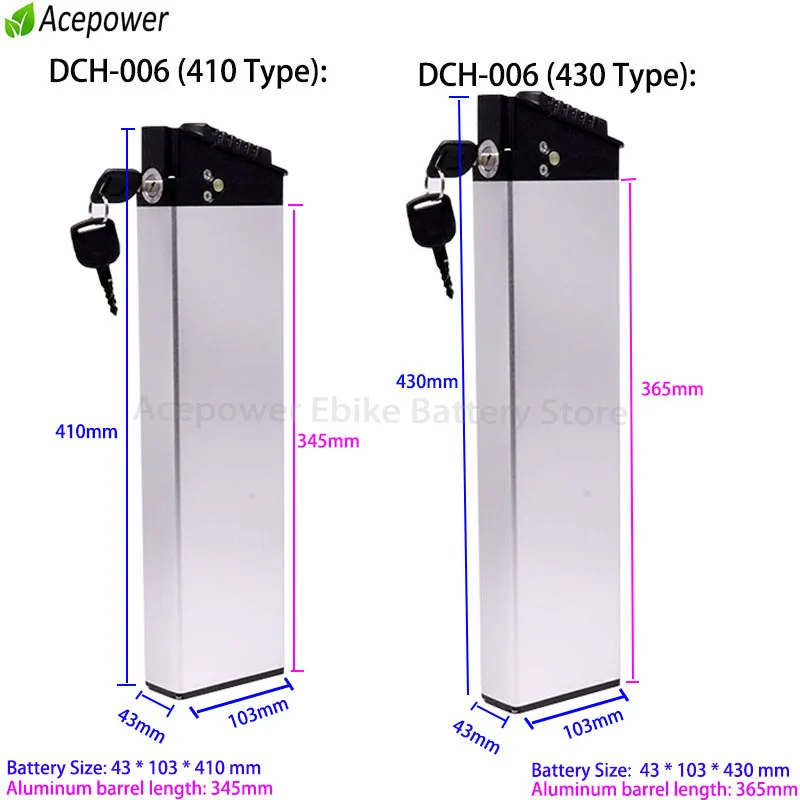

1. There are two types of DCH-006 battery with different lengths,
type A=length L410mm, type B=length L430mm, please pay attention to the size when purchasing.
2. If your original battery is L410mm, then you can only choose L410mm;
If your original battery is L430mm, you can choose both two lengths
Notice:

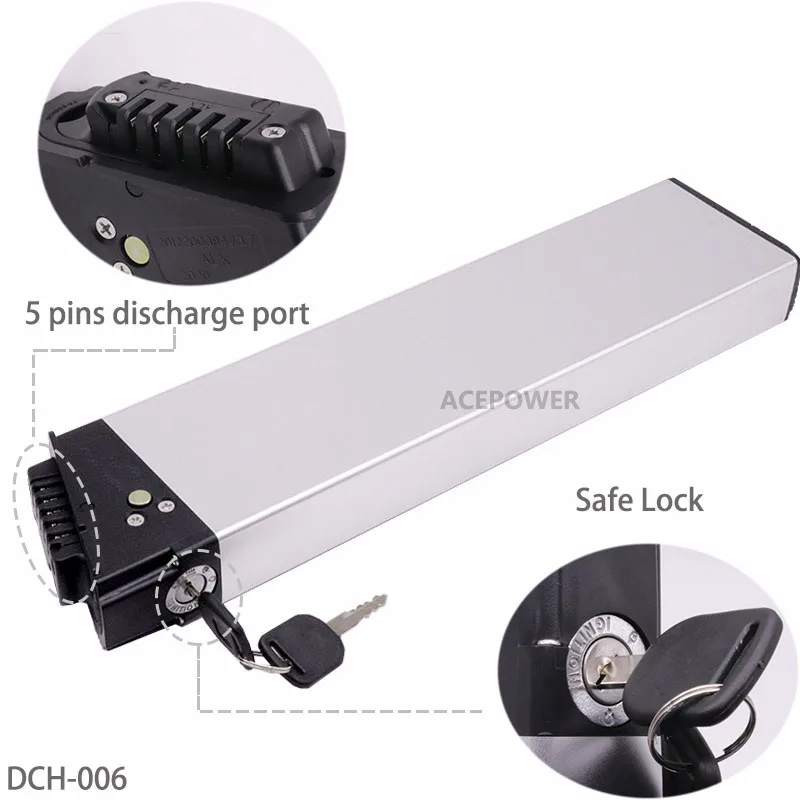

Important Notice for DCH-006's lock design:
Function 1. Lock the battery inside the bike frame.
Function 2. The lock is also the battery's power (on/off) switch. (all battery with function 1 and function 2 by defaultly)
Battery Specification:
Battery Parameter | 36V 10.4Ah | 36V 12.5Ah | 36V 15Ah | 36V 16Ah | 36V 17Ah | 36V 17.5Ah |
Composed Type | 10S 4P | 10S 5P | ||||
Cells | Brand | Brand | Brand | Brand | Panasoni/c | L G/Sam-sung/ Panasoni/c |
Battery Weight(appr.) | 2.6kg | 3.1kg | ||||
Charger | 2A | 2A | 3A fast charger | |||
Charging Time | 5-6h | 6-7h | 5-6h | 5-6h | 5.5-6h | 5.5-6.5h |
Charging Cut-off Voltage | 42V | |||||
Discharge Cut-off Voltage | 30V | |||||
Battery Size(appr.) | 43*103*410mm | |||||
Common parameters：
Discharge Temperature | -20~65°C |
Charging Temperature | 0~45°C |
Cycle Life | 80% Capacity after 800 cycles |
Warranty | 1 Year |
Discharge Connectors
Discharge Connector:
Below 7 kinds optional, you can leave "order note" to tell which kind do you need.
Without request, we will offer one kind of them by default, offer whole pairs to you.
"whole pairs, include one side for battery, another spare side for your controller", so that whatever what connectors on your controller side, you can use our whole pairs connectors to connect directly.
Packing List:
Battery * 1
Charger * 1
Product: Battery |
12 MonthsQuality warranty 1. We provide 1 year warranty for all electric bike batteries. |
Condition The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time. Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion. |
1. The payment does not include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order. 2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address. |
1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland) 2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules. 3. Japanese customers need to provide Japanese address and contact information |
Your satisfaction and positive feedback is very important for us. It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services. If you have any problems, don't hesitate to contact us, we will do our best to serve with you. |
