Description
- High-concerned chemical: None
- Support APP: No
- Frequency: 433 MHz
- Channel: 4
- Package: Yes
- Model Number: RX480E-4WQB
- Wireless Communication: RF
- Use: Universal,Lighting,Electric Door,Automated curtains,Switch
- Brand Name: QIACHIP
- Origin: Mainland China
- Certification: CE
- Model Number: RX480E-4
- working voltage: DC 3V- 5V
- Frequency: 433 MHz
- Support APP: No
- Matching Mode: Intelligent Learning Code
- Function: superheterodyne 433 mhz receiver & transmitting
- Working Mode: Momentary Toggle Latching Mode
- Application: Electric Door
- Application Example 1: Garage Doors Access Control System
- Application Example 2: Car Sunroofs Control
- Application Example 3: Automated curtains

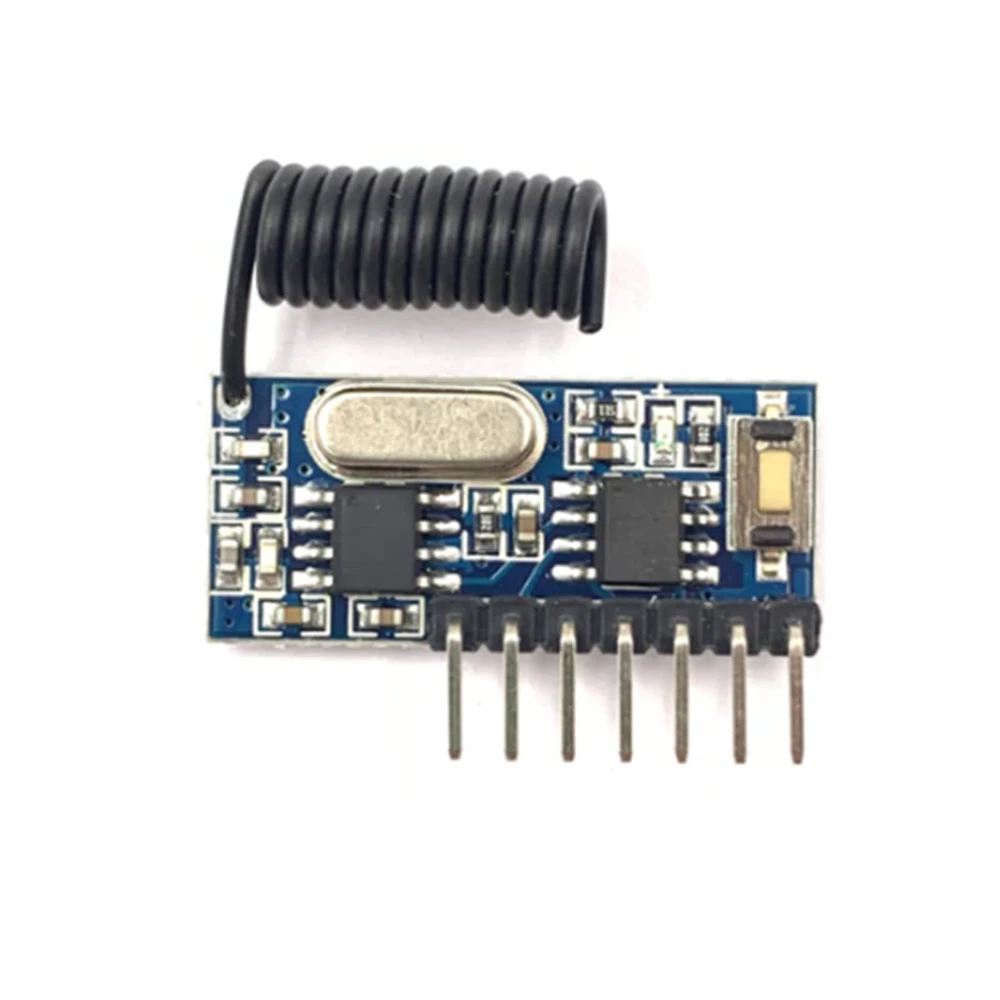

Receiver module (RX480E-4WQB) * 10pcs(Free 10 antennas）
Compatible transmitter encoding type: EV1527 PT2262
If you are not using the transmitter encoding EV1527 will not be applied to the receiver.
Specifications

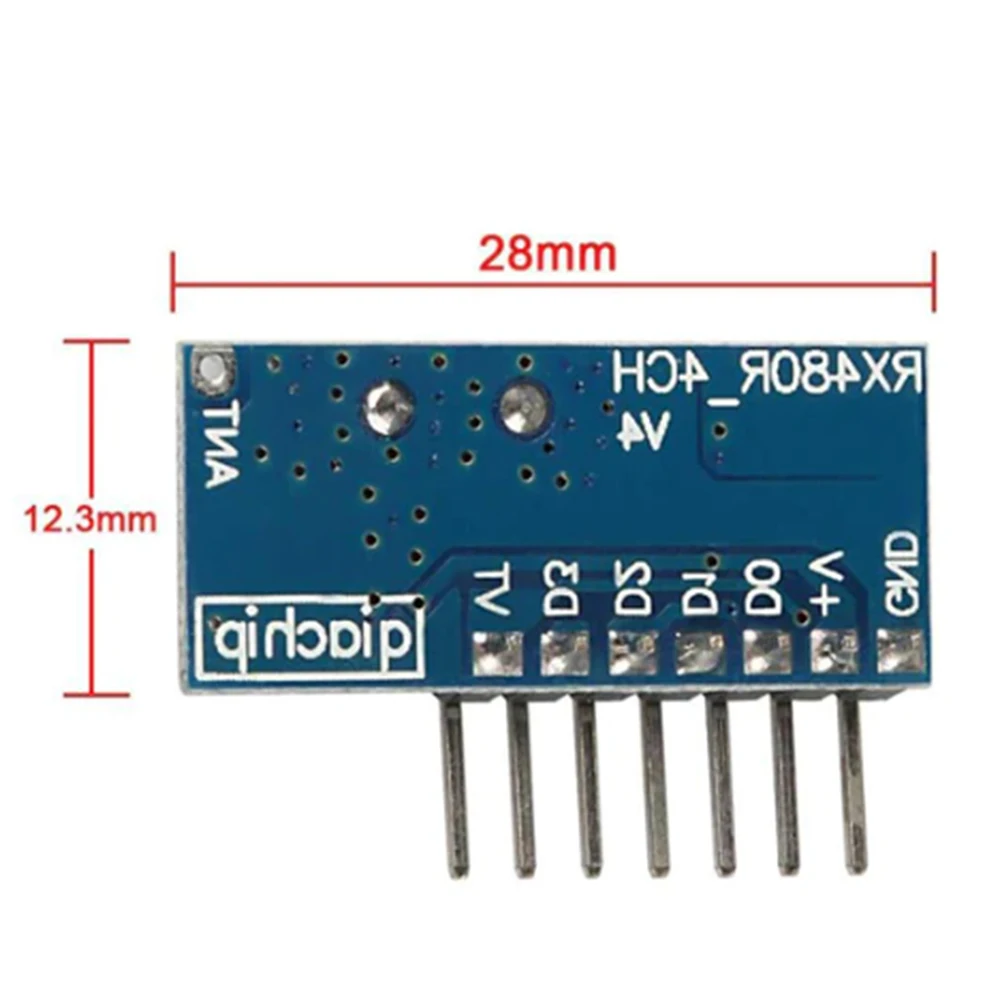

Model: KSL-RX480E-4
Working Temperature : -25~75C
Frequency band: +-0.2MHz
ReceiveDistance: 20-100M ( open space)
Receive Sensitivity: -108dB
Working Frequency: 433MHz( Others can be customized )
Quiescent Current : <=5mA
Working Voltage : DC3.3~5V
Function

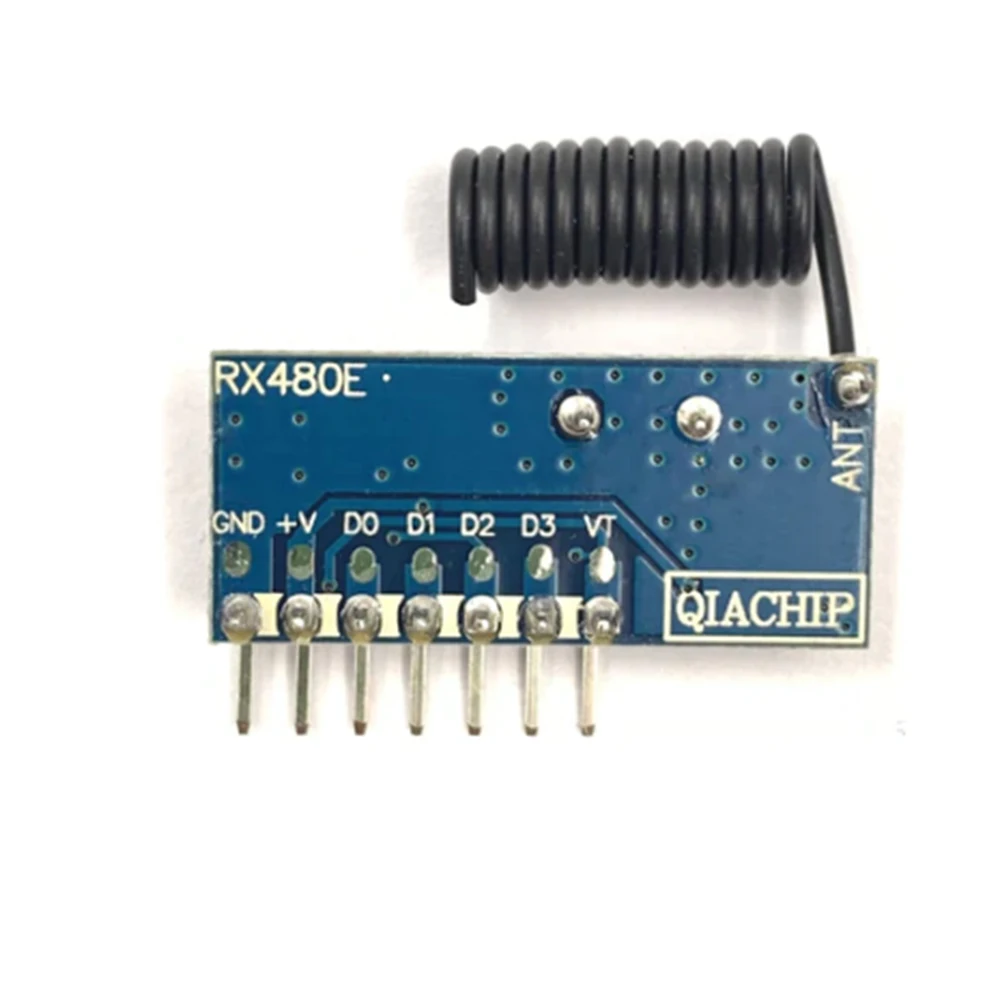

Pin-out instructions:
GND : groud or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output
Working mode:Point move, self-locking, interlocking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
How To Programming:
1. Delete existing data:Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code:press learning key once, twice or three times (see below).
LED turns on:learning mode is active. Press any button of the remote control.
LED indicator flashes three times:learning successfully completed.
3. Test:after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.

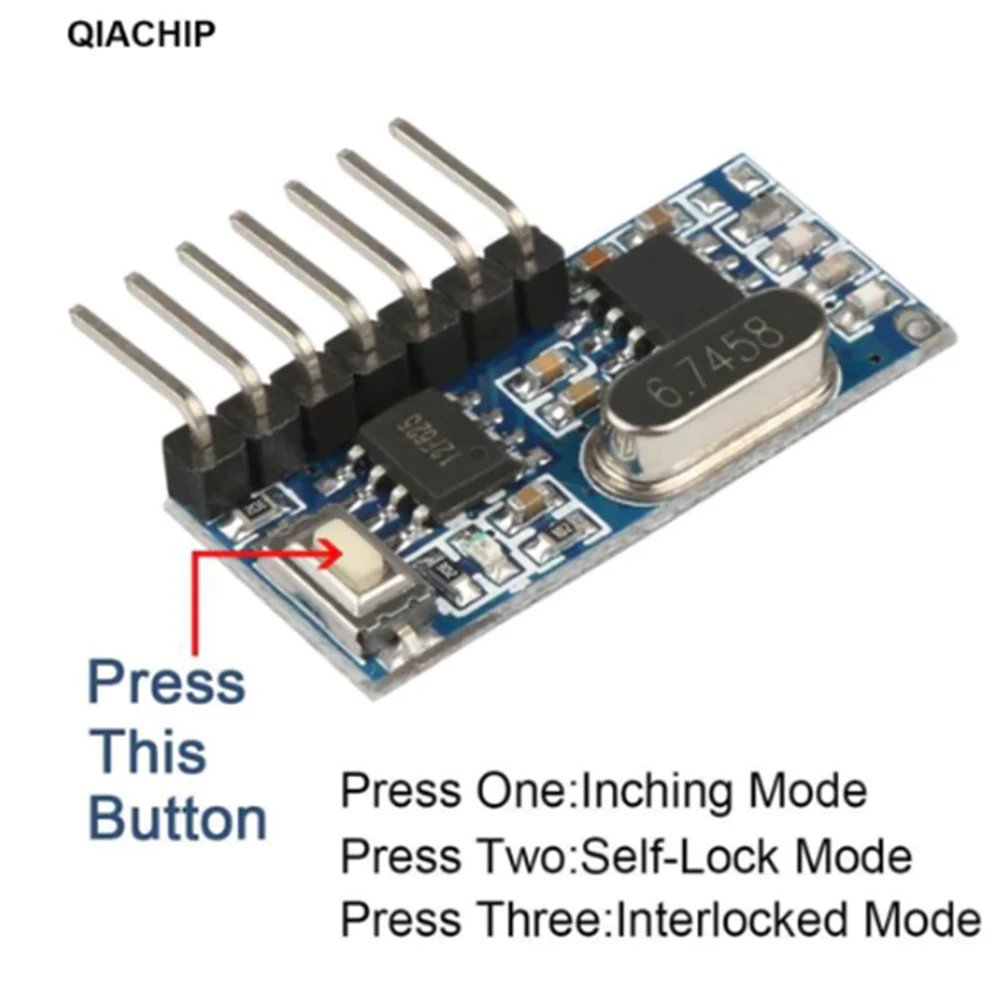

Button usage (sets mode and starts pairing process):
Press once:Inching mode (Momentary Mode)
Press twice:self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times:interlocked mode (selected channel active and be cleared, if another channel becomes active)
Applications
1.wireless power switch, socket, remote control switch, receiver module,
2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system
3. security, surveillance systems, home security products, electric doors, alarm host, alarm
4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door
5. smart home products, remote control curtains, remote MP3, audio
