50M 100M 200M Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 2.0mm Fiber Wire Floor Hotline Thickening
34.92$ – 134.63$Price range: 34.92$ through 134.63$
In Stock
Loading...
Description
- High-concerned chemical: None
- Voltage: 220 V
- Floor Heating Part Type: Floor Heating Cables
- Model Number: AG-12K
- Type: Floor Heating Parts
- Material: Anti-flammable PC
- Origin: Mainland China
- Certification: CE
- Power (W): 150w/m2
- Brand Name: EARU
- Core size: 12K
- Resistance: 33 Ohm/m
- Outer jacket: Silicone rubber
- Voltage: 7~300 V
Technical Datas:
Conductor resistance: 33±10% Ω/m
Infrared wavelength: 8UM-18UM
Colors: Red
Diameter: 3±0.1 MM ( Thicker and Safer; Толще и безопаснее)
The product can withstand max power: 25W/M
Leakage current: 0.05mA/m
Heating conductor: 12K
Heating temperature: based on the using length
Max enduring temperature: 200C degrees
Insulating material: Silicone rubber
Product Name: Carbon fiber heating wire
What is the power of the cable? And what is heating temperature?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees.
Please notice that this is for your reference, not exactly right because of different test conditions.
How to calculate power?
220V*220V÷(15meters*33Ω)=100W
100w/15m=6.66w/m
100w/15m=6.66w/m
– For example, using15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
150w/10m=15w/m
150w/10m=15w/m
– For example, using 10m 12K carbon fiber cable on 220V, the power is:
12K=33ohm/meter
Voltage*Voltage÷resistance=electric power
Package Includes:

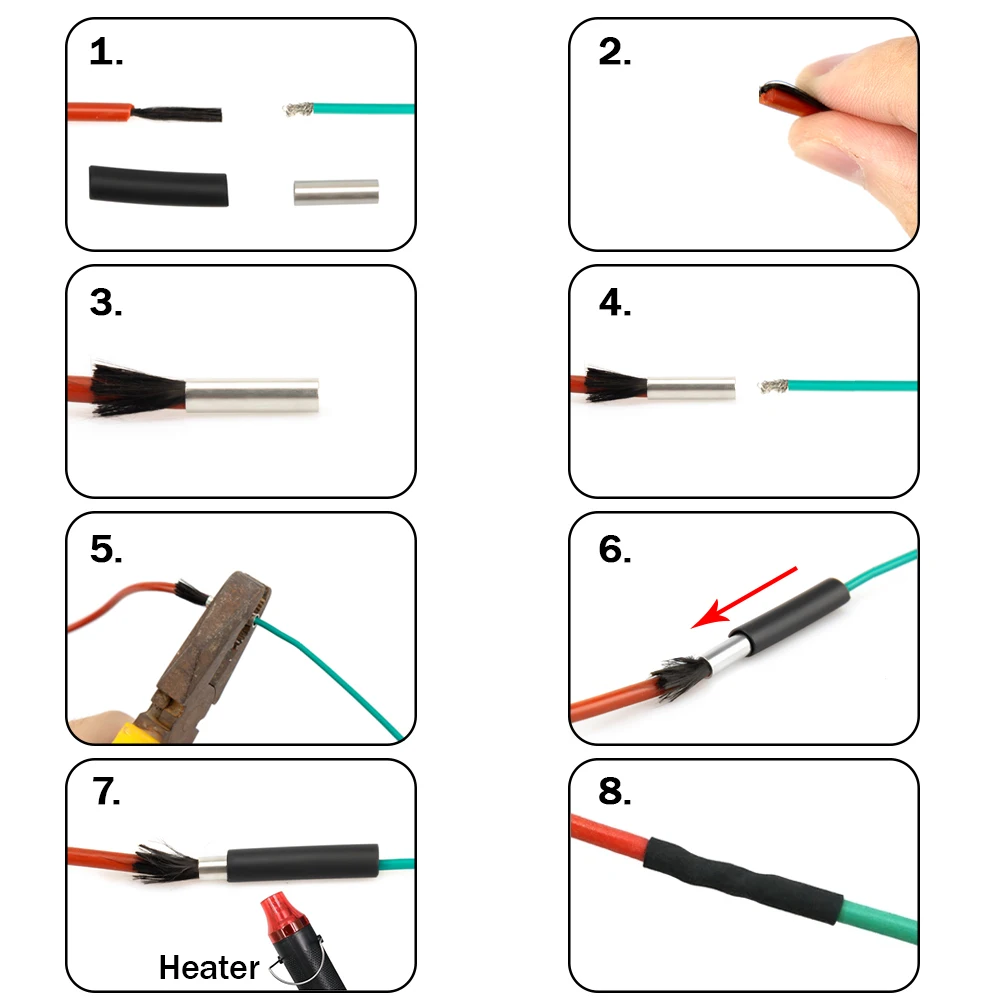

Buy 50m/Roll = 50m cable + 10 pcs copper tube + 10 pcs sleeves
Buy 100m/Roll = 100m cable + 20 pcs copper tube + 20 pcs sleeves
Buy 200m/Roll = 200m cable + 40 pcs copper tube + 40 pcs sleeves
Additional information
| Color | 100M- 1Roll, 200M- 1Roll, 50M- 1Roll |
|---|---|
| High-concerned chemical | None |
| Voltage | 7~300 V |
| Floor Heating Part Type | Floor Heating Cables |
| Model Number | AG-12K |
| Type | Floor Heating Parts |
| Material | Anti-flammable PC |
| Origin | Mainland China |
| Certification | CE |
| Power (W) | 150w/m2 |
| Brand Name | EARU |
| Core size | 12K |
| Resistance | 33 Ohm/m |
| Outer jacket | Silicone rubber |
