59FPS Global Shutter Industrial USB Camera for Inspection System
In Stock
In Stock
Loading...
Description
- High-concerned chemical: None
- Model Number: MV-SUA502C/M
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Brand Name: MindVision
- Model Number: MV-SUA502C/M

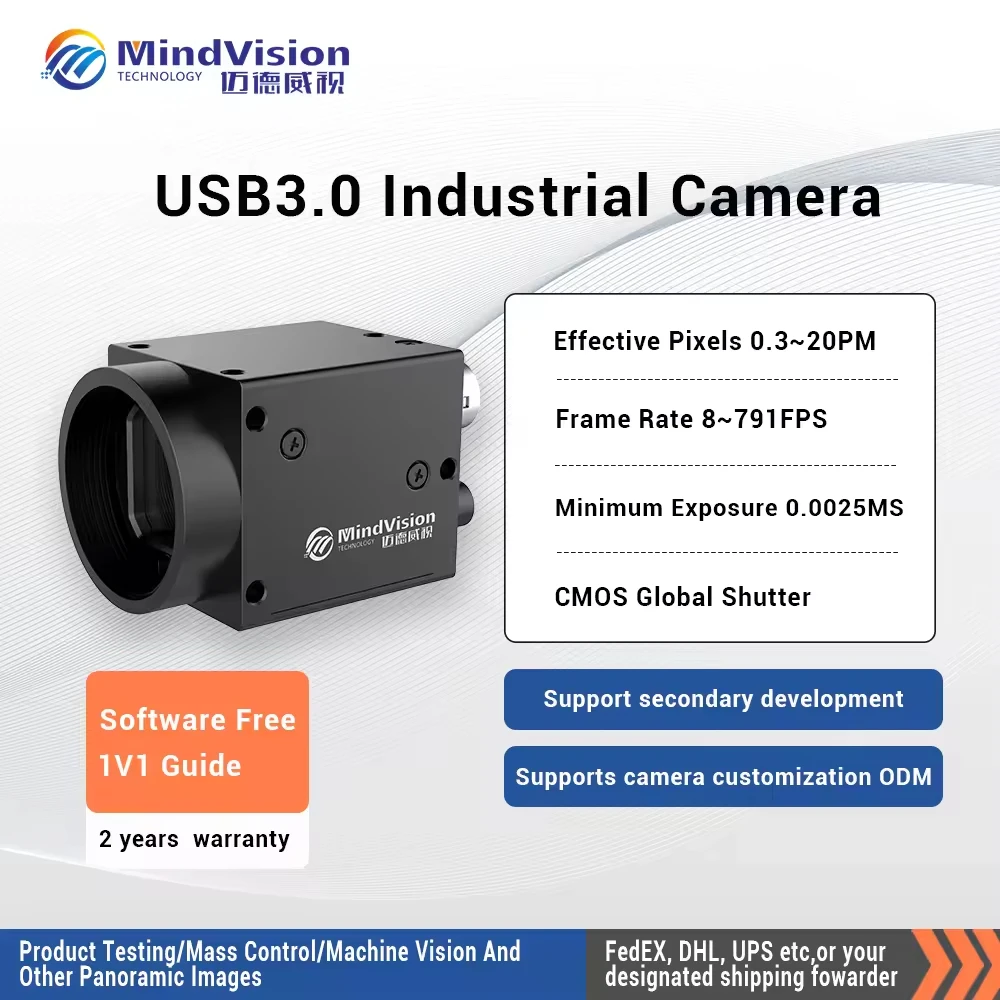

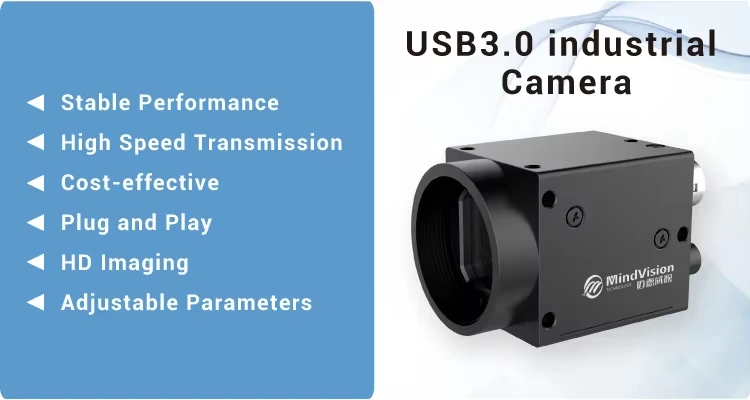

- Product name: USB3.0 Industrial Camera
- Pixel: 5MP
- Pixel size: 2.2um
- Frame Rate: 59FPS
- Sensor Type: AR0522
- Max Resolution: 2592*1944
- Interface: USB3.0
|
Model
|
MV-SUA502C
|
MV-SUA502M
|
||
|
Camera Type
|
Color
|
Mono
|
||
|
Resolution @ Frame Rate
|
2592*1944@59fps
|
|||
|
Pixel size
|
2.2umx2.2um
|
|||
|
Pixel Bit Depth
|
10bit
|
|||
|

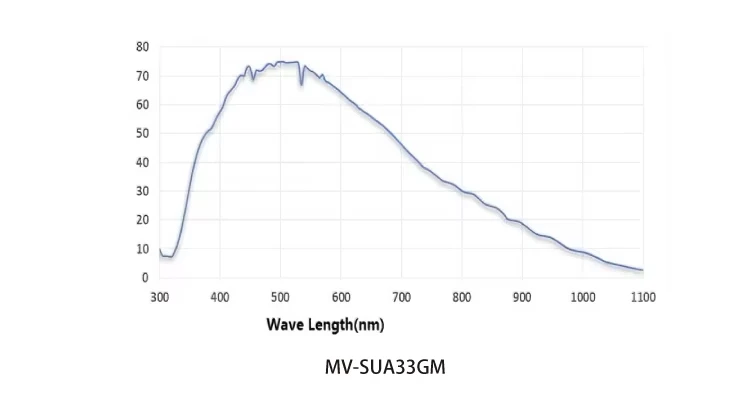

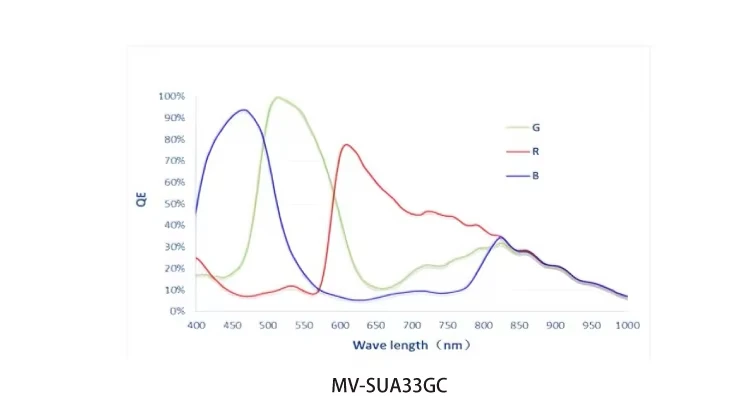

Sensitivity
|
18.8 Ke-/lux*sec
|
36 Ke-/lux*sec
|
||
|
Maximum Gain (multiple)
|
15
|
|||
|
Exposure Time Range(ms)
|
0.0084~553.4ms
|
|||
|
Frame Buffer
|
128M Bytes
|
|||
|
User-defined Data Area
|
2K Bytes
|
|||
|
Video Output Format
|
Bayer BG 8bit
|
Mono 8bit
|
||
|
GPIO
|
1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output
|
|||
|

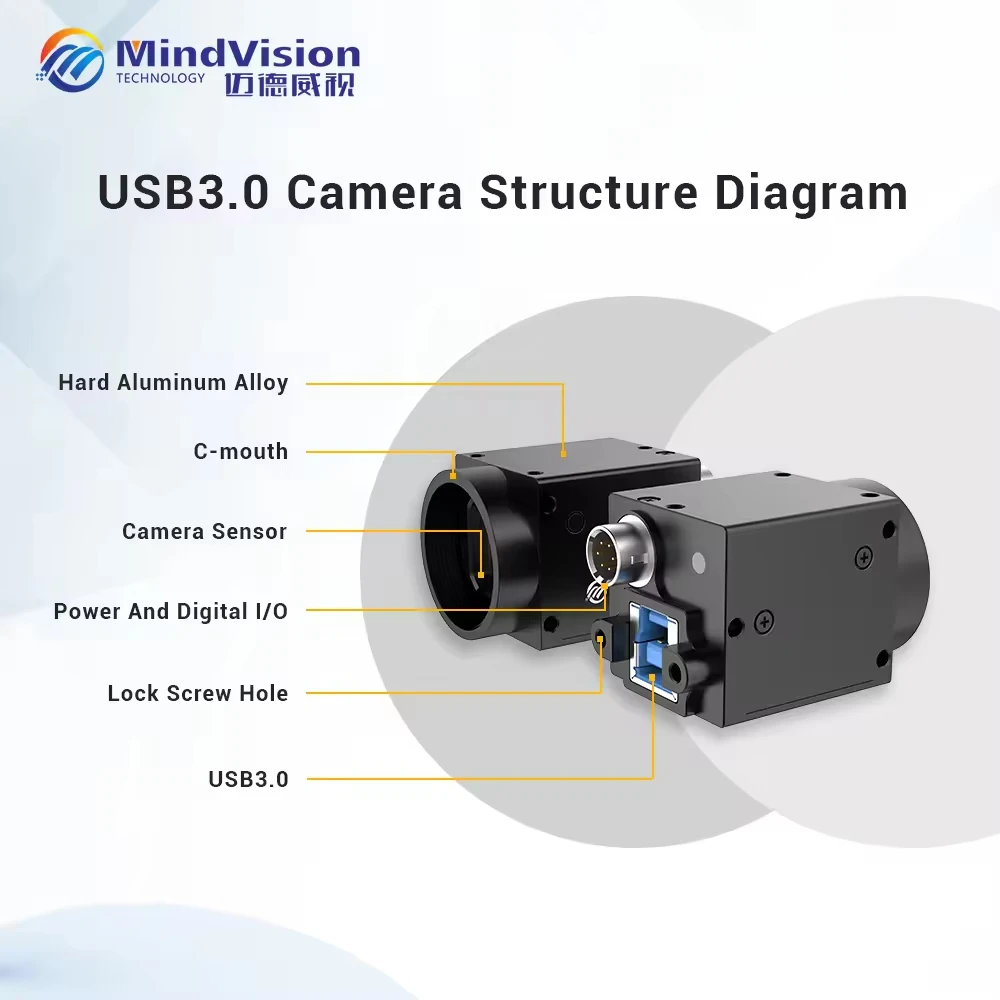

Lens Interface
|
C-Mount( CS Mount for option)
|
|||
|
Power supply
|
5V, by USB bus power
|
|||
|
Power
|
<3W
|
|||
|

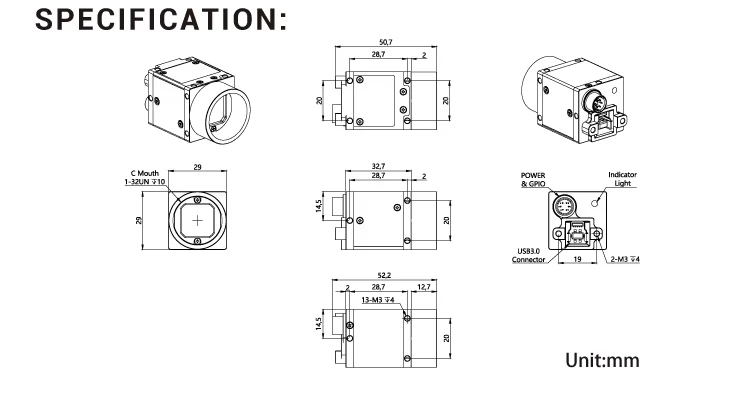

External Dimension
|
29X29X32.7(mm)(Lens base and rear shell interface are not included)
|
|||
|
Weight
|
75g
|
|||
|
Operating System
|
WINXP, WIN7/8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system
|
|||
|
Drive program
|

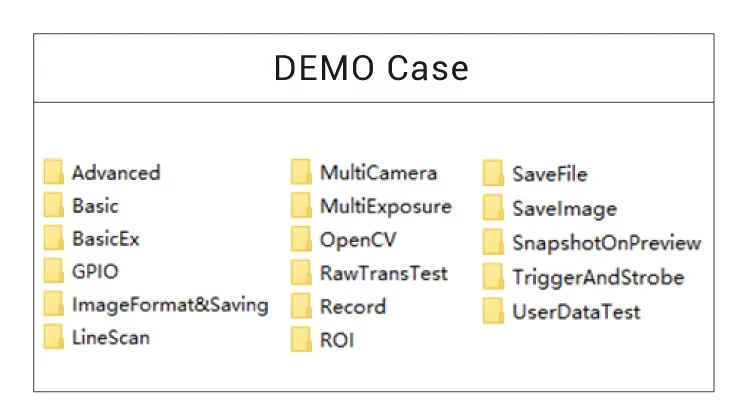

DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
|
|||
|

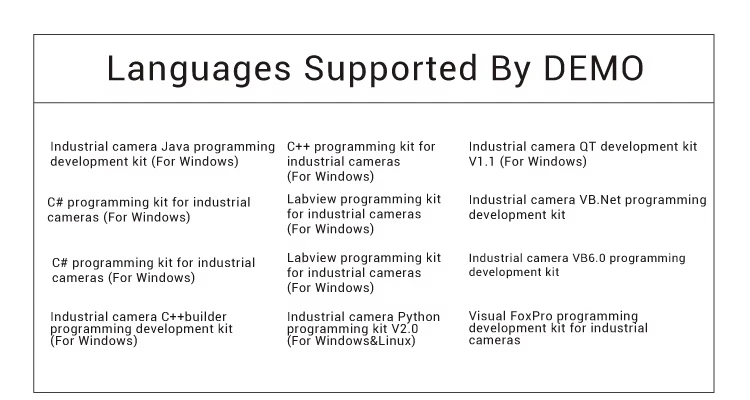

Programming language
|
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
|
|||
|
Certification
|
Rhos,CE
|
|||
