5G Antenna Outdoor LTE 4G Antennas Wide Band 5.8GHz Antenne for Base Station Router Modem Aerial with N female SMA Male Cable
Description
- High-concerned chemical: None
- Gain(dB): 3~5dBI
- Model Number: TX5G-BLG-2607
- Brand Name: XHCRF
- Origin: Mainland China

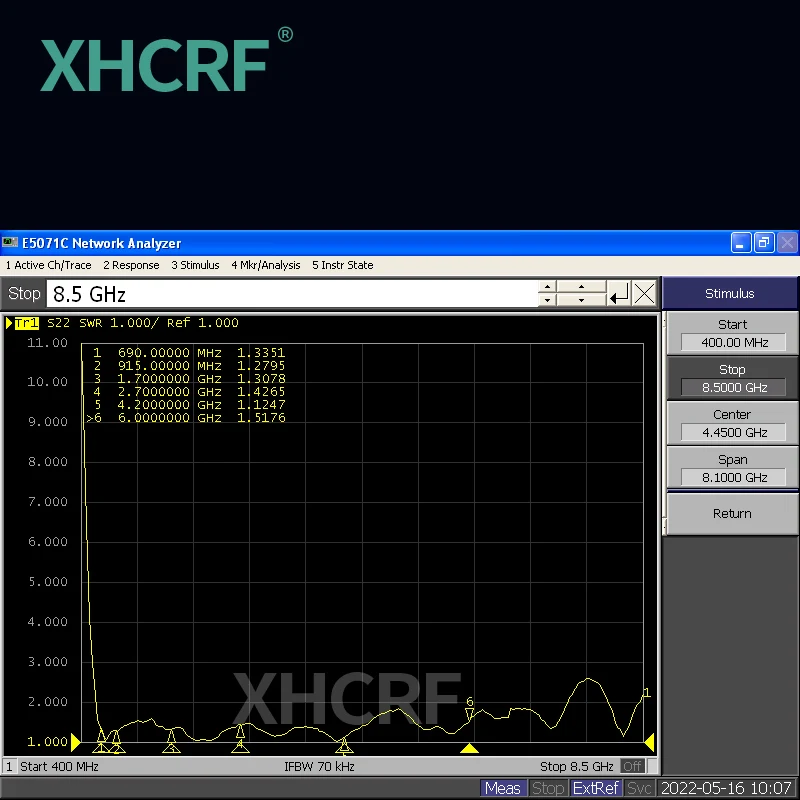

This antenna is famous for its super wide band, ranging from 690MHz to 6000MHz with VSWR ≤2.0 and most ≤1.5 for full band.
Details are as below:
|
NO. |
MECHANICAL SPECIFICATIONS |
VALUE |
COMMENT |
|
01 |
Part Number |
TX5G-BLG-2607 |
Omni Outdoor Antenna |
|
02 |
Material |
PVC |
|
|
03 |
Aluminum |
||
|
04 |
Connector Type |
N-Female |
|
|
05 |
AntennaColour |
White |
|
|
06 |

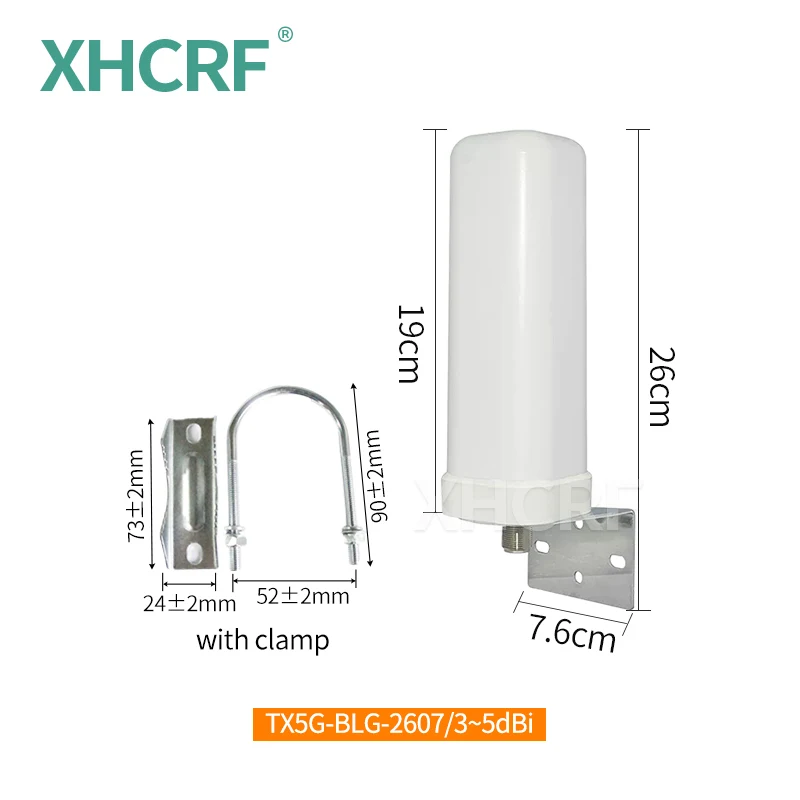

Overall Length |
260mm |
|
|
07 |
IP Rating |
IP 67 |
|
|
08 |
Wind Resistance |
60m/s |
|
|
09 |
N.W |
290g |
±5g |
|
NO. |
ELECTRICAL SPECIFICATIONS |
VALUE |
COMMENT |
|
01 |
Frequency |
5G |
690-6000MHz |
|
02 |
Antenna Gain |
3-5dBi |
|
|
03 |
Radiation type |
Omnidirectional |
|
|
04 |
Polarization |
Linear |
Vertical |
|
05 |
HorizontalBeamwidth |
360Deg |
|
|
06 |
Vertical Beamwidth |
75Deg(±5Deg) |
/ 45(±10 Deg) |
|
07 |
Nominal Impedance |
50Ω |
|
|
08 |
Max Input Power |
50W |
|
|
09 |
S.W.R. |
≤1.5 |
|
|
NO.NO. |
ENVIRONMENTALSPECIFICATIONS |
VALUE |
COMMENT |
|
01 |
Operation Temperature |
-40℃～+70℃ |
|
|
02 |
Storage Temperature |
-40℃～+70℃ |
|
|
03 |
RoHS Compliant |
YES |
Cable material: 3D-FB cable, UV resistant, durable, better than RG58 generally used in the market.

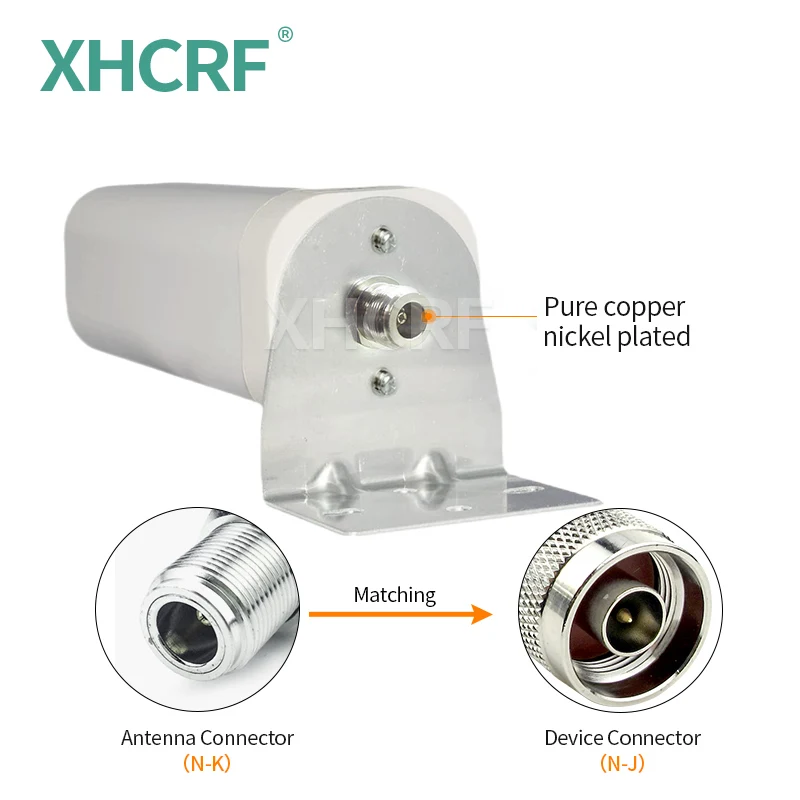

Cable connector: N male to SMA male or N male to RP SMA male
Cable length: 1m, 3m available. For other lengths, please contact customer service.
Additional information
| Color | Antenna 1m RP-SMA-J, Antenna 3m RP-SMA-J, Antenna 3m SMA-J, Antenna only |
|---|---|
| High-concerned chemical | None |
| Gain(dB) | 3~5dBI |
| Model Number | TX5G-BLG-2607 |
| Brand Name | XHCRF |
| Origin | Mainland China |
