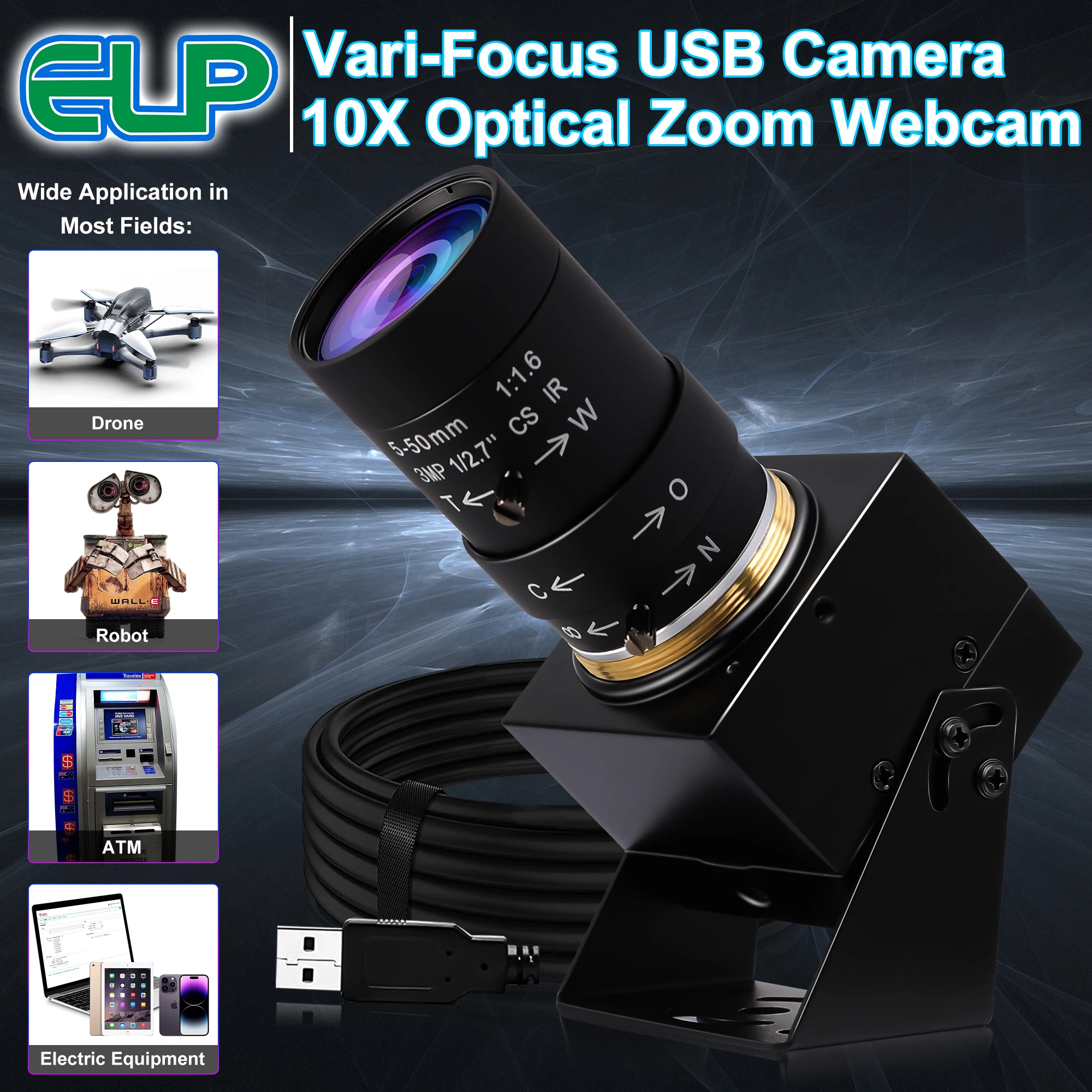

5MP 30fps USB Security Camera Industrial Machine Vision Manual Zoom UVC Webcam For PC Computer Laptop
Description
- High-concerned chemical: None
- Model Number: ELP-USB500W07-UFV
- Brand Name: ELP
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Max.resolution: 2592×1944
- Imgae sensor: 1/2.8" SONY IMX335
- Picture format: MJPEG or YUY2 optional
- free driver: USB Video Class(UVC)1.1
- Lens: 4/6/8mm manual focus lens,2.8-12/5-50mm varifocus lens
- cable: 3m(2/3/5m optional)
- Board size: 38x38mm,32x32mm
- OS: Windows, Linux, Android, Mac OS
5MP 30fps USB Security Camera Industrial Machine Vision Manual Zoom USB Webcam For PC,Computer,Laptop
Ailipu Technology Co.,Ltd, who have 19 years history, is a professional manufacturer of surveillance system .
Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,
ELP already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
ELP is developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus, 8megapixel to 13megapixel which already used in all kinds of industrial system.
ELP can also OEM or customize products specially by customers' requirements. We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
|
Model |
ELP-USB500W07-UFV(2.8-12) (2.8-12mm varifocus lens) ELP-USB500W07-UFV(5-50) (5-50mm varifocus lens) ELP-USB500W07-UF40 (4mm manual focus lens) ELP-USB500W07-UF60 (4mm manual focus lens) ELP-USB500W07-UF80 (4mm manual focus lens) ELP-USB500W07-UFV (No lens) |
|
Sensor |
SONY IMX335 (1/2.8” ) |
|
Max Resolution |
2592(H) *1944 (V) |
|
Pixel Size |
2.0µm x2.0µm |
|
Image Area |
5800µmx4750µm |
|
Picture Format |
MJPEG / YUY2 (YUYV) |
|
Resolution & Frame Rate |
2592×1944 MJPEG 30fps/ YUY21fps 2048×1536 MJPEG 30fps/ YUY23fps 1920×1080 MJPEG 30fps/ YUY23fps 1600×1200 MJPEG 30fps/ YUY25fps 1280×960 MJPEG 30fps/ YUY2 5fps 1280×720 MJPEG 30fps / YUY2 5fps 1024 x 768 MJPEG 30fps/ YUY2 5fps 800 x 600 MJPEG 30fps / YUY2 20fps 640×480 MJPEG 30fps / YUY230fps 320×240 MJPEG 30fps / YUY230fps |
|
Center Definition |
1000LW/PH (Center) |
|
S/N (Signal Noise Ratio) |
30dB |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Min. illumination |
0.2 Lux |
|
Shutter |
Electronic rolling shutter / Frame exposure |
|
Interface |
USB2.0 High Speed |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
|
Lens |
No distortion lens 2.1/2.8/3.6/6/8/12/16/25/2.9mm lens,2.8-12mm varifocus lens |
|
Power Supply & Connector |
USBBUSPOWER4P-2.0mmsocket |
|
Power |
DC 5V |
|
Current |
210mA |
|
Size |
38mm × 38mm (compatible 32X32mm) |
|
Storage Temperature |
-20°C to 75°C |
|
Working Temperature |
-10°C to 65°C |
|
USB Cable |
1M(2M/3M/5M Optional) |
|
Operating System |
Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
5MP 30fps USB Camera
1/2.8 Sony IMX335 Sensor
CS Mount Lens
Max Resolution 2592(H) X 1944(V) 5Megapixel
5megapixel high pixel technology for sharp image and accurate color reproduction.
Plug and Play/Free Driver
FOR RASPBERRY PI:
It can work with already preinstalled camera software instead of builtin camera.
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC:
Support windows,linux,mac,Android,raspberry Pi
Very easy to use,UVC compliant,free driver,just plug in and go.
Can compatible with 1/4" tripod(Tripod do not included in package.)
Widely Application:
Robotic Machine Vision+Face scan payment+Bank withdraw
Home Video Surveillance+Object tracking Device+Car Driving System
Dashcam+baby camera+monitoring 3D printer+QR code scan+Bar Code Identification
4/6/8mm manual focus lens
Additional information
| Color | 2.8-12mm lens, 4mm lens, 5-50mm lens, 6mm lens, 8mm lens, No lens |
|---|---|
| High-concerned chemical | None |
| Model Number | ELP-USB500W07-UFV |
| Brand Name | ELP |
| Origin | Mainland China |
| Certification | CE,FCC,RoHS |
| Max.resolution | 2592×1944 |
| Imgae sensor | 1/2.8" SONY IMX335 |
| Picture format | MJPEG or YUY2 optional |
| free driver | USB Video Class(UVC)1.1 |
| Lens | 4/6/8mm manual focus lens,2.8-12/5-50mm varifocus lens |
| cable | 3m(2/3/5m optional) |
| Board size | 38x38mm,32x32mm |
| OS | Windows, Linux, Android, Mac OS |
