5PCS/LOT Ring Ferrite Magnet Dia D32-50mm Hole M17-M25 Y30 Strong Black Round Speaker Permanent Magnets 50X10-25mm
7.56$ – 25.20$Price range: 7.56$ through 25.20$
In Stock
Loading...
Description
- Product Ingredients: No dysprosium or terbium
- Product Type: Magnetic Material Products
- High-concerned chemical: None
- With Holes: Yes
- Shape: Ring
- Composite: Ferrite Magnet
- Model Number: Y30-32-50-18
- Application: Speaker Magnet
- Type: Permanent
- Origin: Mainland China
- Certification: CE,FCC,RoHS,UL
Product Name:Ring Ferrite Magnet
Product performance: Y30
Product dimensions: Outer diameter 27-50mm, Inner diameter: 17-25mm, Thickness: 3-10mm
Dimensional tolerance:+- (0-0.5mm)

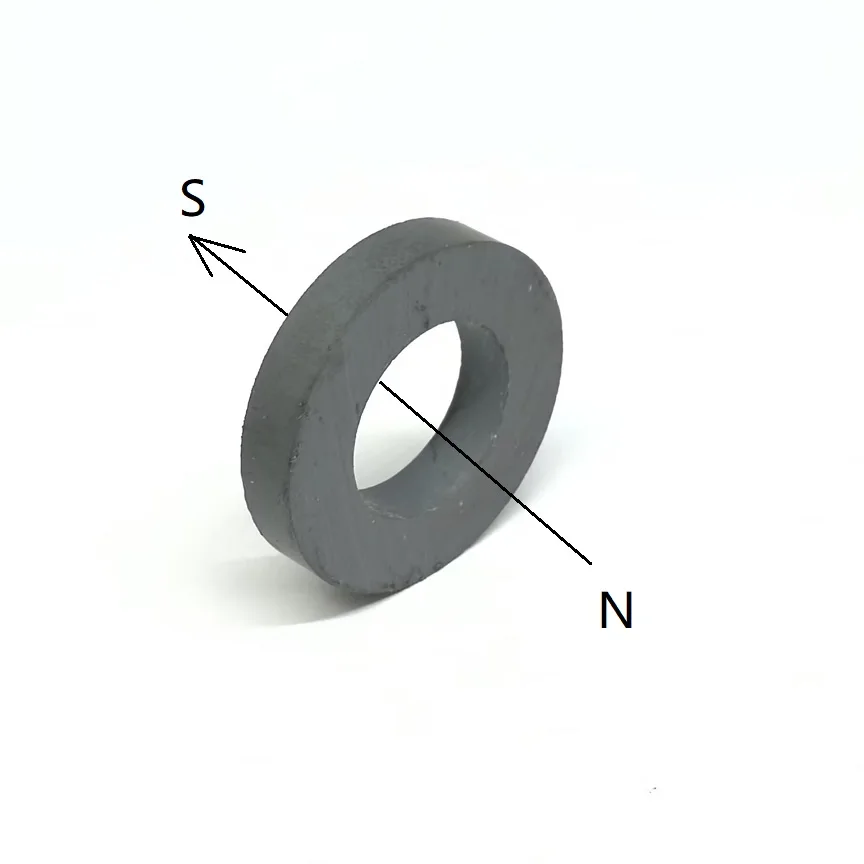

Magnetization direction: Shaft diameter
Working temperature: Less than 200 degrees Celsius
Â
Â
Ferrites are sintered from iron oxides and other ingredients. Produced by powder metallurgy. The ferrite magnet has a low remanence and a small magnetic permeability. It has large coercive force and strong anti-demagnetization ability, and is especially suitable for magnetic circuit structure used as dynamic working conditions. The material is hard and brittle. Can be used in diamond cutting tools for cutting. The main raw material is oxide, so it is not easy to corrode. Operating temperature: – 40 degrees Celsius – +200 degrees Celsius.The magnetic force is usually 800-1000 Gauss,which is often used speakers and other instruments.
Â
Additional information
| Color | 5PCS D27x3-17mm, 5PCS D32x6-18mm, 5PCS D32x8-18mm, 5PCS D35x6-18mm, 5PCS D36x8-18mm, 5PCS D40x6-22mm, 5PCS D40x8-19mm, 5PCS D40x8-22mm, 5PCS D45x8-19mm, 5PCS D45x8-22mm, 5PCS D50x10-25mm, 5PCS D50x8-22mm |
|---|---|
| Product Ingredients | No dysprosium or terbium |
| Product Type | Magnetic Material Products |
| High-concerned chemical | None |
| With Holes | Yes |
| Shape | Ring |
| Composite | Ferrite Magnet |
| Model Number | Y30-32-50-18 |
| Application | Speaker Magnet |
| Type | Permanent |
| Origin | Mainland China |
| Certification | CE,FCC,RoHS,UL |
