8K USB Autofocus Living Stream Camera 8MP IMX766 Sensor OTG UVC Plug And Play PC Video Industrial Housing For Youtube/Tiktok/OBS

8K USB Autofocus Living Stream Camera 8MP IMX766 Sensor OTG UVC Plug And Play PC Video Industrial Housing For Youtube/Tiktok/OBS

172.97$ 191.31$Price range: 172.97$ through 191.31$
In Stock
Loading...

Description

  • High-concerned chemical: None
  • Model Number: WGWK-USB50MP-AF
  • Brand Name: WGWK
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE
  • CMOS: IMX766
  • Photosensitive size: 1/1.56
  • USB cable: The default cable is 1 meter. The company has 1m, 2m and 3m cable
  • Single pixel size: 1.0um x 1.0um
  • Photosensitive signal-to-noise ratio: TBD
  • USB interface type: USB2.0
  • Common resolutions & frame rates: 8160*6120 /5fps.MJPG 4080*3060/20fps;MJPG 3840*2160/30fps;MJPG
  • Maximum resolution angle: Diagonal 80° Horizontal 65° Vertical 53°
  • Operating Voltage and Current: 5V x 600mA-1100mA
  • Ambient Operating Temperature: 0 to 75°C
  • Storage Humidity & Temperature: -30 to +80°C
  • Support system: Microsoft Windows 2000 SP2/XP/Vista/Windows 7/Windows 8
  • Application Areas: HD shooting Document shooting Portrait shooting
  • Support driver-free protocol: USB Video Class
  • Support OTG protocol: USB 2.0 OTG
  • PCB size: 38 x 38mm, X 2
  • Power supply mode: USB BUS POWER 4P-2.0mm socket
  • Adjustable parameters: Camera properties

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.8K USB Autofocus Living Stream Camera 8MP IMX766 Sensor OTG UVC Plug And Play PC Video Industrial Housing For Youtube/Tiktok/OBS

  • WGWK Ultra HD 8160X6120 High Resolution 50MP USB Camera module.

  • High frame rate 30fps usb camera, can do 30fps@3840*2160.

  • With High Speed Autofocus lens

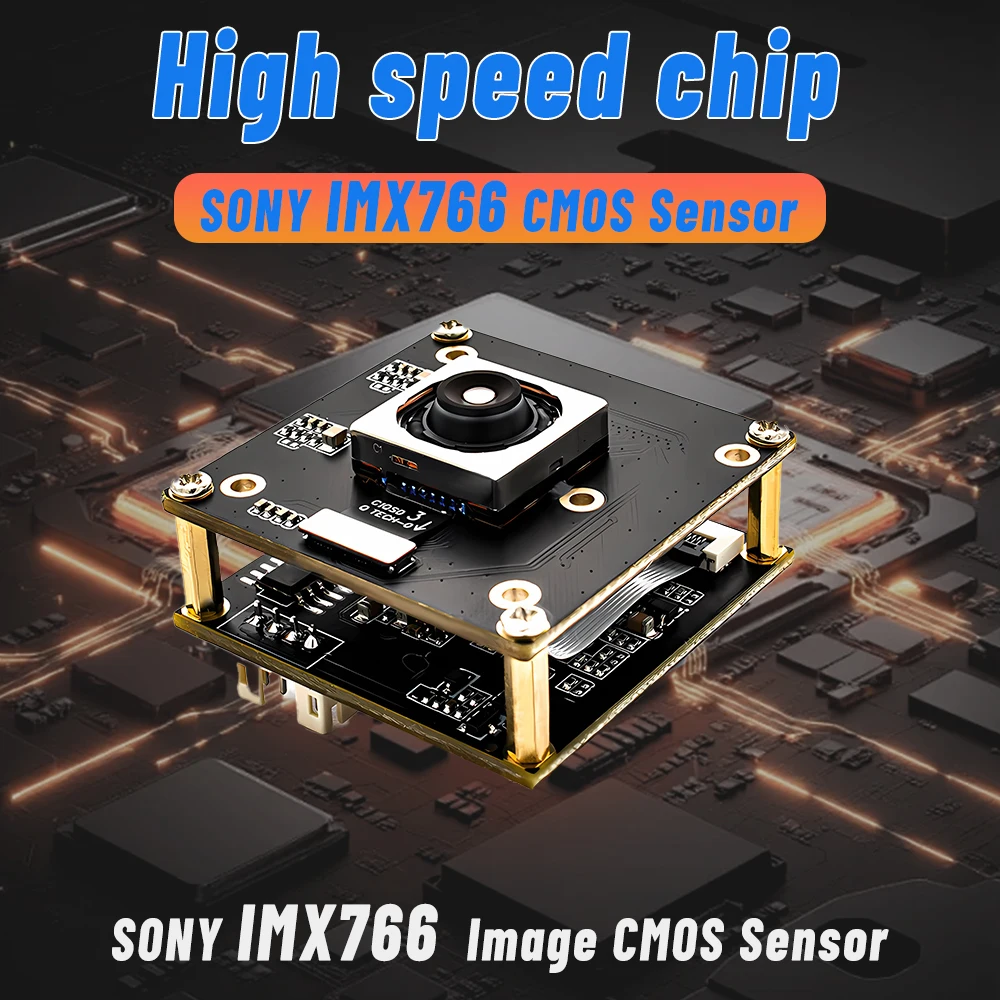

  • With industrial grade high quality sensor IMX766.

  • Super Image reality, real color reproduction, without interpolation.

  • UVC Free Driver , Plug and Play, easily used on different systems.

  • Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…

  • OTG Support, can be used on Android smartphone, recommended app "USB Camera".

  • Wide Application: Well used for industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner… and so on.

Product Model

WGWK-USB50MP-AF

CMOS

IMX766

Photosensitive size

1/1.56

USB cable

The default cable is 1 meter. The company has 1 meter, 2 meter and 3 meter cables (customizable interface cables are supported).

Single pixel size

1.0um*1.0um

Photosensitive signal-to-noise ratio

TBD

USB interface type

USB2.0

Common resolutions & frame rates

MJPG (compressed format)

YUV (compressed format)

8160*6120 /5fps.MJPG                                               4080*3060/20fps;MJPG                                             3840*2160/30fps;MJPG                                             2560*1440/30fps;MJPG                                          1920*1080/30fps;MJPG                                         1280*720/30fps;MJPG                                             800*600/30fps;MJPG                                                 640*480/30fps;MJPG

1920*1080/5 fps/YUV                                                                                 1280*720 /10 fps/YUV                                                                              800*600/20 fps/YUV                                                                                 640*480/30fps/YUV

Maximum resolution angle

Diagonal 80° Horizontal 65° Vertical 53°

Operating Voltage and Current

5V*600mA-1100mA

Ambient Operating Temperature

0 to 75°C

Storage Humidity & Temperature

-30 to +80°C

Support system

Microsoft Windows 2000 SP2/XP/Vista/Windows 7/Windows 8/Windows 10, etc.
Mac OS X 10.4.8 or later (UVC compliant)
Linux, Android, etc. (UVC compliant)

Application Areas

HD shooting Document shooting Portrait shooting

Support driver-free protocol

USB Video Class(UVC)

Support OTG protocol

USB 2.0 OTG

PCB (board frame) size

38*38mm, X 2

Power supply mode

USB BUS POWER 4P-2.0mm socket

Our company undertakes customized cameras of various structures. For customization, please contact customer service or salesperson.

Adjustable parameters

Camera properties

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine
, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,
 teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,
 Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,
 Medical auxiliary equipment, etc.

Step 1: Install Computer USB Camera Software – amcap

https://drive.google.com/file/d/1ZpJSSVhLD2qGCQusnFoF1JI5uW6IqkBR/view?usp=sharing

(Contact customer service to agree to share this document.)

Step 2: Connect the computer using a USB cable.

Step 3: Adjust the focal length to achieve a clear image.About us:

1. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. If Your Address is Defined As Remote Area, You'll Need Pay Extra Remote Shipping Fee.

2. If you have any question, Please leave us a message. Our goal is customer satisfaction!

3. Retail and Wholesale are All Welcome ! The More You Buy, the More Discounts You Get ! Feel Free to Contact us For More Selections!

4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit time may vary, particularly during the holiday season.

5. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your order ID.

6. We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can perform up your satisfaction.

Additional information

High-concerned chemical

None

Model Number

WGWK-USB50MP-AF

Brand Name

WGWK

Origin

Mainland China

Smart home platform

Other

Certification

CE

CMOS

IMX766

Photosensitive size

1/1.56

USB cable

The default cable is 1 meter. The company has 1m, 2m and 3m cable

Single pixel size

1.0um x 1.0um

Photosensitive signal-to-noise ratio

TBD

USB interface type

USB2.0

Common resolutions & frame rates

8160*6120 /5fps.MJPG 4080*3060/20fps;MJPG 3840*2160/30fps;MJPG

Maximum resolution angle

Diagonal 80° Horizontal 65° Vertical 53°

Operating Voltage and Current

5V x 600mA-1100mA

Ambient Operating Temperature

0 to 75°C

Storage Humidity & Temperature

-30 to +80°C

Support system

Microsoft Windows 2000 SP2/XP/Vista/Windows 7/Windows 8

Application Areas

HD shooting Document shooting Portrait shooting

Support driver-free protocol

USB Video Class

Support OTG protocol

USB 2.0 OTG

PCB size

38 x 38mm, X 2

Power supply mode

USB BUS POWER 4P-2.0mm socket

Adjustable parameters

Camera properties

Color

Module 1M Cable, Module 2M Cable, Module 3M Cable, With Case 1M Cable, With Case 2M Cable, With Case 3M Cable
