ABBREE AR-800 SMA Female Male BNC Antenna VHF/UHF Dual Band High Gain Long Range for Baofeng UV-5R 82 WOUXUN Walkie Talkie
Description
- High-concerned chemical: None
- Gain(dB): 3.2dbi
- Model Number: AR-800
- Brand Name: ABBREE
- Origin: Mainland China
- Type of connector: SMAFemaleMaleBNC
-

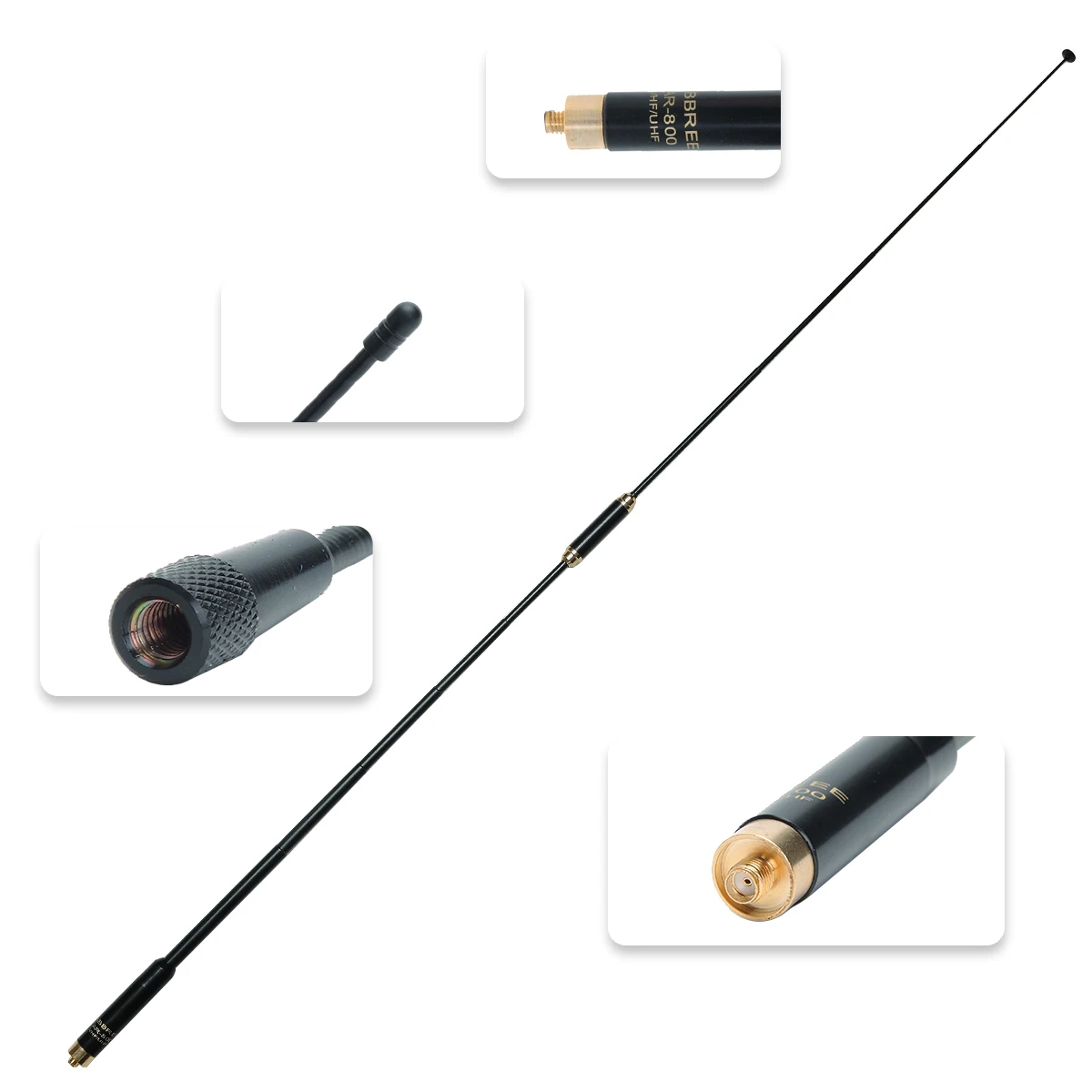

★【Dual Replaceable Antenna】AR-800 Dual Purpose Antenna: With a replaceable antenna,Telescopic Antenna and Ordinary Antenna. Change telescopic antenna or whip antenna acording to your need.
-
★【Connector Type】With High Gain 3.2dBi (VHF)/5.6dBi (UHF), SMA-Male, Female,BNC,Signal with up to 10W of power. Frequency Range:144/430MHz(2M/70CM)
-

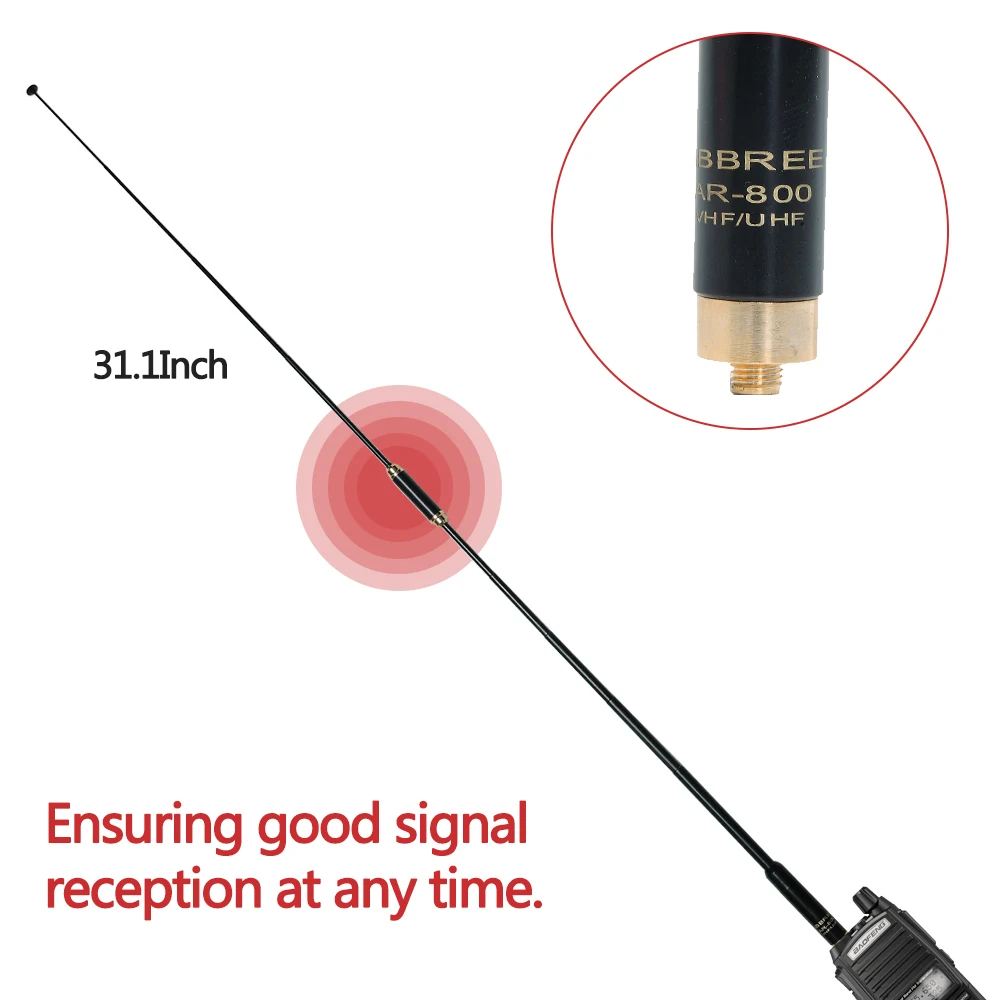

★【Features】Ordinary antenna length: appr 8.86 inch(22.5cm),Telescopic antenna length : appr 33.46 inch(85cm),easy to carry and replace.
-
★【Compatible Model】
For YAESU/Vertex Standard: VX-1R, VX-2R, VX-3R, VX-5R, VX-6R, VX-7R, VX-8R, VX-110, VX-130, VX-131, VX-150, VX-160, VX-170, VX-177, VX-180, VX-300, VX-400, VX-410, VX-800, FT- 270R, FT-250R, FT-60R, VX-230, VX-8d;
For PUXING: PX-325, PX-333, PX-2R, PX-V6 PX-A6 PX-358 PX-359, ;
For TYT: TH-F5 TH-UVF9 TH-UV3R TH-UVF8D TH-UVF9D TH-UV8000D/E MD-380 MD-390
For LINTON: LT-6100, LT-6188;
For TonFa: UV-985
For WouXun: KG-UV6D, KG-UV8D;KG-UV9D
For Baofeng: UV-3R UV-100 UV-200;
For Zastone: ZT-2R;
For Other walkie talkies which need antenna.
Description:
1. All of our items are brand new.

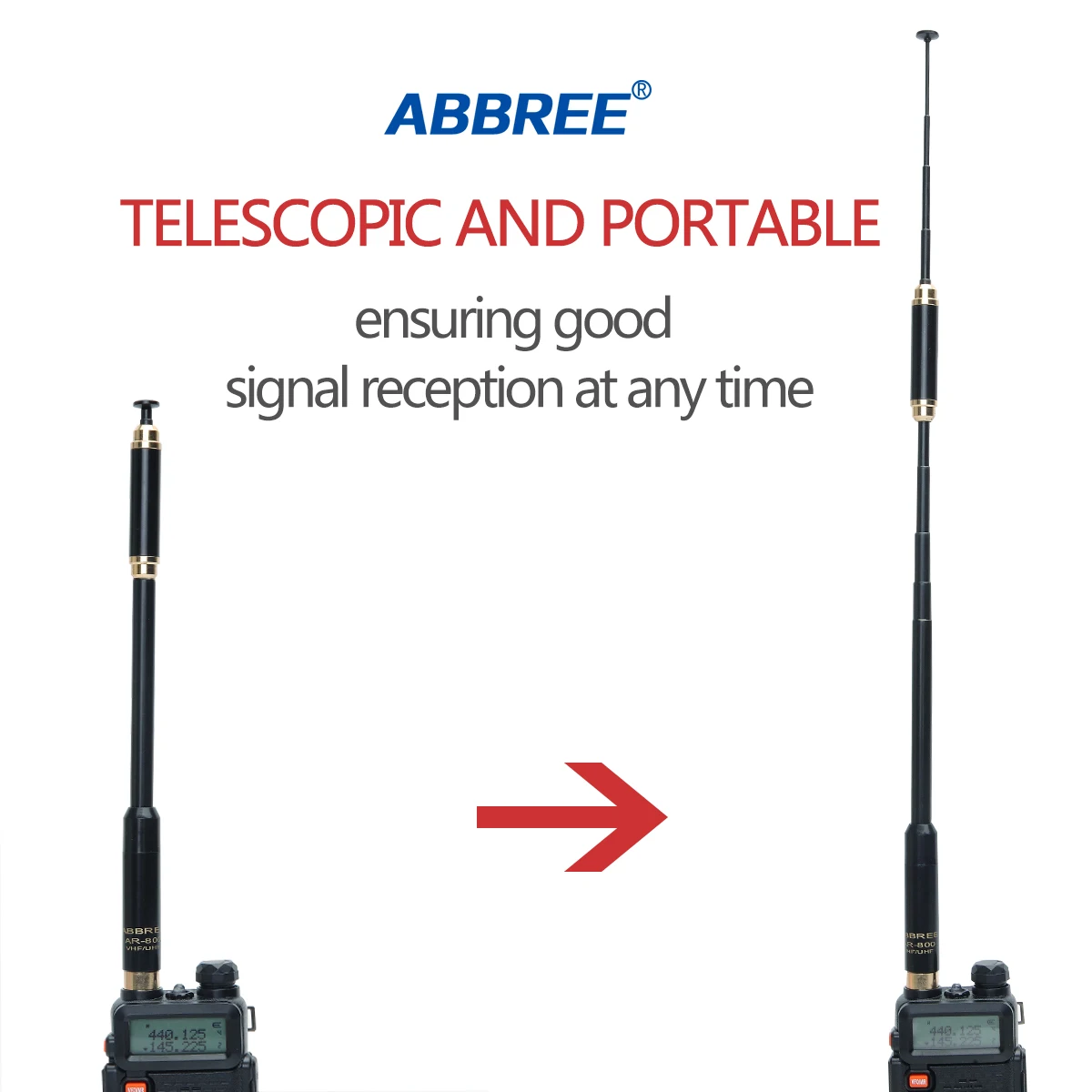

2. Telescopic and ordinary antenna included can be interchangeable and easy to disassemble and carry.
3. Connector Type: SMA-M (Male).
4. Band: Dual Band VHF/UHF.
5. Frequency: 144/430MHz.
6. Gain: 3.2dBi (VHF)/5.6dBi (UHF).
7. Max Power: 50Watts.
8. V.S.W.R: Less than 1.5.
9. Impedance: 50ohm.
10. Diameter: 0.5cm.
11. Telescopic antenna length: 22.2cm (retracted)/85cm (full length).
Applicable Model:
|
YAESU/Vertex |
VX-1R, VX-2R, VX-3R, VX-5R, VX-6R, VX-7R, VX-8R, VX-110, VX-130, VX-131, VX-150, VX-160, VX-170, VX-177, VX-180, VX-300, VX-400, VX-410, VX-800, FT- 270R, FT-250R, FT-60R, VX-230, VX-8d |
|
BAOFENG |
UV-3R UV-100 UV-200 |
|
PUXING |
PX-325, PX-333, PX-2R, PX-V6 PX-A6 PX-358 PX-359, ; |
|
WOUXUN |
KG-UV6D, KG-UV8D;KG-UV9D Plus |
|
TYT |
TH-F5 TH-UVF9 TH-UV3R TH-UVF8D TH-UVF9D TH-UV8000D/E MD-380 MD-390 |
|
LINTON |
LT-6100, LT-6188 |
|
Other radios suitable for this antenna. |
|
Notice: If your radio model is not compatible, please see my other item or email us your model number, then, we will help you find one that suits for you.
Package include:
1 X AR-800 Atnenna
Additional information
| Color | BNC, SMA-Female, SMA-Male |
|---|---|
| High-concerned chemical | None |
| Gain(dB) | 3.2dbi |
| Model Number | AR-800 |
| Brand Name | ABBREE |
| Origin | Mainland China |
| Type of connector | SMAFemaleMaleBNC |
1 review for ABBREE AR-800 SMA Female Male BNC Antenna VHF/UHF Dual Band High Gain Long Range for Baofeng UV-5R 82 WOUXUN Walkie Talkie
Vendor Information
Related Products
a***r (verified owner) –
The frequency band with poor reception sensitivity has been dramatically improved.
J***s (verified owner) –
Excellent
T***k (verified owner) –
The most efficient one I’ve tested. 2m and 70cm work very well, broadcast is excellent. Good cooperation with Icom Id52e plus.
E***v (verified owner) –
A good foldable telescopic antenna. High sensitivity. When you need to pick up weak signals, this is just what you need. It’s not flexible, of course, so it’s more suitable for stationary use than for use while moving. Since it’s not designed to work when folded, keep this in mind when purchasing. Although the kit includes a replacement short tip – you unscrew the telescope, screw on the short flexible tip, and can use it while moving without fear of breaking the telescope.
