ABVO-Automotive Infrared Thermal Camera TISR 240X240 Handheld Visible Light Fusion Photo& Video Recording Thermal Imaging Device
In Stock
Loading...
Description
- High-concerned chemical: None
- Brand Name: FGHGF
- Origin: Mainland China
- Specification 1: Thermal Imager Camera
- Specification 2: 240×240 Infrared Thermal Camera
- Specification 3: Infrared Thermal Camera
- Specification 4: Thermal Imager
- Specification 5: 240×240 Thermal Imager
ABVO-Automotive Infrared Thermal Camera TISR 240X240 Handheld Visible Light Fusion Photo& Video Recording Thermal Imaging Device
USB lithium battery direct charging for long battery life Quickly transfer and archive images via USB connection to your computer for easier image viewing
Built-in 128MB FLASH (approximately 50MB of user-available space)

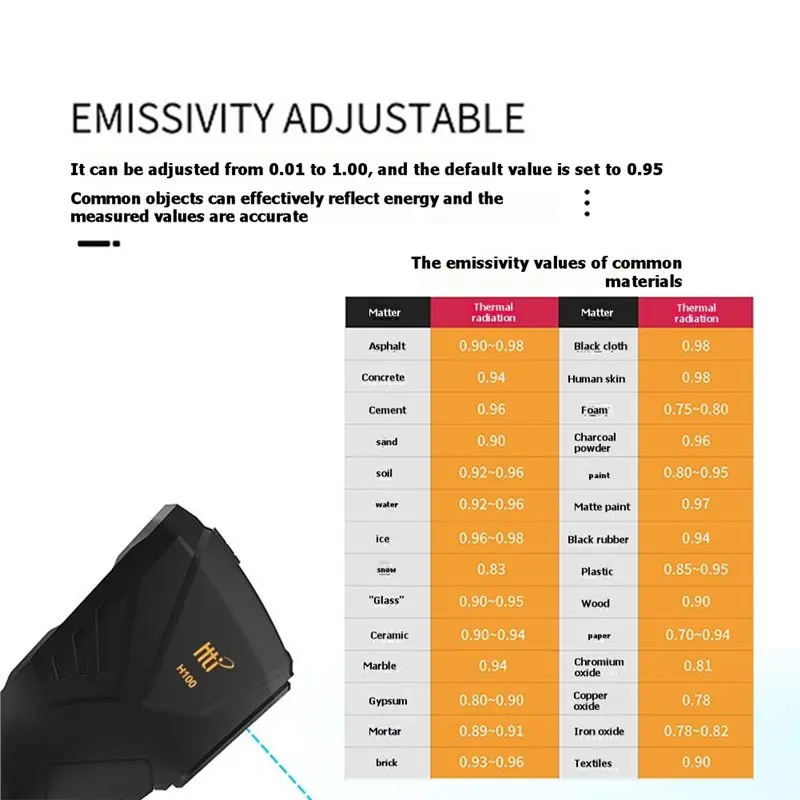

Emissivity adjustable The value can be adjusted from 0.01 to 1.00, with a default value of 0.95. It effectively reflects energy from common objects, resulting in accurate measurements
It adopts 12µm/96X (IRS:240×240) pixel thermal imaging sensor; NETD≤60MK, high contrast ensures clear and sharp images; it has a high recognition capability for details such as buildings, home appliances, plants, objects, and mountain
IR resolution:96×96 (IRS:240×240)
Infrared response band:8 to 14µm
Pixel size:12μm
NETD:<60mK @25°C,@F/1.0
lens focal length:1.35mm
field of view:50°x50°
Focusing method:fixed focus

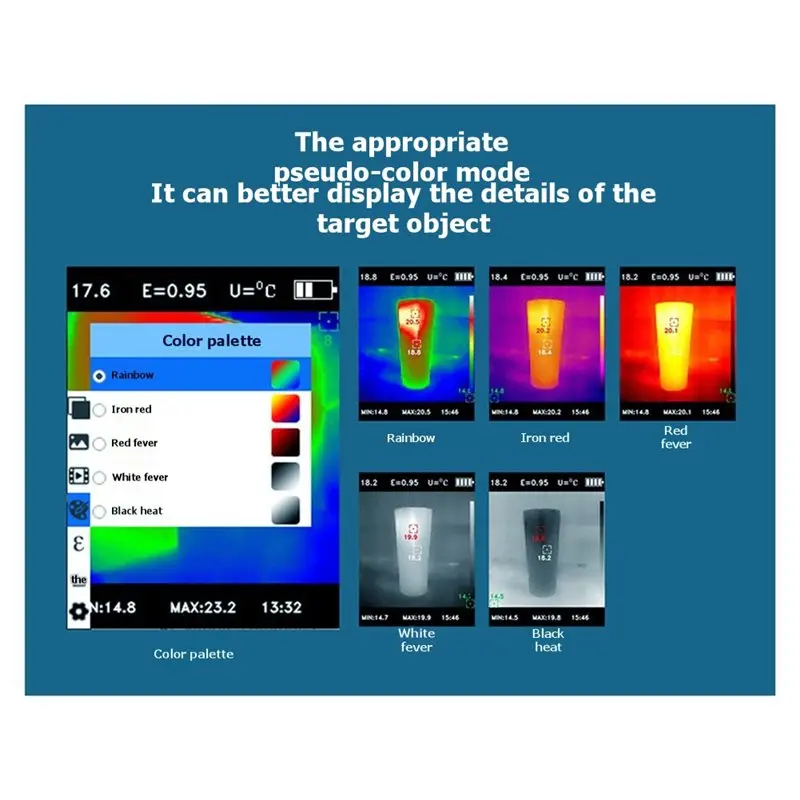

color palette:Rainbow/Iron Red/Red Hot/White Hot/Black Hot
Emissivity setting:Adjustable from 0.01 to 1.00
Thermal imaging frame rate:<25Hz
Display size:2.4-inch (240×320)
(The product printed words may vary depending on the batch, but this does not affect use)
Color: As Shown
Material: ABS
Built-in 128MB FLASH (approximately 50MB of user-available space)
Emissivity adjustable The value can be adjusted from 0.01 to 1.00, with a default value of 0.95. It effectively reflects energy from common objects, resulting in accurate measurements
It adopts 12µm/96X (IRS:240×240) pixel thermal imaging sensor; NETD≤60MK, high contrast ensures clear and sharp images; it has a high recognition capability for details such as buildings, home appliances, plants, objects, and mountain
IR resolution:96×96 (IRS:240×240)
Infrared response band:8 to 14µm
Pixel size:12μm
NETD:<60mK @25°C,@F/1.0
lens focal length:1.35mm
field of view:50°x50°
Focusing method:fixed focus
color palette:Rainbow/Iron Red/Red Hot/White Hot/Black Hot
Emissivity setting:Adjustable from 0.01 to 1.00
Thermal imaging frame rate:<25Hz
Display size:2.4-inch (240×320)
(The product printed words may vary depending on the batch, but this does not affect use)
Color: As Shown
Material: ABS
Package Contents:
1* 240×240 Thermal Imager
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
Additional information
| Color | As shown |
|---|---|
| High-concerned chemical | None |
| Brand Name | FGHGF |
| Origin | Mainland China |
| Specification 1 | Thermal Imager Camera |
| Specification 2 | 240×240 Infrared Thermal Camera |
| Specification 3 | Infrared Thermal Camera |
| Specification 4 | Thermal Imager |
| Specification 5 | 240×240 Thermal Imager |
