What is heating film?

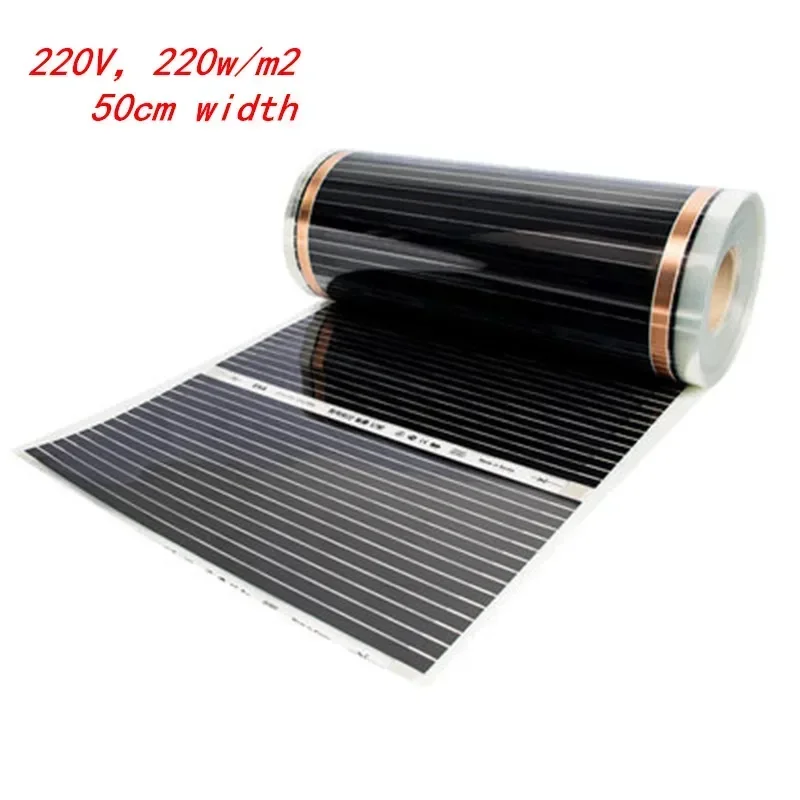

It is an innovative heating system that is made with gravure printing of heat generatingcarbon tissue on PET Film and copper busbar. Since it emits far infrared rays and anions,warm radiant heat can be felt for a well-being life.

1.Benefits Heating film

1) Energy can be saved more than 65%.(On regular basis)

2) No need space for boiler

3) Far infrared radiation (90.3%) and anions (250cc) are emitted to improve health.

4) Don’t worry about smoke, noise, fueling, freezing.

5) Convinient control such as sectional heating, central heating and sectional control.

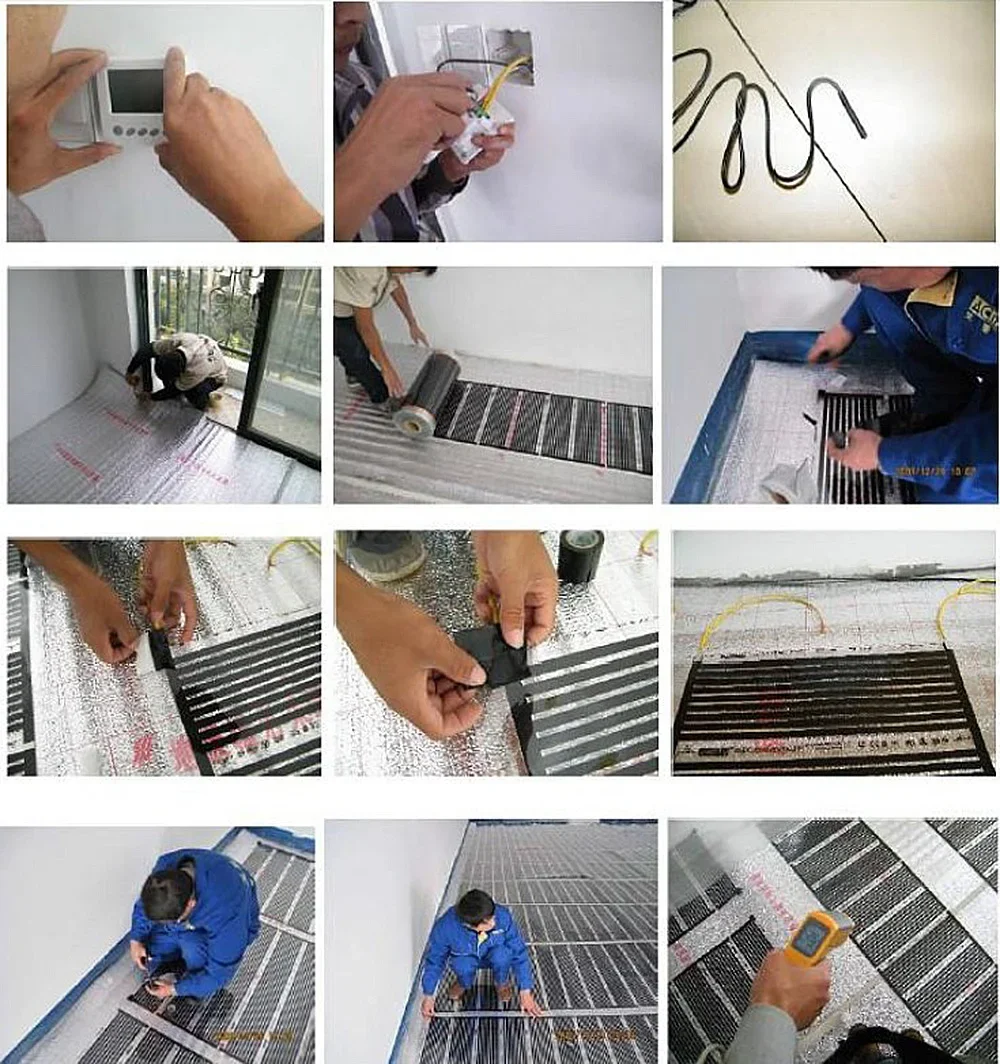

6) One day installation and immediately usable

7) Free to choose of finishing materials

8) Fast installation without taking off the existing floor

9) It can lower the height of ceiling and the weight of building.

2.Feature of Heating film

1. Burning resist PET application: The ivory PET Film is used the XB-65 with VTH-2 chip in for heat defying insulation which has the UL Certificate and is manufactured by Doraysaeghan.

2. Gravure printing: As screen printing cannot print carbon tissue evenly, it is inappropriate for

the heat generating plate. It can be partially overheated to cause fire and short circuit. We,

however, have chosen the gravure rotary printing press to pursue to the safety by giving electric

resistance evenly to the Heat Generating Plate.

3. Wide silver space: The silver space is for the space between carbon and copper busbar where

the electrical energy is converted to thermal energy. This space prevent spark, and is important

part related to product life and safety. We broadened this space for safety.

4. Copper busbar with 12mm of width and 10amp:Wide copper busbar to restrain overheating.

The thinner PET has superior adhesive strength and keeps air cut.
