ACMER S2 4/7/12/20W Laser Engraving and Cutting Machine High Precision Portable Machine Tool For Plywood Acrylic Leather Glass

Say Goodbye To The Sameness And Let Your Creativity Blossom. S2 Series Laser Engraving Machine Is A Professional-Grade Intelligent Tool Tailored For Makers, Designers, Handicraft Enthusiasts And Small Studios. It Integrates High Precision, Strong Power, Multi-Material Compatibility, Safety And Ease Of Use, Helping You To Easily Transform The Blueprint In Your Mind Into Exquisite Physical Objects Within Your Reach.

1. Power Core: Precision Laser System, Achieving Extraordinary Details‌
Surging Power, Choose On Demand‌: The S2 Series Provides Multiple Power Configurations From 4w To 20w (S2-4w: 4000mw; S2-7w: 7000mw; S2-12w: 12000mw; S2-20w: 20000mw), Accurately Covering A Wide Range Of Needs From Delicate Surface Engraving To Deep And Efficient Cutting.
Stable Light Source‌: Using Industrial-Grade ‌Diode Laser‌ To Ensure Stable Output For Long-Term Continuous Operation.
Pure Beam‌: Using ‌Blue Light Synthesis Technology‌ And Precision Lens, The Laser Wavelength Is Precisely Locked At ‌455±5nm‌, With Concentrated Energy And Strong Penetration.
Ultra-Micro Focus‌: The Factory Standard Configuration Is A Fine Light Spot With A Size As Low As ‌0.08mm X 0.08mm‌ (Some Models Have Slight Differences), And With A Repeatable Positioning Accuracy Of Up To ‌0.01mm‌, The Lines Are Clear And Sharp, And Every Detail Is Revealed.
Durable: The Laser Head Is Designed To Last Up To 10,000 Hours, Providing You With Long-Lasting And Reliable Creation Guarantee.
2. Stable Architecture: Precise, High-Speed, Stable Output‌
Sturdy Body: The Main Body Is Made Of High-Strength Industrial Aluminum Profile Frame, Which Has A Stable Structure And Effectively Suppresses Working Vibration.

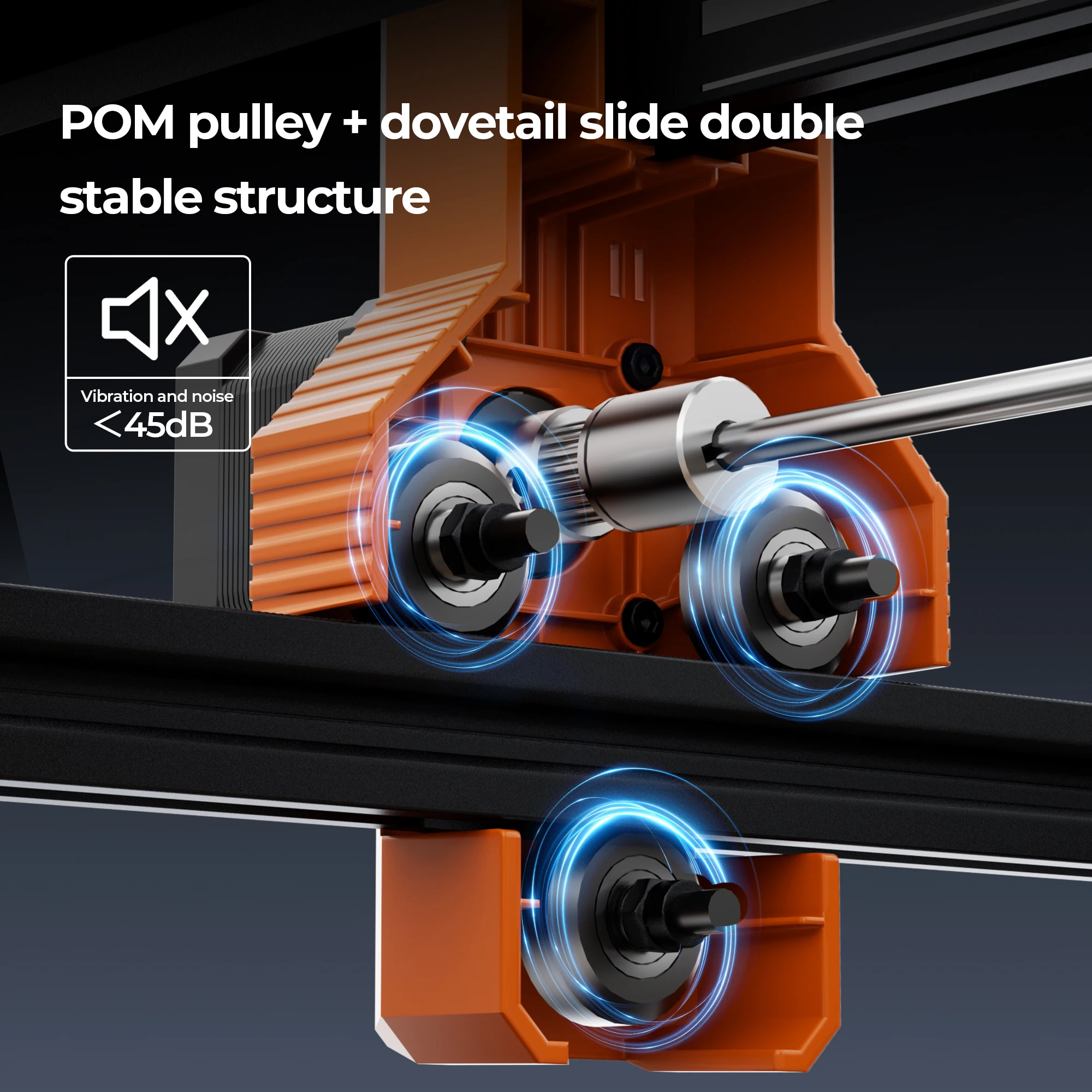

Smooth Transmission‌: The ‌Pulley Motion Structure‌ Ensures Smooth And Smooth Operation And Maintains High Precision For A Long Time.
Extremely Fast Response‌: The Maximum Engraving Speed Reaches ‌10000mm/Min‌, Combined With The Maximum Acceleration Of ‌300mm/S², Which Greatly Improves Work Efficiency And Is Especially Suitable For Batch Operations.
Spacious Creative Space‌: Provides Two Working Areas: ‌300mm X 300mm (S2-4w/7w/12w)‌ And ‌300mm X 285mm (S2-20w)‌ To Meet Most Creative Size Needs.
3. All-Round Creation: Compatible With A Wide Range Of Materials, Inspiring Unlimited Possibilities‌

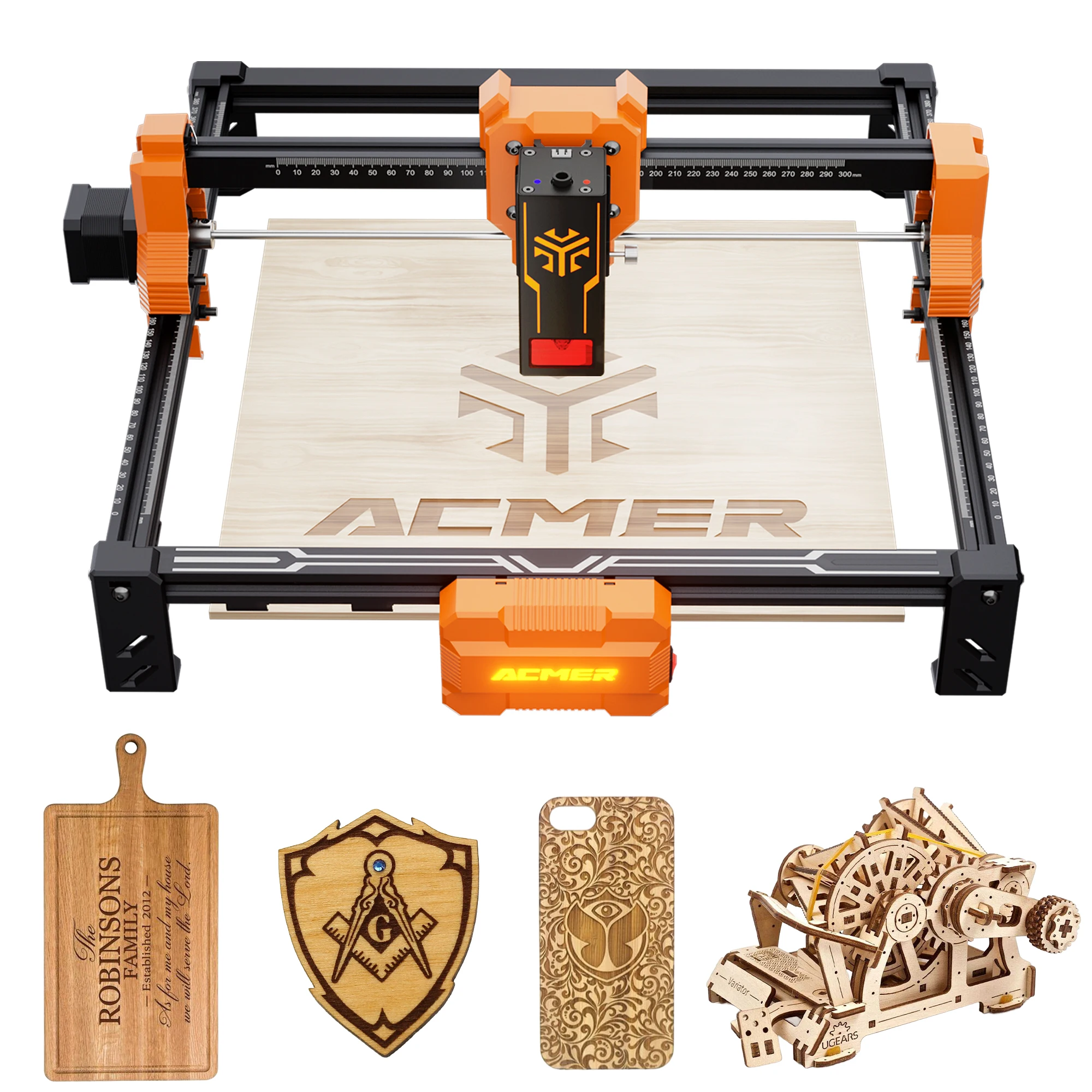

[Master Of Engraving, Omnipotent]‌: Perfectly Supports Surface Engraving On Dozens Of Materials Such As Wood, Bamboo, Paper, Plastic, Leather, Copper-Clad Laminate (Pcb), Anodized Aluminum, Non-Reflective Coatings, Lacquered Metals, Ceramics, Etc. Personalized Customization Is At Your Fingertips.
【Expert Cutting, Deep And Comfortable】‌:
Strong Cutting Ability (Not A Single Limit Depth)‌:
Plywood: Up To ‌25mm‌ (S2-20w)
Black Non-Transparent Acrylic: Up To ‌20mm‌ (S2-20w)
Medium Density Board (Mdf): Up To ‌8mm‌ (S2-20w)
Paulownia Wood: Up To ‌30mm‌ (S2-20w)
Efficient Single Penetration Capability (One-Pass Cut)‌:
Plywood: Maximum Single Pass ‌12mm‌ (S2-20w)
Black Acrylic: Up To ‌18mm‌ Per Shot (S2-20w)
Paulownia Wood: Maximum Single Time ‌20mm‌ (S2-20w)
Intelligent Air Assist‌: S2-12w And Higher Models Can Be Equipped With/Have A Powerful Air Pump (Such As A C4 Air Pump Or A 25l Self-Priming Air Pump), Which Can Blow Out Slag In Real Time During The Cutting Process, Significantly Improving The Quality And Speed Of The Cutting End Surface.
4. Intelligent, Easy-To-Use And Comprehensive Protection: Easy To Get Started And Create With Peace Of Mind‌

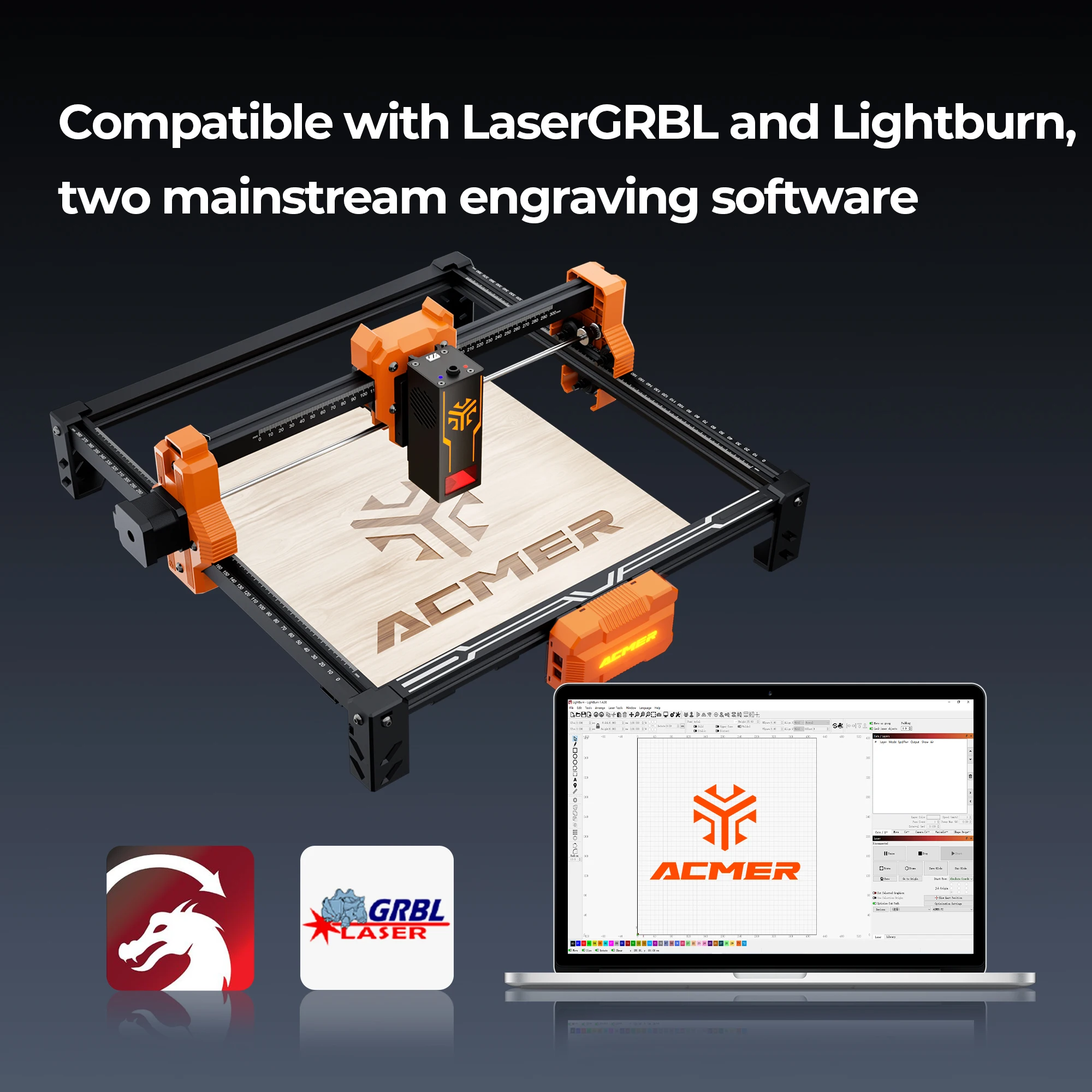

Compatible With All Platforms: Perfectly Supports Three Major Operating Systems: Macos, Windows, And Linux, Seamlessly Integrating Into Your Workflow.
Multi-Format Direct Reading‌: Can Directly Recognize And Process Multiple Common Design File Formats Such As Nc, Dxf, Bmp, Jpg, Png, Etc., Without Complex Conversion.
Convenient Connection‌: Standard ‌Usb Connection‌, Plug And Play, Easy To Set Up.
Comprehensive Security Protection‌:
Child-Safe Power Lock‌: Prevent Accidental Power-On And Protect Family Safety.
Emergency Pause Switch‌: Stop All Actions With One Click To Deal With Emergencies.
Flame Detection And Sound And Light Alarm (Buzzer)‌: Real-Time Monitoring Of The Working Environment And Immediate Warning In Case Of Abnormalities.
Double Limit Switch‌: Prevent The Equipment From Overtravel Movement And Protect The Mechanical Structure.
Compact And Portable: The Body Is Lightweight (About 3kg-3.7kg) And The Packaging Is Exquisite, Making It Easy To Transport And Store.
5. Model Quick Comparison Guide‌
Core Features S2-4w S2-7w S2-12w S2-20w
Laser Power‌ 4000mw 7000mw 12000mw ‌20000mw‌

When You Choose S2, You Choose A Reliable, Powerful And Fun Creative Partner. ‌ From The First Idea To The Final Product, It Will Accompany You Every Step Of The Way, Unleashing Your Every Inspiration With Professional Performance. Own It Now And Start Your Personal Journey Of Intelligent Manufacturing!

Warm Reminder‌: The Specific Processing Effect Is Affected By Material Characteristics, Processing Parameters And Environmental Facto
