AFEEV 3.6KW Type1 SAE J1772 Portable EV Charger 16A Type2 Electric Car Charger GB/T EVSE Fast Charging Cable WiFi APP Control
Description
- High-concerned chemical: None
- Operating Temperature: -30℃ ~ +50℃
- IP Rating: IP65
- Voltage: 110V ~ 250V
- Current: 6A/8A/10A/13A/16A adjustable
- Material: TPU
- Charger Type: Portable EV Charger
- Origin: Mainland China
- Brand Name: AFEEV
- Power (W): 3.6KW
- Length: 3.5meters
- Type 1: Car fast charger
- Type 2: Charging cable
- Type 3: charging station for electric car
- Type 4: type 2 ev charger
- Type 5: Quick charger
- Type 6: portable charger for electric car
- Type 7: charger for electric car
- Type 8: High speed charger
- Type 9: car charger fast charging
- Type 10: ev charger type 1 charger
AFEEV 3.6KW Type1 SAE J1772 Portable EV Charger 16A Type2 Electric Car Charger GB/T EVSE Fast Charging Cable WiFi APP Control
WiFi Smart APP Control:Built-in smart APP, which allows your vehicles to be charged during off-peak period by setting the charging time, save money on the electricity bills. And it allows to adjust charging current range from 6A to 16A, fully-charged notification or track the charging status.
Schedule Charging Time:You can set the charger to start charging at the time you want by pressing the Delay button. Perfect for overnight charge up and also spending less if charging off peak than at day time. You can leave it pluged in after finish charging with no issue. Our charger will be automatic power off when fully charged.

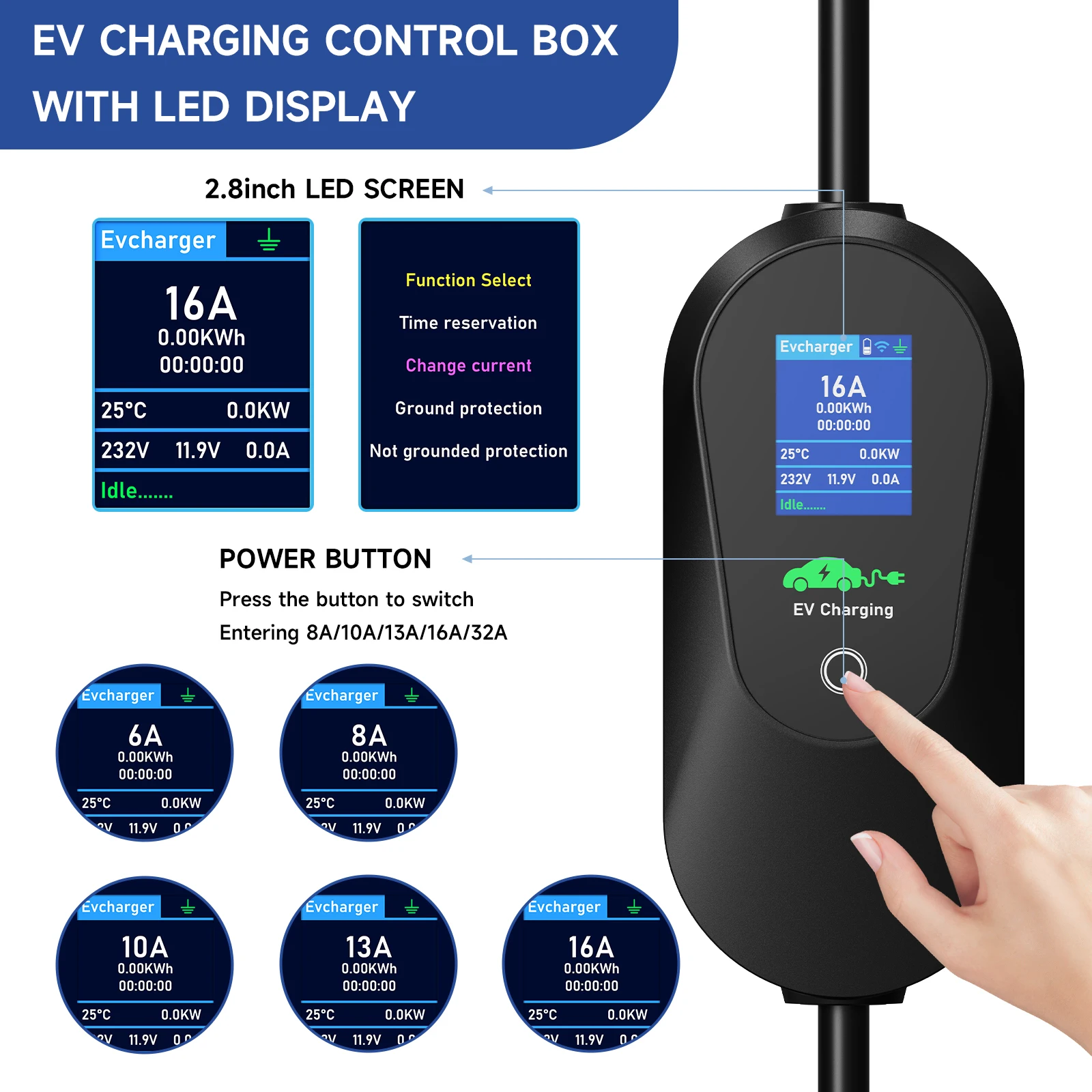

2.8inch LCD Screen:The controller of this home charging station has a 2.8inch LCD screen, which shows the real-time charging status like power status, charging current and so. The LED indicator lights on the control box help you identify the EV charger’s working condition and relevant charging information.
Safe & Reliable:Safety is a top priority for us when it comes to charging the electric vehicles. Our EV charger is designed with multiple protection systems such as, lightning-proof, leakage protection (TypeA DC6mA) , over-voltage, overheat protection, over-current protection, ground protection, and more. The cable is made of high-grade, rugged TPE materials, and the connector features IP65 waterproof & dust-proof protection to make this home EV charger safer and more reliable.
Charging Faster:This EV charger is based on a 240V voltage and adjustable current of 6A/8A/10A/13A/16A, to reach a max output power up to 3.6KW. Making EV charging faster! (Note: The actual charging time of an electric car comes down to the following two: the power source and the vehicle’s on board charger capacity.)
Multiple Control Ways:You can use the APP or the buttons on the charging box to control the charger. You can easily cancel the application connection and restart the charger through the control box menu bar.
Quality Guarantee:Provide 2 years warranty. If there are any issues with the charger during this period, you can consult us at any time. We have a professional after-sales team to help you solve any problems and ensure your long-term normal use.
Charger Type: Type1 SAE J1772 / Type 2 IEC 69196-2 / GBT 20234
Power: 3.6KW
Phase: 1Phase
Charging Current: 6A/8A/10A/13A/16A adjustable
Voltage: 110V~250V
Cable Standards: 3G 2.5mm²+1×0.5mm²
Plug: Schuko plug (EU)
Protection Degree: IP65
Operating Temperature: -30℃ ~ +50℃
Total Length: 3.5 meters
Charging Delay: Up to 15 hours
Current Memory: When you charge again, it will default to the last time setting current to charge, no need to manually adjust again, which is more convenient.
Overheat protection: When the internal temperature of the control box exceeds 85 °C, it enters overheat protection and stops charging. After the temperature drops to 65°C, it will resume charging.
Portable ev charger*1
User manual*1
Additional information
| Color | GBT, type 1, type 2 |
|---|---|
| High-concerned chemical | None |
| Operating Temperature | -30℃ ~ +50℃ |
| IP Rating | IP65 |
| Voltage | 110V ~ 250V |
| Current | 6A/8A/10A/13A/16A adjustable |
| Material | TPU |
| Charger Type | Portable EV Charger |
| Origin | Mainland China |
| Brand Name | AFEEV |
| Power (W) | 3.6KW |
| Length | 3.5meters |
| Type 1 | Car fast charger |
| Type 2 | Charging cable |
| Type 3 | charging station for electric car |
| Type 4 | type 2 ev charger |
| Type 5 | Quick charger |
| Type 6 | portable charger for electric car |
| Type 7 | charger for electric car |
| Type 8 | High speed charger |
| Type 9 | car charger fast charging |
| Type 10 | ev charger type 1 charger |
