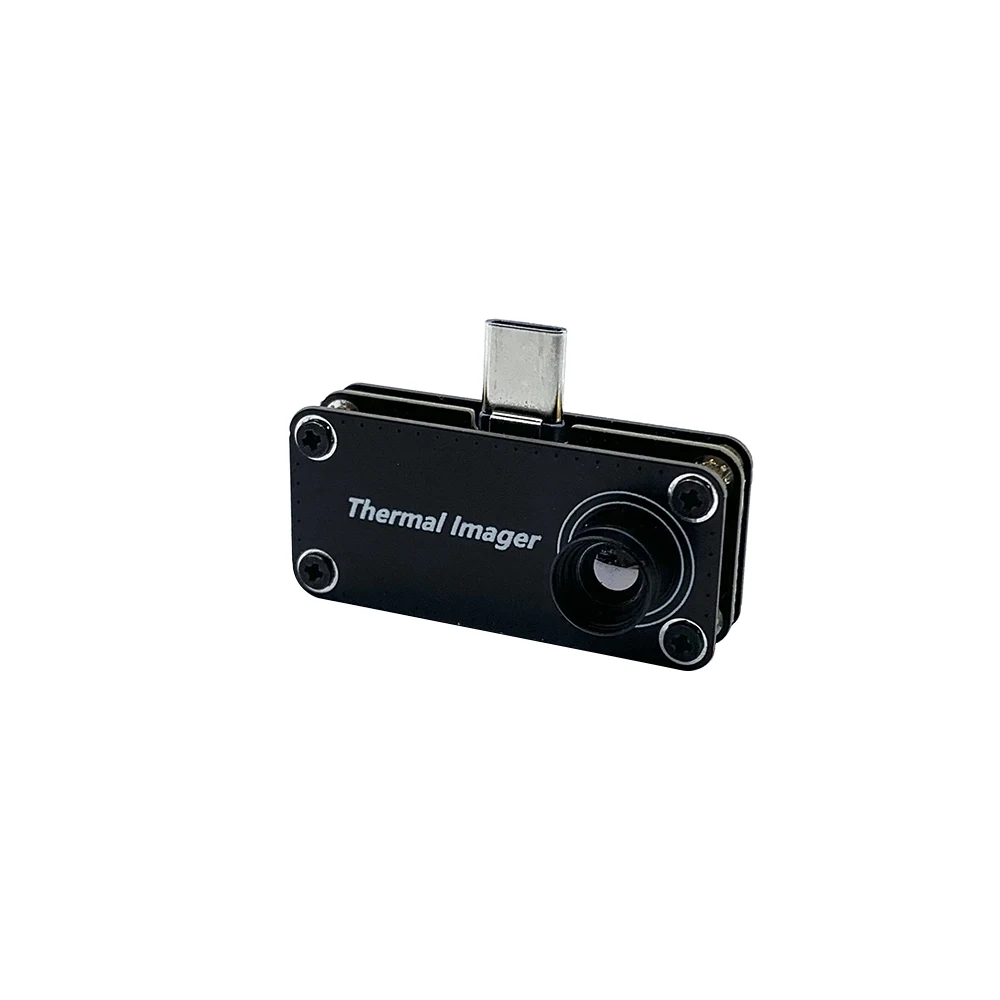

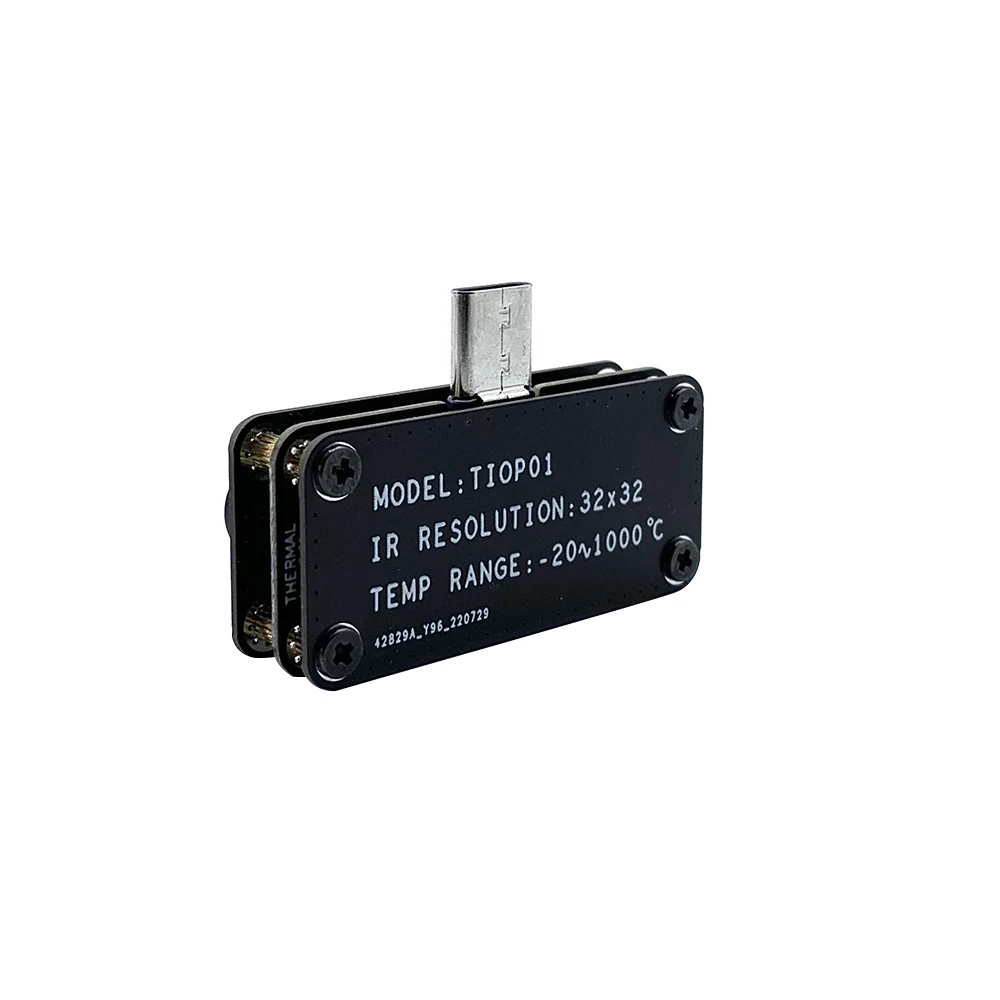

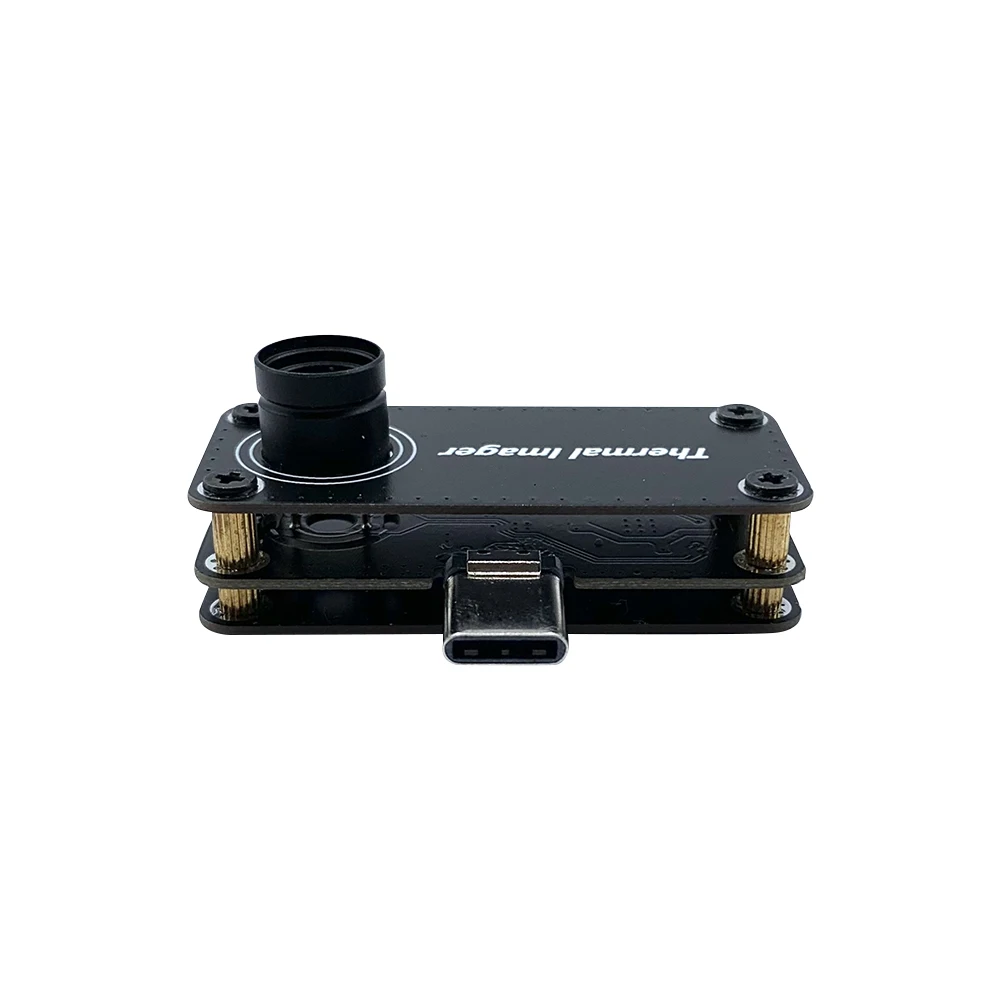

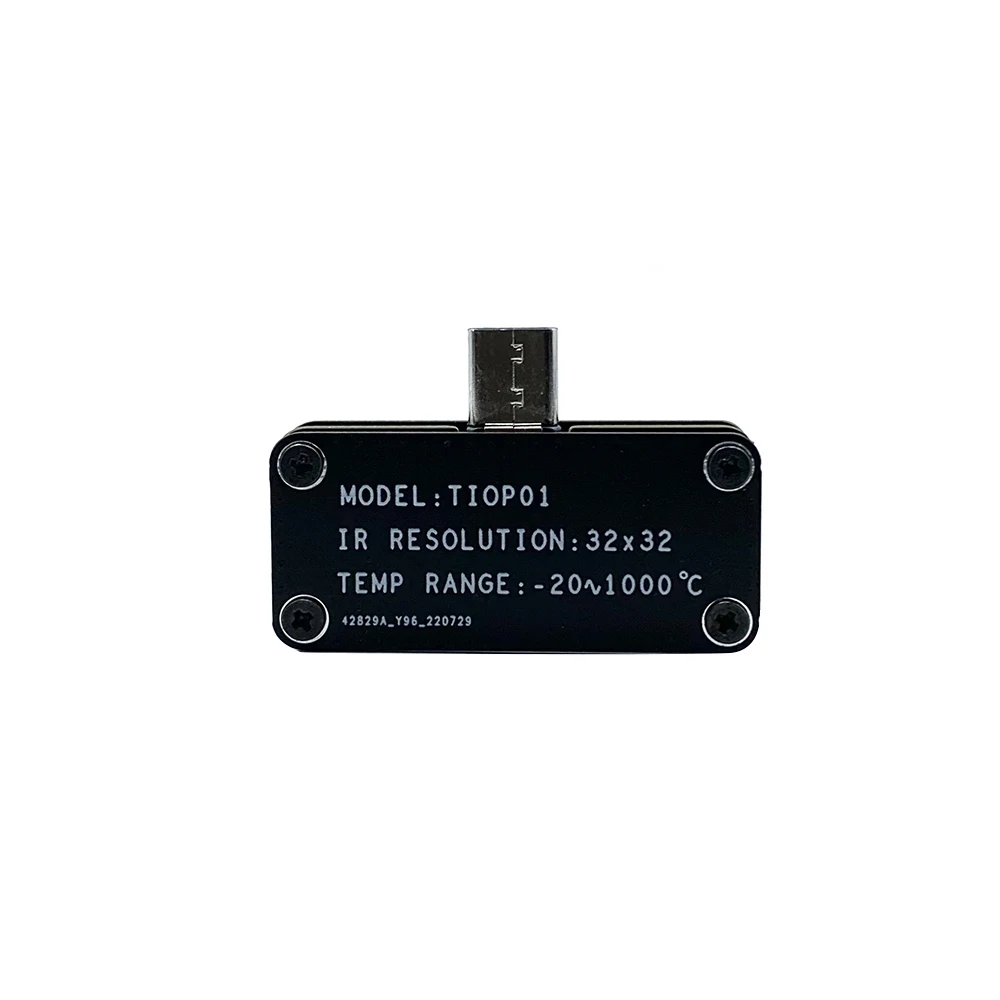

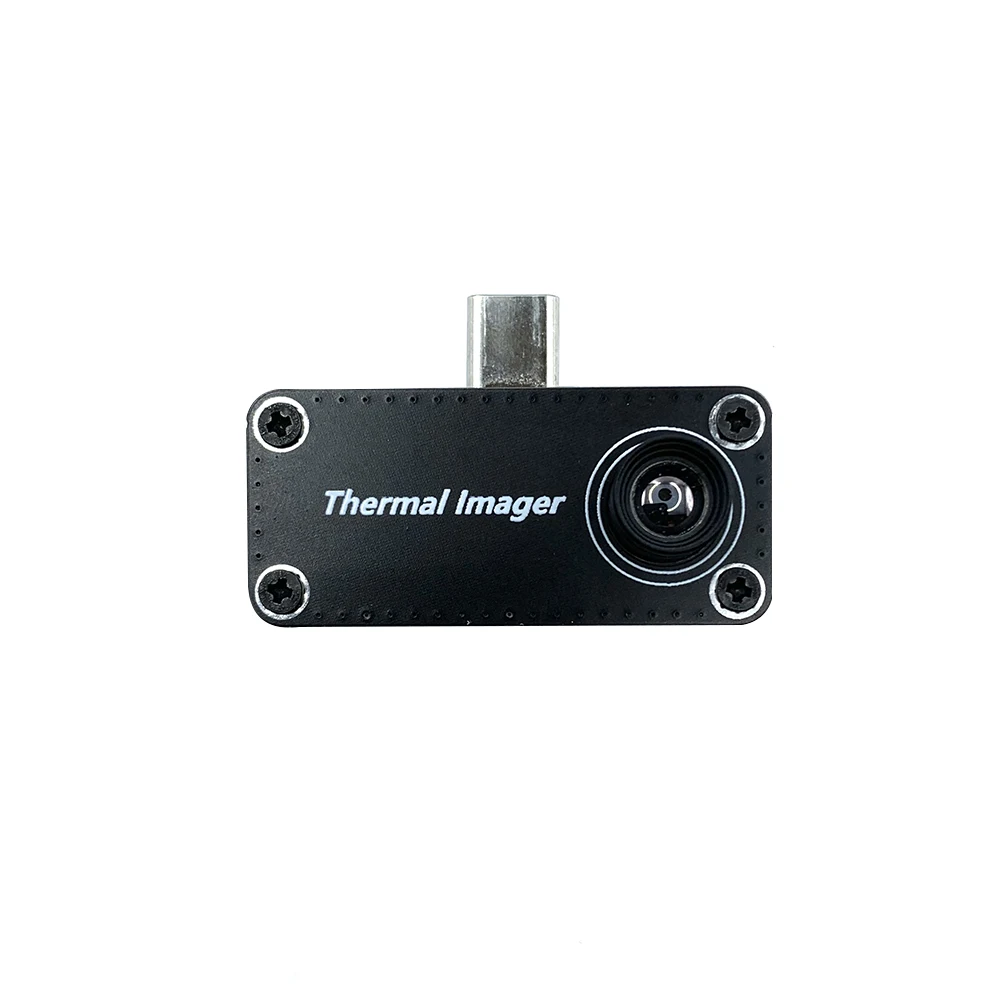

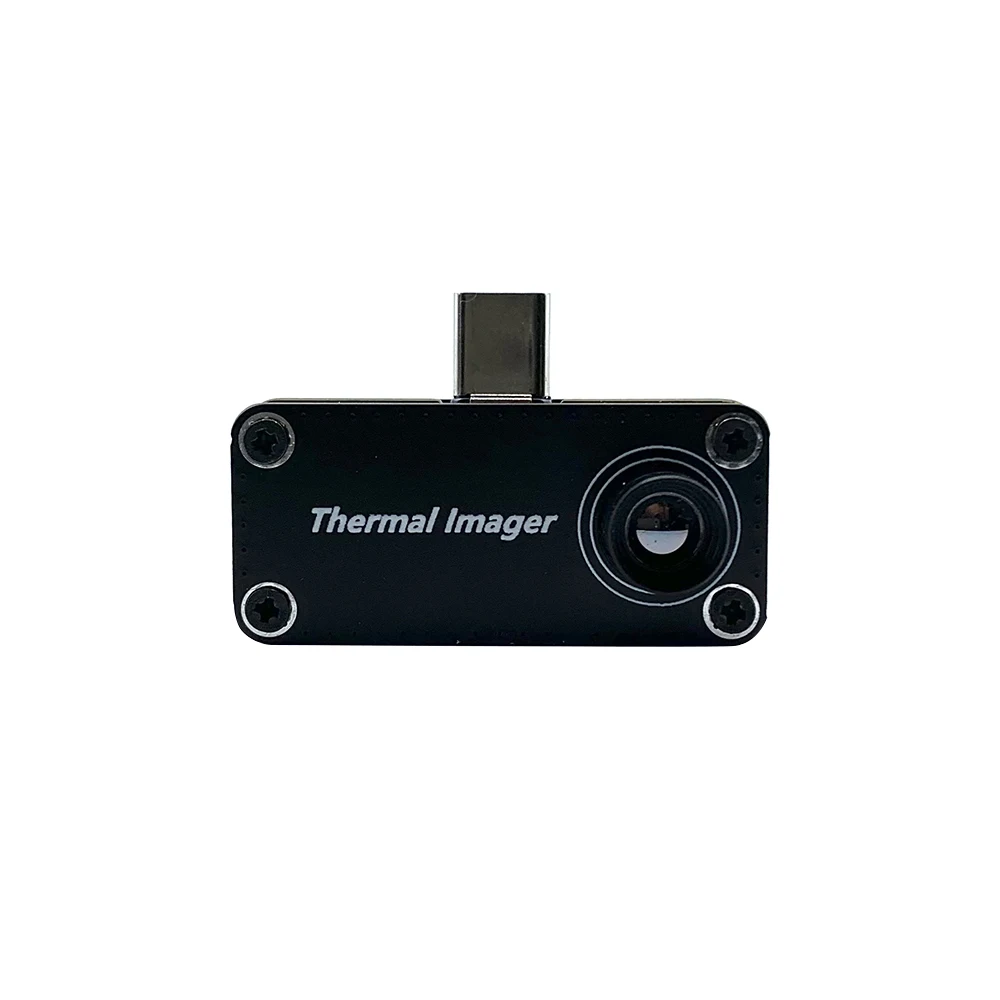

Android mobile phone thermal imager 32*32 resolution Type-C interface temperature measurement tool thermal imager

Features:

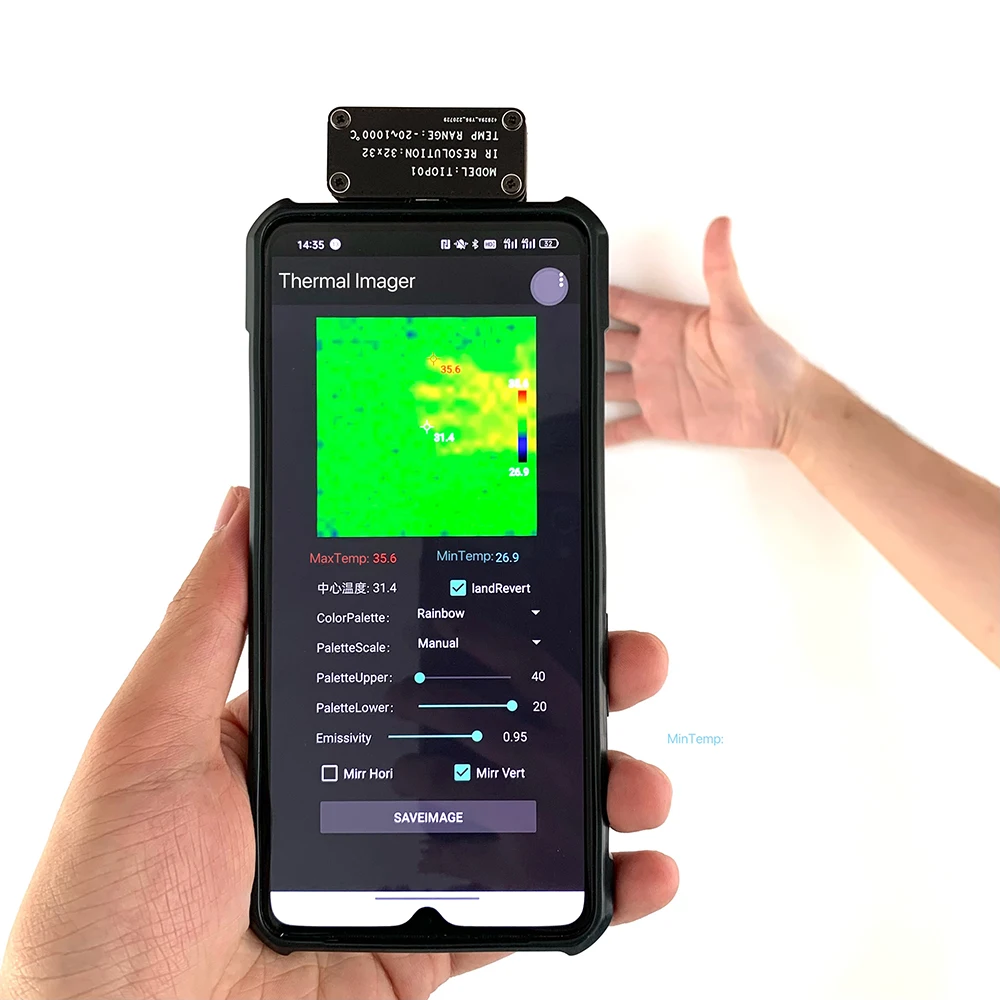

1.Menu in the upper right corner of the main interface: Select the APP language, which currently supports English and Simplified Chinese.

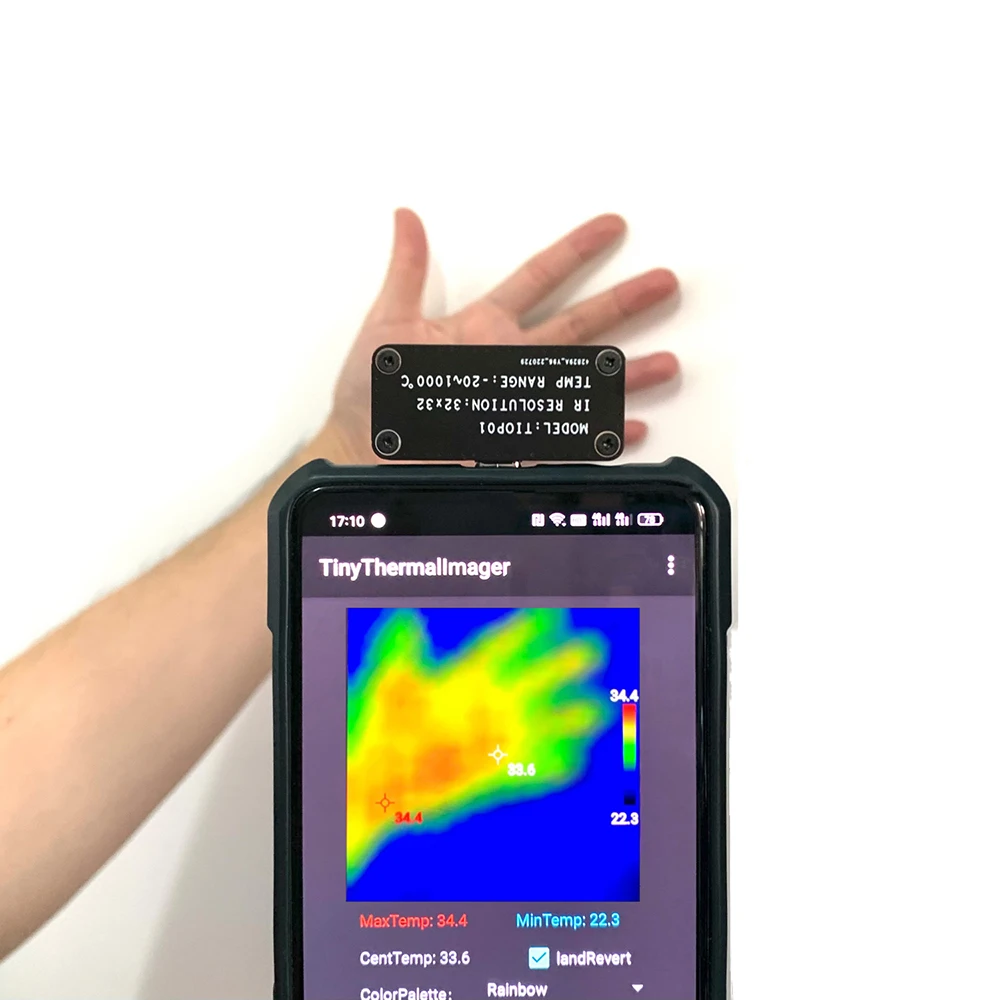

2.Maximum temperature (MaxtTemp), minimum temperature (MinTemp), and center temperature (CentTemp): represent the corresponding temperature values of the current measurement screen.
3.LandRevert: Enable phone layout inversion. This can rotate and hold the phone, placing the thermal imager on top of the phone. Note that certain models of mobile phones require the ability to automatically rotate the interface

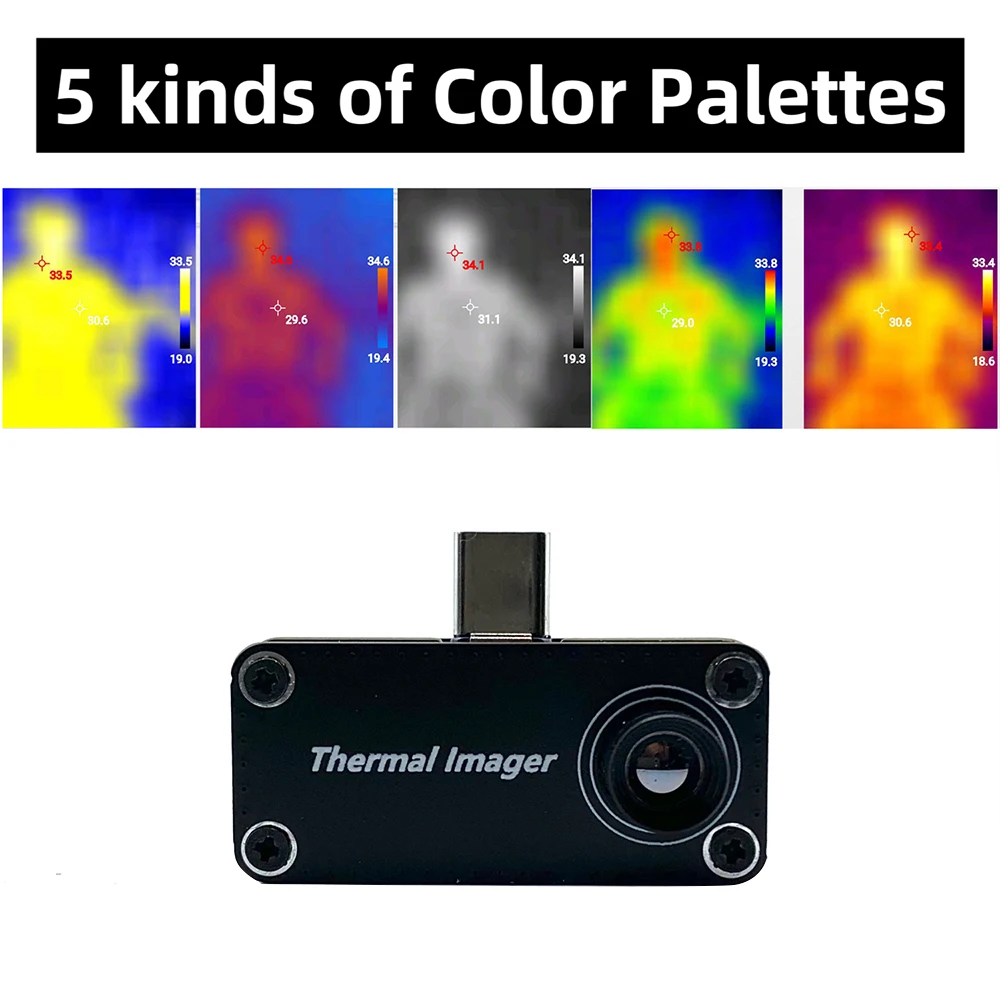

4.ColorPalette: Refers to the pseudo color palette scheme used in thermal imaging images, which is convenient for use in different scenes.
5.Temperature Range (PaletteScale): Refers to whether the highest and lowest temperatures corresponding to the current color scheme automatically follow the current screen temperature upper and lower limits or use manual settings, namely the upper and lower temperature limits (PaletteUpper) and the lower temperature limit (PaletteLower).
6.Emissivity: If you only look at the temperature distribution on the surface of the object and do not need to accurately measure the absolute temperature value, the default emissivity can be used. If it is necessary to accurately measure the temperature of an object, it is necessary to check the emissivity of the material to which the object belongs.

Parameters:
Resolution: 32 x 32
Interface: Type-C
Mobile system: Android 8-12, supports saving images locally
Field of view angle: 33 °
Maximum frame count: 5FPS
Number of color palettes: 5 types
Temperature measurement accuracy: ± 3 ℃
Temperature measurement range: -20~1000 ℃
Working temperature: 0-50 ℃
Storage temperature: -40~80

Package include:
1 * thermal imager
1 * instruction manual
