ANENG M469A Smart Network Cable Tester Wire Tracker Receiver Network Repair Electrical Tool RJ45 RJ11 LAN Cable Tester Finder

ANENG M469A

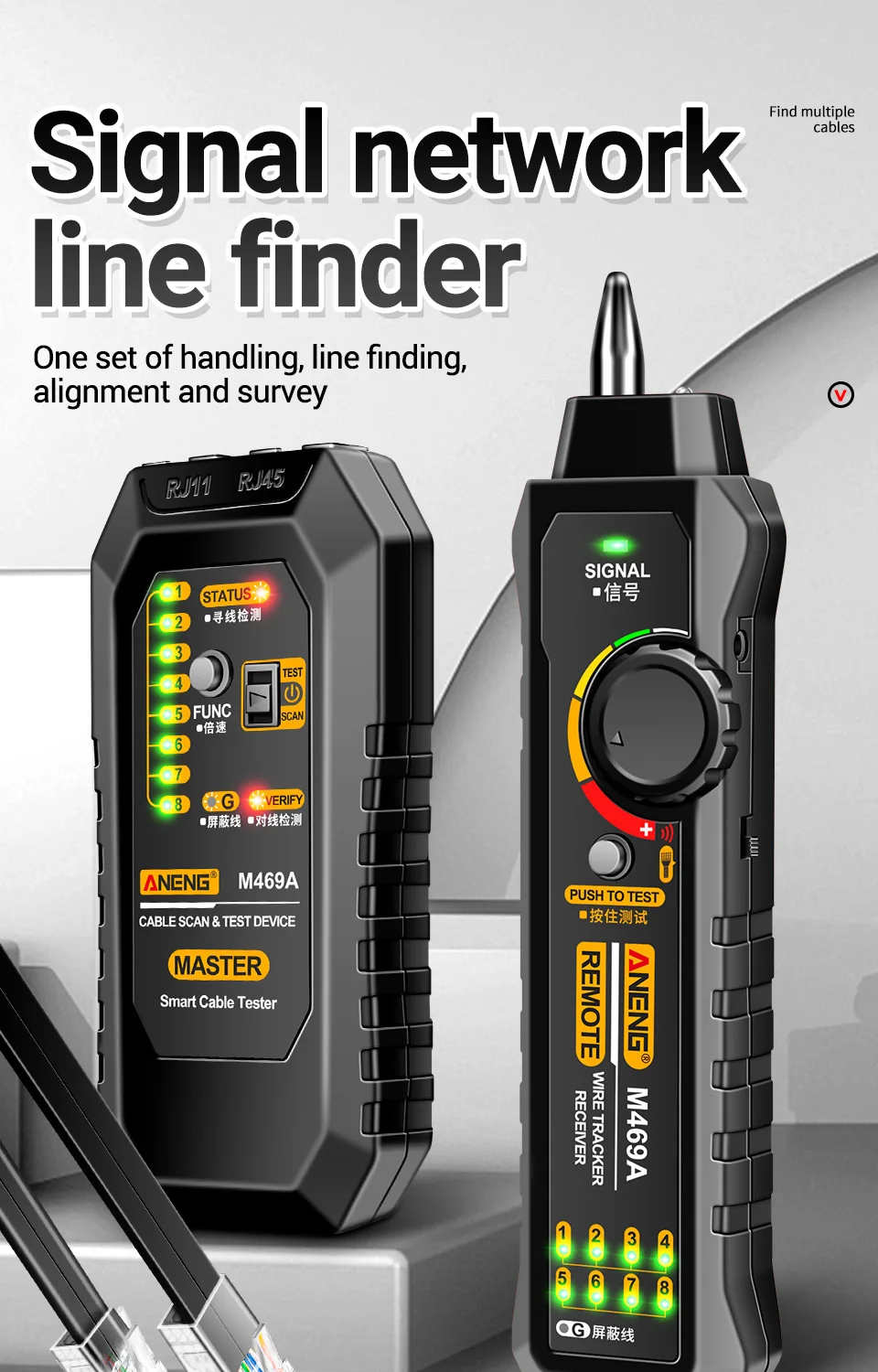

Smart Network Cable Tester

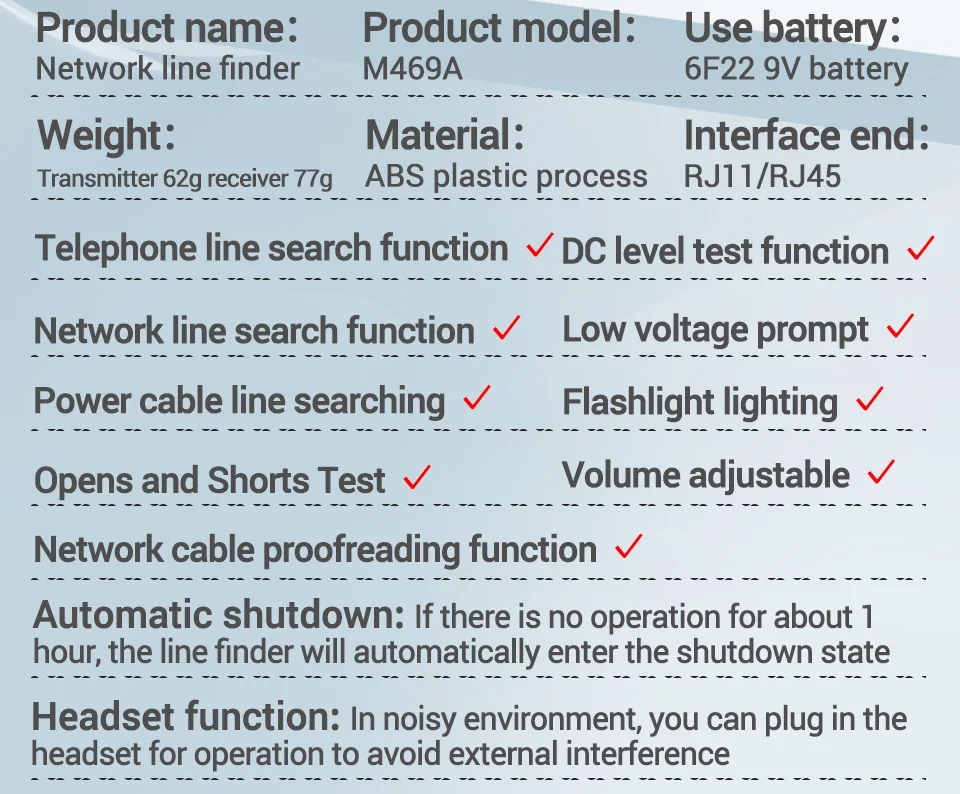

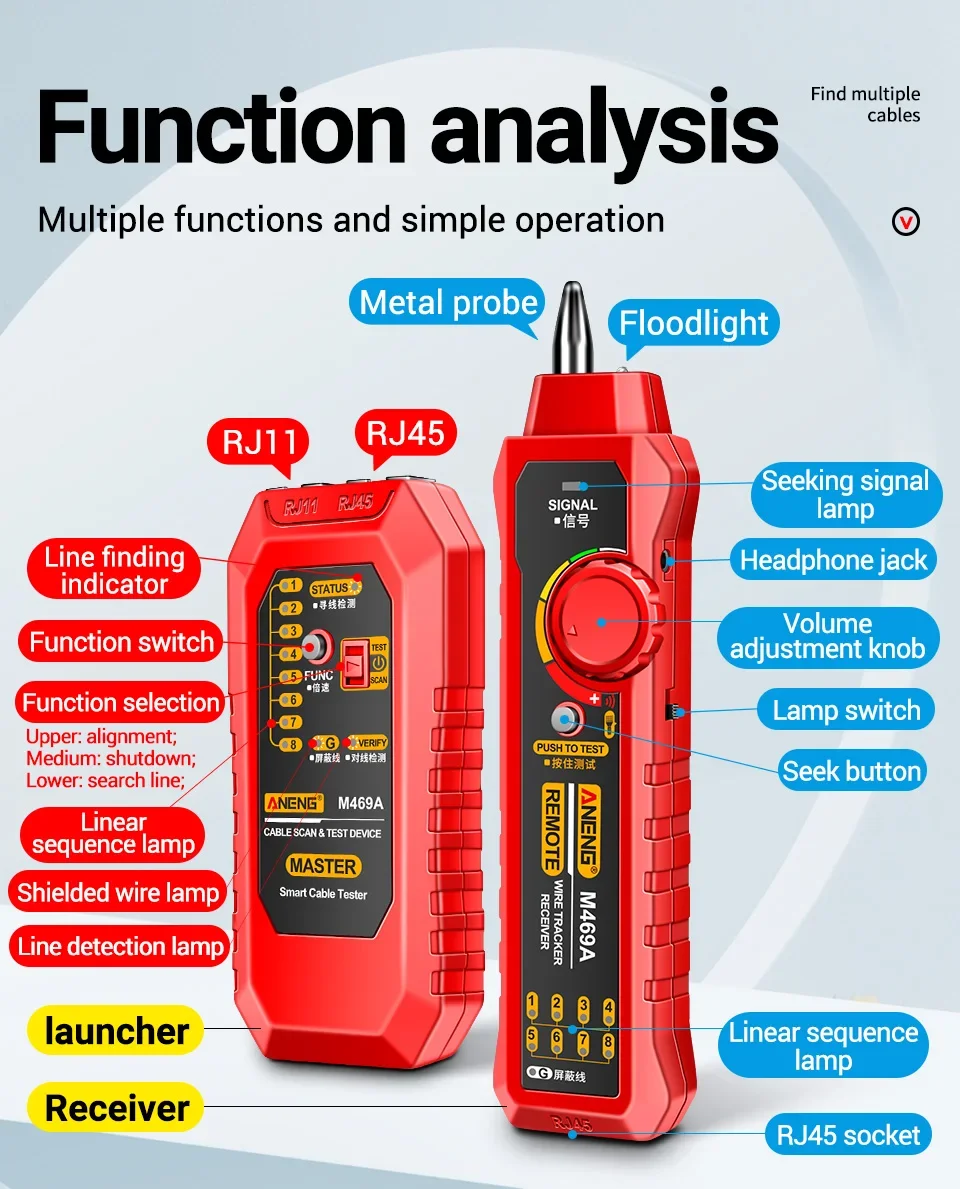

Feature:

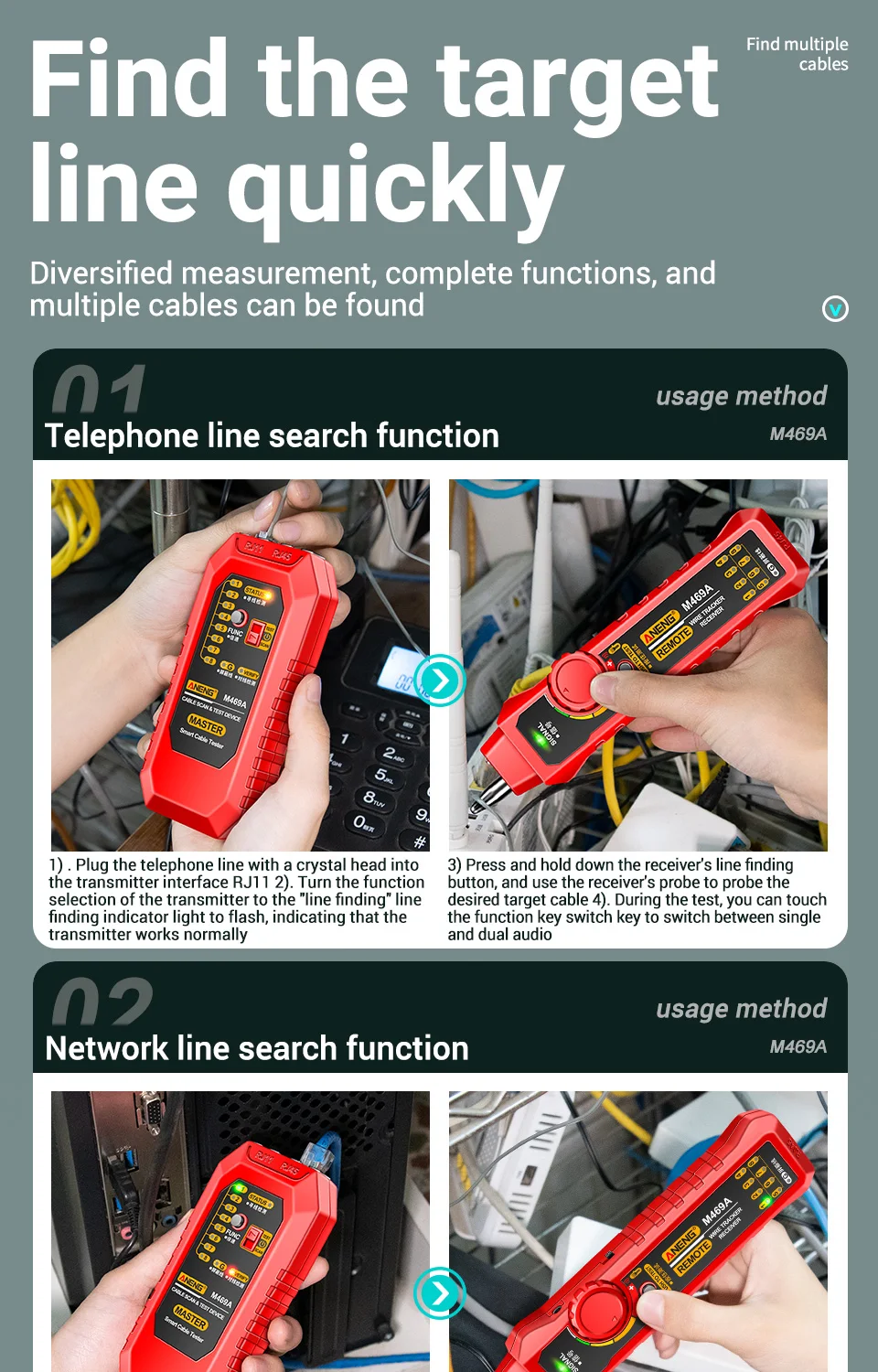

A.Telephone line search
B.Network line search

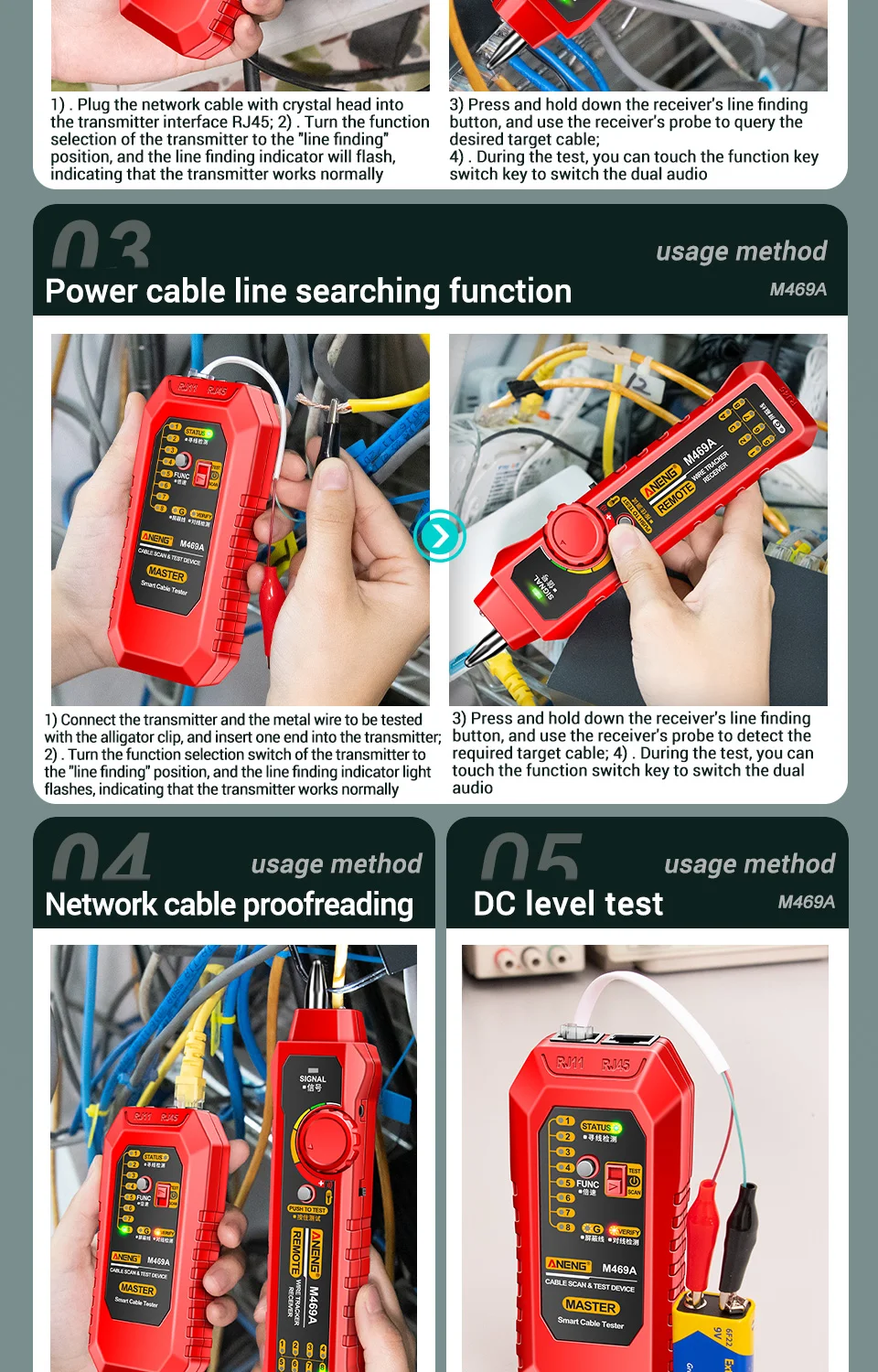

C.Check the power cable line
D.Open the short circuit tests

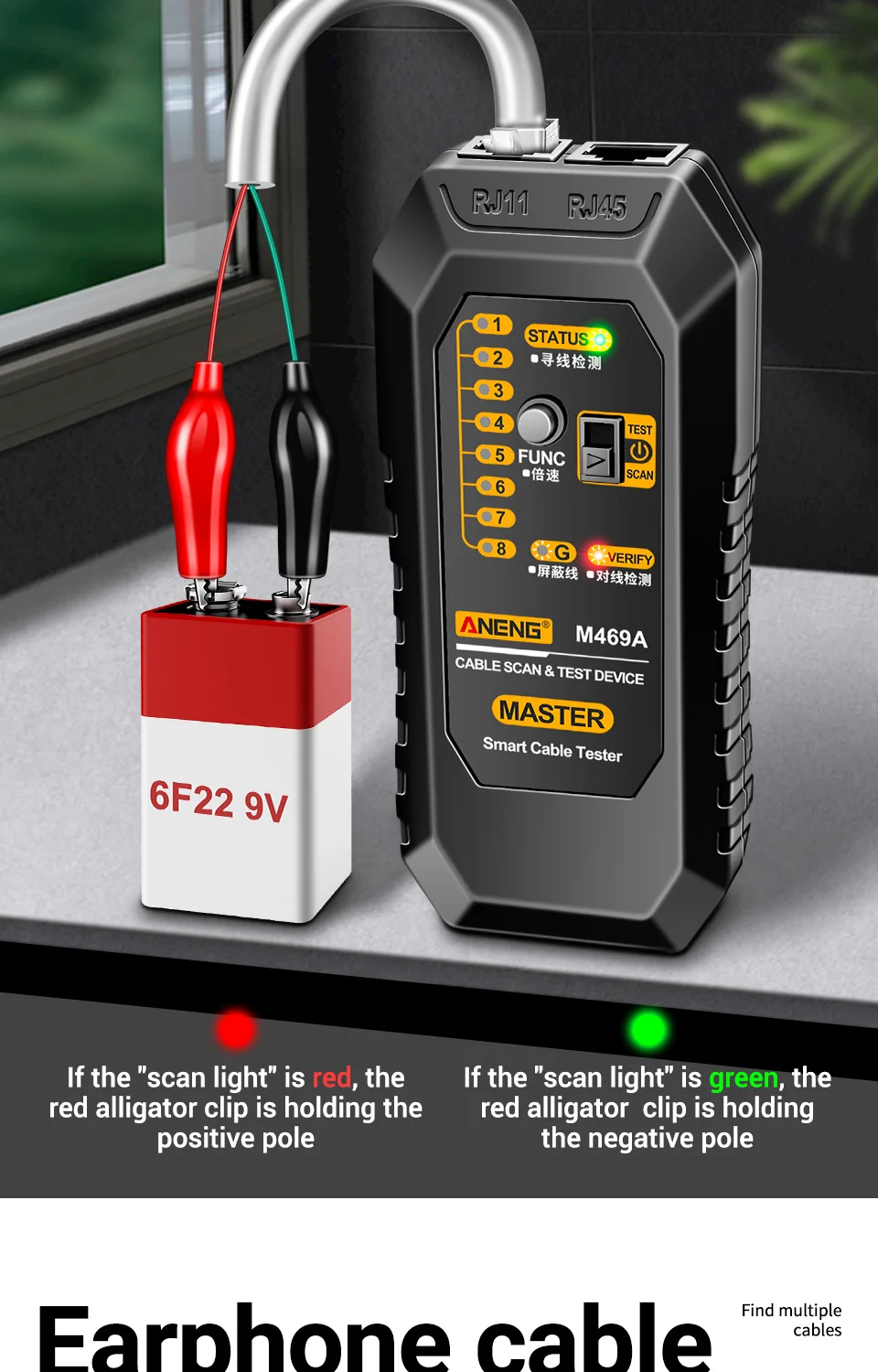

E.DC voltage test

F.Low voltage warning
G.The volume can be adjusted
H.headest listening
Low voltage prompt function

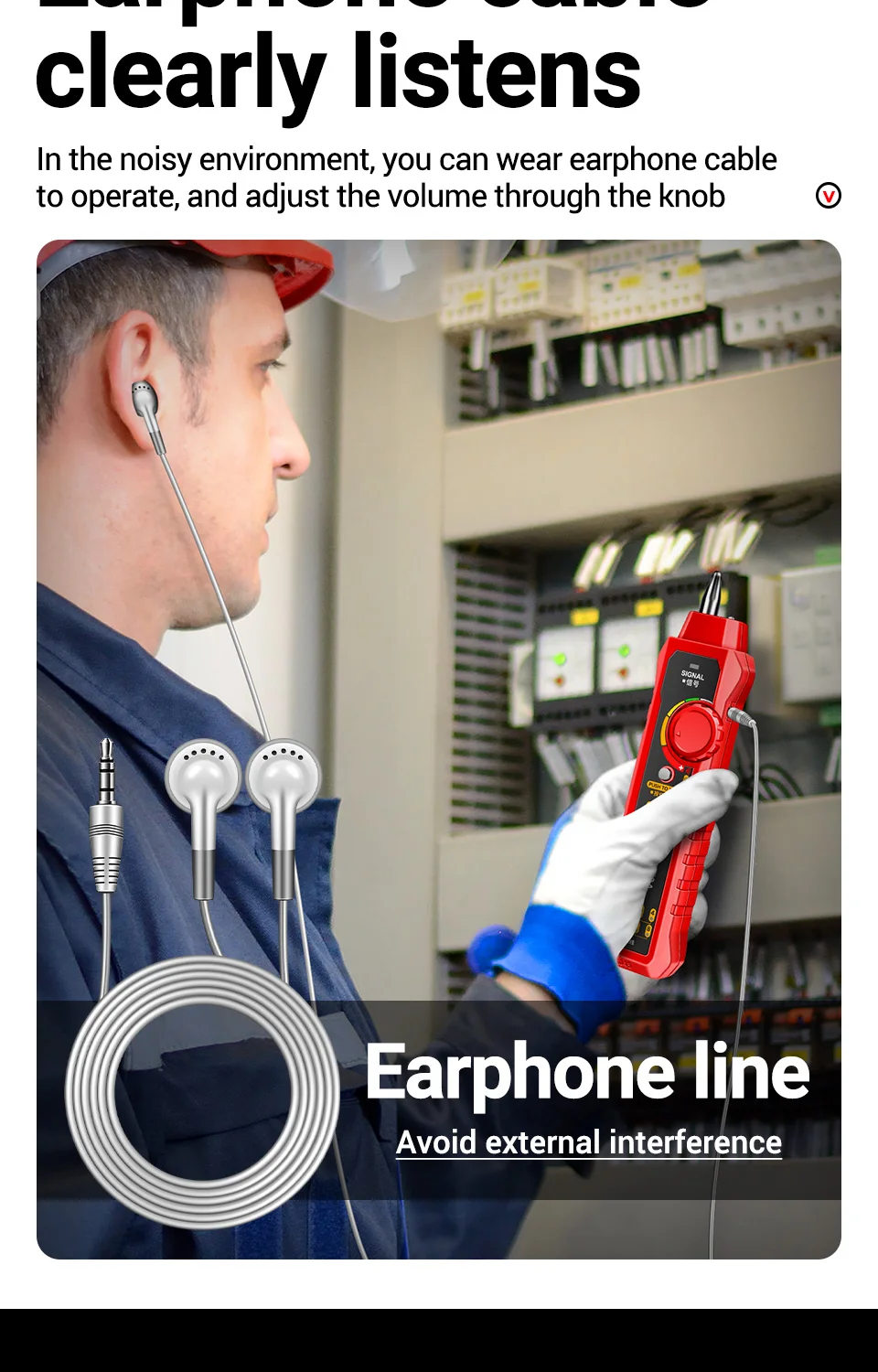

Earphone function

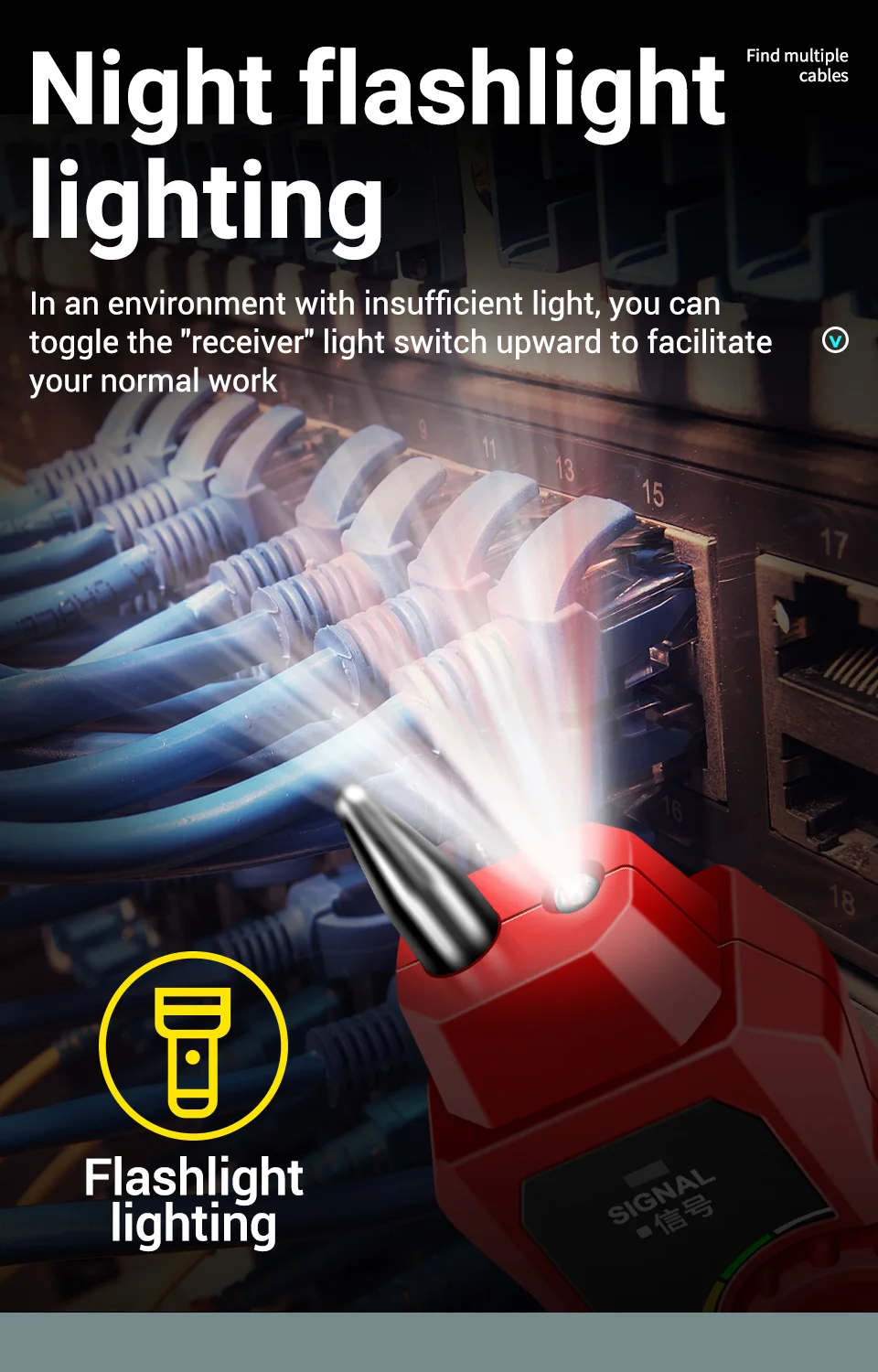

Spotlight function
Volume adjustable function
Energy Saving

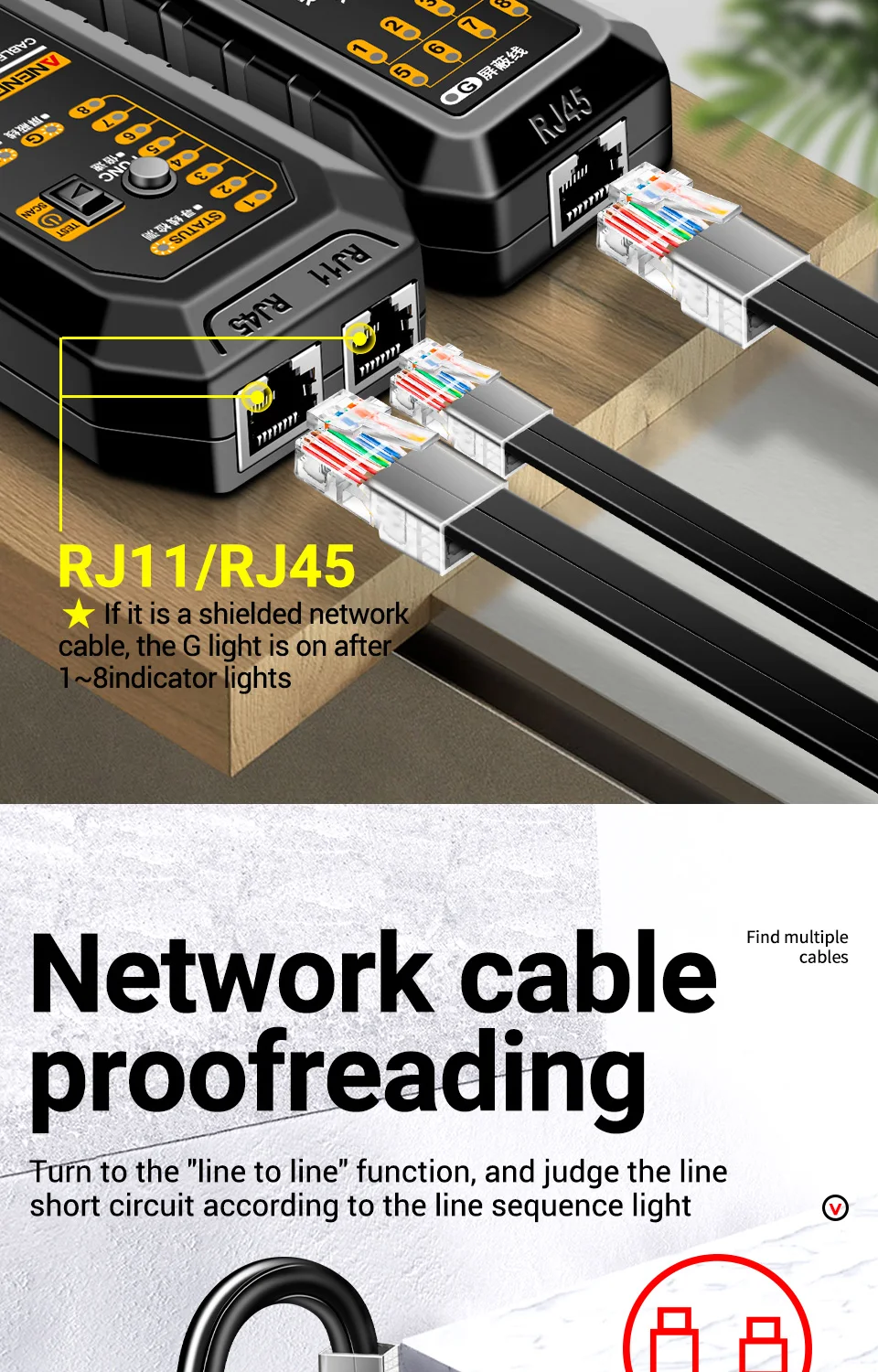

Check the network cable

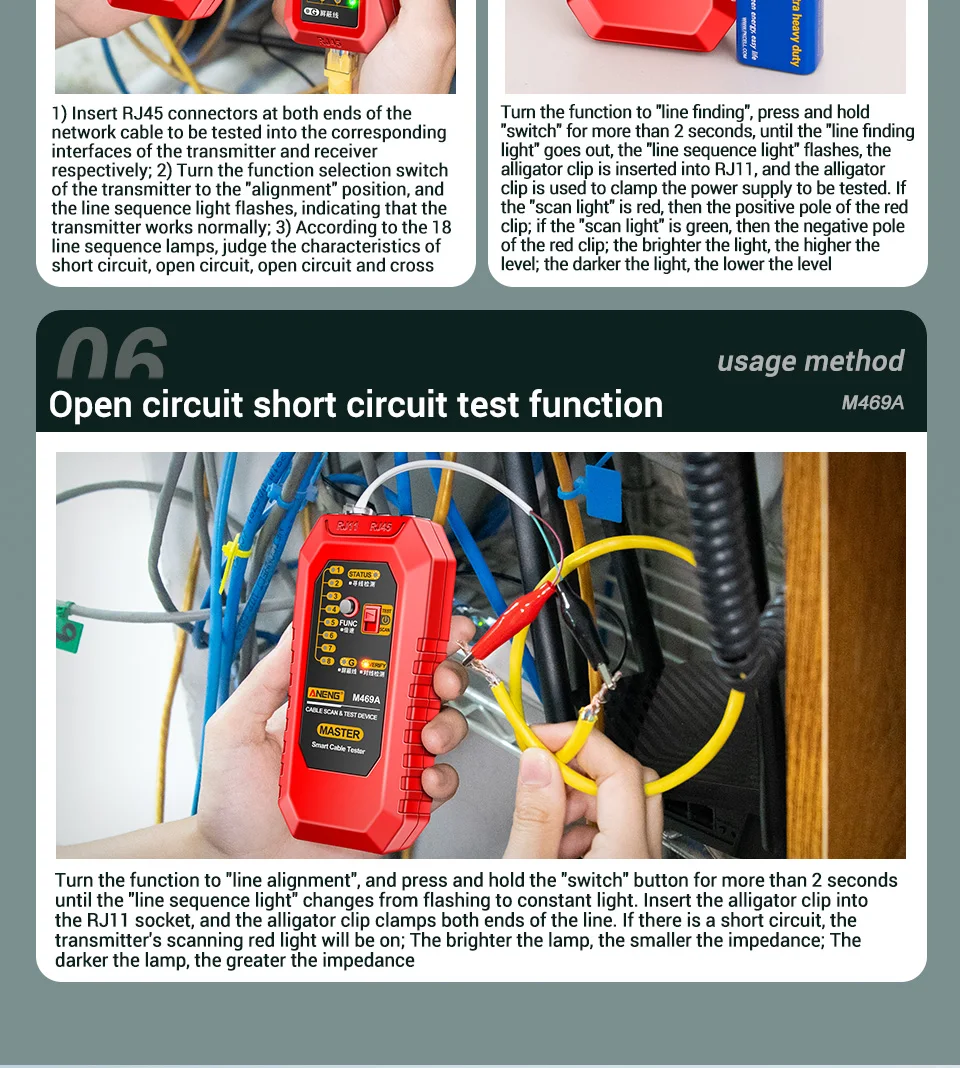

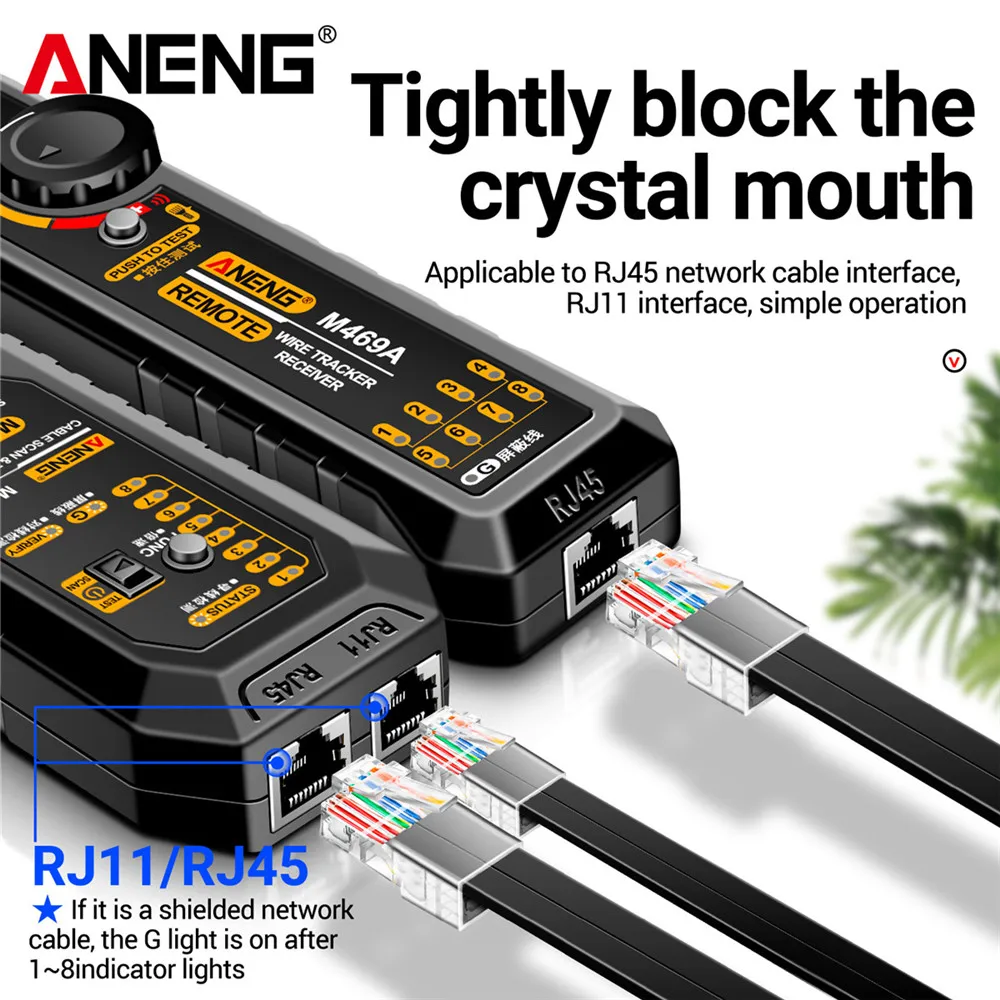

1.Insert the RJ45 connectors at both end of the network cable to be tested into the corresponding ports of the transmitter and receiver respeectively.
2.Turn the function selector switch of the transmitter to the position of "test",and the "VERIFY" indicator lights up,indicating that the transmitter is working normally.
3.Judging the characteristics of short circuit,open circuit,open circuit and crossover according to the 18 sequence lights.

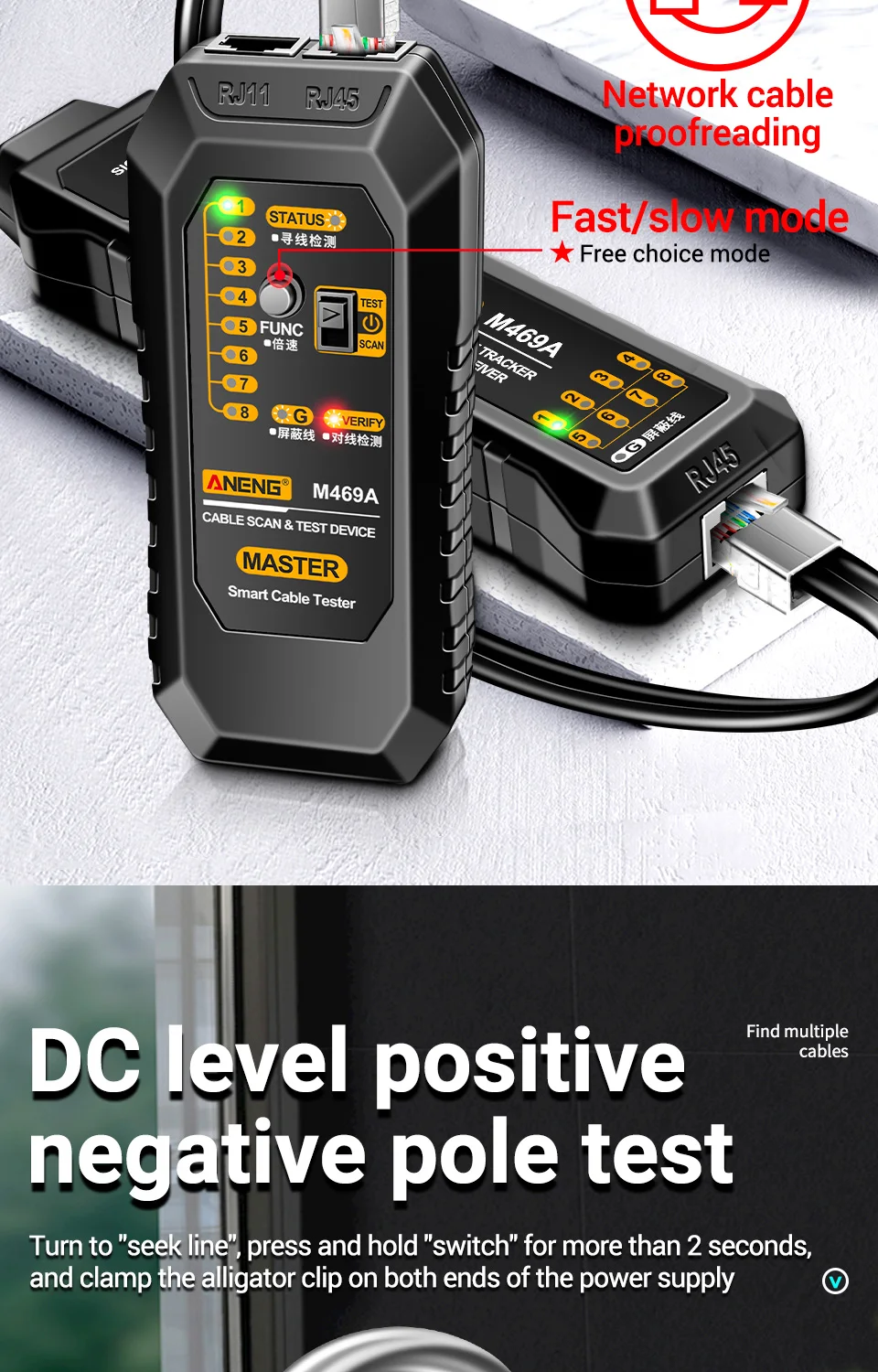

4.During the test,you can touch the "switch"button to switch between fast ans slow.Using automatic scanning method,fast test,test the twisted pair 1,2,3,4,5,6,7,8,G by root(pair),and can distinguish which one (pair)out of order,short circuit,and open circuit,ect.

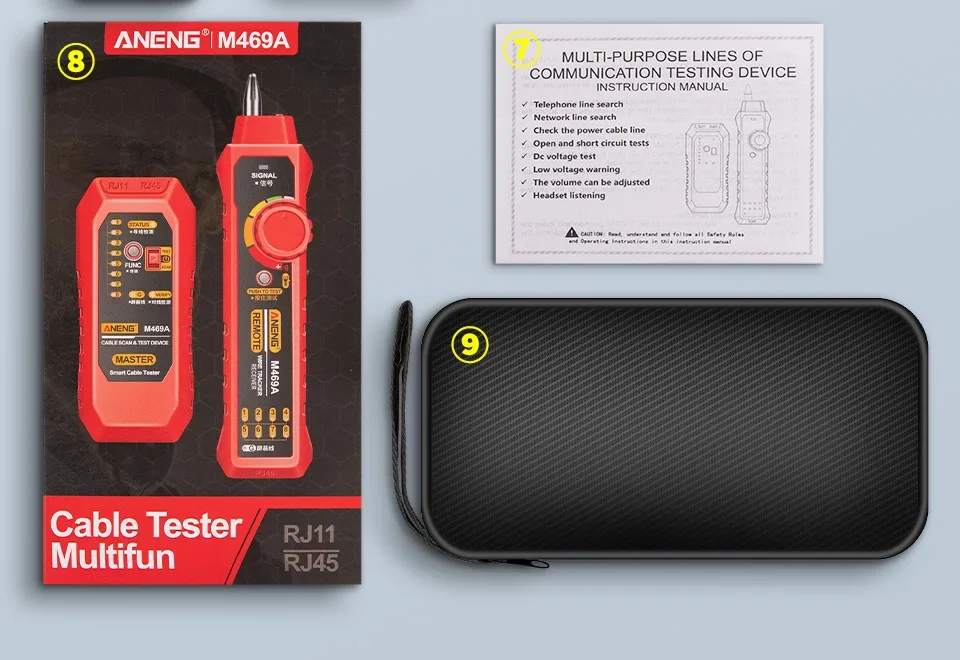

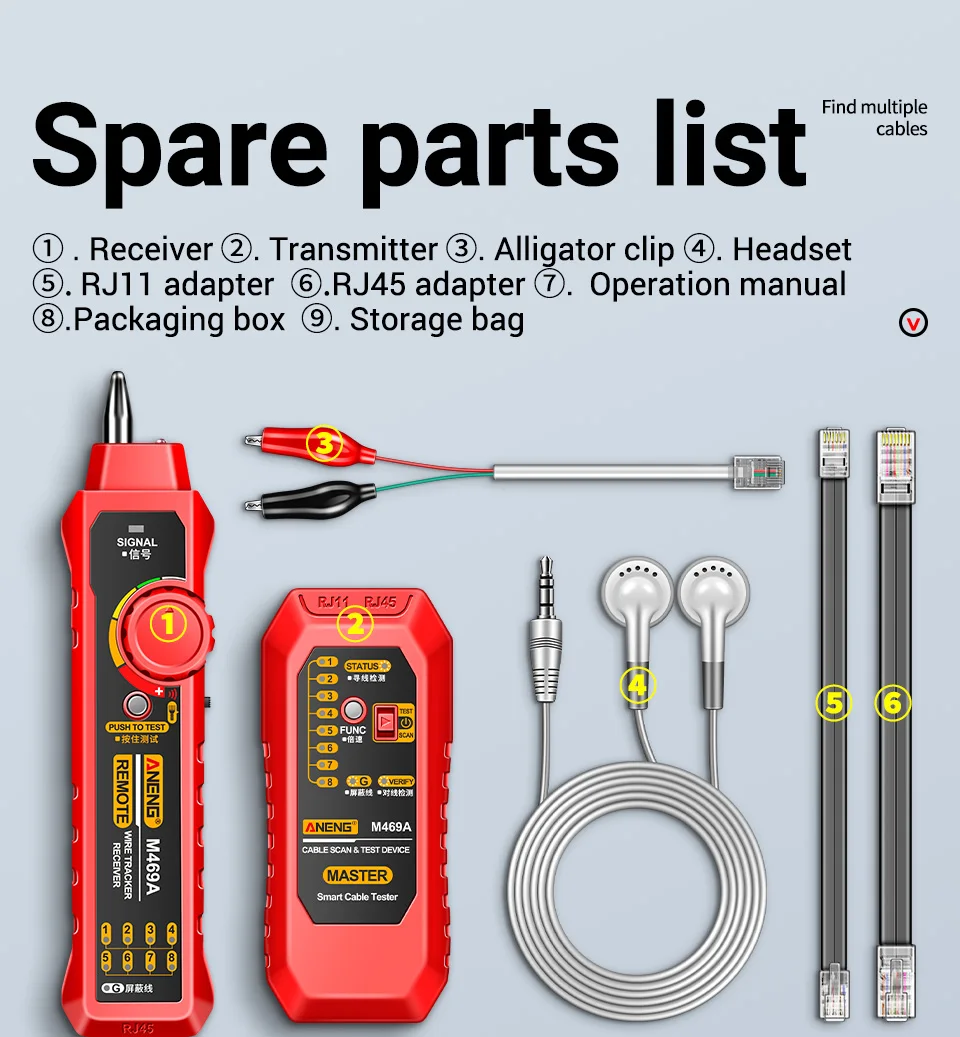

Package Include:(Without Battery)
As the picture showed
