ANENG SZ304 SZ305 Multimeter Volt Ohm Amp Meter Autoranging for AC/DC Current Voltage Resistance Frequency Tester High Precision
14.11$ – 15.55$Price range: 14.11$ through 15.55$
In Stock
Loading...
Description
- Battery Included: No
- High-concerned chemical: None
- Operating Mode: Auto Range
- Measuring Capacitance Range: 20mFBA
- Operating Temperature: -20 – 10000 ℃
- DIY Supplies: Electrical
- Measuring Resistance Range: 200M Ω
- Certification: None
- Origin: Mainland China
- Model Number: SZ304 SZ305
- Brand Name: ANENG
- Dimensions: as show
- DC Voltage: 1000V
- Display Type: Digital Display
- AC Voltage: AC 750V
Features:

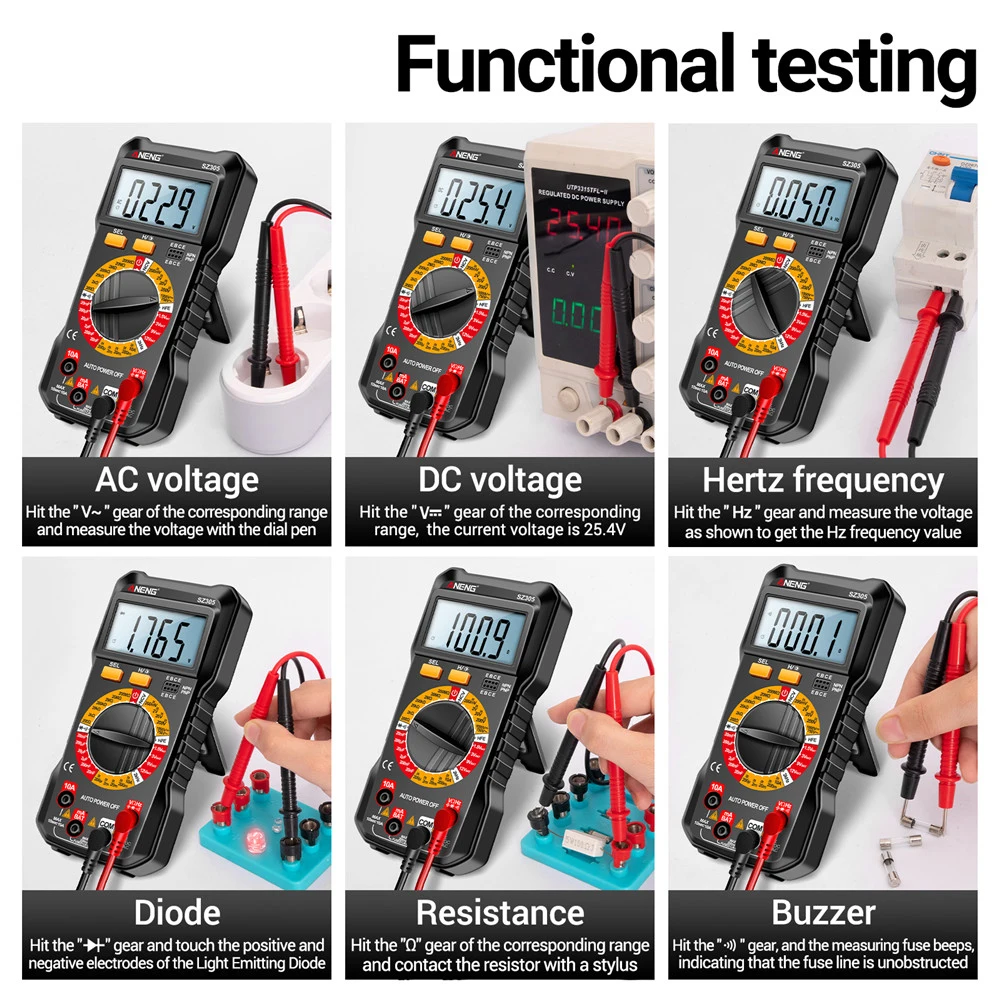

1.Simpler AC voltage measurement operation
2.Set the voltage level to the corresponding range, as shown in the figure, and use a probe to measure the commonly used AC voltage in households. It is easy to use and fast to measure
3.More accurate measurement with retractable support frame on the back: there is an extended support frame on the back, which effectively supports the multimeter. When measuring, it can be tilted on the table for easy standing operation
4.hFE transistor measurement: Set the multimeter to the hFE position for measurement, determine whether the transistor is NPN or PNP type, and insert it into the corresponding socket of the transistor (SZ305)
5. NCV non-contact voltage detection: non-contact electrical measurement to prevent the risk of electric shock. When AC voltage is detected, an alarm sound will sound, and the closer the power source is, the more urgent the alarm is (SZ305)
6. High definition backlight screen with clear backlight (SZ305)

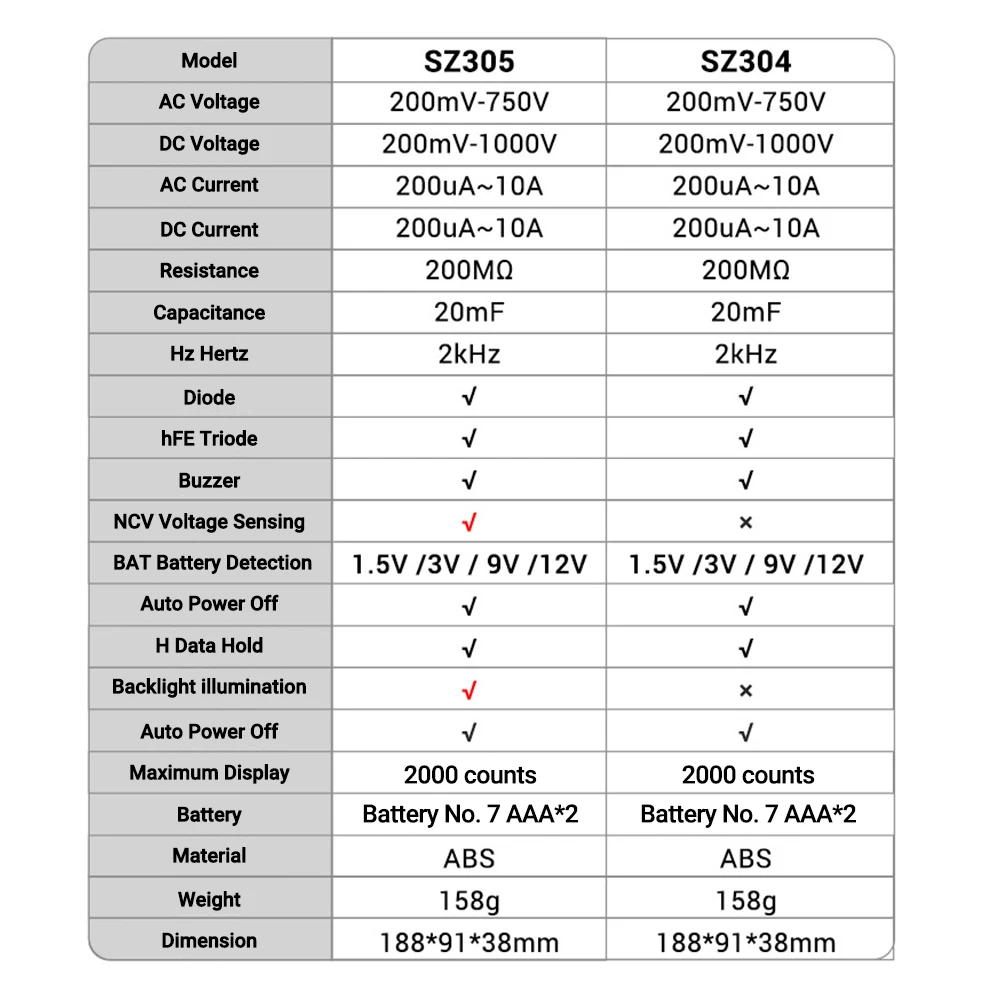

Parameters:
Model: SZ304 SZ305
Color: Red/Black
Maximum count: 2000
AC voltage: 200mV-750V
DC voltage: 200mV-1000V
AC current: 200uA~10A
DC current: 200uA~10A
Resistance: 200M Ω
Capacitance: 20mF
BAT battery detection: 1.5V/3V/9V/12V
Material: ABS
Battery: AAA * 2 (shipped without battery)

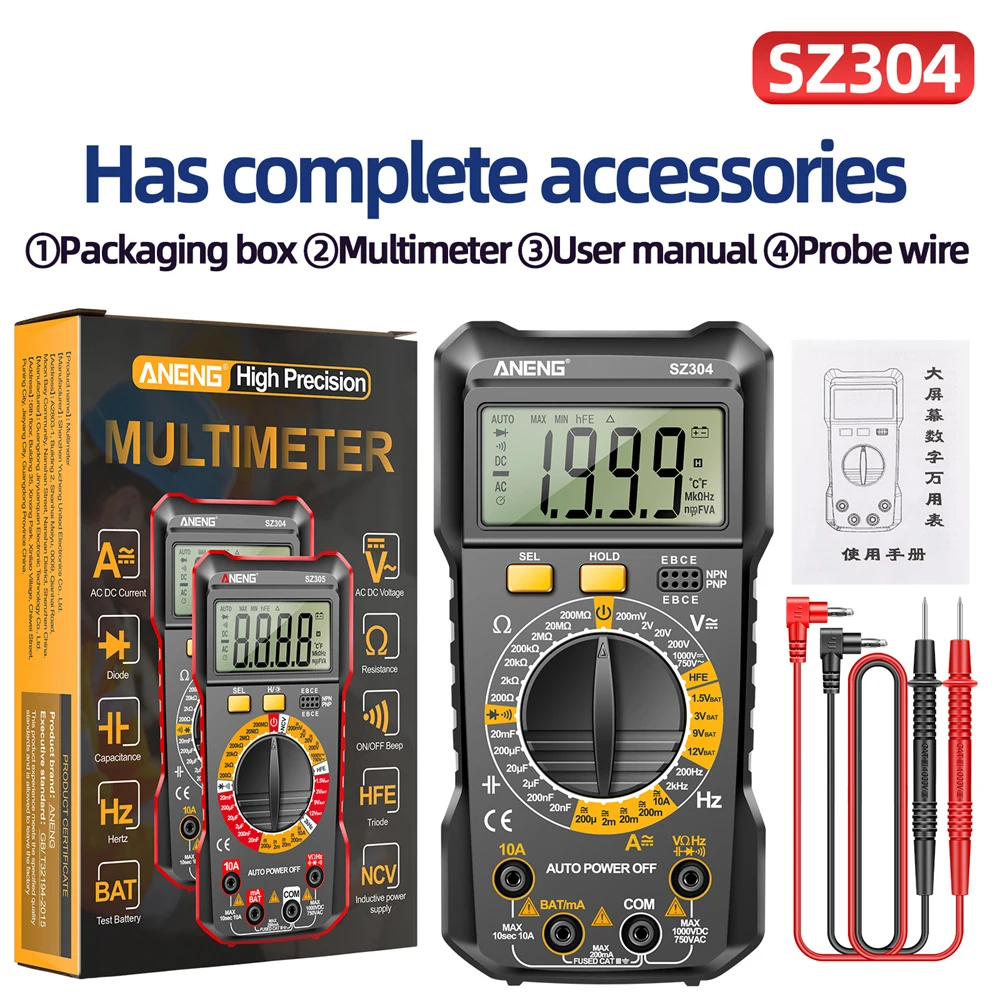

Package include:
Paper box packaging
Multimeter * 1+instruction manual * 1+pen * 1
Additional information
| Color | BLACK SZ305, BLCAK SZ304, RED SZ304, RED SZ305 |
|---|---|
| Battery Included | No |
| High-concerned chemical | None |
| Operating Mode | Auto Range |
| Measuring Capacitance Range | 20mFBA |
| Operating Temperature | -20 – 10000 ℃ |
| DIY Supplies | Electrical |
| Measuring Resistance Range | 200M Ω |
| Certification | None |
| Origin | Mainland China |
| Model Number | SZ304 SZ305 |
| Brand Name | ANENG |
| Dimensions | as show |
| DC Voltage | 1000V |
| Display Type | Digital Display |
| AC Voltage | AC 750V |
