Anern 6.2KW 4.2KW Inverter 48V Hybrid Dual Output Off Grid 6200W 4200W Solar Inverters 24V MPPT 120A 230V MAX PV 500Vdc
Description
- High-concerned chemical: None
- Output Power: 1 – 200 KW
- Size: 110*334*423MM
- Output Type: DUAL
- Weight: 9.5/10kg
- Brand Name: ANERN
- Output Frequency: 50HZ
- Is Smart Device: Yes
- Origin: Mainland China
Inverter use notice
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.

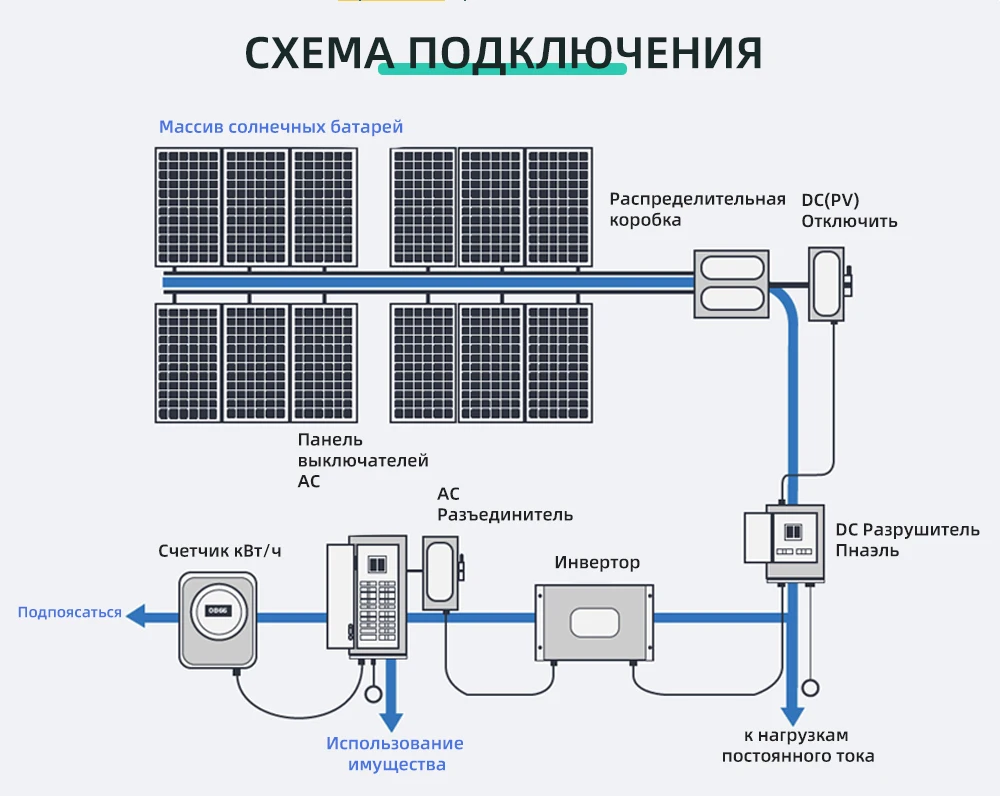

2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
|
NVERTER MODEL |
SCI-ECO-4.2KW |
SCI-ECO-6.2KW |
|
Inverter Mode Specifications |
||
|
Rated Output Power |
4.2KW |
6.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Voltage Regulation |
230Vac±5% |
|
|
Output Frequency |
50Hz |
|
|
Peak Efficiency |
93% |
|
|
Overload Protection |
3s@≥150%load; 5s@101%~150% load |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
|
No Load Power Consumption |
35W |
50W |
|

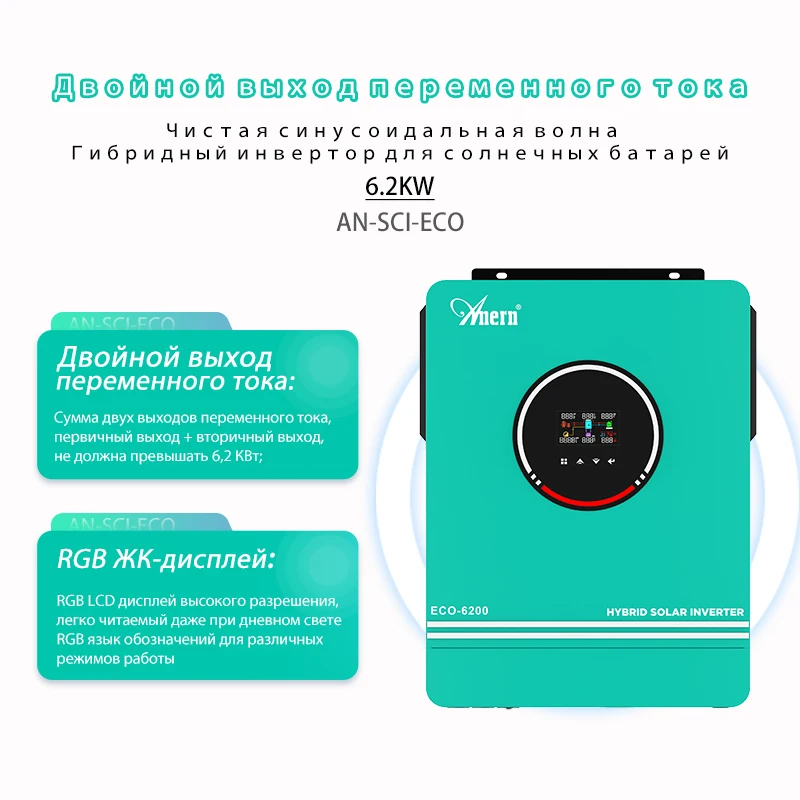

Two Load Output Power |
||
|
Full Load |
4200W |
6200W |
|
Maximum Main Load |
4200W |
6200W |
|
Maximum Second Load(battery model) |
1400W |
2066W |
|
Main Load Cut Off Voltage |
22VDC |
44VDC |
|
Main Load Return Voltage |
26VDC |
52VDC |
|
Charge Mode Specifications |
||
|
Utility Charging Mode |
||
|
Charging Algorithm |
3-Step |
|
|
AC Charging Current (Max) |
100Amp |
|
|
Floating Charging Voltage |
27Vdc |
54Vdc |
|
MPPT Solar Charging Mode |
||
|
Max. PVÂ Array Power |
6200W |
6500W |
|
Nominal PV Voltage |
240Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~500Vdc |
|
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current |
120Amp |
|
|
Grid-Tie Operation |
||
|
Nominal Output Voltage |
220/230/240 VAC |
|
|
Feed-in Grid Voltage Range |
195~253VAC |
|
|
Feed-in Grid Frequency Range |
||
|
Nominal Output Current |
18.2A |
26.9A |
|
Power Factor Range |
>0.99 |
|
|
Maximum Conversion Efficiency (DC/AC) |
97% |
|
|
General Specifications |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
–10°C – 50°C |
|
|
Storage temperature |
–15°C – 60°C |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
|

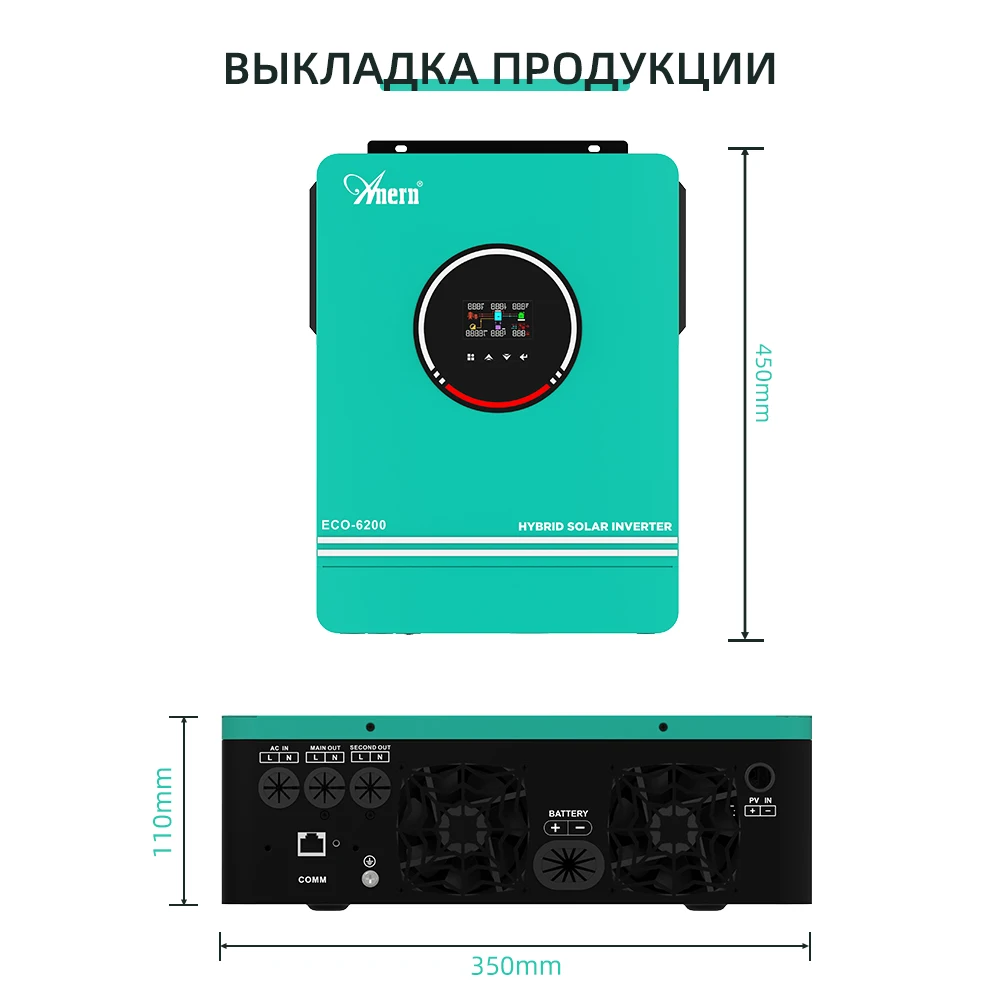

Dimension, D x W x H (mm) |
110*334*423 |
|
|
Net Weight (kgs) |
9.5 |
10 |
Additional information
| Color | ECO 4200W 24V, ECO 6200W 48V |
|---|---|
| High-concerned chemical | None |
| Output Power | 1 – 200 KW |
| Size | 110*334*423MM |
| Output Type | DUAL |
| Weight | 9.5/10kg |
| Brand Name | ANERN |
| Output Frequency | 50HZ |
| Is Smart Device | Yes |
| Origin | Mainland China |
| Input Voltage | with WIFI, without WIFI |
| Output Voltage | 220-240V |
