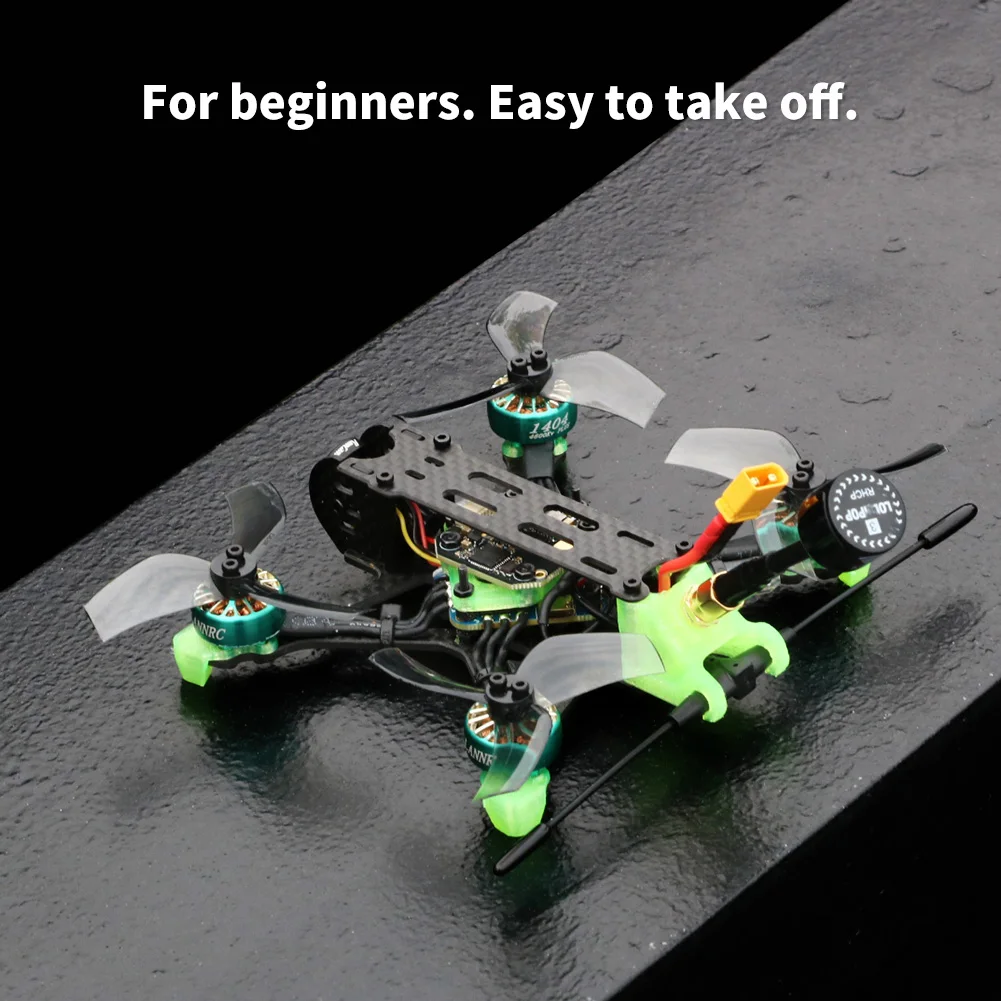

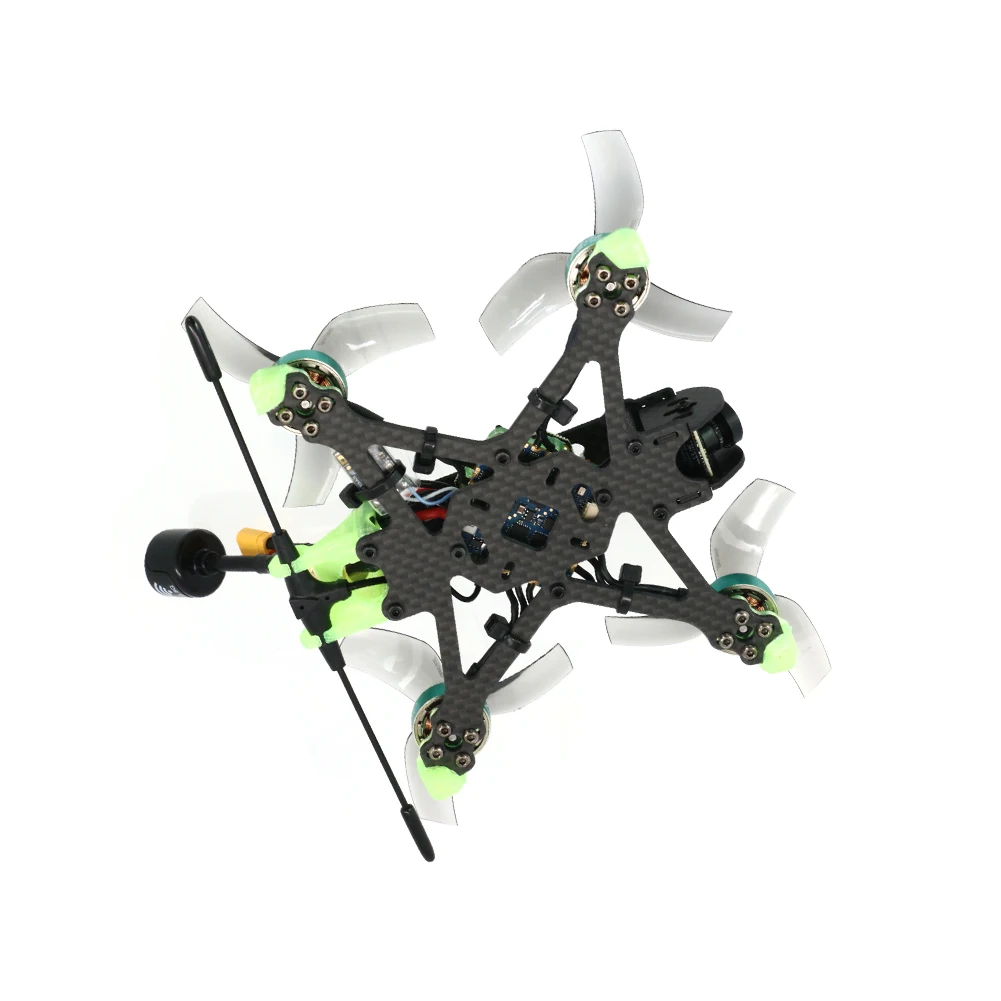

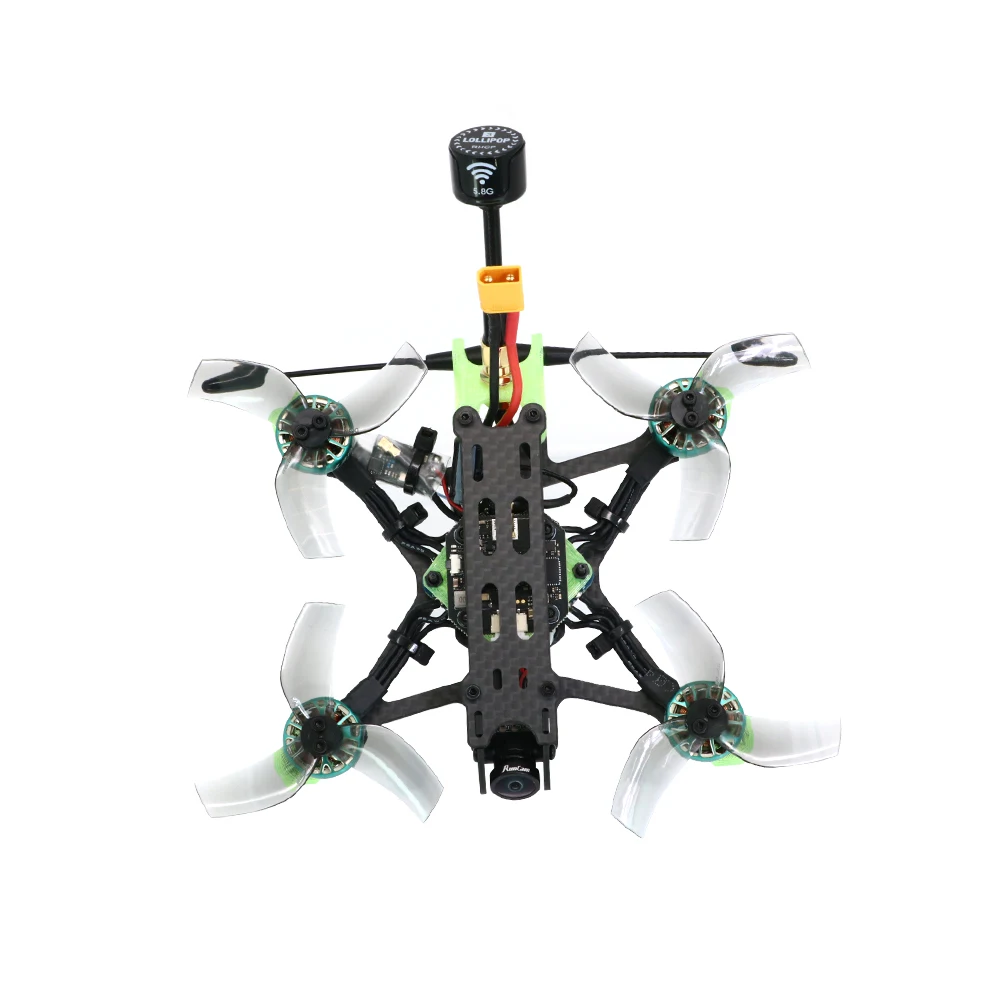

Angel25 2.5inch Freestyle Racing Drone Kit BNF / PNP F411 Flight Controller Remote controlled FPV RC Multirotor Drone
426.12$ – 435.46$Price range: 426.12$ through 435.46$
In Stock
Loading...
Description
- High-concerned chemical: None
- Is Electric: No Battery
- Anti-wind Ability: 1
- Drone Weight: 300G
- Takeoff Weight: 300g
- Transit Time (Days): ///
- Video Capture Resolution: 720P HD
- Operator Skill Level: Beginner
- Indoor/Outdoor Use: Indoor-Outdoor
- Camera Mount Type: 3-Axis Gimbal
- Controller Mode: MODE2
- Model Number: Freestyle 2.5inch
- Barcode: No
- Flight Time: <5
- Controller Battery: no
- Control Channels: 6 channels
- Motor: Brush Motor
- Warranty: NO
- Is Batteries Included: No
- Remote Distance: /
- Remote Control: Yes
- Type: HELICOPTER
- Aerial Photography: No
- Package Includes: Original Box,Camera
- Material: Carbon Fiber
- State of Assembly: Ready-to-Go
- Features: App-Controlled
- Brand Name: Mitoot
- Origin: Mainland China
- Recommend Age: 14+y,6-12Y
2.5-inch FPV drone angel25 PNP/BNF
Battery life: 4-6 minutes (4S, 450mah)(battery not include)
Image transmission distance: About 1km (the actual distance is related to the environment)
Speed: 50-80km/h
Battery support: 3-4S
Single aircraft weight: 115g
The Angel 25 has a wheelbase of 118mm
Base plate thickness: 2.5mm
The thickness of the remaining plates: 1.5mm
Flight control installation hole positions: 16×16,20×20,25.5×25.5
Motor installation hole positions: 9×9,12×12
Camera installation size: 14mm
Aluminum column height: 20mm
blade (2pair)
D63 "Material:PC
Diameter:63mm
Pitch:2.5inch
Inner shaft diameter:2mm
Hub Thickness:4.9mm
Weight:1.36g/PC
Mounting Type:T-Mount"
Motor (4pcs)
1404 4600kv
"Configu-ration:9N12P
Stator diameter:14mm
Stator Length:4mm
Staft Diameter:2mm
Size:φ19.3*14.8mm
Weight:10.3g
Idle current(10)@10V:≤0.72A
No.of cells(Lipo):3-4S
Max continuous power(W)60S:287.8W
Internal Resistance:159mΩ
Max current(60S):17.99A
Cable:22AWG# 150mm Cable"
ESC+FC(1set)
20A+F411 "Size: 33.* 33.mm (25.5mm-26.5mm mounting hole)
Packing size: ø63*32mm
Product net weight: 7g
Package weight: 25g
Flight control parameters:
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Firmware version: HAKRCF411D
Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver
ESC parameters:
Firmware support: BLHELI_S
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo (20A 2-4S)"

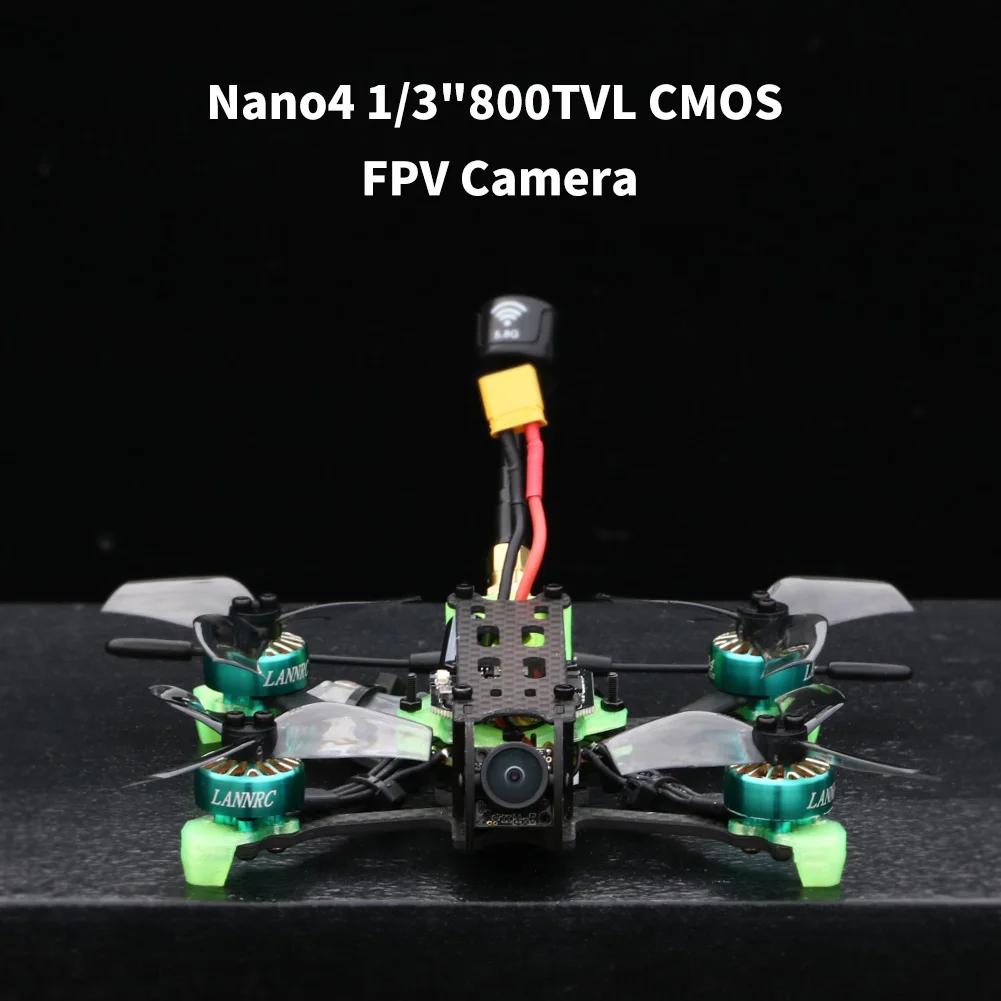

Camera(1pcs)
nano4 800tvl "image sensor: 1/3 coms
Horizontal Resolution：800tvl
lens:2.1mm(M8)FOV155°
signal System:NTSC
S/N Ratio:>50dB
Electronic Shutter Speed:Auto
Auto Gain Control(AGC):Auto
Min.IIIUMination:0.01Lux@1.2F
D-WDR:Auto
Day/Night:color
Power:DC3.3-5.5V
Current:160mA@5V 180mA@3.3V
Housing Material:ABS
Net Weight:2.9g
Dimensions:L14mm*W14mm*H14mm"
VTX(1pcs)
5.8g 25-1000mw可调 "Input Voltage:7-26V
On-Board BEC Output:5V
Number of Transmission Channels:48
Transmitting Power:25/100/200/400/1000mw
Video Format:PAL/NTSC
Working Temperature:-25℃-105℃
Control Protocol:TBS SmartAudio
Antenna Connector:MMCX
Connection Mode:SH1.0-8P
Installation Hole:20mm&30.5mm
Size:(29mm*29mm)&(37.5mm*37.5mm)"
Receiver ( will according what you choose)
elrs 2.4g "Frequency band :2.4g
Firmware :BETAFPV 2400RX
Input voltage :4.5-5.5V
Antenna connector :IPEX1
Weight :1.6g
Size :10.5x17mm
Telemetry power :20dbm
Maximum receive refresh rate :500Hz
Minimum receive refresh rate :25Hz
Work Agreement :CRSF"
receiver elrs 915 "Model:ELRS 915M NANO
RF Freq:915Mhz
IC:SX1276+ESP8285
Color:Black
Connector:IPEX 1
Input Power:3.6-5.5V
Weight:0.6g(receiver only)
Size:11mm*18mm"
Additional information
| Color | ELRS 2.4G, ELRS 915Mhz, PNP Version |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | 1 |
| Drone Weight | 300G |
| Takeoff Weight | 300g |
| Transit Time (Days) | /// |
| Video Capture Resolution | 720P HD |
| Operator Skill Level | Beginner |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | 3-Axis Gimbal |
| Controller Mode | MODE2 |
| Model Number | Freestyle 2.5inch |
| Barcode | No |
| Flight Time | <5 |
| Controller Battery | no |
| Control Channels | 6 channels |
| Motor | Brush Motor |
| Warranty | NO |
| Is Batteries Included | No |
| Remote Distance | / |
| Remote Control | Yes |
| Type | HELICOPTER |
| Aerial Photography | No |
| Package Includes | Original Box,Camera |
| Material | Carbon Fiber |
| State of Assembly | Ready-to-Go |
| Features | App-Controlled |
| Brand Name | Mitoot |
| Origin | Mainland China |
| Recommend Age | 14+y,6-12Y |
1 review for Angel25 2.5inch Freestyle Racing Drone Kit BNF / PNP F411 Flight Controller Remote controlled FPV RC Multirotor Drone
Vendor Information
Related Products
In Stock
5.43$ – 8.70$Price range: 5.43$ through 8.70$
In Stock
15.40$ – 184.80$Price range: 15.40$ through 184.80$
In Stock
21.38$ – 21.42$Price range: 21.38$ through 21.42$
In Stock
In Stock
13.58$ – 14.42$Price range: 13.58$ through 14.42$
In Stock
9.03$ – 9.74$Price range: 9.03$ through 9.74$
In Stock
14.39$ – 20.97$Price range: 14.39$ through 20.97$
In Stock
16.74$ – 18.05$Price range: 16.74$ through 18.05$
In Stock
16.41$ – 20.09$Price range: 16.41$ through 20.09$
In Stock
In Stock
5.43$ – 8.70$Price range: 5.43$ through 8.70$
In Stock
15.40$ – 184.80$Price range: 15.40$ through 184.80$
In Stock
21.38$ – 21.42$Price range: 21.38$ through 21.42$
In Stock
In Stock
13.58$ – 14.42$Price range: 13.58$ through 14.42$
In Stock
9.03$ – 9.74$Price range: 9.03$ through 9.74$
In Stock
14.39$ – 20.97$Price range: 14.39$ through 20.97$
In Stock
16.74$ – 18.05$Price range: 16.74$ through 18.05$
In Stock
16.41$ – 20.09$Price range: 16.41$ through 20.09$
In Stock
a***r (verified owner) –
Never heard of this brand, but i took a chance. I have only two other 2.5 inch rigs, both have prop guards. This one was almost perfectly tuned out of the box. I opted for the ua tech preset tune and used my elrs binding phrase for simple binding (betafpv elrs module is a nice touch, especially with the “t” antenna). The supplied video antenna is good too, at 100mw i get decent range. I might upgrade the antenna to a slightly taller one.
Two issues:
1) be careful when connecting the battery, experiment with wires to not make contact with the props. Gnb 4s 450 work best.
2) video antenna connector to the vtx! I needs a slight nudge to access the flight controller to hook up to betaflight. Be gentle and make sure it is not touching the props too.
AliExpress Shopper (verified owner) –
Great so far, i didn’t already “fly it” just a small 20s hoovering in my bedroom to confirm everything is working and it is.
I was really surprised by the quality for that small price, even a runcam branded camera. The position of the elrs module strapped on one the back arms is a little bit odd but i can live with it . Also it shipped without foam in the box, but i guess it can survive postal delivery from china like that it may be a good indication that it will survive a high speed crash also ^^
