Annke 4 IN1 TVI/AHD/CVI/CVBS Dual Light Full Color 4K HD Camera 2.8MM Lens 8MP Analog Security Camera
Description
- Hign-concerned Chemical: None
- Internal Storage: None
- Focus: 2.8mm
- Audio Output: 1CH BNC
- Supported Operating Systems: Windows 8,Windows 7,Windows XP,Windows Vista
- Supported Mobile Systems: iOS,Android,Windows Mobile
- Alarm Action: Email Photo,Local Alarm
- Video Compression Format: H.264
- Viewing Angle : 70°
- Lens (mm): 2.8mm
- Connectivity: Closed System/CCTV Wired
- Sensor Brand: Sony
- Horizontal Resolution: 1200TVL
- Style: Dome Camera
- Sensor: CMOS
- Focal Length: 2.8mm
- Installation: Ceiling,Normal,Embedded
- Technology: Pan / Tilt / Zoom
- Model Number: CS1ES
- Brand Name: ANNKE
- Origin: Mainland China
- Plug Type: EU Plug,US Plug,AU Plug,UK Plug
Key features
High quality imaging with 4K, 3840×2160 resolution
2.8 mm fixed focal lens
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging

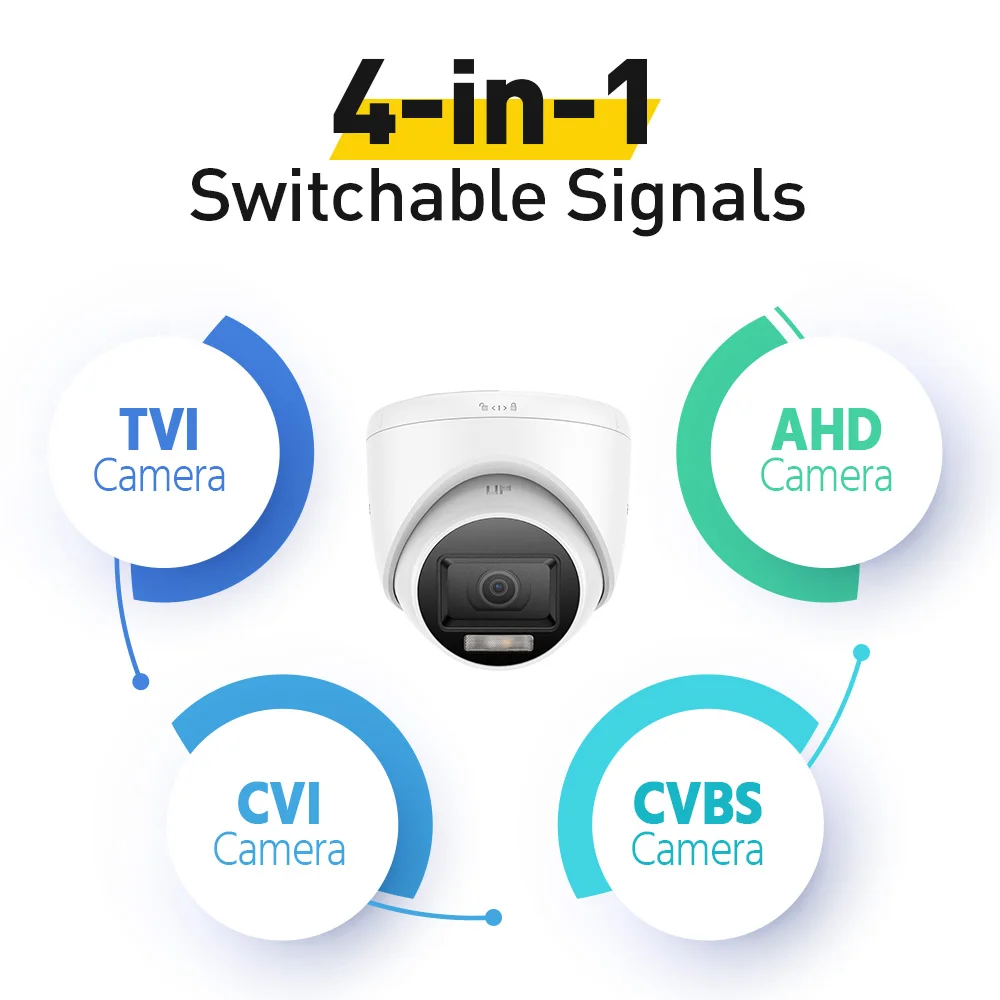

One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)
|
Analog HD Camera |
||
|
Camera |
Image sensor |
4K CMOS Image sensor |
|
Video Resolution |
3840 (H) × 2160 (V) |
|
|
Signal System |
PAL/NTSC |
|
|
Frame Rate |
TVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps |
|
|
Lens |
2.8mm |
|
|
Min.Illumination |
Color:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR |
|
|
Angle of View |
2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127° |
|
|
Supplement Light type |
White Light & IR |
|
|
Supplement Light Range |
IR : Up to 25 m, white Light : Up to 20 m |
|
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
|
Wide Dynamic Range |
Digital WDR |
|
|
Audio |
/ |
|
|
IR Cut Filter |
Yes |
|
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
|
General |
Housing |
Plastic & Metal |
|
Color |
White |
|
|
Operating Power |
DC12V |
|
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP67 |
|
|
Dimension (L x W x H) |
84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35") |
|
|
Weight |
Approx. 230 g (0.51 lb.) |
|
Additional information
| Ships From | UNITED KINGDOM, spain, United States |
|---|---|
| Hign-concerned Chemical | None |
| Internal Storage | None |
| Focus | 2.8mm |
| Audio Output | 1CH BNC |
| Supported Operating Systems | Windows 8,Windows 7,Windows XP,Windows Vista |
| Supported Mobile Systems | iOS,Android,Windows Mobile |
| Alarm Action | Email Photo,Local Alarm |
| Video Compression Format | H.264 |
| Viewing Angle | 70° |
| Lens (mm) | 2.8mm |
| Connectivity | Closed System/CCTV Wired |
| Sensor Brand | Sony |
| Horizontal Resolution | 1200TVL |
| Style | Dome Camera |
| Sensor | CMOS |
| Focal Length | 2.8mm |
| Installation | Ceiling,Normal,Embedded |
| Technology | Pan / Tilt / Zoom |
| Model Number | CS1ES |
| Brand Name | ANNKE |
| Origin | Mainland China |
| Plug Type | EU Plug,US Plug,AU Plug,UK Plug |
| Color | 4PCS Camera, 4PCS Camera-350850 |
