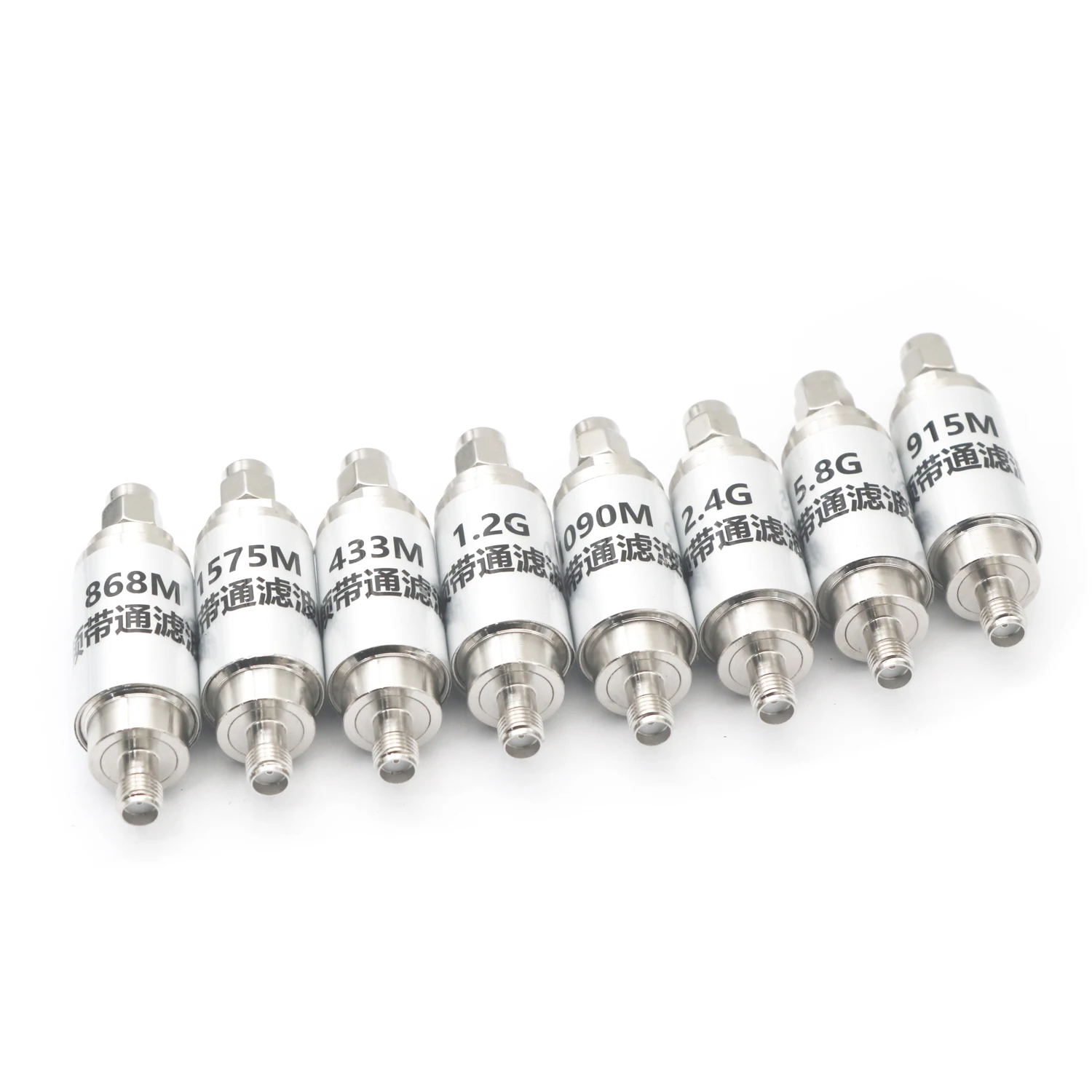

Band Pass Filter BPF 433Mhz 868Mhz 915Mhz 1090M 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz LC Filter Ham Radio RF POWER Amplifier Reduce noise
Description
- High-concerned chemical: None
- Size: 433Mhz 868Mhz 915Mhz 1090M
- Type: RF Band Pass Filter
- Model Number: RF BPF LC Filter
- DIY Supplies: Electrical
- Brand Name: Dykbcells
- Origin: Mainland China
- Certification: CE
- Style: 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz
- Output Voltage: SMA-M, SMA-F
- RF Band Pass Filter: RF BPF LC Filter
- 2.4Ghz 5.8GHZ: wifi
- 433MHZ: Walkie Talkie
- 868M 915M: Drone LORA Helium Miner
- 1.2G 1.5G: Satellite Beidou GPS
BPF 433Mhz 868Mhz 915Mhz 1090M 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz Band Pass Filter LC Filter for Ham Radio RF POWRE Amplifier

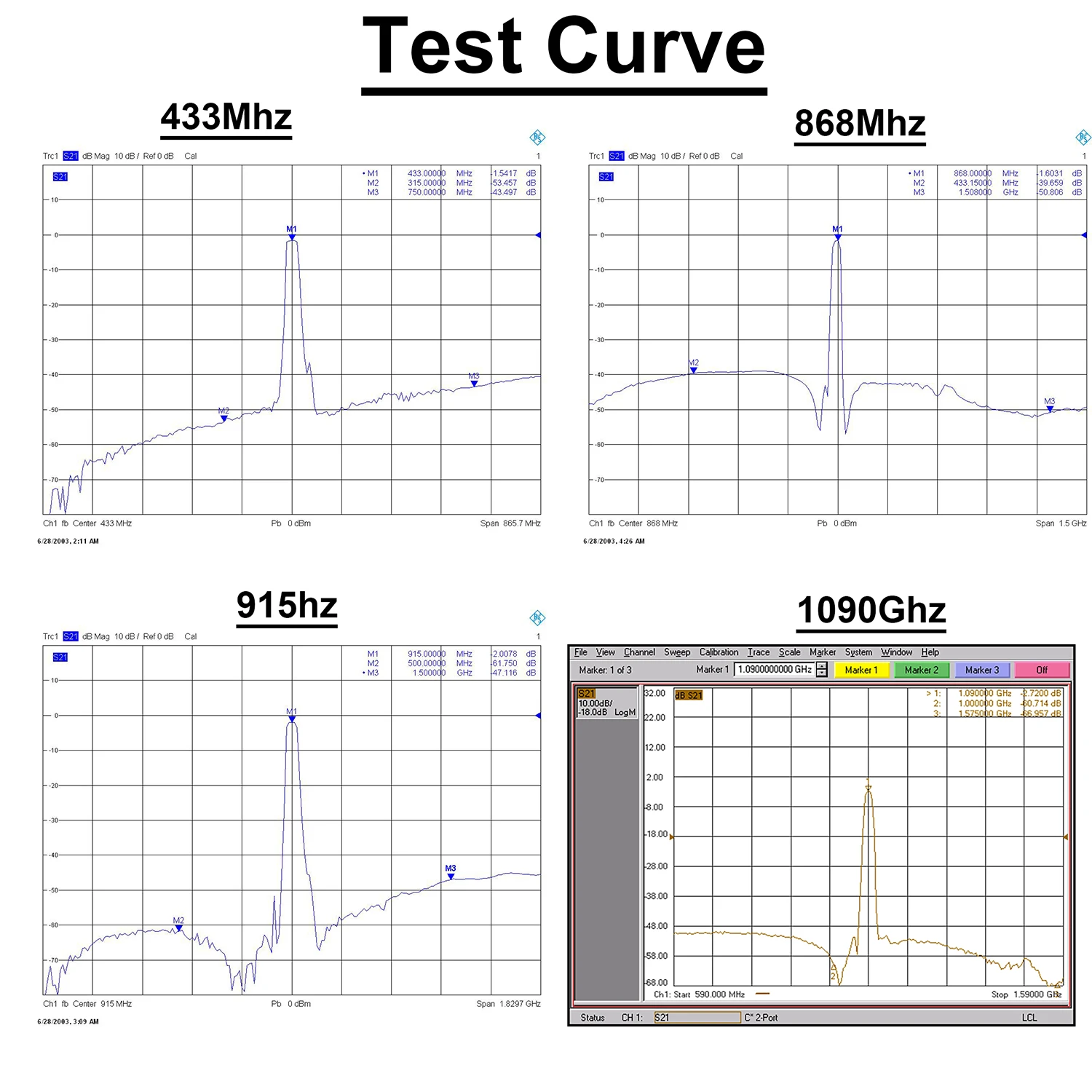

433M bandpass filter
Center frequency: 433 MHz
1dB bandwidth: 20 MHz
Tape interpolation loss: < 1.8dB
Out-of-band suppression: > 60dB@120 MHz
> 45dB@700 MHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)
868M bandpass filter
Center frequency: 868 MHz
1dB bandwidth: 10 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 42dB@700MHz
> 50dB@1.2GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)

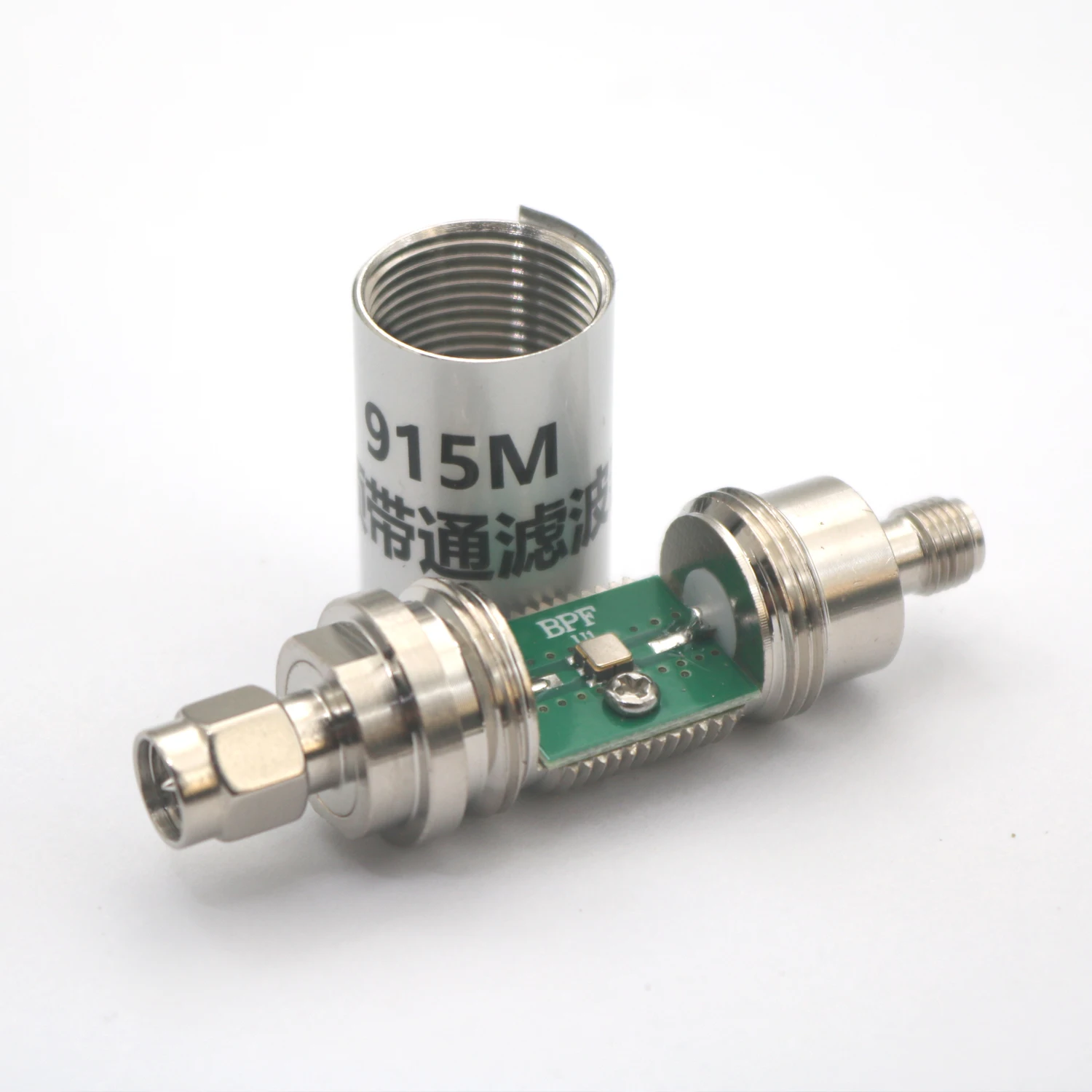

915M bandpass filter
Center frequency: 915 MHz
1dB bandwidth: 30 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 58dB@600MHz
> 40dB@1.2GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)
1090M bandpass filter
Center frequency: 1090 MHz
1dB bandwidth: 10 MHz
Tape interpolation loss: < 3.0dB
Out-of-band suppression: > 65dB@915MHz
> 42dB@1.5GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)
1.2G bandpass filter
Center frequency: 1200 MHz
1dB bandwidth: 40 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 45dB@900MHz
> 38dB@1.575GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)
1575M bandpass filter
Center frequency: 1575 MHz
1dB bandwidth: 20 MHz
Tape interpolation loss: < 1.8dB
Out-of-band suppression: > 35dB@1.2GHz
> 45dB@1.7GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)
2.4G bandpass filter
Center frequency: 2450 MHz
1dB bandwidth: 100 MHz
Tape interpolation loss: < 2.0dB
Out-of-band suppression: > 45dB@2.2GHz
> 45dB@2.65GHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)

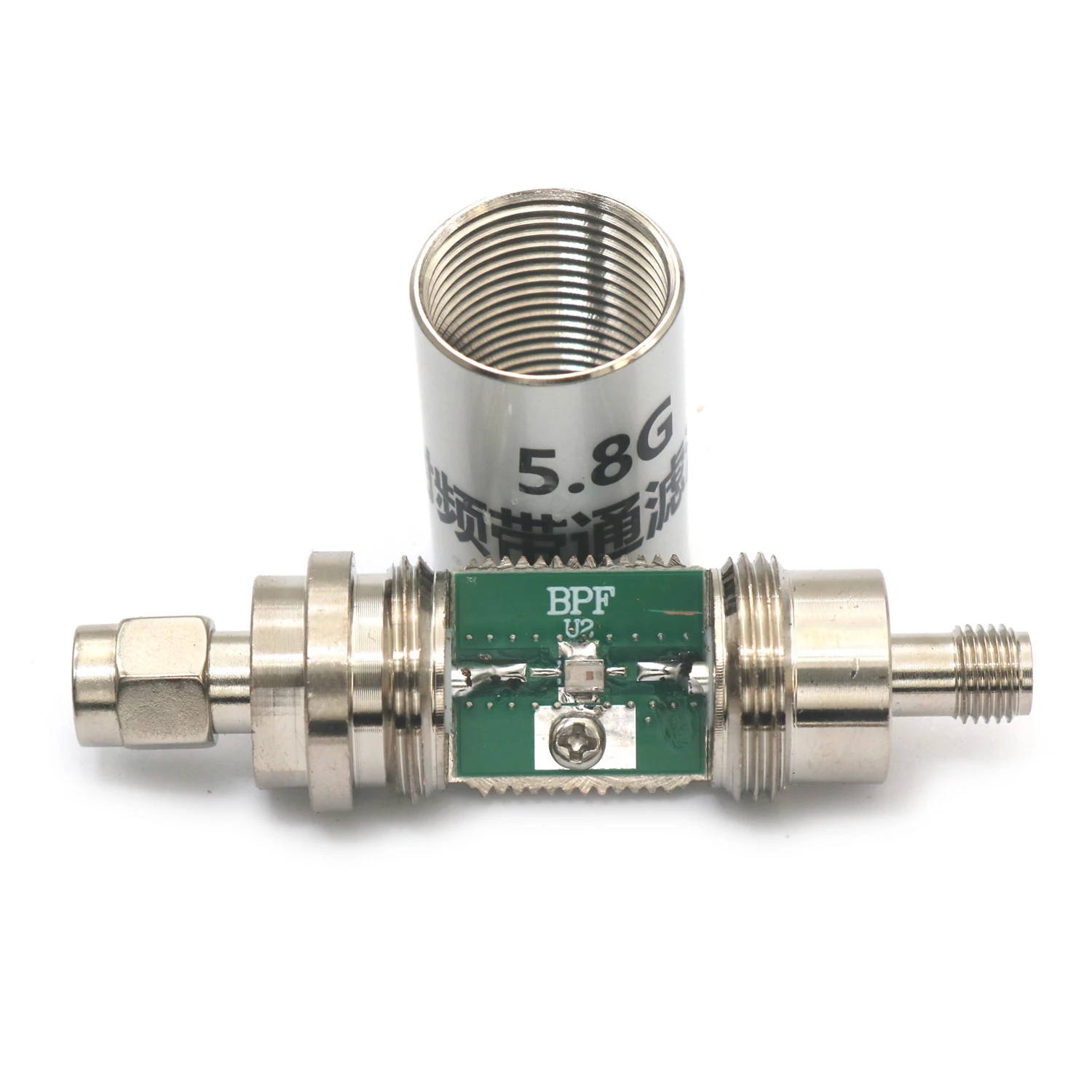

5.8G bandpass filter
Center frequency: 5800 MHz
1dB pass band: 600 MHz
Insertion loss: < 2.0 dB
Out-of-band suppression: > 44dB@2.4GHz
> 45dB@8GHz
Impedance: 50 Ohms
Maximum load power: 10 W (40 dBm)
Interface: SMA-M, SMA-F
Module size: φ17 (diameter) *59mm (length)
Additional information
| Color | BPF 1.2Ghz, BPF 1090Mhz, BPF 1575Mhz, BPF 2.4Ghz, BPF 433Mhz, BPF 5.8Ghz, BPF 868Mhz, BPF 915Mhz |
|---|---|
| High-concerned chemical | None |
| Size | 433Mhz 868Mhz 915Mhz 1090M |
| Type | RF Band Pass Filter |
| Model Number | RF BPF LC Filter |
| DIY Supplies | Electrical |
| Brand Name | Dykbcells |
| Origin | Mainland China |
| Certification | CE |
| Style | 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz |
| Output Voltage | SMA-M, SMA-F |
| RF Band Pass Filter | RF BPF LC Filter |
| 2.4Ghz 5.8GHZ | wifi |
| 433MHZ | Walkie Talkie |
| 868M 915M | Drone LORA Helium Miner |
| 1.2G 1.5G | Satellite Beidou GPS |
