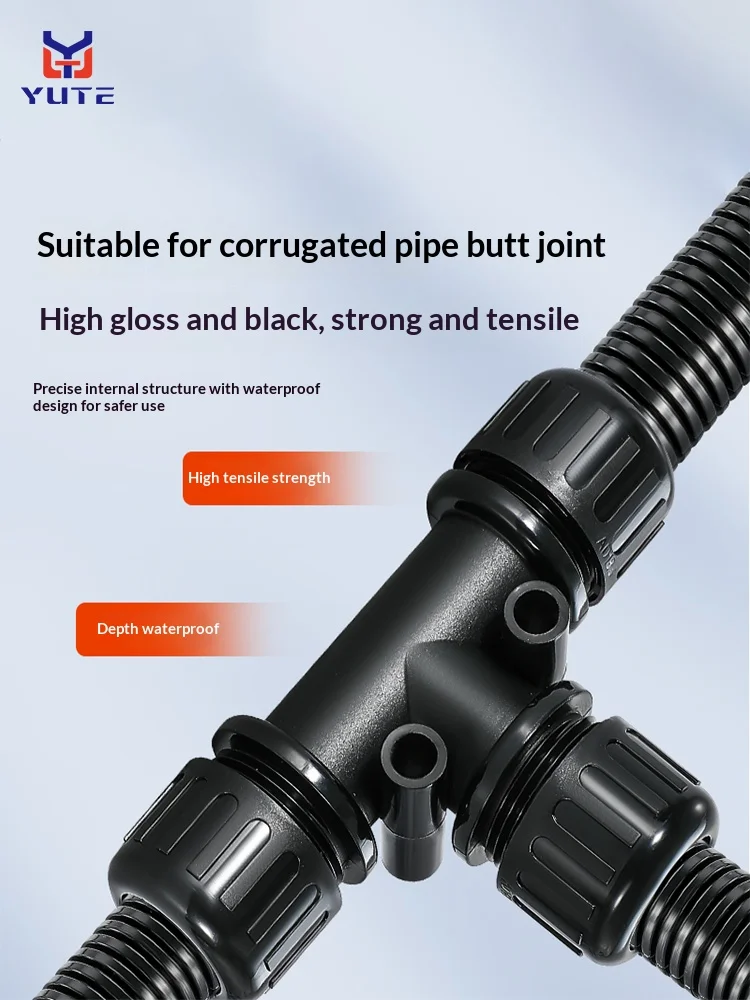

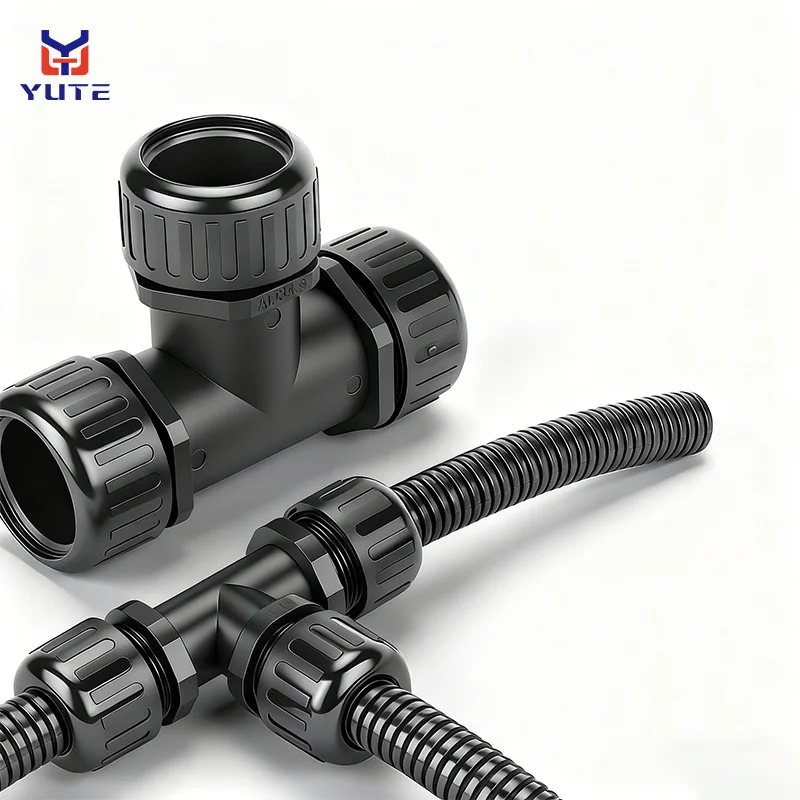

Bellows Waterproof Connector T-shaped Tee Nylon Plastic PA66 Hhose Wave-proof Pipe Connector Grand Lock IP68 Waterproof Dust

Core basic attributes
Material and appearance: The main body is made of PA66 nylon material. This material not only complies with UL94 V0 or V2 level flame retardant standards, but also contains no halogen, is green and environmentally friendly, non-toxic to the human body, and can adapt to long-term use needs.

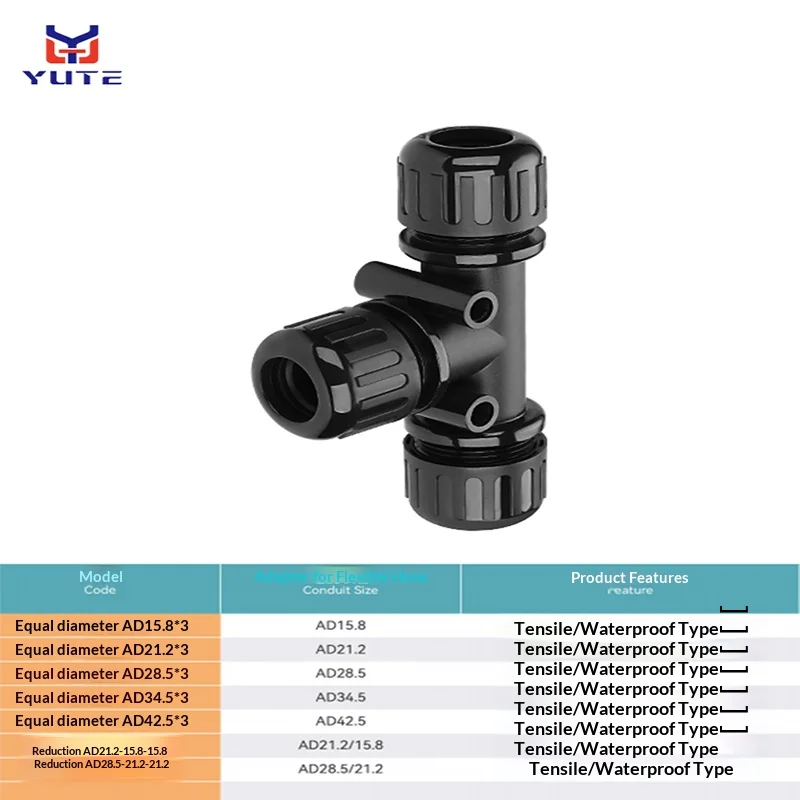

Specification adaptation: Covers a variety of equal diameter and variable diameter combinations, adapts to bellows of various specifications such as AD10 – AD42,
Temperature resistance: Suitable for a wide range of working conditions, it can work stably at -40℃~100℃ under static conditions, and the instantaneous heat resistance can reach 120℃; some models can even reach 150℃ for short periods of time, and will not deform in low temperature environments. They are suitable for scenes with large temperature differences such as outdoor and industrial workshops.
Core performance features
Powerful sealing and waterproofing: With sealing structures such as weather-resistant rubber sealing rings, it can reach IP68 waterproof level, which is completely dustproof and can be immersed in water for a long time. It is also resistant to salt spray, acid and alkali, and grease corrosion, which can prevent cables from being short-circuited due to moisture.

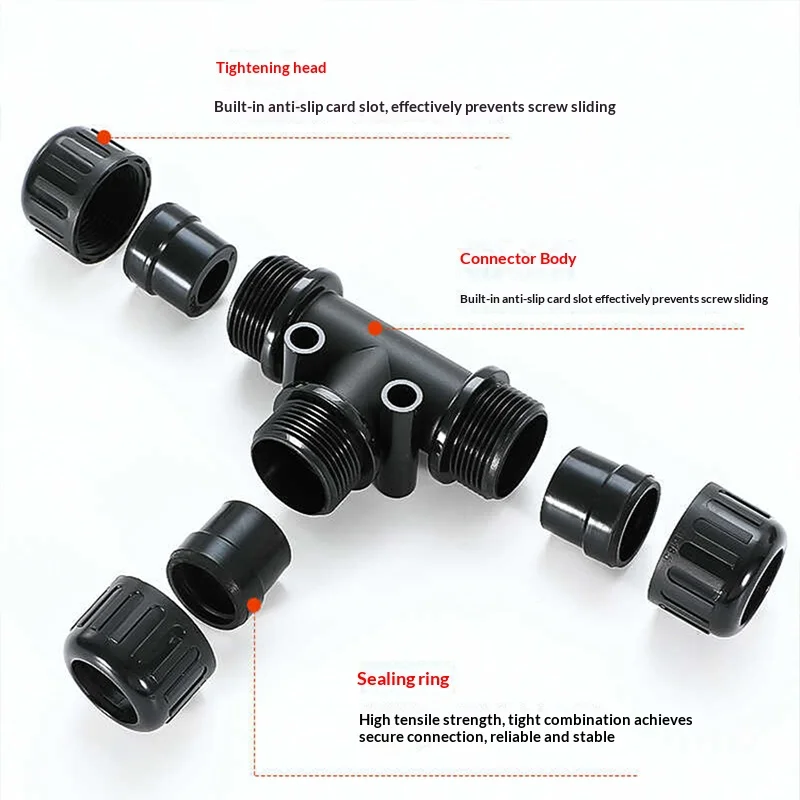

Installation is convenient and efficient: Most of them are openable and snap-on designs. All structural parts can be disassembled and opened without threading in advance. It is especially suitable for scenes where cable heads have been installed. During assembly, the cables can be directly connected and then closed and fixed. No complicated tools are needed, which greatly saves construction and maintenance time.
Stable and durable: PA66 material itself has high strength, good toughness, and friction resistance. The clamping structure of the joint has strong tensile strength and can firmly fix the pipeline to avoid loose connections due to vibration. It also has good insulation properties to protect the cable from physical wear and electrical hazards.
Main application scenarios
This accessory is often used as a key connection component for cable wiring, and is widely used in machine tool equipment, automobile wiring harnesses, power equipment, electrical control systems, automated production lines, etc.; in addition, it is also very commonly used in pipeline branches of outdoor electrical facilities such as monitoring system wiring, solar power generation systems, street lights and traffic lights, and can adapt to various complex working conditions such as industrial workshops and outdoor open air.
