Description
- High-concerned chemical: None
- Model Number: Panda Knomi
- Item Type: Display Screen
- Brand Name: BIQU
- Origin: Mainland China
Panda Knomi for A1,P1,X1 Installation Guide
Panda Knomi Compatibility: For Bambu Lab A1/P1/X1 Series
Panda Knomi Github：https://github.com/bigtreetech/PandaKnomi
wikihttps://bttwiki.com/PandaKnomi.html

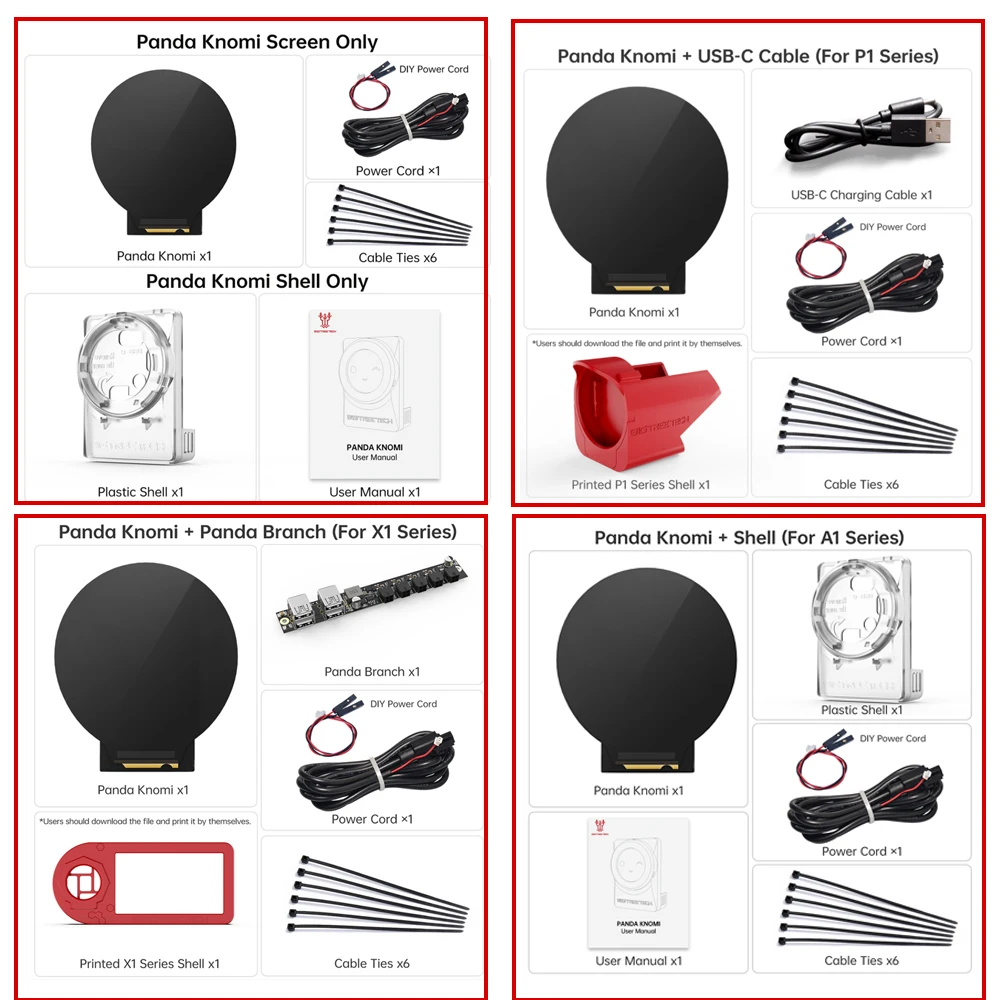

Which Panda Knomi option is right for me?
A1 Series with LED strip and AMS already using using both ports:
– Panda Knomi + Shell (For A1 Series)
+ Panda Branch Only
A1 Series with at least one free four pin port:
– Panda Knomi + Shell (For A1 Series)
P1 users, not using Panda Touch:
– Panda Knomi + USB-C Cable (For P1 Series)
P1 users, using AMS and Panda Touch
– Panda Knomi Screen Only
+ Panda Branch Only
P1 users not using AMS but using Panda Touch:
– Panda Knomi Screen Only
X1 users, using AMS
– Panda Knomi + Panda Branch (For X1 Series)
X1 users, no AMS
– Panda Knomi Screen OnlyWhich Panda Knomi option is right for me?
A1 Series with LED strip and AMS already using using both ports:
– Panda Knomi + Shell (For A1 Series)
+ Panda Branch Only
A1 Series with at least one free four pin port:
– Panda Knomi + Shell (For A1 Series)
P1 users, not using Panda Touch:
– Panda Knomi + USB-C Cable (For P1 Series)
P1 users, using AMS and Panda Touch
– Panda Knomi Screen Only
+ Panda Branch Only
P1 users not using AMS but using Panda Touch:
– Panda Knomi Screen Only
X1 users, using AMS
– Panda Knomi + Panda Branch (For X1 Series)
X1 users, no AMS
– Panda Knomi Screen Only

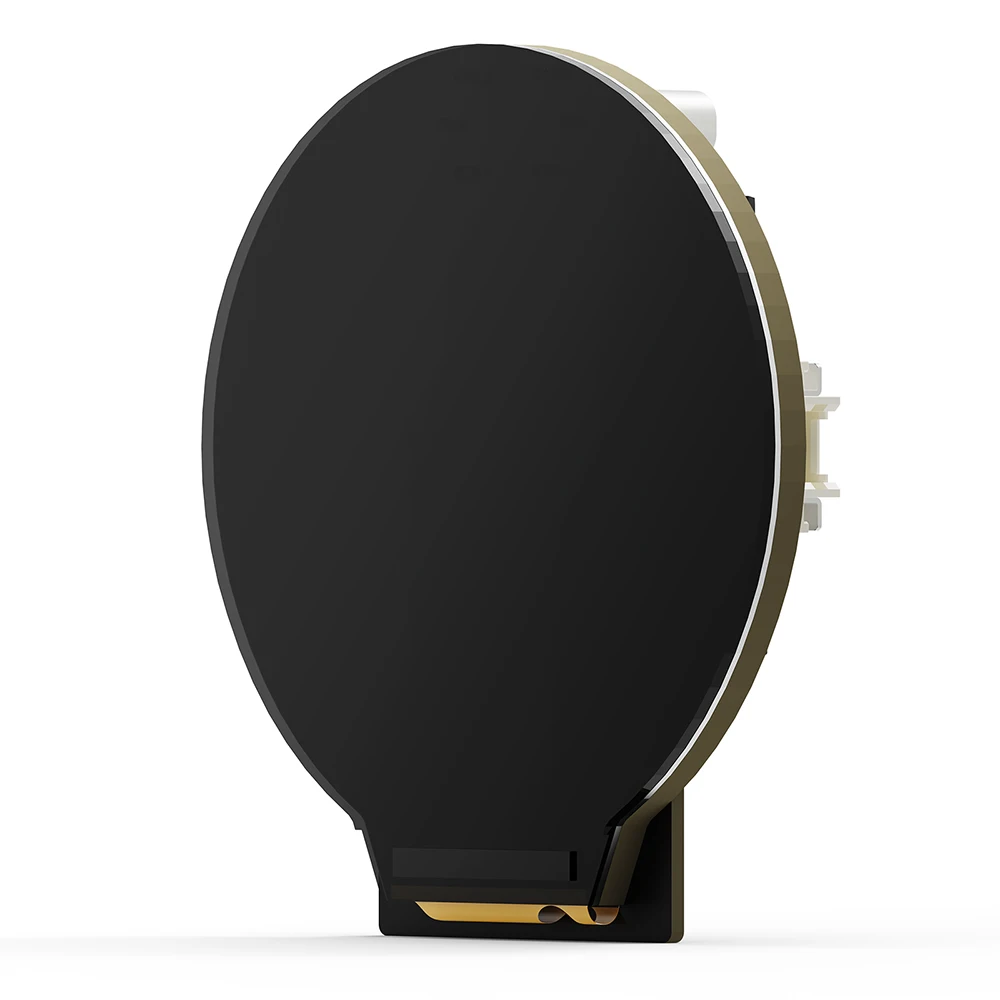

Dimensions
Overall Dimensions: 36mm x 40mm x 11mm
Screen Size: 1.28 inches
Screen
Resolution: 240x 240
Display Area: 32.4mm (H) x 32.4mm (V)
Viewing Angle: 178°
Backlight Brightness: 400 Cd/m²
Driver Chip: GC9A01
Power Supply
Input: DC 5V-24V
Logic Voltage: DC 3.3V
Rated Power: 0.65W
Communication & Memory
Communication: ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps), operating center frequency range: 2412 – 2484 MHz
Memory: Flash: 16MB; FSRAM: 8MB
Operating & Storage Conditions
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Backlight Lifespan: >20,000 hours
Compatibility: For Bambu Lab X1/P1 and A1 series printers

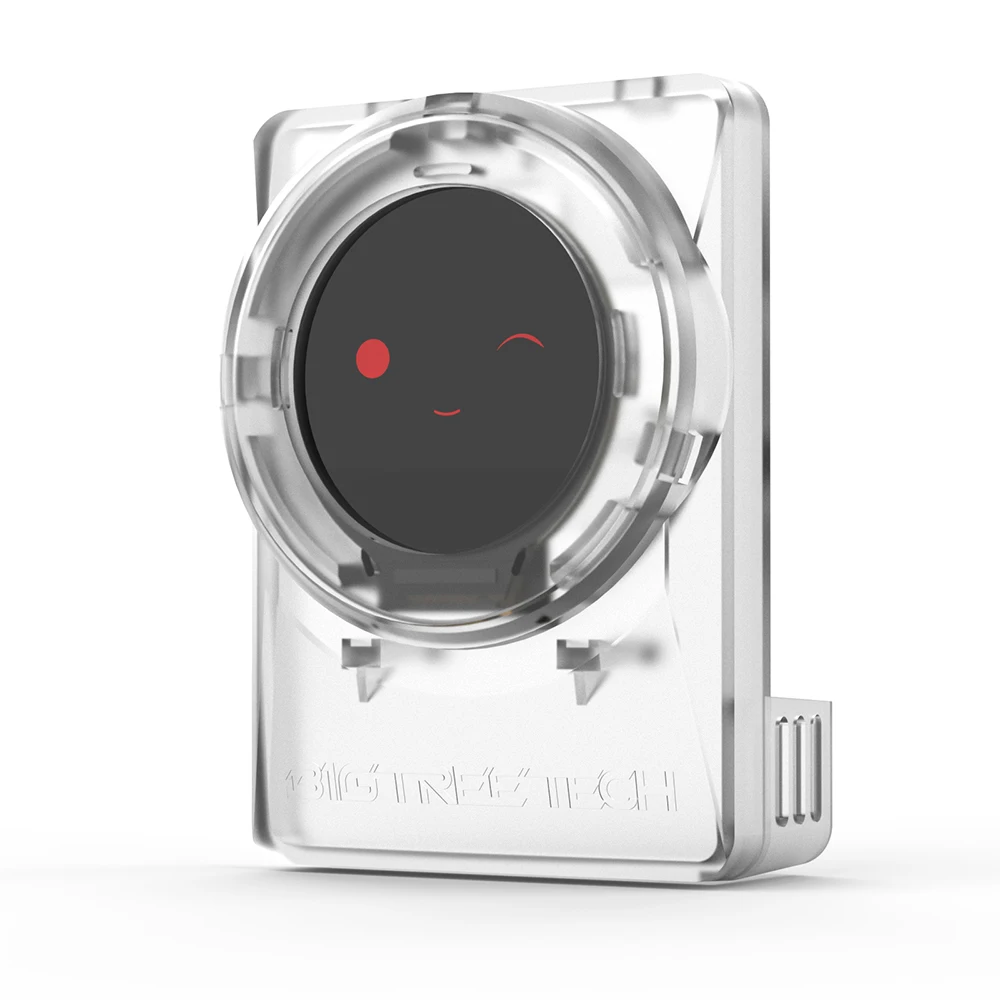

Shell
Material: Plastic
Working Temperature: -30°C to +130°C
PANDA KNOMI
*A1/P1/X1 Series Compatibility
*Many Mounting Options
*KNOMI UI
*Wide Viewing Angle
*OTA Firmware Updates
KNOMI UI
Instant Feedback. Expressive Design.
Knomi’s UI transforms printer monitoring into an engaging experience with its expressive features. Enjoy real-time updates and wireless convenience, ensuring your printer's status is always clear.
Three Incredible Printing Progress Display Options
√ Percentage-Only
√ GIF-Only
√ Alternating Percentage & GIFs Every 10-seconds
Customize UI, Animations, and Shells
Your PANDA KNOMI is more than just a tool—it’s a canvas for your creativity.
Adjust the UI colors and animation effects to your liking, and choose from three unique shell models. Transform your A1 printer into a reflection of your personal style and aesthetic.
Wide-Viewing Angle,
Vibrant Colors, Clear Visibility
The vibrant, high-quality display ensures convenient monitoring of your printer’s status with clarity, from any perspective.
Your Panda Knomi is Constantly Improving——
OTA Firmware Updates
Drag and drop the firmware to update in one easy step.
