BSEED Zigbee 1/2/3/4Gang Smart Light Curtain Shutter Dimmer Switches Mechanical Buttons EU Sockets USBC DIY Parts Plastic Frames
Description
- High-concerned chemical: None
- Current: 10A
- Material: Plastic
- Certification: CCC,FCC,ROHS
- Switch Type: Touch On/Off Switch
- Warranty: 1Year
- Features: Need Neutral Wire
- Item Type: SWITCHES
- Brand Name: BSEED
- Is Smart Device: Yes
- Origin: Mainland China
- Size: 86/157/228/299/370*86*4mm
- Color: White Series
- Material: Plastic Panel & Iron Plate & Plastic Switch Module
- Current: Switch:10A / Socket:16A
- USB Current: 10W:2.1A/20W:3.5A
- Switch Max. Voltage: 1000W/Gang
- Total Rated Load: 100-240v AC
- Socket Max. Voltage: 250V
- Socket & Frame Type: EU/FR Standard
- Support APP: Smart Life/Tuya/Yandex APP
- Support Smart Device: Google Home/ Amazon Alexa/Alice
- Wiring: Need Neutral Wire
- BackLight: ON-Light White OFF-Yellow
- Wall Box Type: Round & Square
- 1/2/3way: Control Light From 1/2/3 Places
- Precautions: The Switch Function Keys aren’t Compatible with BSEED Other Panels
- Feature1: The Switch doesn’t Contain Panels
- Feature2: Some of Sockets are not smart
- Work Intelligent Through: Tuya Zigbee Gateway Hub
- Product Model: E-Series
- Warranty: 1Year
BSEED Zigbee 1/2/3/4Gang Smart Light Curtain Shutter Dimmer Switches Mechanical Buttons EU Sockets USBC DIY Parts Plastic Frames
☆☆☆Notice:☆☆☆

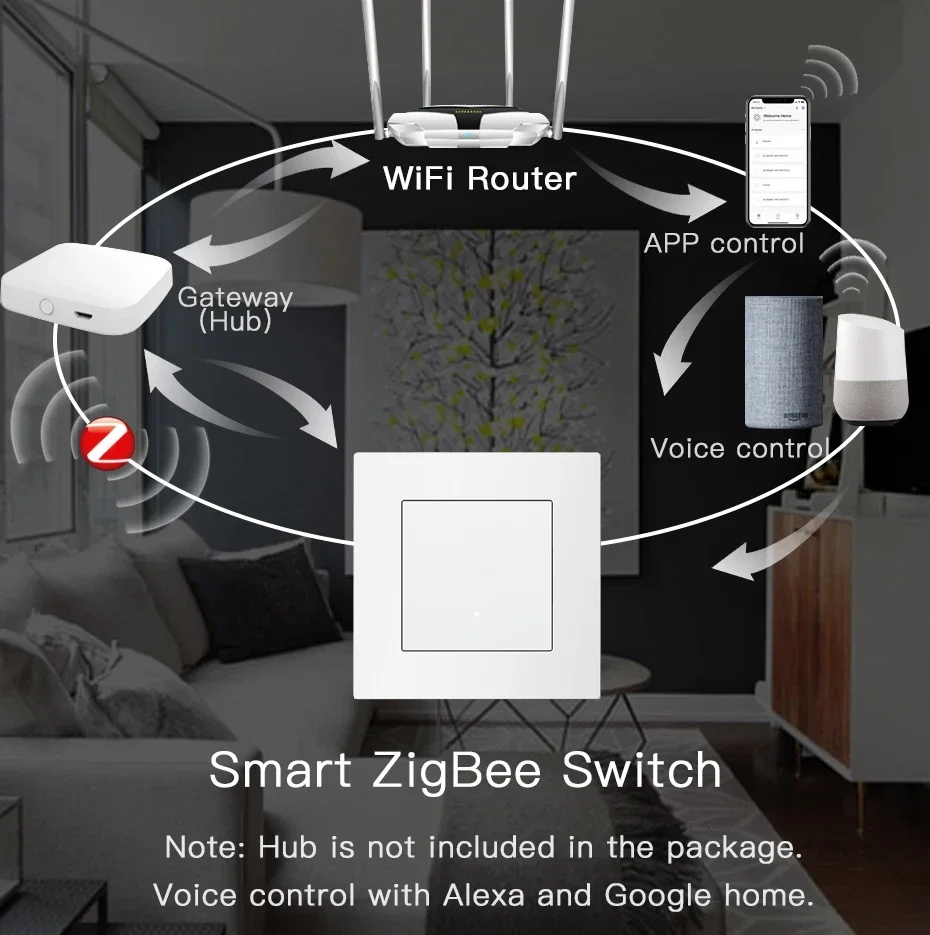

Zigbee switch connects to App must through zigbee gateway hub, please make sure you have it before purchasing.
Switch must connect with neutral cable to work, please make sure you have it before ordering .
Product Introduction:

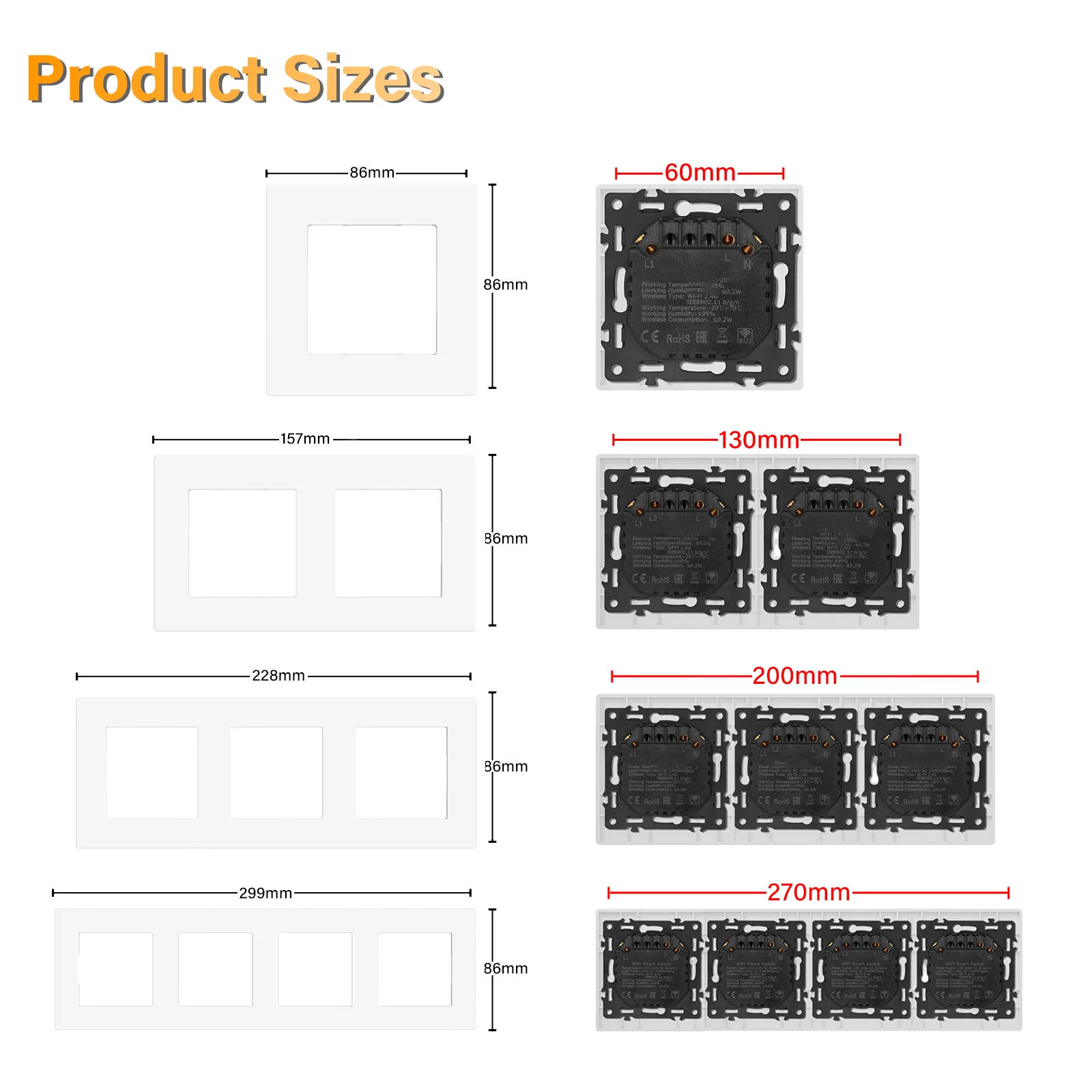

Size:86/157/228/299/370*86*4mm
Material :Frame :Plastic ; Module :Metal plate&Plastic
Max. Strom:Switch:10A / Socket:16A
Color:White Series(we also have black and gray Series )
Load: 1000W/Gang
Wireless consumption: ≤0.2W
Switch Max. Spannung: 100-240V(AC)
Socket Max. Spannung: 250V(AC)
Relative Humidity:10% ~ 93%
Working Temperature: -30 ℃~+70℃
Certification:CE, BS, RoHS, GCC, FC
WiFi Frequency: IEEE802 15.4
WIFI Standard: Zigbee 2.4GHz b/g/n
APP: Tuya/Smart Life/Yandex
Voice Control: Google Home, Amazon Alexa/Alice
Wiring : Need Neutral Wire
Back Light: ON-light White OFF-Weak Yellow
Moduel Shape:Round
Wall Box Type:EU Standard 60mm
Work Intelligent Through:Tuya Zigbee Gateway Hub
Model:E-series

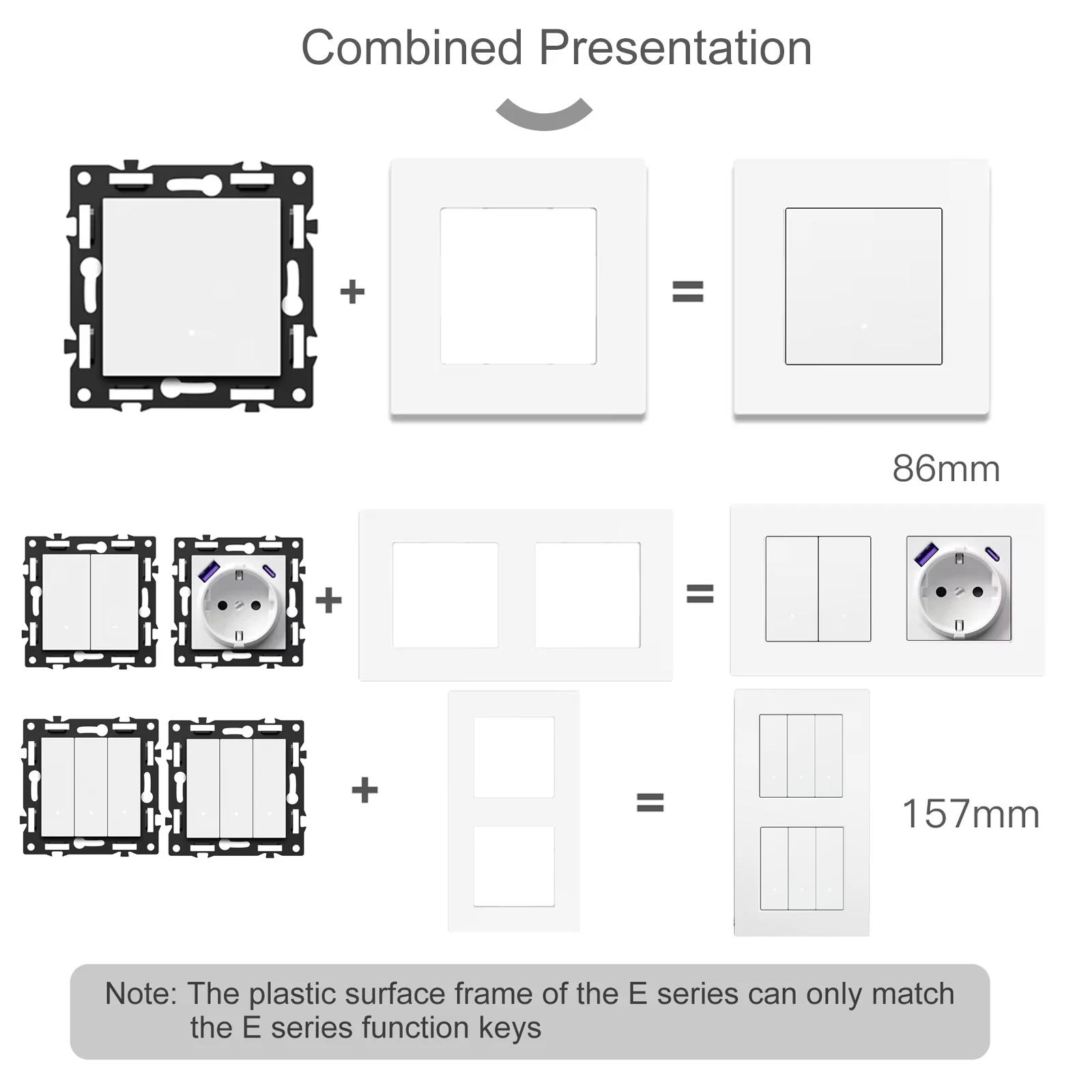

Feature:E-series’ switch and socket parts couldn’t work with BSEED other panel or frames.

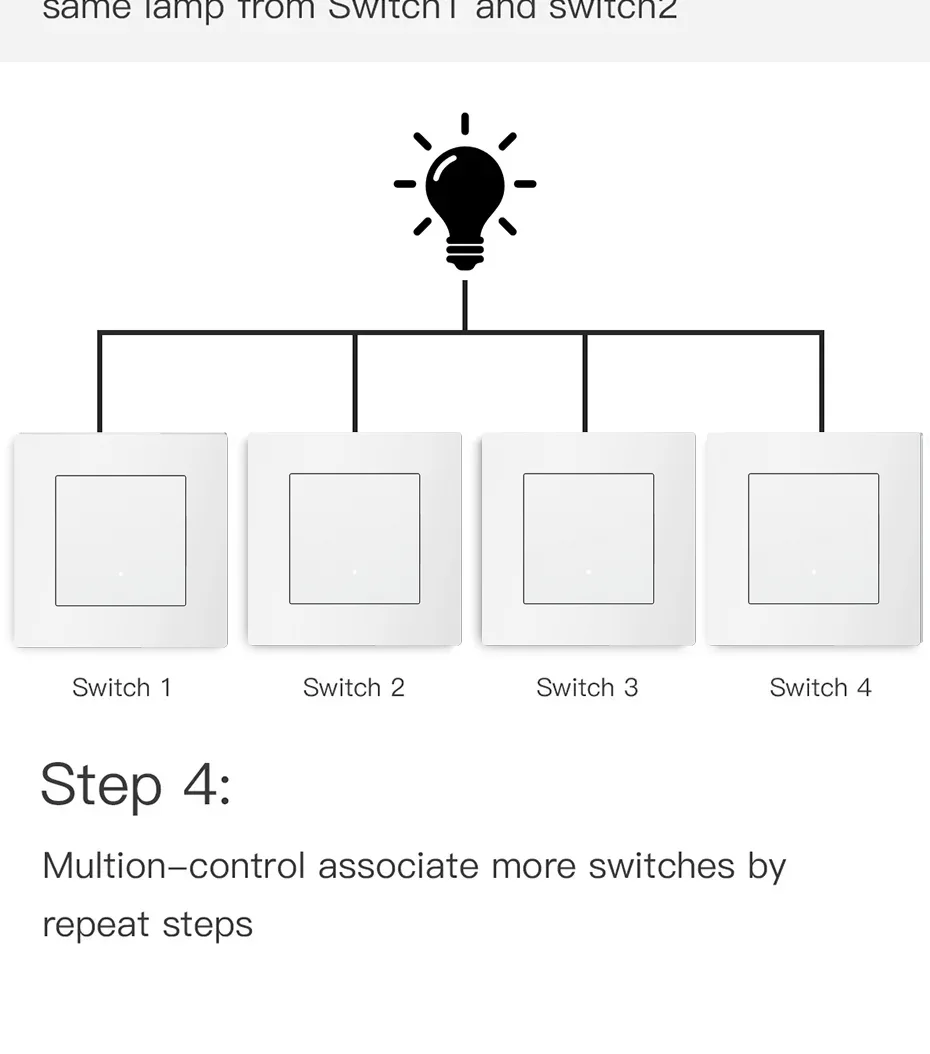

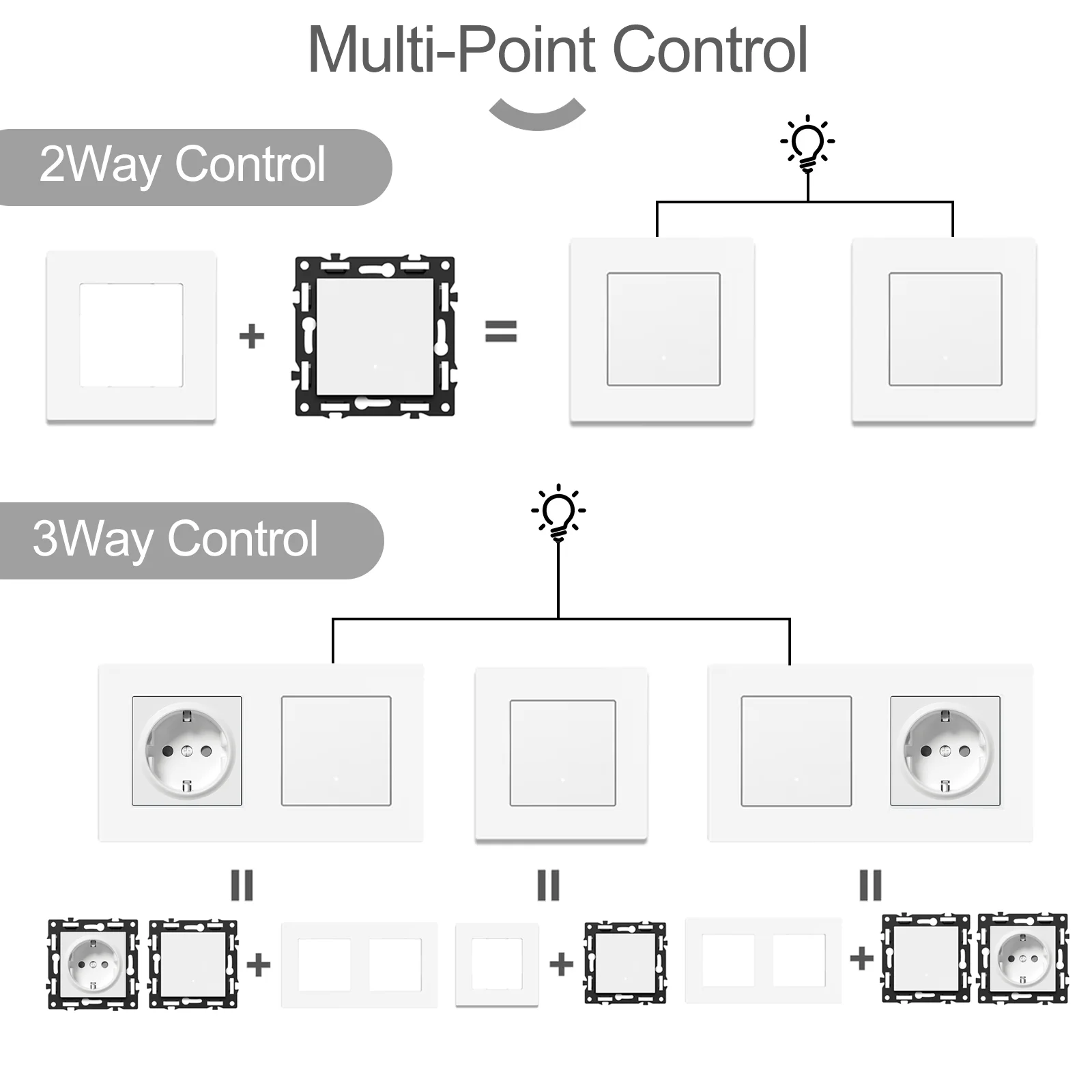

Multi-control association: the same light can be controlled from 1/2/3/4 different places with same type of switches.
Socket Type:EU/French Types
Zigbee AC Socket :Has Power monitor function
Note:All USBC Charging ports are not smart
Warranty:1Year
Note:
You have to cut off the power and during the installation.
FAQ:
Q: Does your zigbee touch switch need a neutral wire to install?
A:Yes, both switch and socket are all required to install neutral wire .
Q: Does the Type-c and USB Charging Ports are also Smart?
A:No,they’re just simple.
Q: Does the switch come with the outside frame?
A:No,they’re just spare parts , the switch doesn’t contain the glass frame ,if you need a complete product ,please order the function parts and frame  together .
Q: Does your zigbee light switch can work with Ewelink or Home Kit?
A:Sorry, Our item can’twork with them at present.
Q: Does your zigbee light switch can work with Smart Life/Tuya/Google/Alexa or Yandex Alice
A:Yes, it can work with them.
Q: Can they work together from 2-3 different places?
A:Yes, this type of switch can work with each other to control the same light, you must at least buy 2 pieces switches. ( APP use multi-control association function),please be aware that the smart switch couldn’t work with simple switch.
Q: Does your switch have a backlight?
A:The backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark. and it can be cancelled in the app at anytime.
Q: Could i install the 157mm/228mm Plastic panel vertically or Horizontally?
A:Yes, you can.
Q: Can I install the switch into other frames from BSEED or other Brands ?
A:Since the E-series function keys and the iron middle plate are integrated, it is not suitable for using with other BSEED frames or Panels.
Additional information
| Color | 20AC Socket Module, 20WAC Zigbee Module, 2USB Socket, 65w USBC Socket, Double PC Frame, EU Cover Socket, EU Socket, Five PC Frame, Four PC Frame, French Socket, Single PC Frame, Triple PC Frame, Zigbee 1G Module, Zigbee 2G Module, Zigbee 3G Module, Zigbee 4G Module, Zigbee Curtain Part, Zigbee Dimmer Part, Zigbee EU Module, Zigbee Shutter Part |
|---|---|
| High-concerned chemical | None |
| Current | Switch:10A / Socket:16A |
| Material | Plastic Panel & Iron Plate & Plastic Switch Module |
| Certification | CCC,FCC,ROHS |
| Switch Type | Touch On/Off Switch |
| Warranty | 1Year |
| Features | Need Neutral Wire |
| Item Type | SWITCHES |
| Brand Name | BSEED |
| Is Smart Device | Yes |
| Origin | Mainland China |
| Size | 86/157/228/299/370*86*4mm |
| Color | White Series |
| USB Current | 10W:2.1A/20W:3.5A |
| Switch Max. Voltage | 1000W/Gang |
| Total Rated Load | 100-240v AC |
| Socket Max. Voltage | 250V |
| Socket & Frame Type | EU/FR Standard |
| Support APP | Smart Life/Tuya/Yandex APP |
| Support Smart Device | Google Home/ Amazon Alexa/Alice |
| Wiring | Need Neutral Wire |
| BackLight | ON-Light White OFF-Yellow |
| Wall Box Type | Round & Square |
| 1/2/3way | Control Light From 1/2/3 Places |
| Precautions | The Switch Function Keys aren't Compatible with BSEED Other Panels |
| Feature1 | The Switch doesn't Contain Panels |
| Feature2 | Some of Sockets are not smart |
| Work Intelligent Through | Tuya Zigbee Gateway Hub |
| Product Model | E-Series |
| Standard | EU standard |
