BSIDE Handheld Thermal Imaging Camera Industrial HX3 -20-550C HD Resolution PCB Pipe Inspection Fire Safety Thermal Imager
Description
- High-concerned chemical: None
- Model Number: BSIDE HX3
- Brand Name: BSIDE
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE,EAC,FCC,RoHS
BSIDE HX3 Thermal Imager NEW Camera Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical
BSIDE HX3 is a new handheld thermal imaging camera that combines temperature measurement and imaging.
With IR resolution 96×96，2.4-inch screen，15 pseudo color modes ,  High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.
Also comes with a high-quality EVA handbag.
Thermal image resolution: 240 * 240Px.
Infrared Thermal Imager Pixels: 96 x 96.
Screen: 2.4 inch LCD screen
Frame rate: 25Hz
15 pseudo color modes

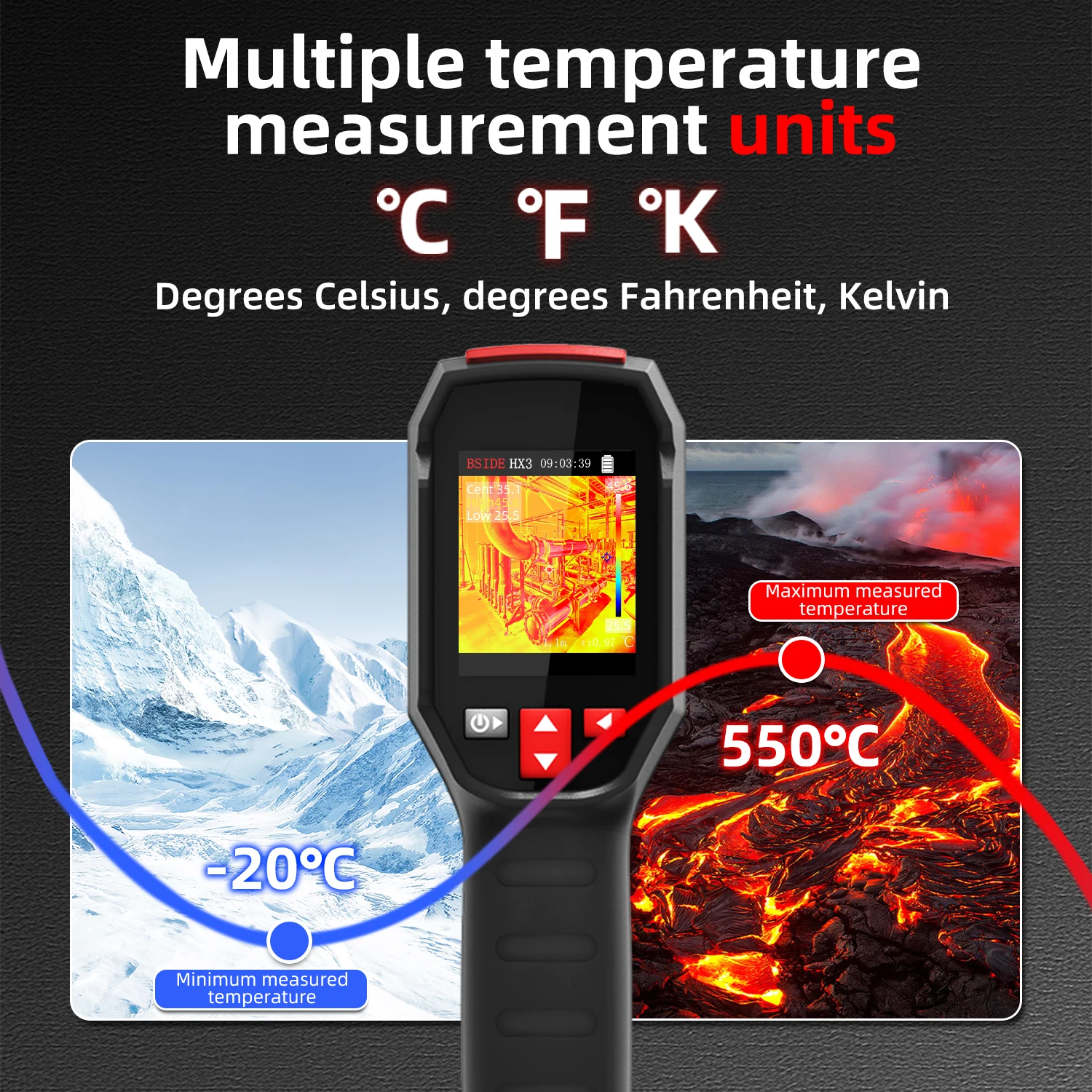

Temperature measurement range: -20 °C~550 °C
High and low temperature alarms: image, buzz, LED flashing

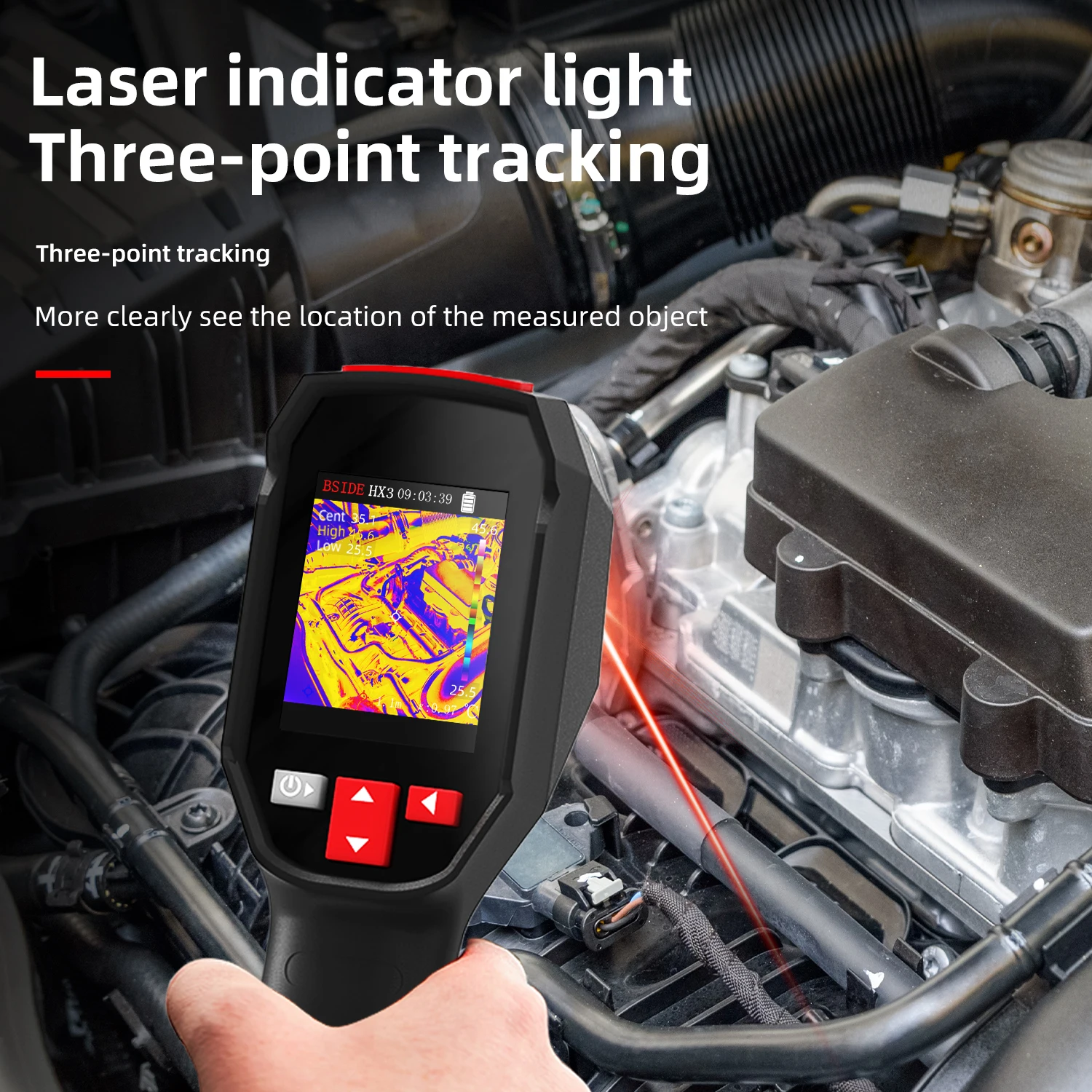

Laser Indicator/LED Illumination Laser
Indicator/LED Illumination
Emissivity: 0.01~1

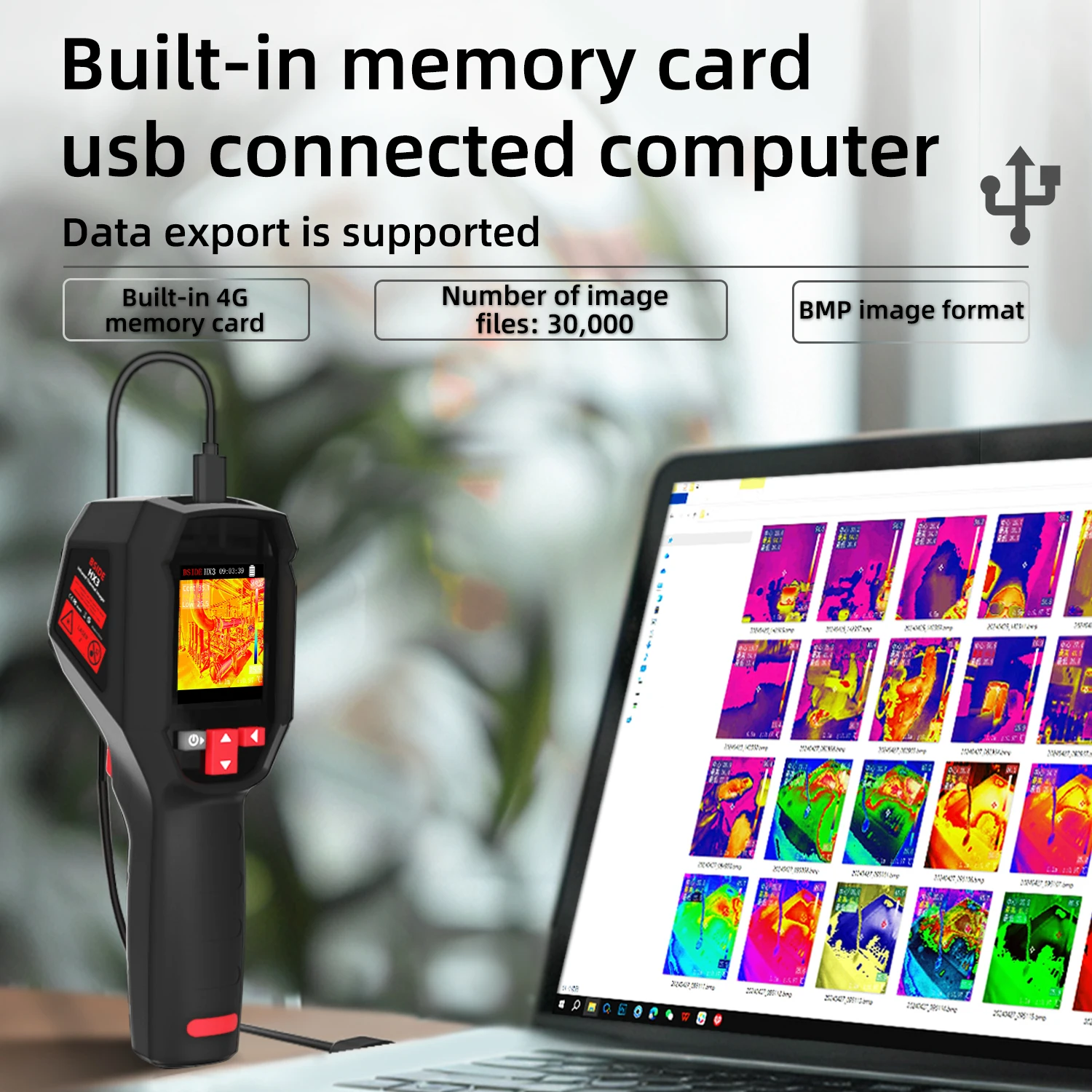

Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery

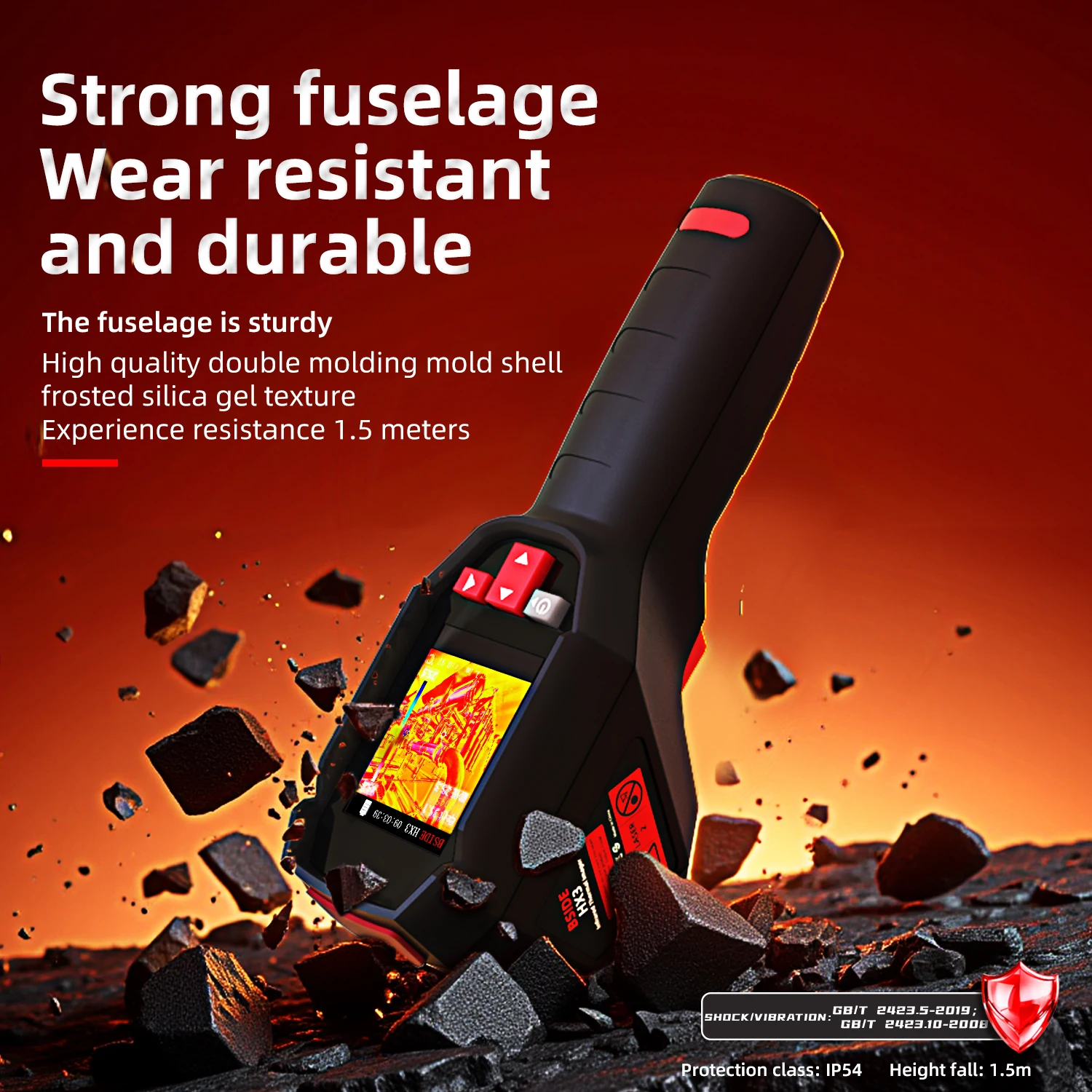

Three-proof design: IP54/1.5m anti-drop
Specification:
Screen size: 2.4 inches
Sensor type: Vanadium oxide (VOx)microcalorimeter
Response bands: 8~14pm
Thermal image resolution: 240×240 Pixels
Noise equivalent temperature difference：≤60 mK(@25 °C,F#1.0)

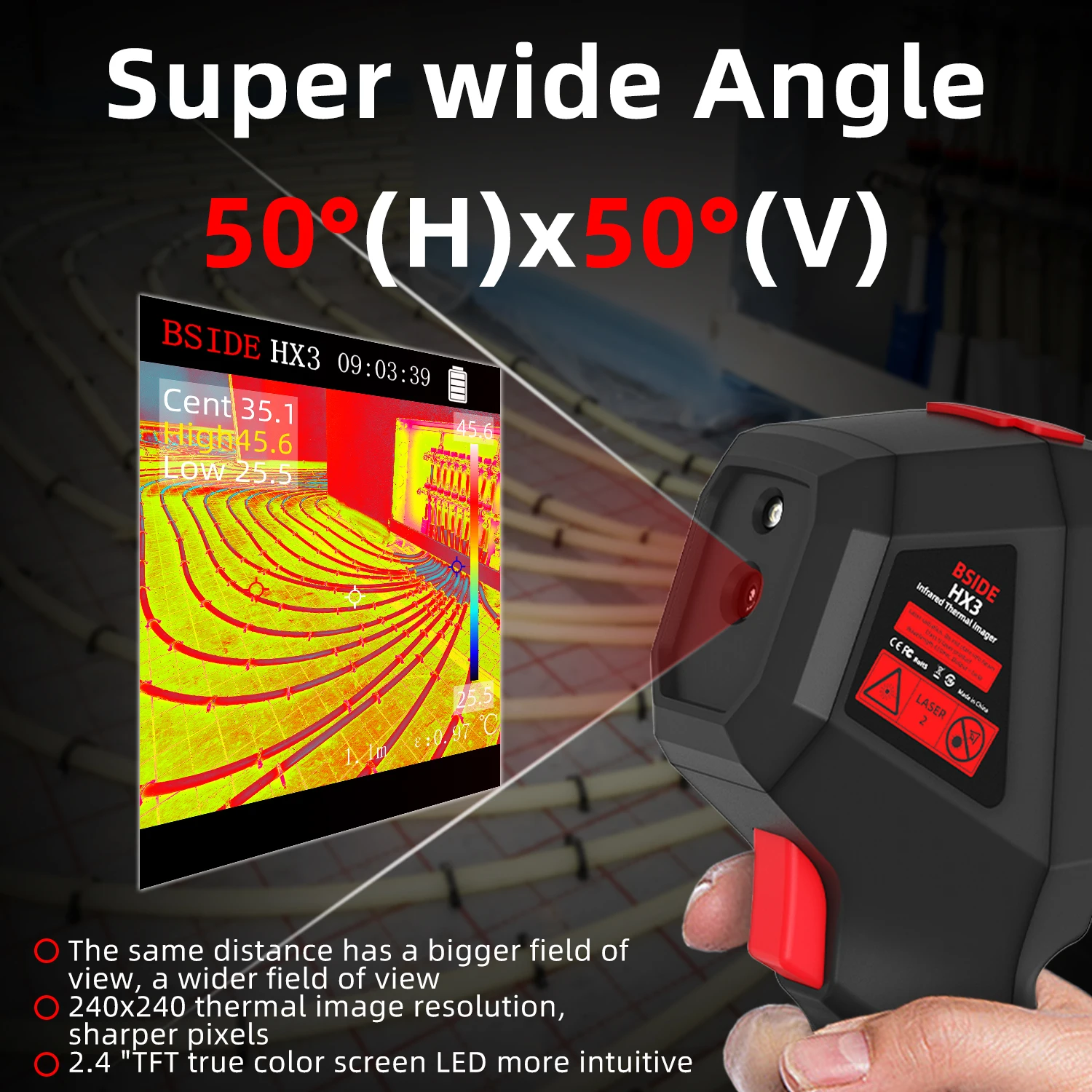

Field of View (FOV)：50.0°(H)x50°(V) /72.1°(D)
Spatial resolution: 8.89 mrad
Frame rate：2.5Hz
Focal length of the imaging lens: 1.3mm
Focal length oftemperature measurement：0.3m~3m Adjustable
Temperaturemeasurement range：-20°C~550°C
Size：193.4*59.4*77.4mm
Weight: 277
Packing List:
1 x HX3 thermal imaging camera
1 x USB cable
12-month warranty
1 x Instructions
1 x BoX
Additional information
| Color | HX3 |
|---|---|
| High-concerned chemical | None |
| Model Number | BSIDE HX3 |
| Brand Name | BSIDE |
| Origin | Mainland China |
| Smart home platform | Other |
| Certification | CE,EAC,FCC,RoHS |
Reviews
Vendor Information
Related Products
a***r (verified owner) –
As discribed, very good quality!
R***r (verified owner) –
Once set up, fully charged and calibrated (using internal settings menus), this unit is remarkable for the price.
AliExpress Shopper (verified owner) –
Absolutely amazing product for its price, very satisfied
i***r (verified owner) –
The ir imaging device gives a solid and reliable impression. Arrives in an anti-static bag, inside a zip-lock pouch, inside product box, inside the well known grey bag. The instructions are in chinese (presumably) and in decent english on the back. Many languages to find into the set up menu.
Device takes about 10 sec to boot up. Recalibrates every few seconds, so changes in the scene are detected and displayed quickly. The delay until the live image appears is at less than one second.
4 gb of internal storage for images in .bmp format (240×320). Connection via usb to a laptop or android works without any issues.
My applications: detecting thermal bridges inside or outside walls, tracing underfloor heating pipes, measuring/adjusting the hydraulic balance on the supply and return pipes of radiators, automotive checks on the car, and finally some fun shots of pets for social media.
Overall, i couldn’t have bought a more suitable device. Highly recommended!
AliExpress Shopper (verified owner) –
A very good product that I liked for its interesting features and ease of use, it has many options, a very good display and excellent value interpretation system. It seems to me a very precise and reliable tool, with an excellent quality-price ratio and the interesting feature of taking images that are immediately stored in its memory with date and time. I am very satisfied!
Thank you, seller! !
AliExpress Shopper (verified owner) –
I am satisfied with the image quality, pixel count, and price.
AliExpress Shopper (verified owner) –
The product is so good, but i cant properly use for small pcbs.
The viewing angle and distance is good.
The picture smooth but not too sharp.
M***e (verified owner) –
The item has arrived very fast in romania (ordered on 23.01, arrived on 02.02). It looks well made and it has a carry pouch with zipper.
I was able to download in the pc the pictures from the storage with the usb-c cable provided. The .bmp format is not recognized by acdsee, but you can open them with photos app from windows, then you can save as .jpg.
Using the front trigger saves the picture currently displayed on the lcd.
It calibrates really quick when you move it around, changing different environments, with different temperatures.
