BSIDE Profesional Digital Multimeter Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live Electric Tester USB charg

BSIDE Profesional Digital Multimeter Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live Electric Tester USB charg

(0 customer reviews)

36.26$ – 48.28$

In Stock

Color

Clear

Description

Battery Included: Yes
High-concerned chemical: None
Is Smart Device: Yes
Operating Mode: Auto Range
Measuring Capacitance Range: 99.99mF
Operating Temperature: 0 – 40 ℃
Measuring Resistance Range: 60M Ohm
Certification: CE,FCC,RoHS
DIY Supplies: Electrical
Model Number: BSIDE S10 A10 S11 S20 Digital Multimeter
Measuring Inductance Range: N/A
Origin: Mainland China
Brand Name: BSIDE
Dimensions: 147*85*4.2mm
DC Current: N/A
AC Current: N/A
DC Voltage: 0V ~ 620V
Display Type: Digital Display
AC Voltage: 0V ~ 620V
BSIDE Model: S11
Display: 9999 counts
Screen: 3.5 inch / 3.2 inch
EMF detection: Yes.(S20)
DC/AC Voltage: Yes.
Capacitance: Yes.
Resistance: Yes.
Frequency: Yes.
Duty Cycle: Yes.
Diode: Yes.
V-Alert(non-contact voltage detection): Yes.
Live Check: Yes.
Continuity: Yes.
S10 Power: 1.5V (AAA) x 2.(Not included)
A10 Power: Built-in 750mA Lithium Battery.
S11/S20 Power: Built-in 800mA Lithium Battery.

BSIDE S10/A10/S11/S20 Profesional Digital Multimeter USB charging Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live test Electric Tester.

Order Notice:

The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.

The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply; S11 built-in 800mA rechargeable lithium battery.

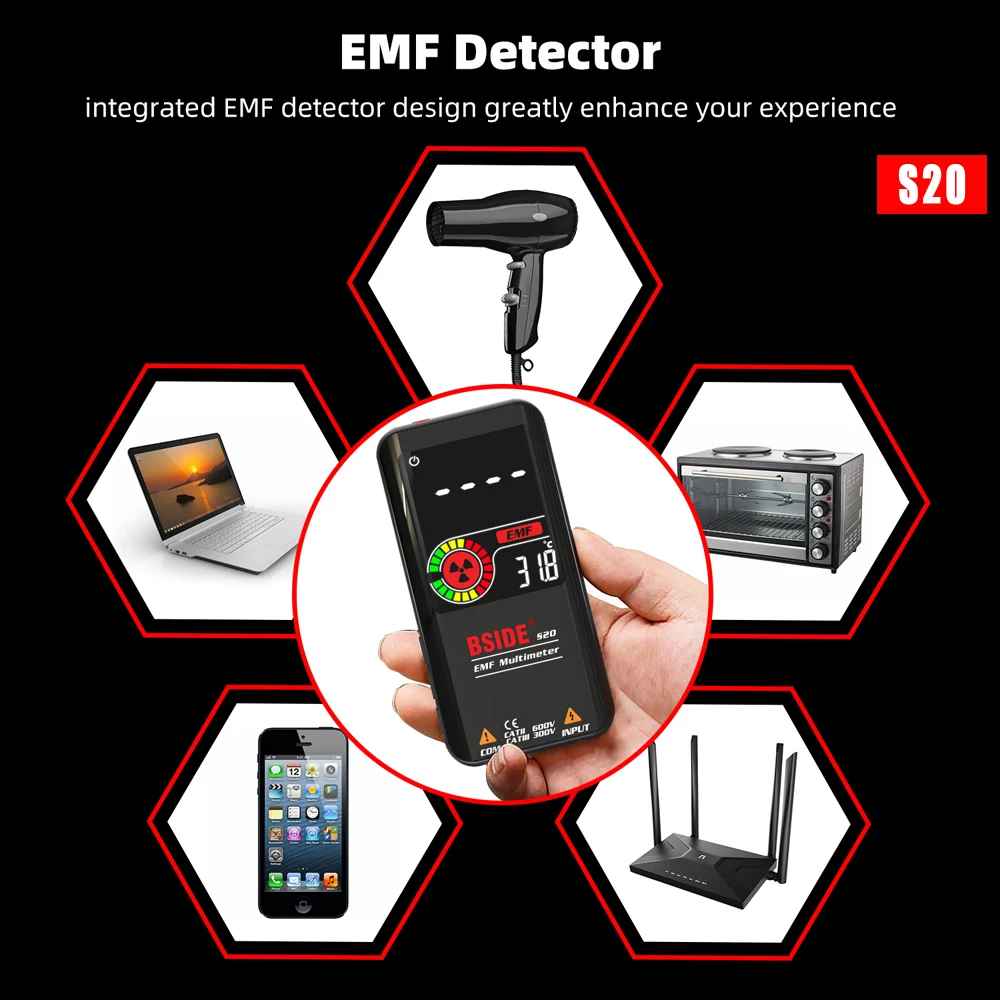

The S20 product is the highest version of the series, adding EMF detection function.

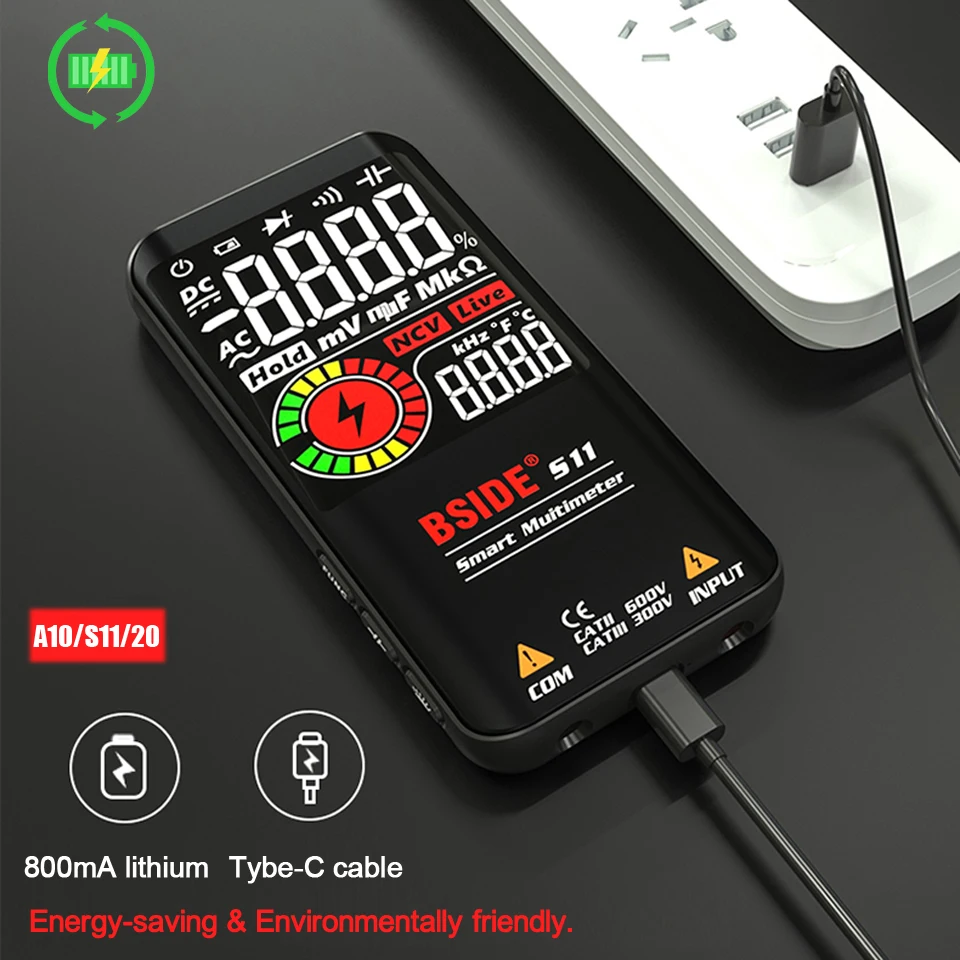

USB charging design – energy saving and environmental protection.

Fully functional – wide range of application scenarios.

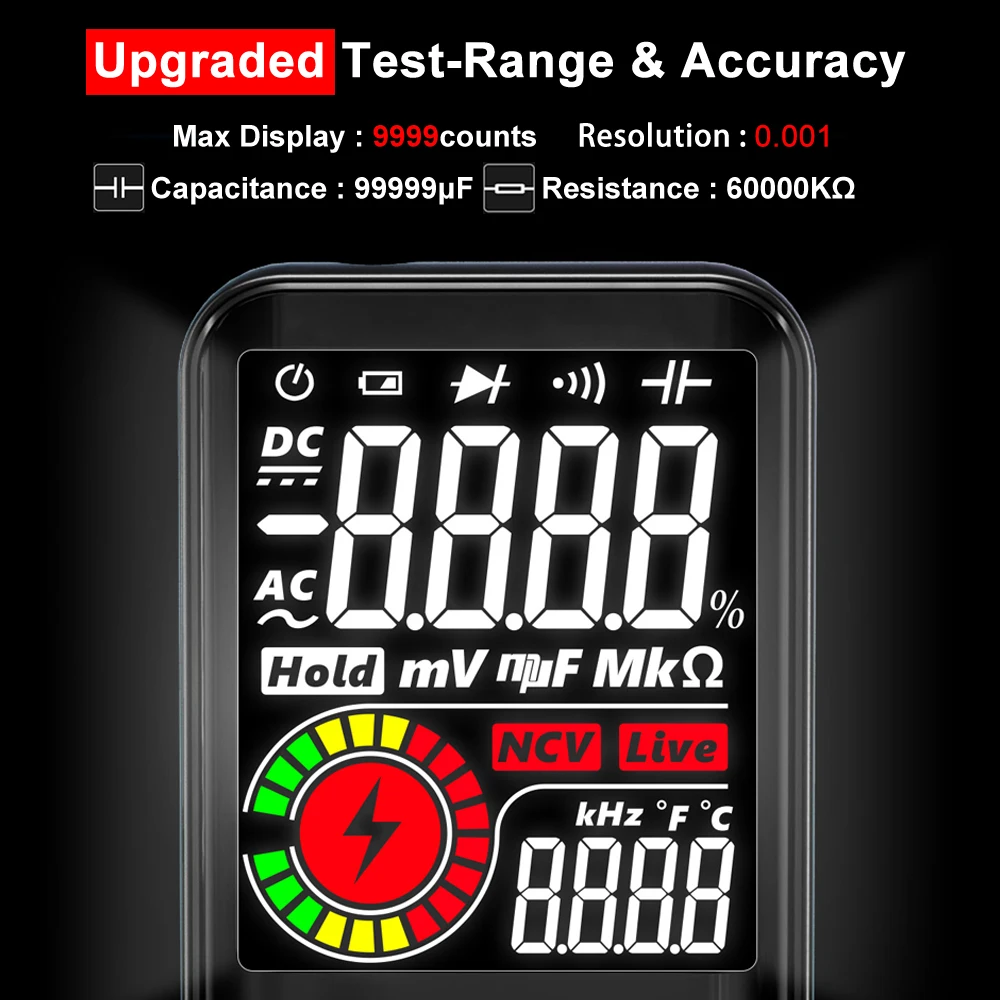

Upgraded version – 3.5'' large screen high-definition EBTN display

No visual limitations/Solve industry pain points.

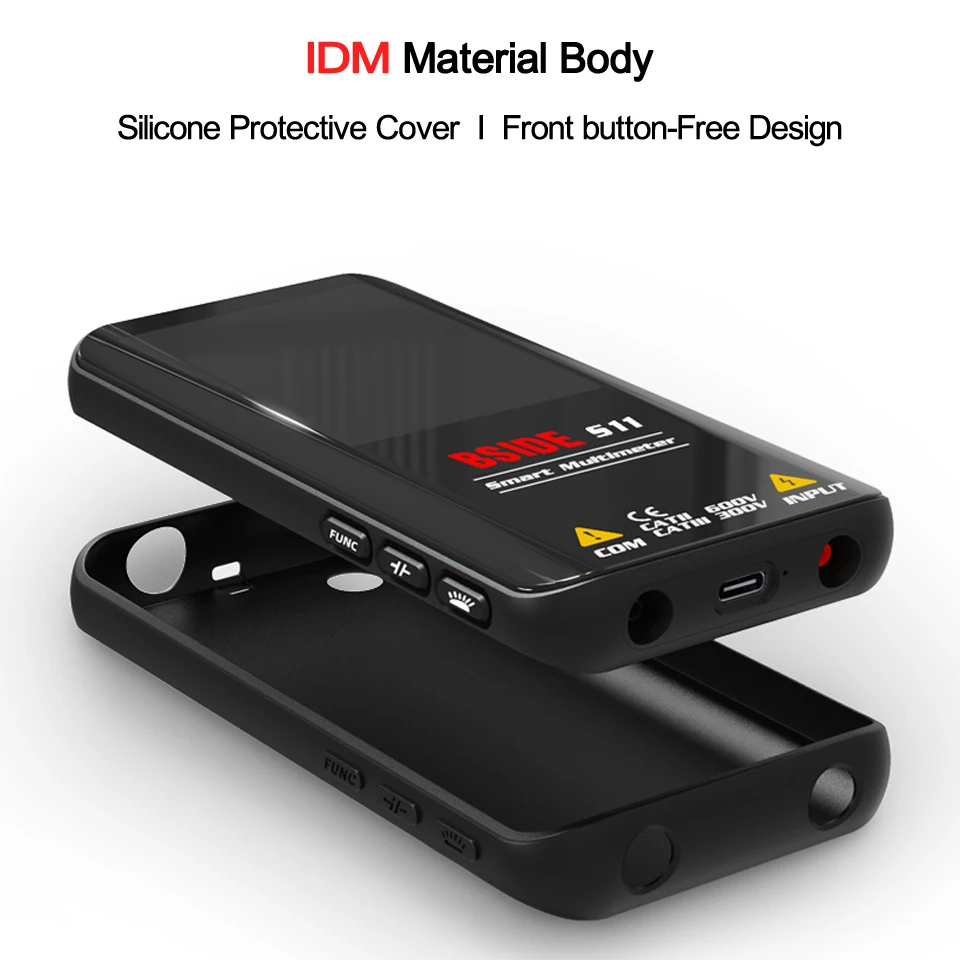

IDM Material Body.

Silicone Protective Cover/Front button-Free Design.

Specifications:

Display: 9999 counts.

Screen: 3.5 inch.

DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.

AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.

Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.

Diode: Auto identify diode if less than 3.0V.

V-Alert(non-contact voltage detection): beep alarm sounds.

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

S10 Power: 1.5V (AAA) x 2.
S11 Power: Built-in rechargeable lithium battery.

Package Size: 147*85*42mm.

Package Weight: 180g

Package Includes:

1 * Multimeter. 1 * Test Lead. 1 * English user Manual. 1 * Packing Box.

1 * Protective shell.（S11/S20） 1 * USB charging cable.（A10/S11/S20）

1 * EVA portable cloth bag.（A10/S11/S20）

Additional information

Battery Included	Yes
High-concerned chemical	None
Is Smart Device	Yes
Operating Mode	Auto Range
Measuring Capacitance Range	99.99mF
Operating Temperature	0 – 40 ℃
Measuring Resistance Range	60M Ohm
Certification	CE,FCC,RoHS
DIY Supplies	Electrical
Model Number	BSIDE S10 A10 S11 S20 Digital Multimeter
Measuring Inductance Range	N/A
Origin	Mainland China
Brand Name	BSIDE
Dimensions	147854.2mm
DC Current	N/A
AC Current	N/A
DC Voltage	0V ~ 620V
Display Type	Digital Display
AC Voltage	0V ~ 620V
BSIDE Model	S11
Display	9999 counts
Screen	3.5 inch / 3.2 inch
EMF detection	Yes.(S20)
DC/AC Voltage	Yes.
Capacitance	Yes.
Resistance	Yes.
Frequency	Yes.
Duty Cycle	Yes.
Diode	Yes.
V-Alert(non-contact voltage detection)	Yes.
Live Check	Yes.
Continuity	Yes.
S10 Power	1.5V (AAA) x 2.(Not included)
A10 Power	Built-in 750mA Lithium Battery.
S11/S20 Power	Built-in 800mA Lithium Battery.
Color	A10-Lithium Battery, S10-1.5V AAA Battery, S11-Lithium Battery, S20 EMF Multimeter
