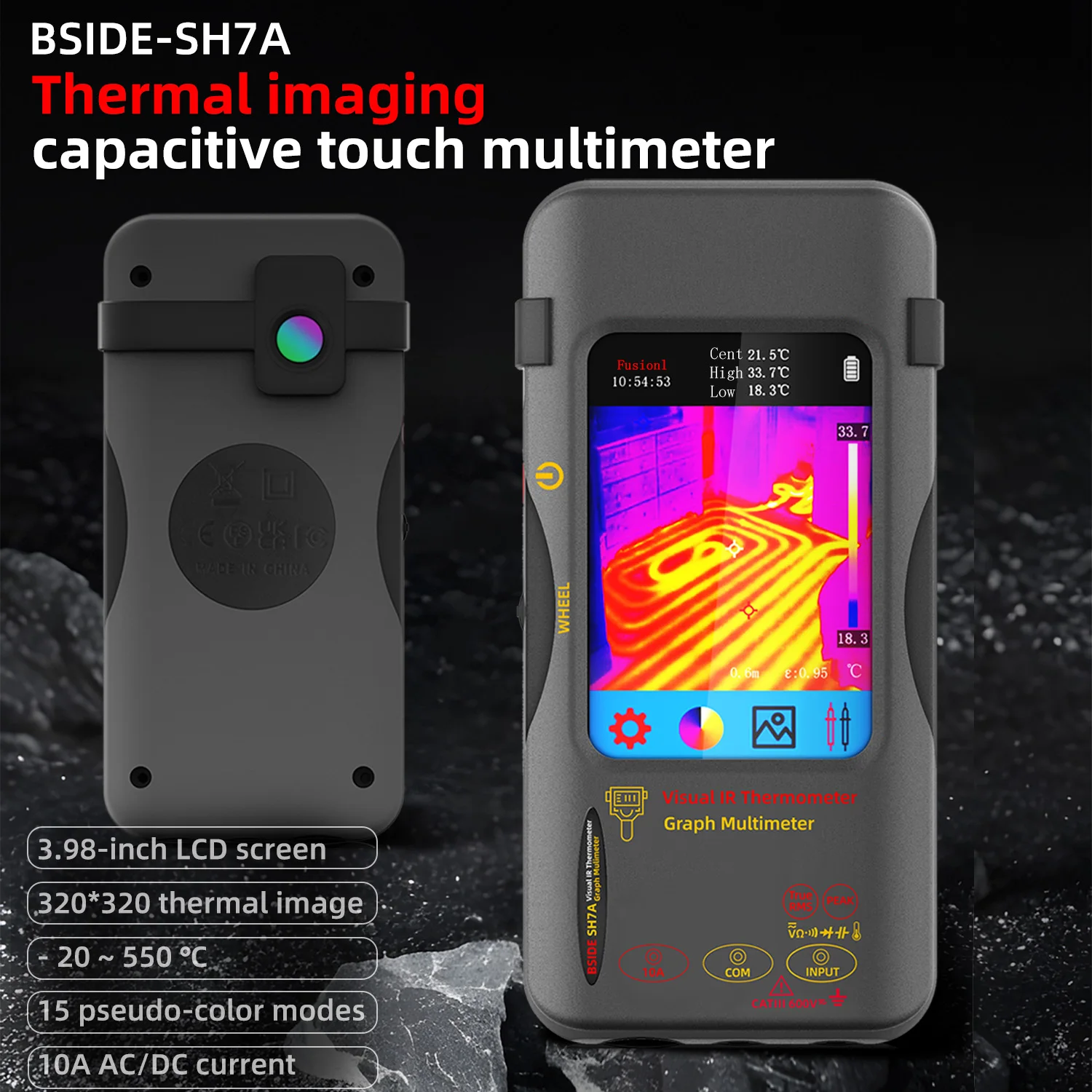

BSIDE SH7A Thermal Imager Multimeter 320*320 resolution 3.98 inch touchable 15 color palettes circuit board repair
Description
- High-concerned chemical: None
- Model Number: BSIDE SH7A
- Brand Name: BSIDE
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE,EAC,FCC,RoHS,UL

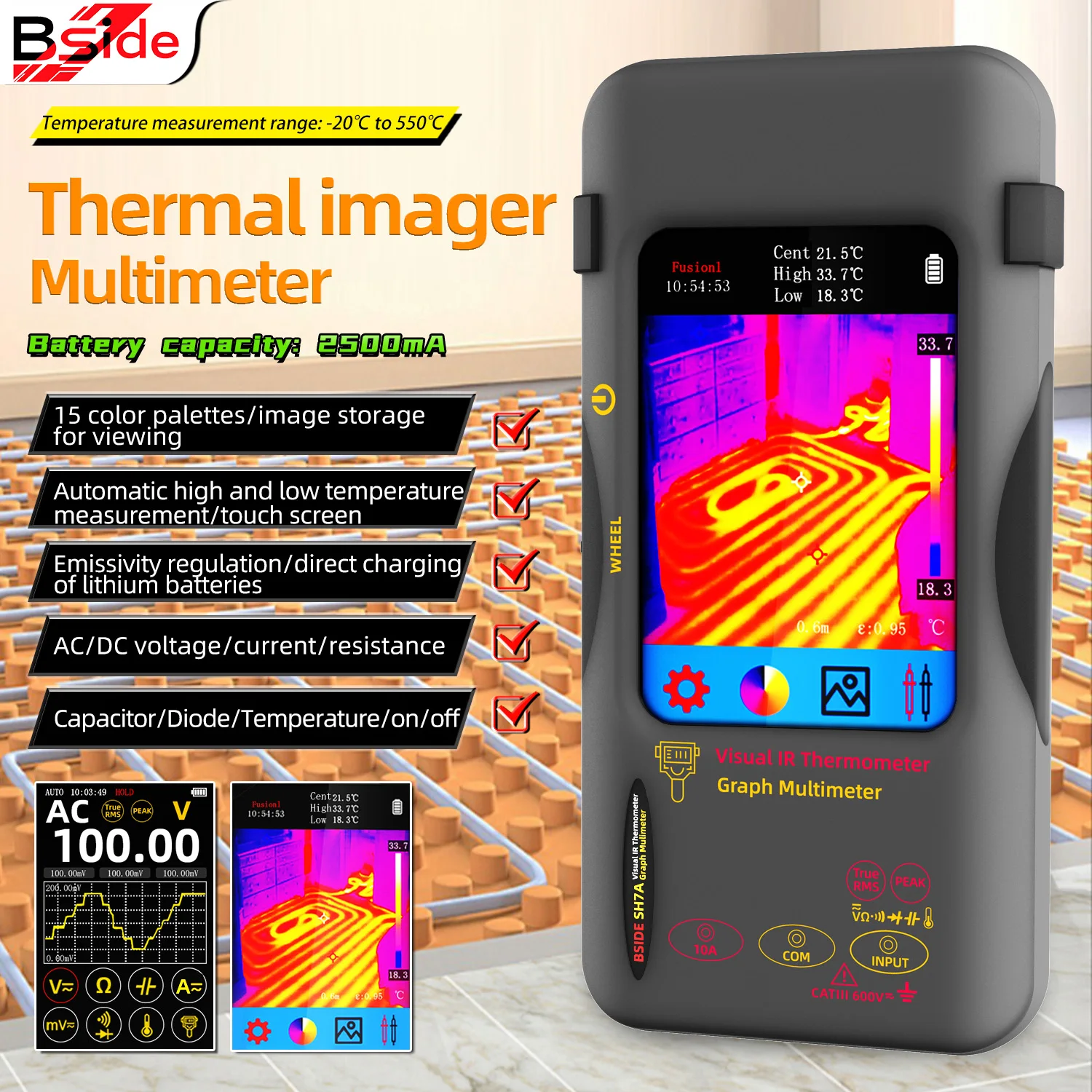

BSIDE NEW SH7A Thermal Imager Digital Multimeter 320*320 resolution 3.98 inch touchable 15 color palettes circuit board repair
Features & Benefits
Efficient diagnosis: Visualize hot spots to reduce troubleshooting time
Safety protection: non-contact temperature measurement, avoid contact with high-temperature parts
2-in-1 design: Save the cost and space of carrying multiple devices
Thermal imaging performance indicators
Sensor type：Vanadium oxide(VOx) microcalorimeter
Response Band：8~14um

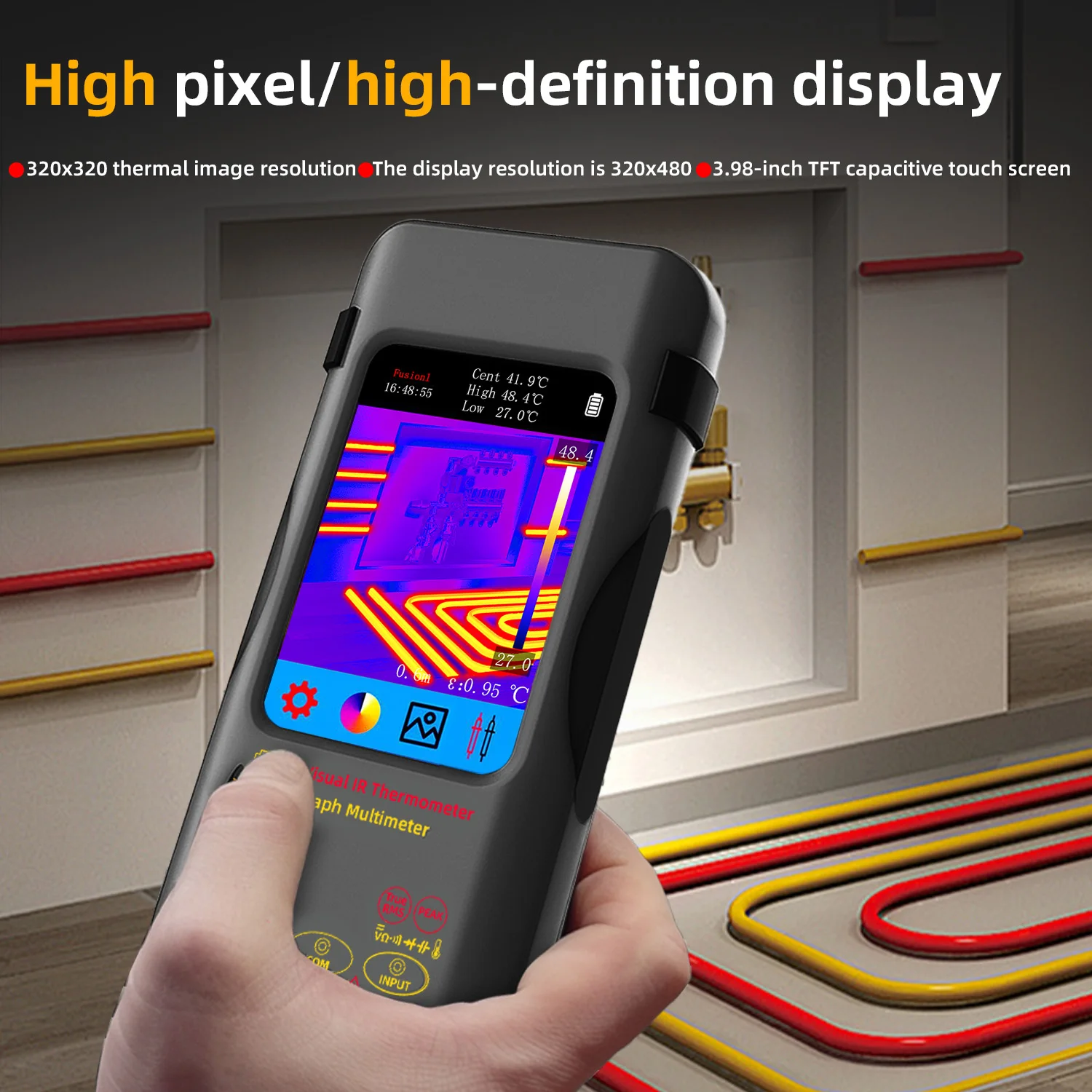

Thermal image resolution：320×320 Pixels
Angle of view(FOV)：50.0°(H)x50°(V)/72.1°(D)
Spatial resolution (IFOV)：8.89 mrad
Frame rate：25Hz
Swatches：White Hot, Black hot, Fusion 1.Rainbow,Fusion 2.lron Red 1, lron Red 2, Bark brownColor 1, Color 2, lce fire, Rain, Green hot,Red Hot, Dark blue.
Display screen：3.98 inches TFT Capacitive touch screen
Display resolution：320×480
Hardware interface：Type-C USB
Battery type：Rechargeable lithium battery
(3.7V/2500mAh)

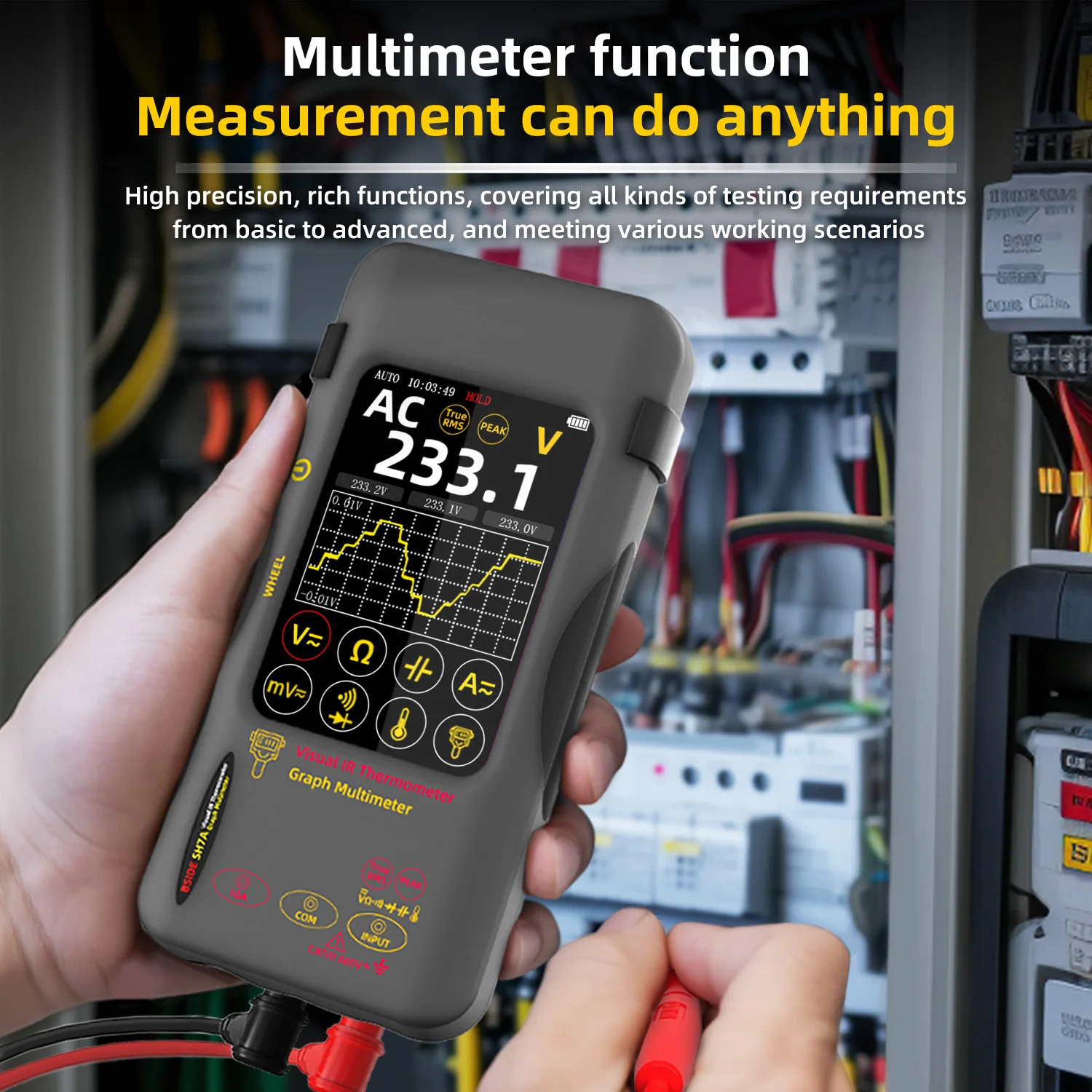

Multimeter Technical index
Maximum display: 20000 counts
Screen size: 3.98 inches.
DC Voltage:
20mV Resolution：0.001mV ± (0.1% +3);
200mV Resolution：0.01mV ± (0.1% +3);
2V Resolution：0.0001mV ± (0.05% +3);
20V Resolution：0.001mV ± (0.05% +3);
200V Resolution：0.01V ± (0.5% +3);
1000V Resolution：0.1V ± (0.5% +3);
AC Voltage:
20mV Resolution：0.001mV ± (0.5% +3);
200mV Resolution：0.01mV ± (0.5% +3);
2V Resolution：0.0001mV ± (0.5% +3);
20V Resolution：0.001mV ± (0.5% +3);
200V Resolution：0.01V ± (0.5% +3);
750V Resolution：0.1V ± (0.5% +3);
DC/AC Current:
2A Resolution：0.0001A ±(0.8% +3)
10A Resolution：0.001A ±(0.8% +3)
Resistance: 200Ω 0.01Ω ± (0.5% 3) – 2000MΩ 0.01MΩ ± (1.5% 5)
Capacitance: 999.9nF 0.01 nF ± (5% 20); 99.99mF 0.001mF ±（5.0% 10）
Temperature: -20-1300°C 1°C ± (2% 5)
Diode: Yes
Continuity: Yes
Power supply: Rechargeable lithium battery (3.7V/2500mAh)
Size: 169*81*26.8mm
Weight: 270.7g
Package includes:
1 x Thermal Imaging Camera Multimeter
1 x cloth bag
1 x Macro lens (Choose)
1 x multimeter pen
1 x charging cable
1 x 12 months warranty card
1 x Type K thermocouple
1 x Instruction Manual
1 x box
Additional information
| Color | SH7A-Choose, SHT7A-Standard |
|---|---|
| High-concerned chemical | None |
| Model Number | BSIDE SH7A |
| Brand Name | BSIDE |
| Origin | Mainland China |
| Smart home platform | Other |
| Certification | CE,EAC,FCC,RoHS,UL |
