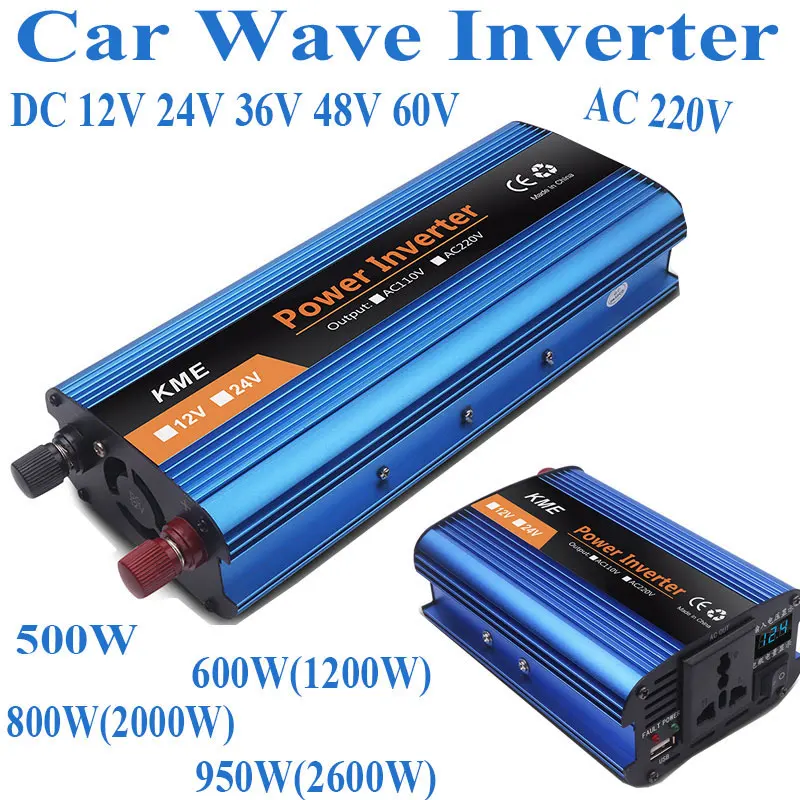

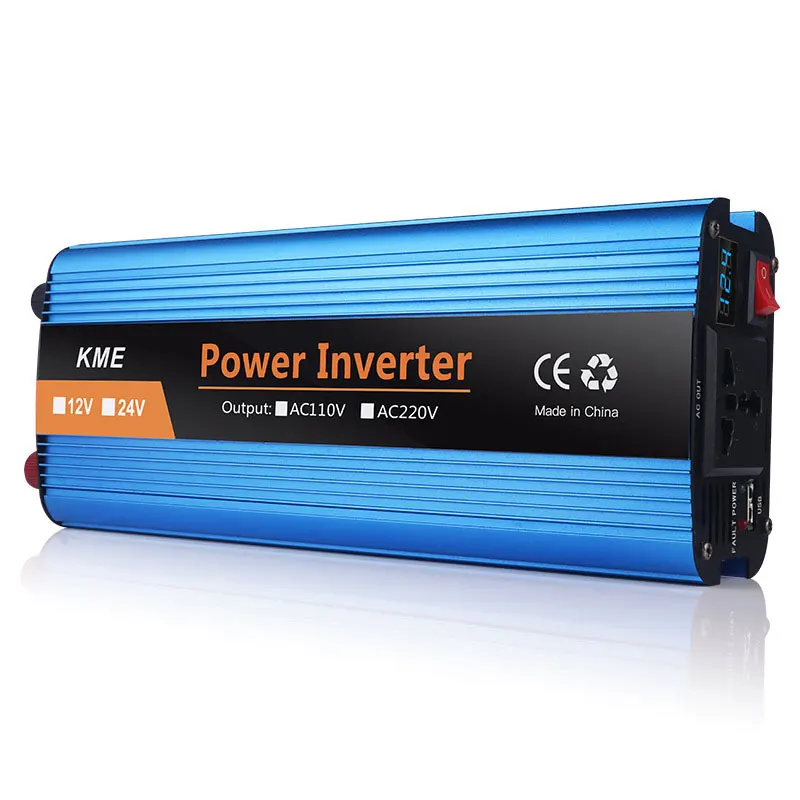

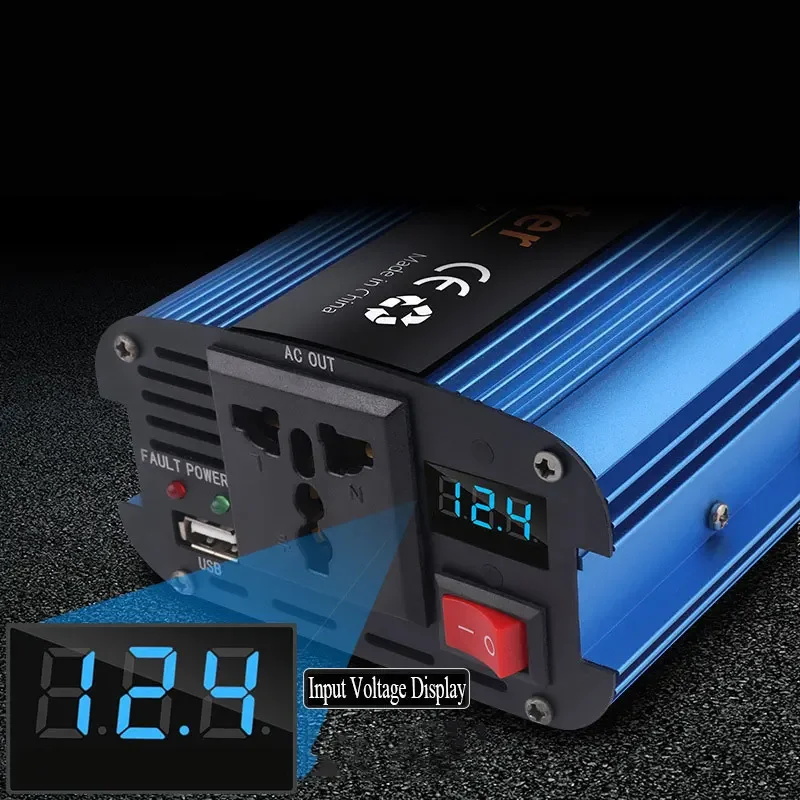

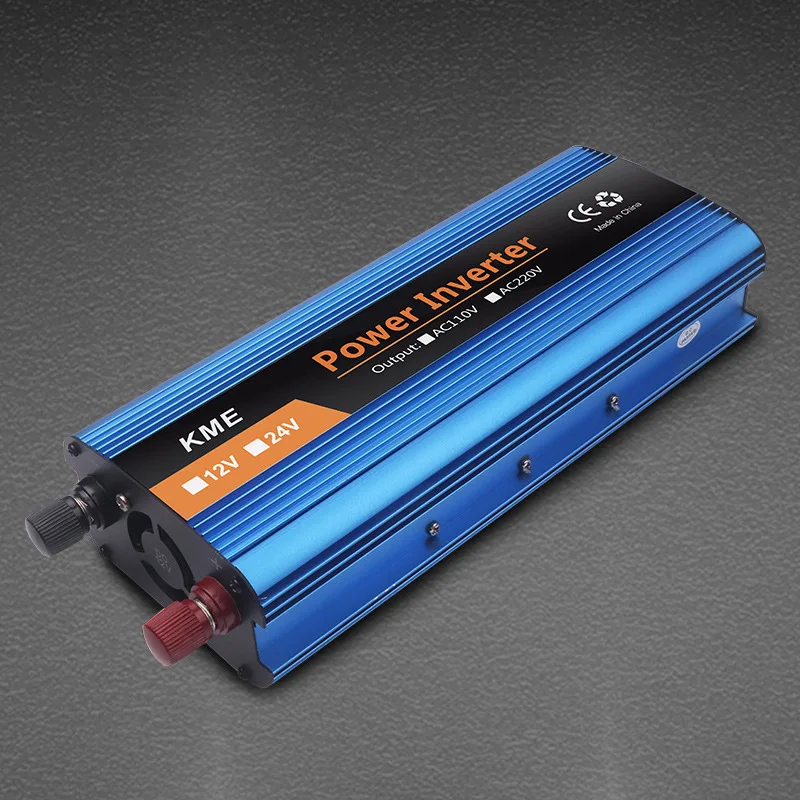

Car Wave Inverter DC 12 V Volt 24V 36V 48V 60V To AC 220V 500W 1200W 2000W 2600W Power Bank Converter Solar Correction Wave

Specifications:
Type: Inverter
Input voltage: DC 12V / 24V / 60V / 48V / 60V
Output voltage: AC 220V
Output frequency: 50Hz/60Hz

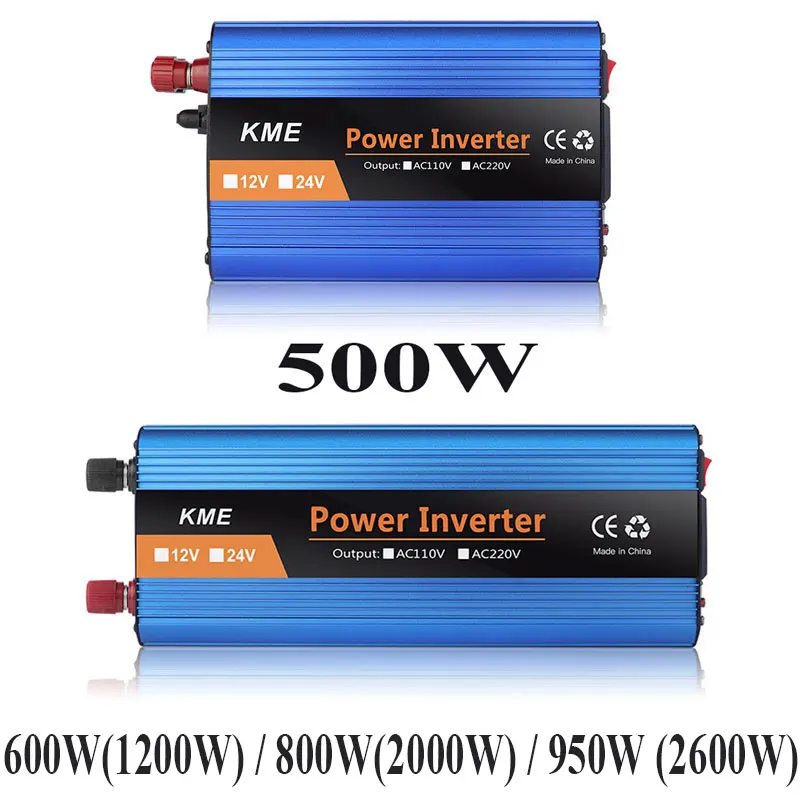

Peak power: 500W / 1200W /  2000W / 2600W
Continuous power: 350W /  600W /  800W /  950W
Output voltage :220V

Output voltage range : 220V±10%

Frequency 50Hz: (220V output is 50Hz)

Inverter efficiency :90%

Circuit topology Push-type

No-load current :≤0.7A

Low-voltage protection : Minimum protection voltage 9.5V

High-voltage protection : Maximum protection voltage 15.5V

Overload protection: Yes

Output short circuit protection: Yes

Output voltage regulator: Yes

USB port: 3.6A*1

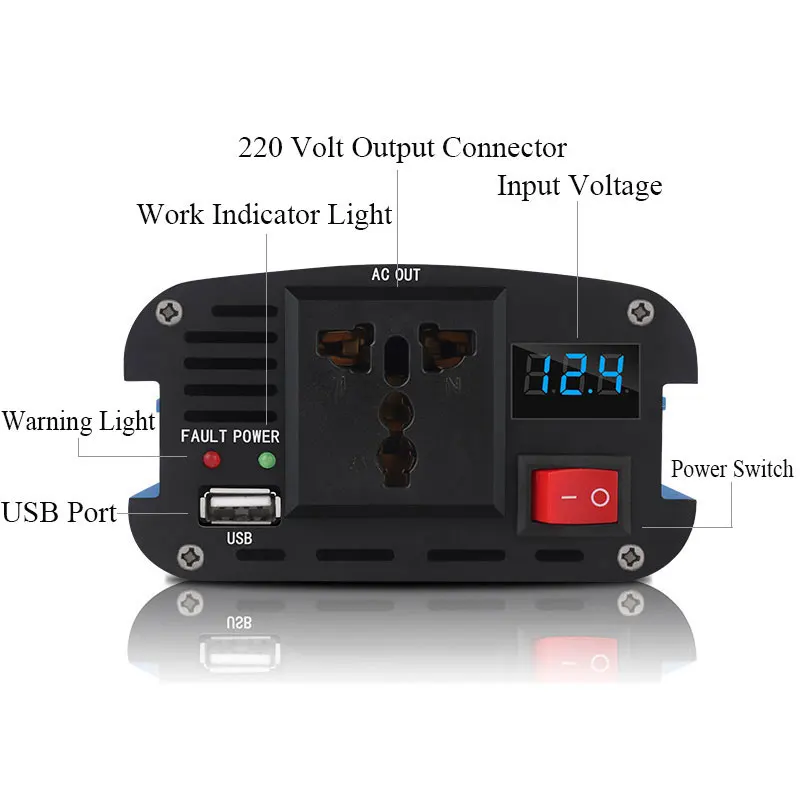

220V Output Connector

Case colour blue

Accessories Battery clip + cigarette lighter

Note:

12V’s inverter only can link 12V’s battery (Normal operating range is from 9V to 14.5V)

24V’s inverter only can link 24V’s battery (Normal operating range is from 20V to 28V)

36V’s inverter only can link 36V’s battery (Normal operating range is from 30V to 40V)
48V’s inverter only can link 48V’s battery (Normal operating range is from 40V to 55V)
60V’s inverter only can link 60V’s battery (Normal operating range is from 50V to 70V)
Note: lithium battery capacity of low voltage, easy to cause high voltage protection, will lead to the inverter has a display but no output voltage, no way to use high-power appliances, it is recommended that the inverter with lead-acid batteries, water batteries will be relatively stable voltage, before you buy!
