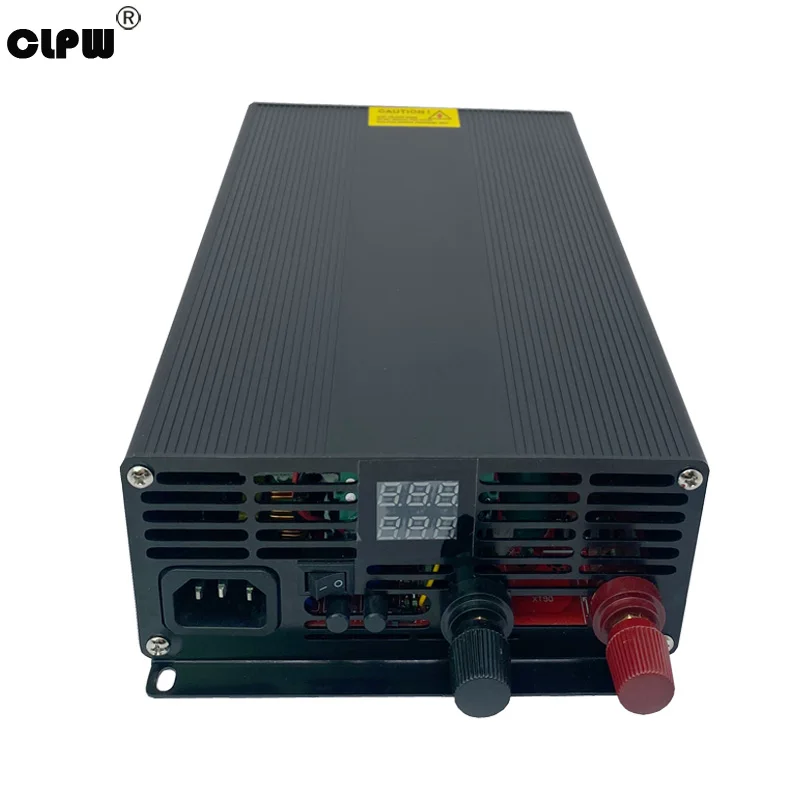

CLPW AC To DC Regulate 2000W 24V 28V 36V 48V 60V 72V 80V 90V 100v LED Display Battery Charger Adjustable Switching Power Supply
Description
- Type: Power Supply
- Rated Capacity: ＞1000VA
- High-concerned chemical: None
- is_customized: Yes
- Output Current: 0-83A
- Model Number: DL-2000W
- Output Frequency: 50-60KHZ
- Brand Name: CLPW
- Output Type: SINGLE
- Origin: Mainland China
- Certification: CE,RoHS
- Voltage: Adjustable
- Current: Adjustable
Kindly reminder: If you use the power supply for charging battery, it’s highly recommended to load 80% power maximum to avoid big current surge damage the power supply, it’s suggested to communicate with seller to limit the current within a range by following your parameter of battery.
If you have high expectations for current display accuracy, DO NOT order since the LED board of ours is not high precision, there may have little difference, the purpose is only for users to have a rough reference, don’t compare it with some high precision device which must need extremely high price to have it.
、
One Picture To Show How To Connect ?
More functions when you use the power supply for charging battery purpose;
1, When the toggle switch is turned to the left, it goes to charging protection mode, under this mode, the power supply can identify positive and negative automatically, when the positive and negative terminals of the battery are connected correctly, the system automatically connects the battery for charging, and at the same time, the output indicator light turns on green. On the contrary, when the positive and negative terminals of the battery are reversed, the reverse connection indicator light will turn on in red, and the system will be in protection mode without output. When you replace one battery with another after charging it, the protection system needs to power off and reset. If the green indicator light goes out and the system reset is successful, then connect another battery.
2, When the toggle switch is turned to the right, it is directly output in power mode without reverse charging function. If there is a human error or if the battery is reversed while charging in power mode, the system still has level 2 protection. The reverse protection diode and DC fuse will enter the protection and cut off the power output. After level 2 protection, the corresponding protective components need to be replaced to restore operation.
3,In charging mode, the power supply has three indicator lights. Blue indicates normal internal output, displays the output voltage of the power supply, green indicates normal charging output, and red indicates reversed battery connection,In power mode, both blue and green lights are illuminated at the same time.
Product Overview
Place of Origin: GuangDong, China
Brand Name: CLPW
Model Type: DL-2000W
Output Power: 2000W
Output Type: Single
Input Voltage: 110V/220V
Output Voltage: 24V/28V/30V/36V/45V/48V/55V/60V/70V/80V/90V/100V/110V/120V
Shell of Material: Metal Case/Aluminum Base
Feature: With digital display
Conversion Efficiency: ≥90%
Cooling Type: Fan Cooling (with a little noise)
Application: Battery charging(lead-acid cell/Lithium Battery), LED strip light, CNC, CCTV, Moter Drive, Stepper motor, DC Motor, DC Pump, Machinery, Industry Control,Electric window opener, UAV, Touring car, Audio amplifier, DHLS(Window Opener), Communication shielding equipment, etc.
Packing: Standard export packing/According to buyers requirement
Packing Include: 1pc Power Supply (Plug and power cord is excluded)
Certificate: ROHS, CE Protection: Over-temperature, Over-current, Short-circuit, Over Voltage
Waranty: 3 years
Delivery Time: 1-5 days for sample, 7-15 days for more than 500pcs.
For Buyers Know
* We are direct professional manufacturer, especially for high power items, price and quality are definitely guranteed.
* Before opening Ali-Express store, we have several years experience of running domestic Alibaba with honesty and integrity.
* All items have goods in stock, if your order quantity is large, pls send email to confirm the discount price and leadtime.
* Not all items are listed in the store, pls send email to us to check if you need any special voltage, it’s OK to make accordingly to your request.
* All of our circuit board have dip three proofing insulation paint on the back, quality is good.
* The power supply is heavy, we will pack in good condition to avoid damage during transit, but if it happens, pls contact with us upon receipt,we will provide waranty
* It’s suggested to test upon receipt, if there is quality issue for the product, pls contact us and send the product picture or video for checking, we will help to solve it quickly
* If you have any complain for our quality or service, pls send your comment to us by email,we will reply within 24 hours, don’t leave negative comment before communication with seller.
* Both OEM and ODM are accepted, also we are looking for distributors and agents all over the world, sincerely welcome your inquire if you have interested in.
Special Tips For You
* It’s indoor power supply, don’t use in the open air or in the high temperature condition
* Pls make sure no object within 50mm around the cooling fan for ventilation purpose.
* Pls caculate the load power accurately, don’t run overload for long-term, it’s suggested to use within 80% of rated power, for example, if the label of power is 1200W, use power should be 1200W*80%=960W
* Don’t keep the output voltage short circuit, it’s suggested to power off for a minute if it happens
* Pls make sure the power line is correct connected,it’s prohibited to connect backwards before Power on.
Feedback
1, If you are satisfied with our product, pls DO leave postive 5 stars feedback, it’s much appreciated for your cooperation.
2, If you have any comments or suggestions, pls send email, it’s sincerely expected.
Additional information
| Type | Power Supply |
|---|---|
| Rated Capacity | ＞1000VA |
| High-concerned chemical | None |
| is_customized | Yes |
| Output Current | 0-83A |
| Model Number | DL-2000W |
| Output Frequency | 50-60KHZ |
| Brand Name | CLPW |
| Output Type | SINGLE |
| Origin | Mainland China |
| Certification | CE,RoHS |
| Voltage | Adjustable |
| Current | Adjustable |
| Output Voltage | 100V, 110V, 120V, 24V, 28V, 29.2V, 36V, 48V, 60V, 72V, 80V, 90V |
| Power (W) | 2000W |
| Input Voltage | 220 V |
