Description
- High-concerned chemical: None

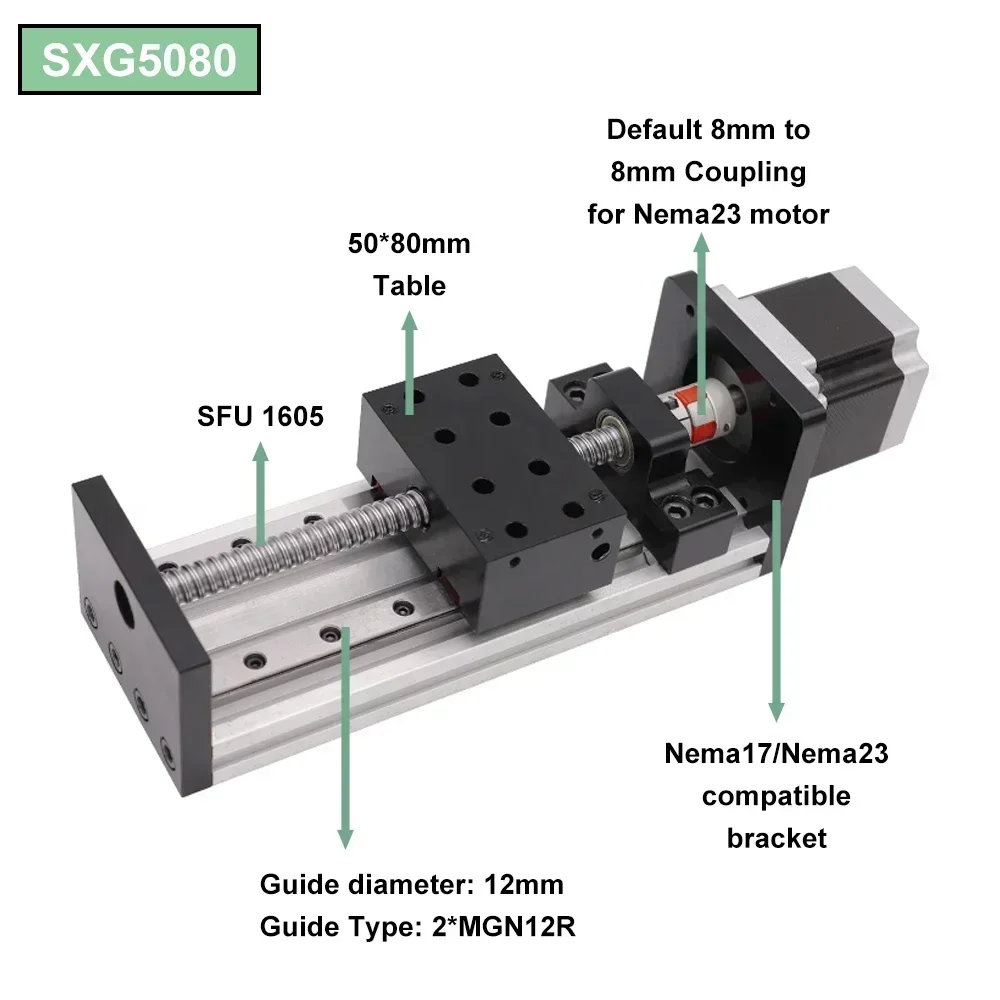

- Model Number: SXG5080
- Guide Width or Diameter: 12mm
- Origin: Mainland China
- Certification: CE

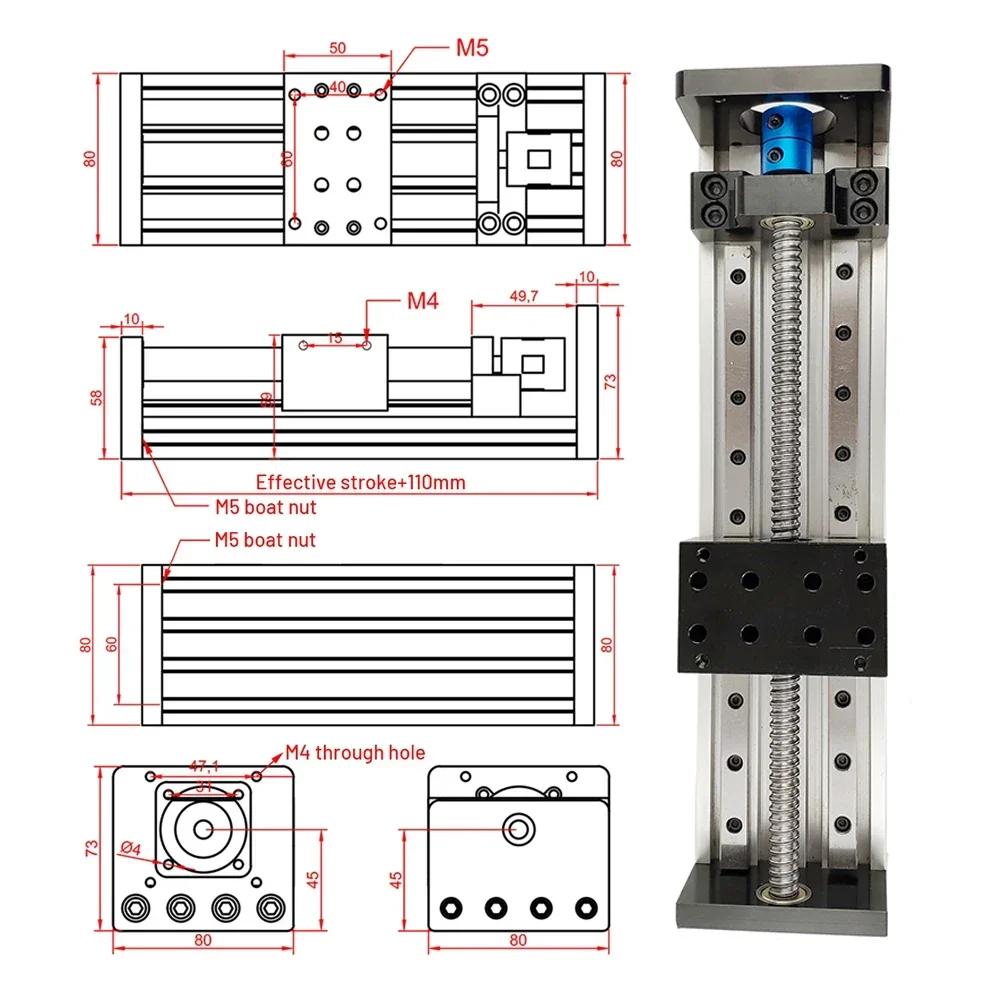

- Effective Stroke: 100mm-300mm Optional
- Total length: Effective Stroke+110mm
- Ballscrew type: SFU1605
- Horizontal load: 60KG (Max)
- Vertical load: 30KG (Max)
- Module material: Industrial Aluminum Profile
- Module width: 80mm
- Repeat positioning accuracy: 0.02mm-0.03mm
- Ballscrew accuracy: C7
- product keyword 1: sliding table
- product keyword 2: sliding table linear rail stage
- product keyword 3: linear guide rail cnc motion stage
- product keyword 4: Ball Screw Module
- product keyword 5: CNC Motion Stage
- product keyword 6: Linear Guide Rail Table CNC Motion Stage
- product keyword 7: Linear Motor kit
- product keyword 8: Motorized Linear Table
- product keyword 9: z axis sliding table
- product keyword 10: ball screw linear rail with motor
- product keyword 11: z axis cnc kit
- product keyword 12: z axis nema 23
● Only Slide Table:
1* SFU1605 Double Rail Slide Table
1* 8mm to 8mm Coupling for 8mm shaft Nema 23 Stepper Motor
● 1.2/2/3Nm Motor kit:
1* SFU1605 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling
● 1.5/2.2/3Nm Encoder motor:
1* SFU1605 Double Rail Slide Table
1* Nema 23 57mm Closed Loop Stepper Motor
1* HB808C Drive
1* 8mm to 8mm Coupling
● 1.5/2/3.2Nm All in one kit:
1* SFU1605 Double Rail Slide Table

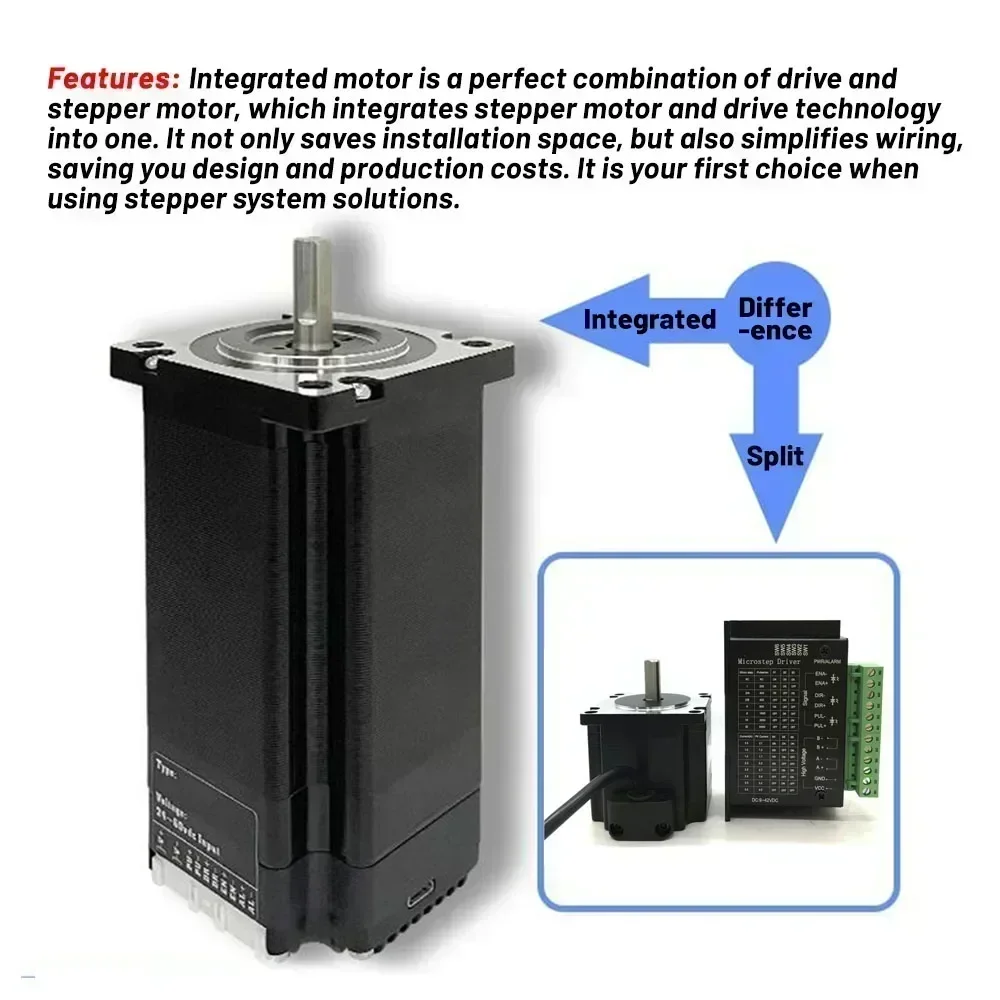

1* Integrated Nema 23 57mm Closed Loop Stepper Motor Drive
1* 8mm to 8mm Coupling

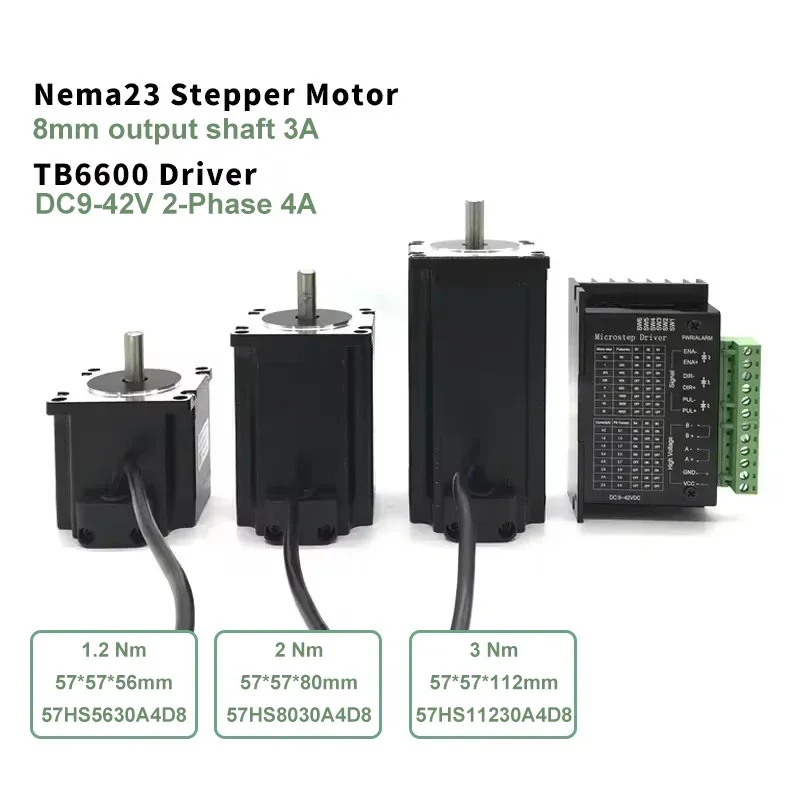

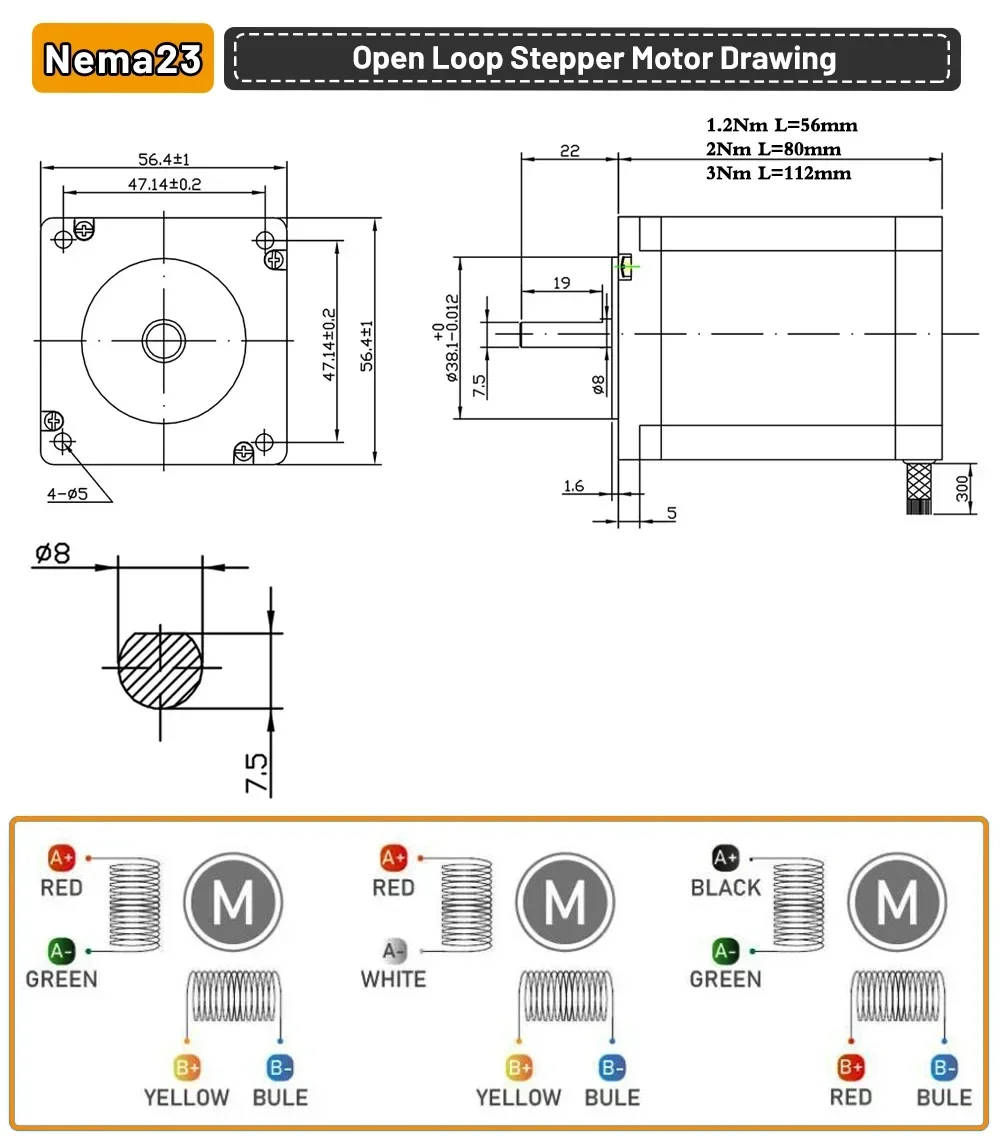

Nema23 57mm Flange Stepper Motor Technical Parameters | ||||||||
Model | Motor type | With/ without encoder | Holding torque | Body length | Current | Phase resistance | Moment of inertia | Output |
57HS5630A4 | open-loop stepper motor | without | 1.2 | 56 | 3 | 0.8 | 280 | 8 |
57HS8030A4 | 2 | 80 | 3 | 1.2 | 580 | |||
57HS11230A4 | 3 | 112 | 3 | 1.6 | 800 | |||

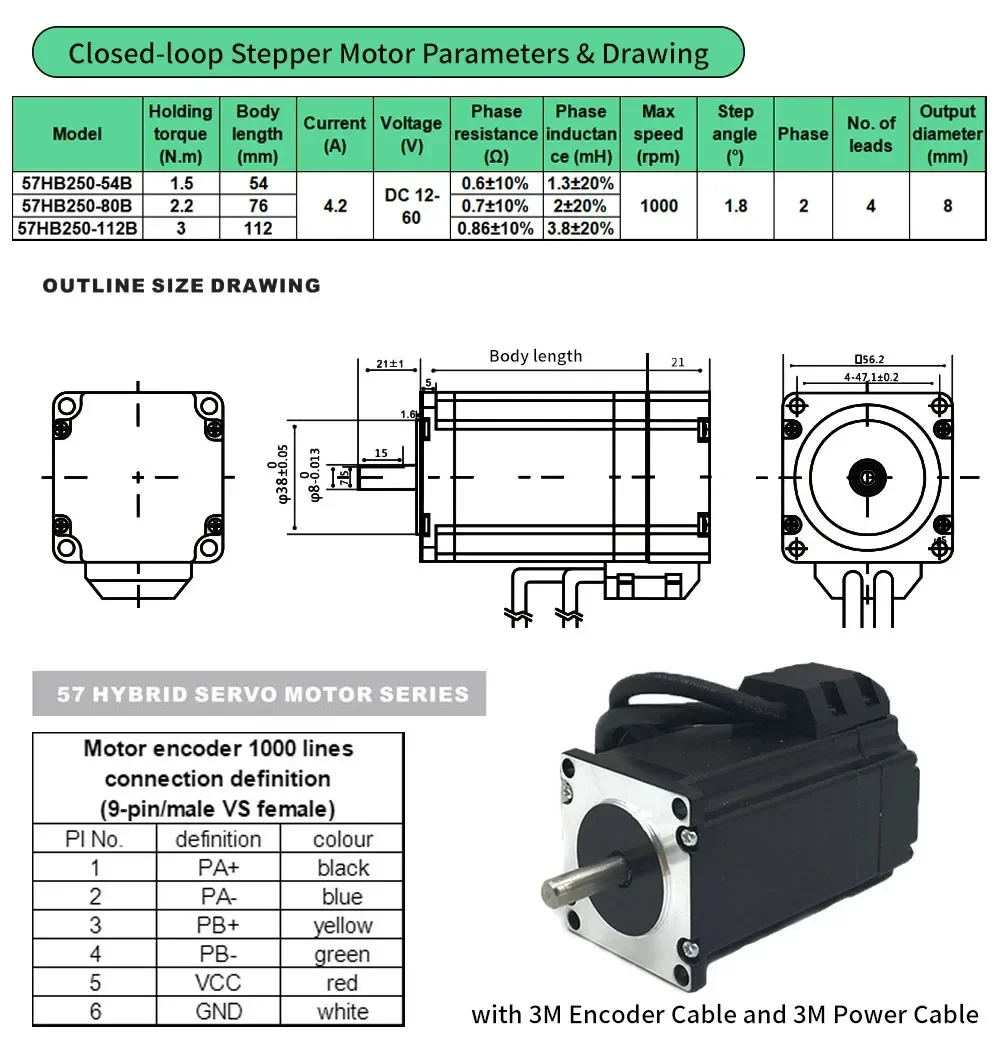

57HB250-54B | closed-loop stepper motor | without | 1.5 | 56 | 4.2 | 0.4 | 280 | |
57HB250-80B | 2.2 | 80 | 4.2 | 0.7 | 500 | |||
57HB250-110B | 3 | 112 | 4.2 | 0.8 | 800 | |||

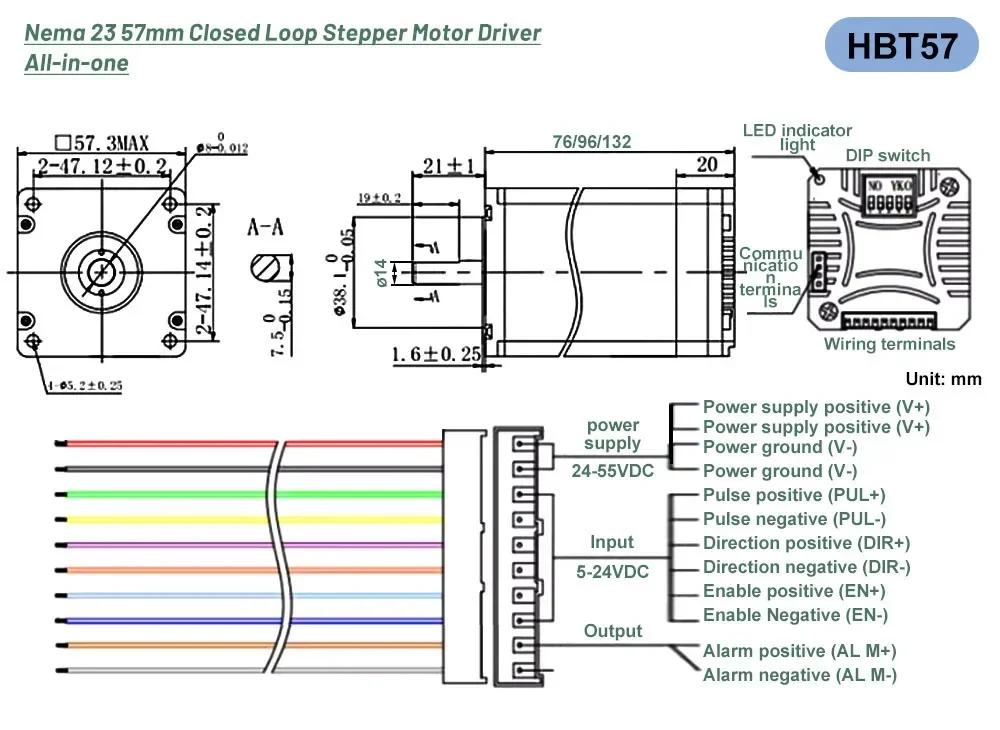

HBT5756C | integrated | with | 1.5 | 76 | 3 | 0.93 | 300 | |
HBT5776C | 2 | 96 | 3.5 | 0.4 | 450 | |||
HBT57112C | 3.2 | 132 | 4.5 | 0.78 | 760 | |||
●Model: TB6600
If you need a manual, please contact us
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃Closed-loop Stepper Motor Drive Technical Parameter:

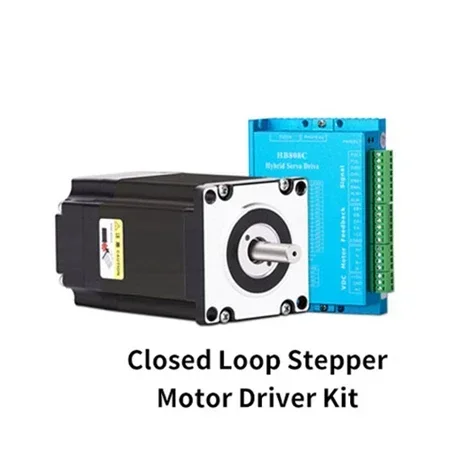

●Model: HB808C
●Type: DSP closed loop stepper motor drive
●Maximum peak current: 13A
●Impulse response frequency: 200KHz
●Micro-stepping driver: 200~25600ppr
●Input Voltage: 24-80VDC
●Protective function: Over voltage, over current, tracking error, over proof
●Signal input: Support PUL/DIR and CW/CCW modes (difference)
●Compatible: 4.5~28V signal (Don't need a resistor)
If you need a manual, please contact us
We provide debugging software. If you need it, please contact us
