Description
- High-concerned chemical: None
- Brand Name: YUN DUAN
- Model Number: T06
- Guide Width or Diameter: 12mm
- Origin: Mainland China
- Certification: CE
- Horizontal load: 5KG (Max)
- Vertical load: 2.5KG(Max)
- Screw Model: Trapezoidal screw (T6)
- Screw Pitch: 1mm/2mm/4mm/6mm/12mm
- Motor Size: NEMA11(28MM)
- Holding torque: 6.5Ncm/0.065N.m
- Mobile panel size: 30mm X 32mm
- Repeat positioning accuracy: 0.02mm-0.03
- Maximum speed: 80mm/s
- Rail width: 8MM
- Block: MGN8H
- Stroke: 50MM/100MM/150MM/200MM/250MM/300MM
- sliding table: 28mm stepper motor
- linear guide: linear actuator
- linear rail: linear stage
- linear guide rail: stepper linear guide
- Z-axis sliding table: Mini slide table
- Mini linear rail: Mini sliding table
- Mini linear guide: Mini linear Stage
- T-type Sliding Table: XYZ axis linear guides
- Guide rail: Guide motor
- linear motor: linear rail kit
- T-type Sliding Table Rail Linear: T-type Sliding Table
- Mini T-type Sliding Table: XYZ axis Sliding Table

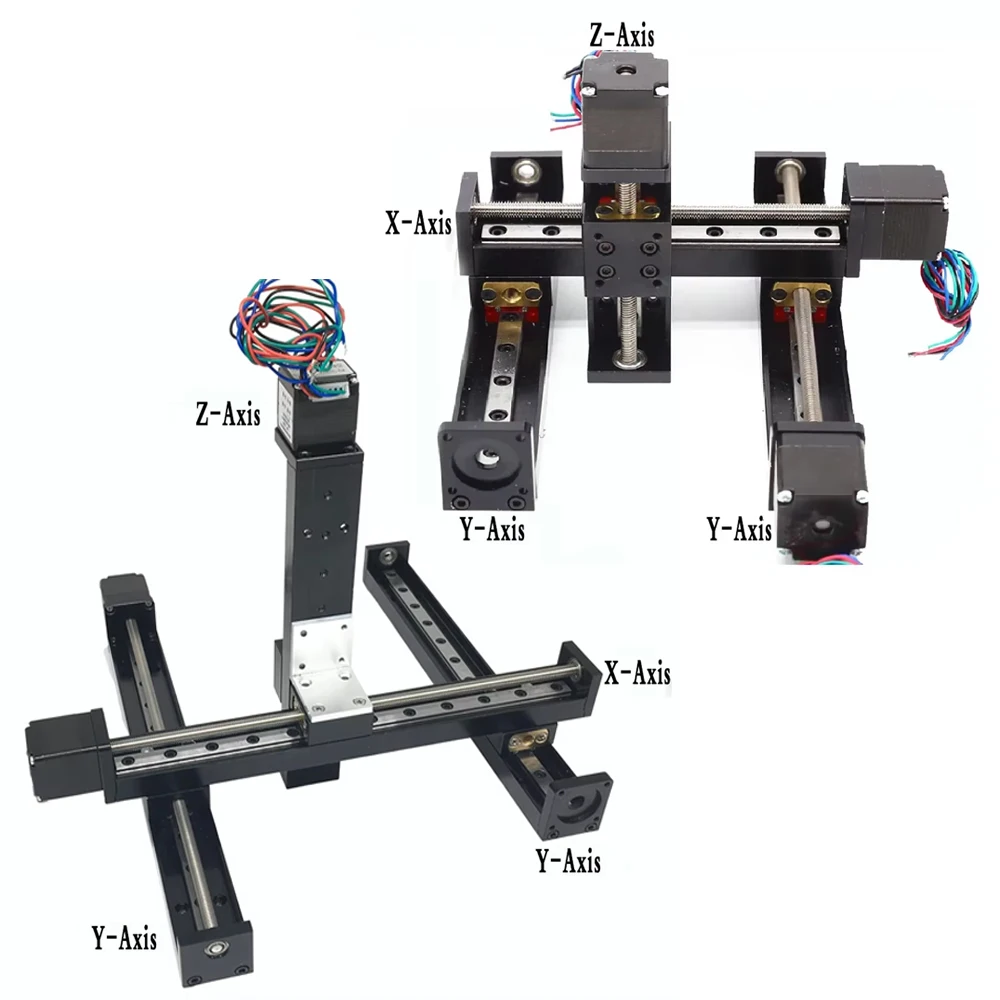

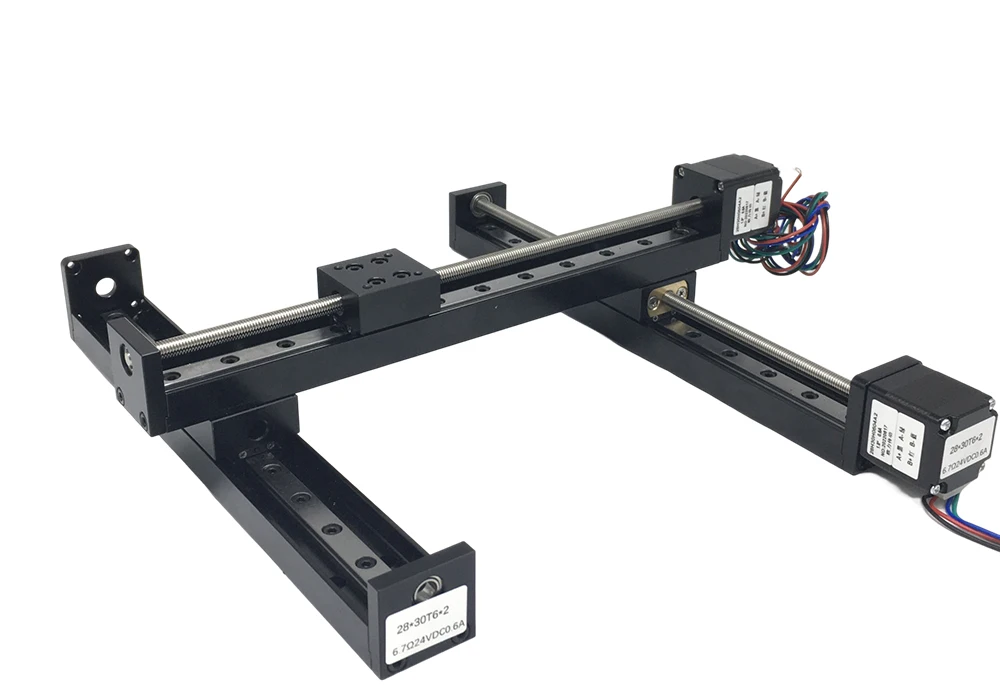

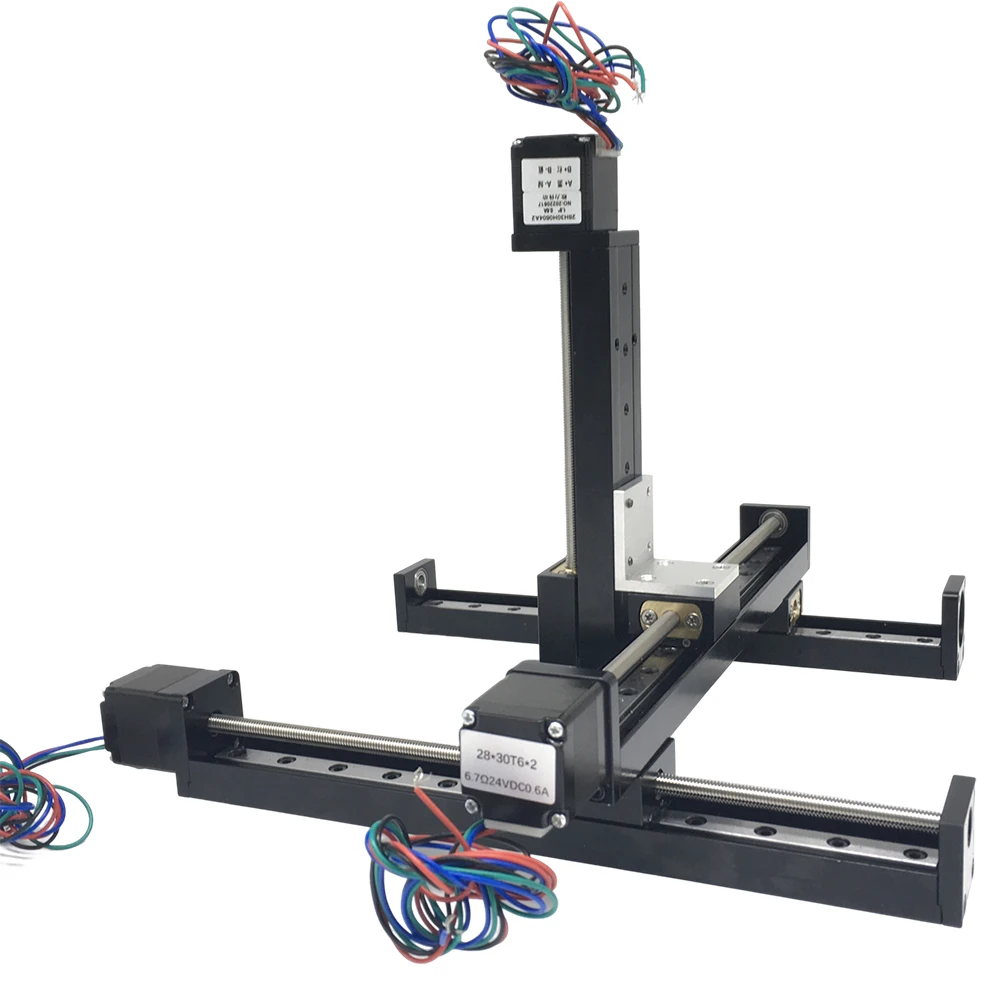

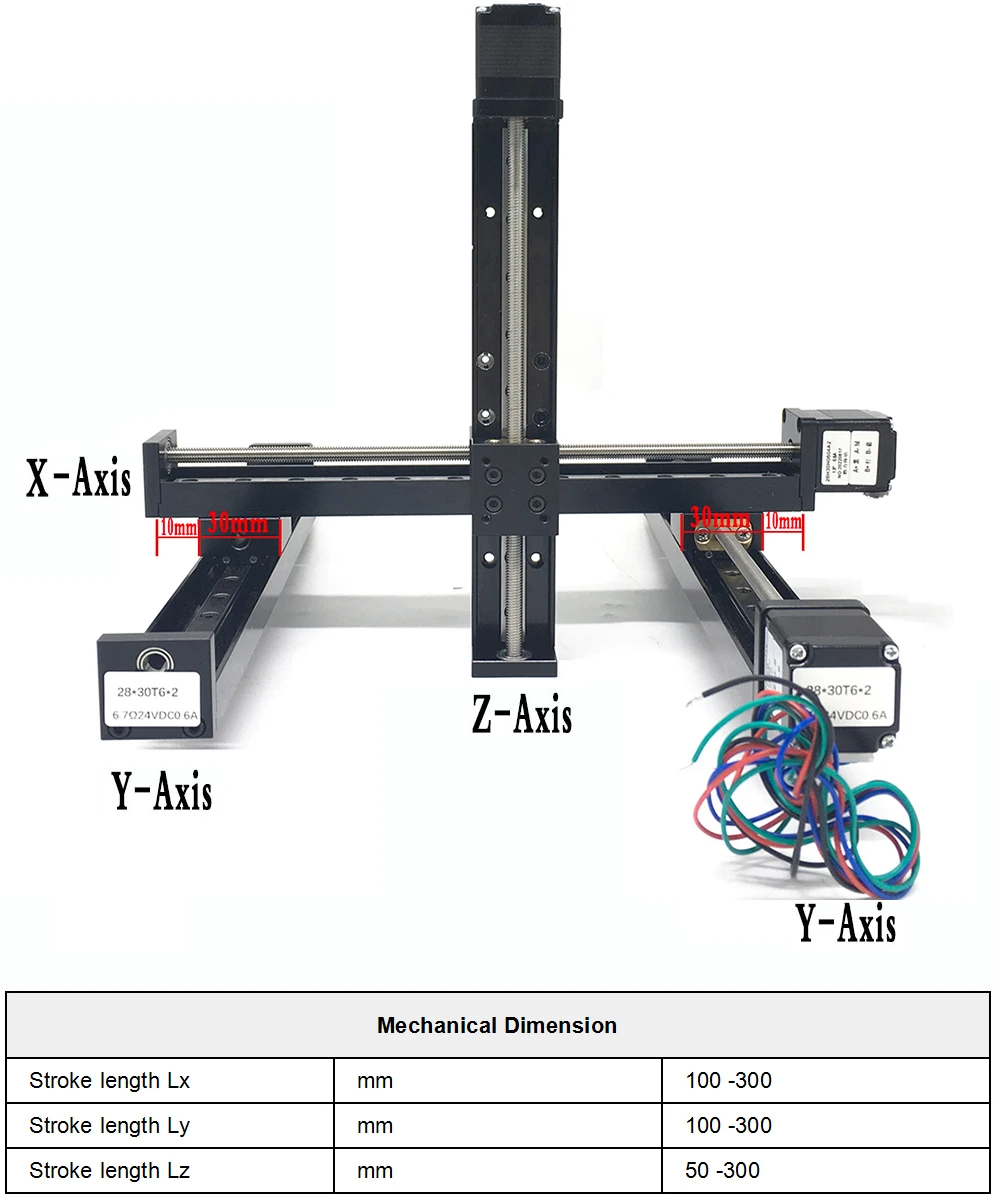

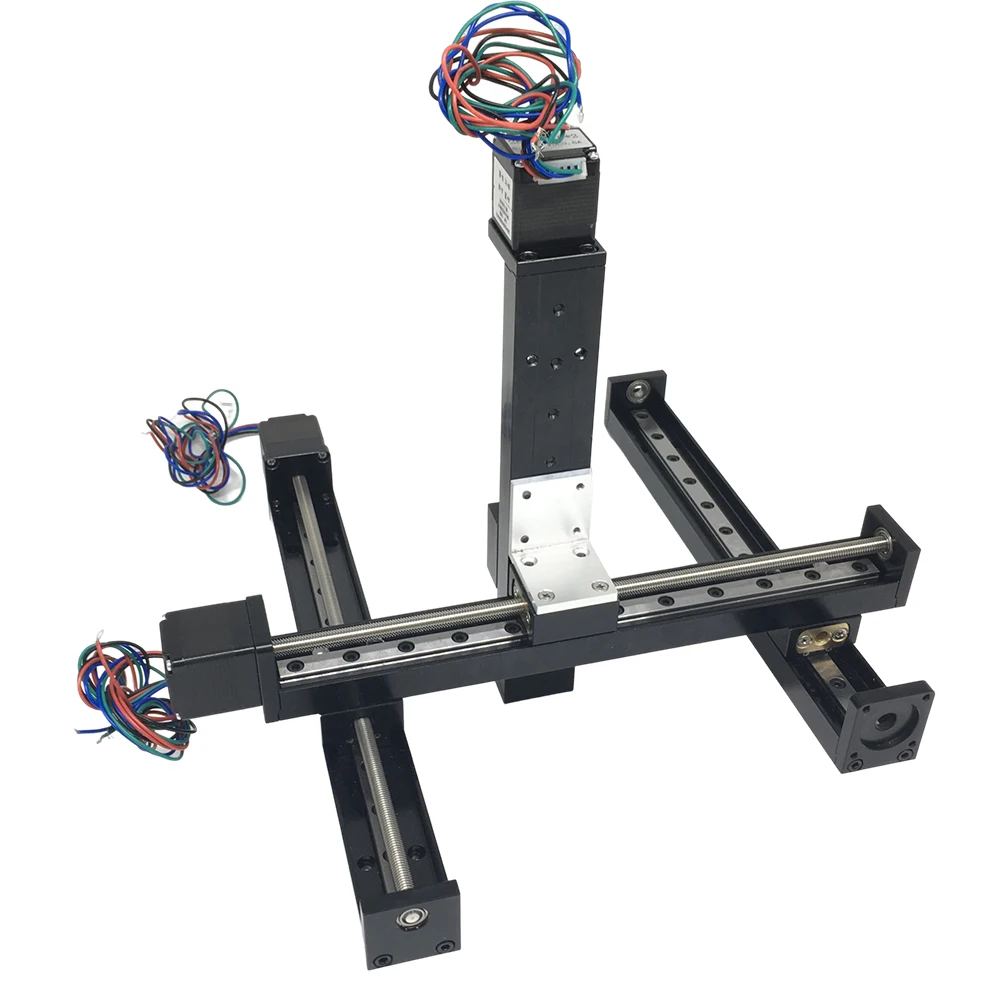

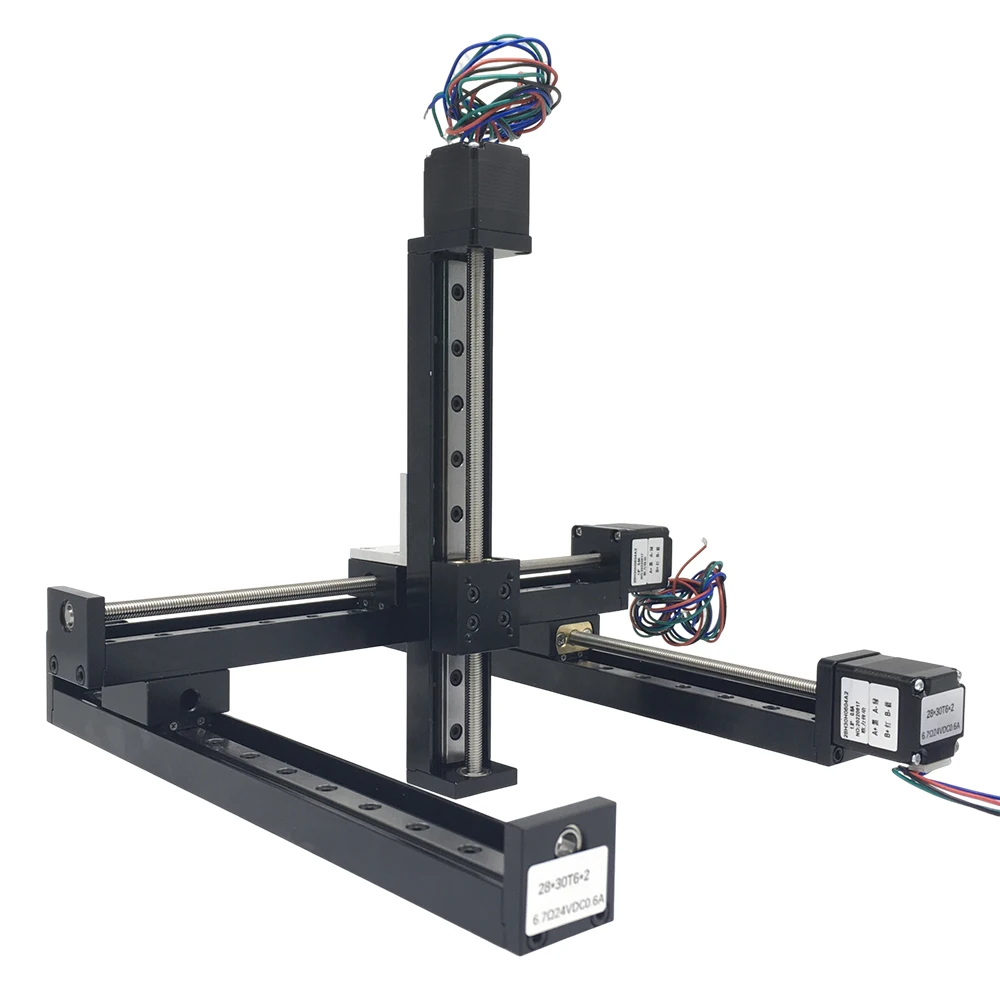

X-axis: 1PCS (150-300mm stroke) sliding table
Y-axis: 1PCS (150-300mm stroke) sliding table
1PCS (150-300mm stroke) guide rail
Z-axis: 1PCS (50-300mm stroke) sliding table
3PCS TB6600 Drive

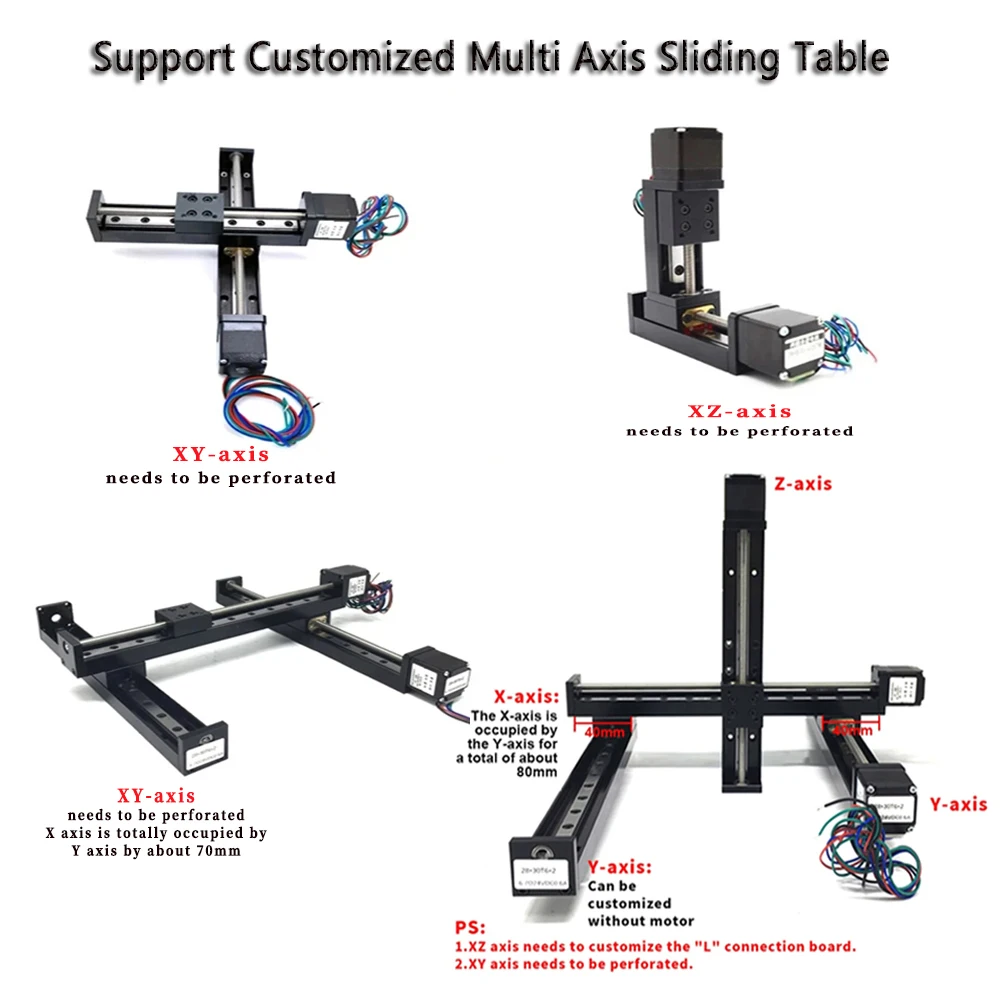

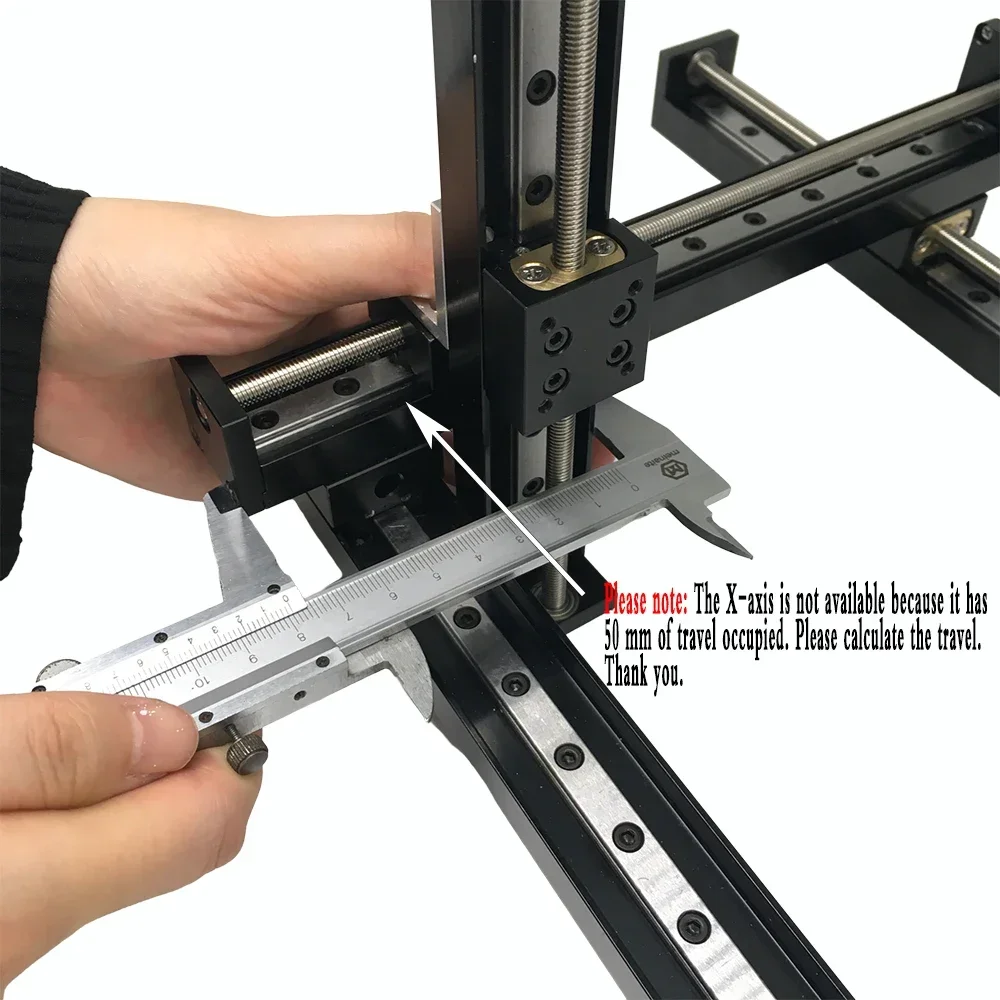

Please note that 80mm of the X-axis is occupied. For example,
if you choose 150mm of the X-axis, its actual stroke is 150-80mm=70mm

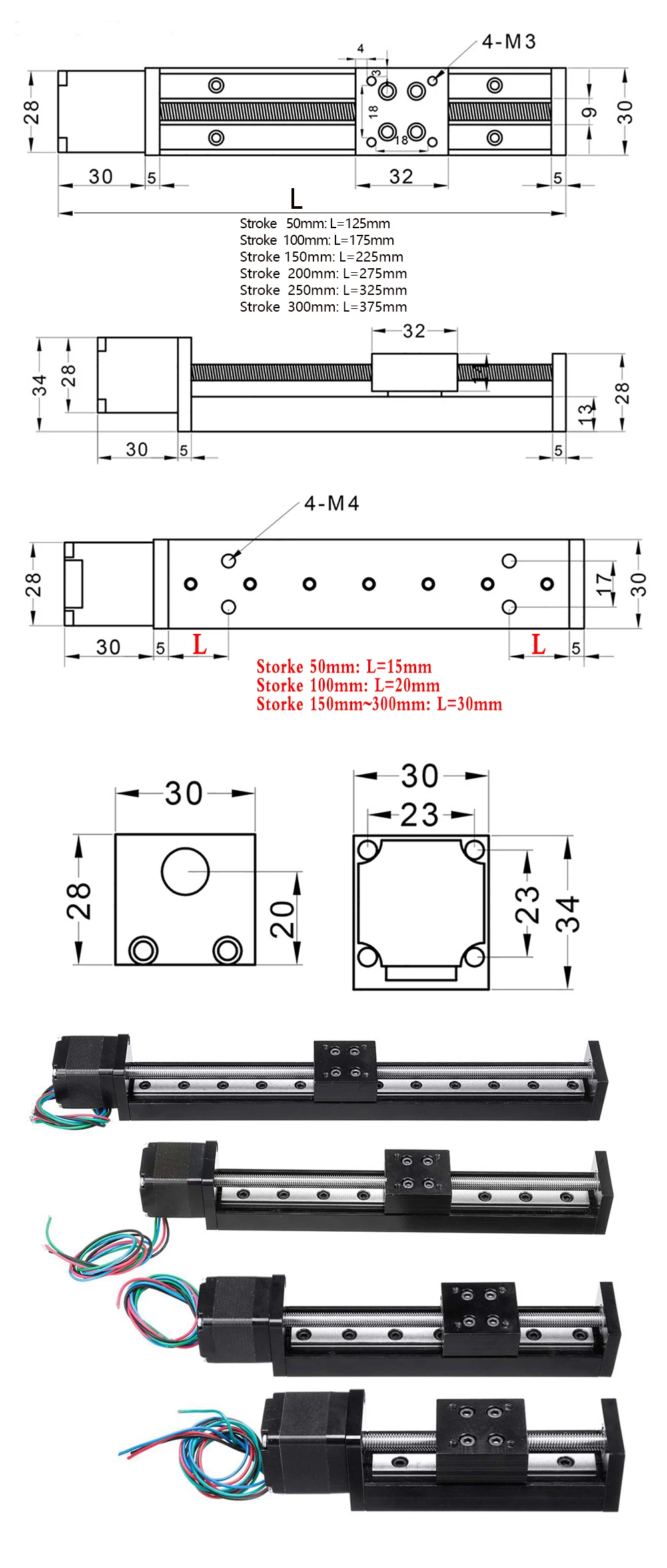

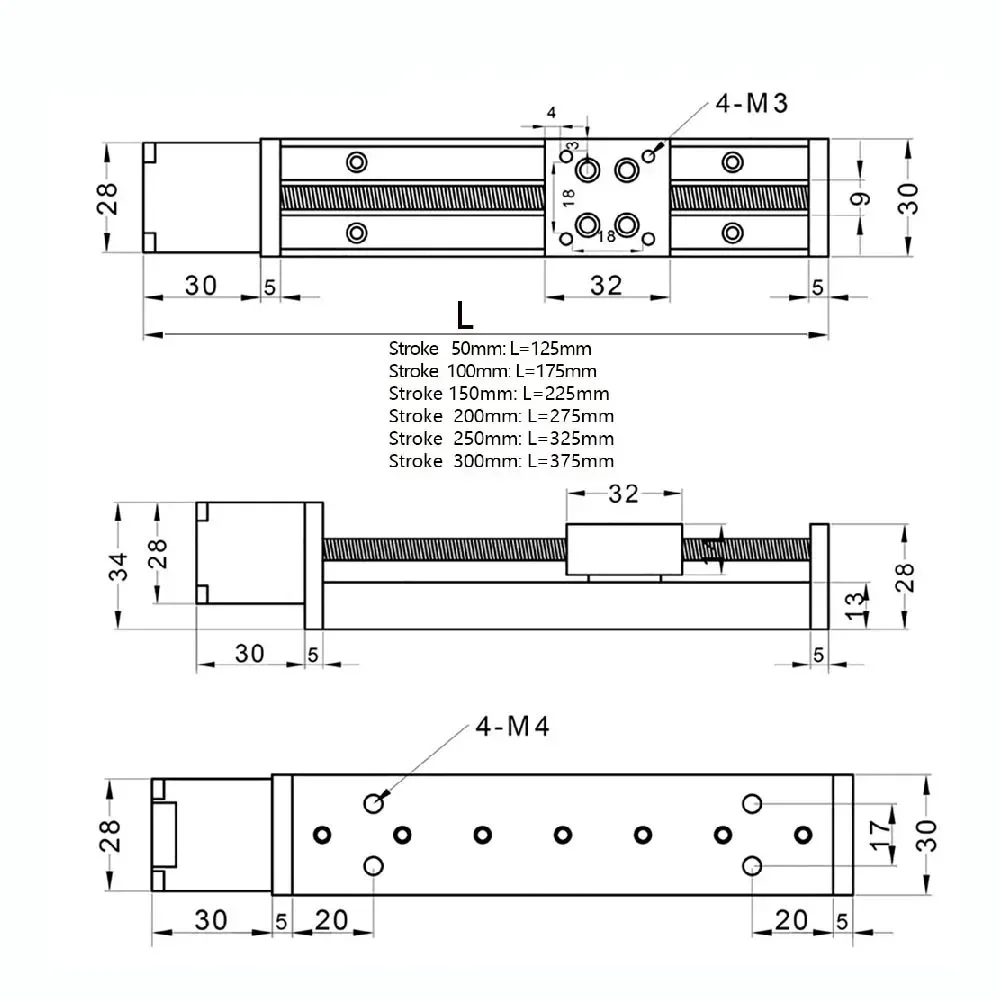

Sliding Table Specification :
Horizontal load: 5KG (Max)
Vertical load: 1KG(Max)
Mobile panel size: 30mm X 32mm
Effective stroke/ travel:50-300mm
Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Rail width:8MM
Block:MGN8H
Screw Precision:C7
Screw Model:T6*2/T6*4/T6*6/T6*12
(Diameter 6mm, lead pitch 1mm/2mm/4mm/6mm/12mm, Please select the lead you need)

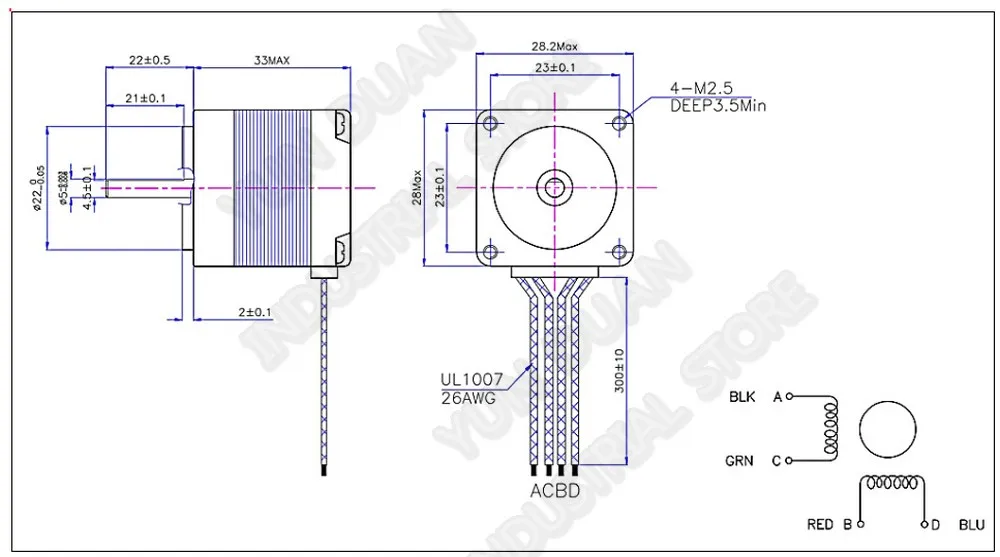

Stepper Motor Specifications :
Motor Size: NEMA11(28MM)
Shaft diameter: 5mm
Holding torque: 6.5Ncm/0.065N.m
Type: hybrid
Phase: 2
Current : 0.6A
Certification: CCC,CE, ISO
Step angle: 1.8degree
(If you need to replace the motor with a larger torque, please contact us before placing the order, we will give you the lowest price.)

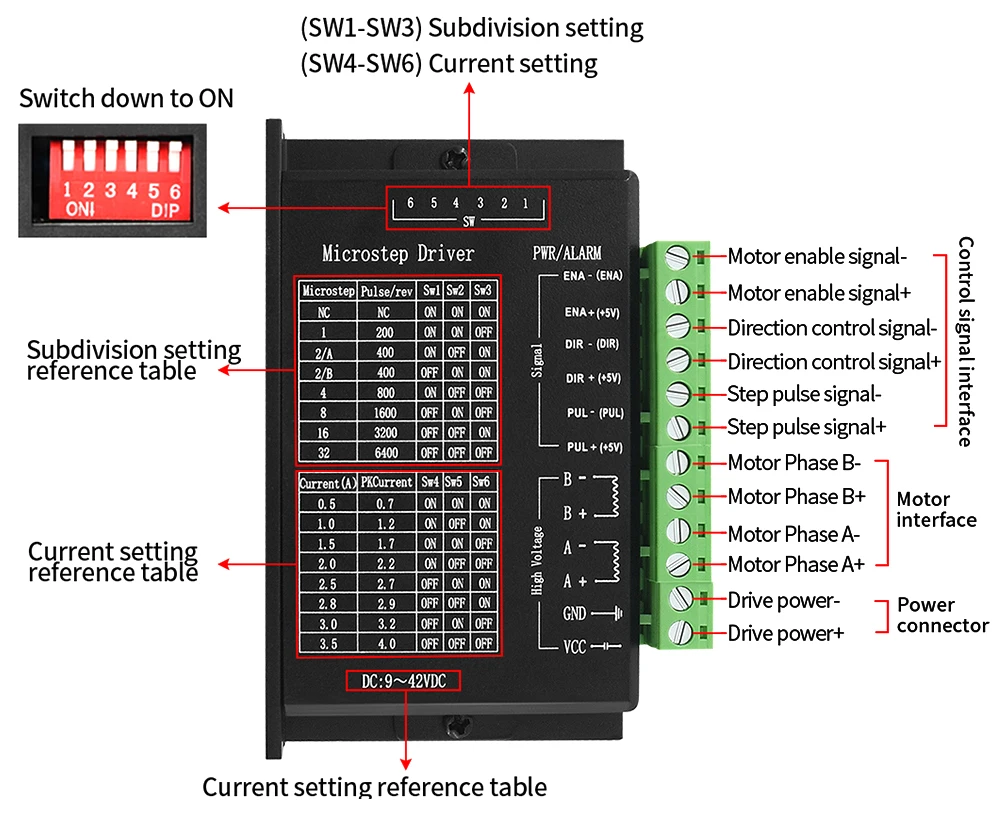

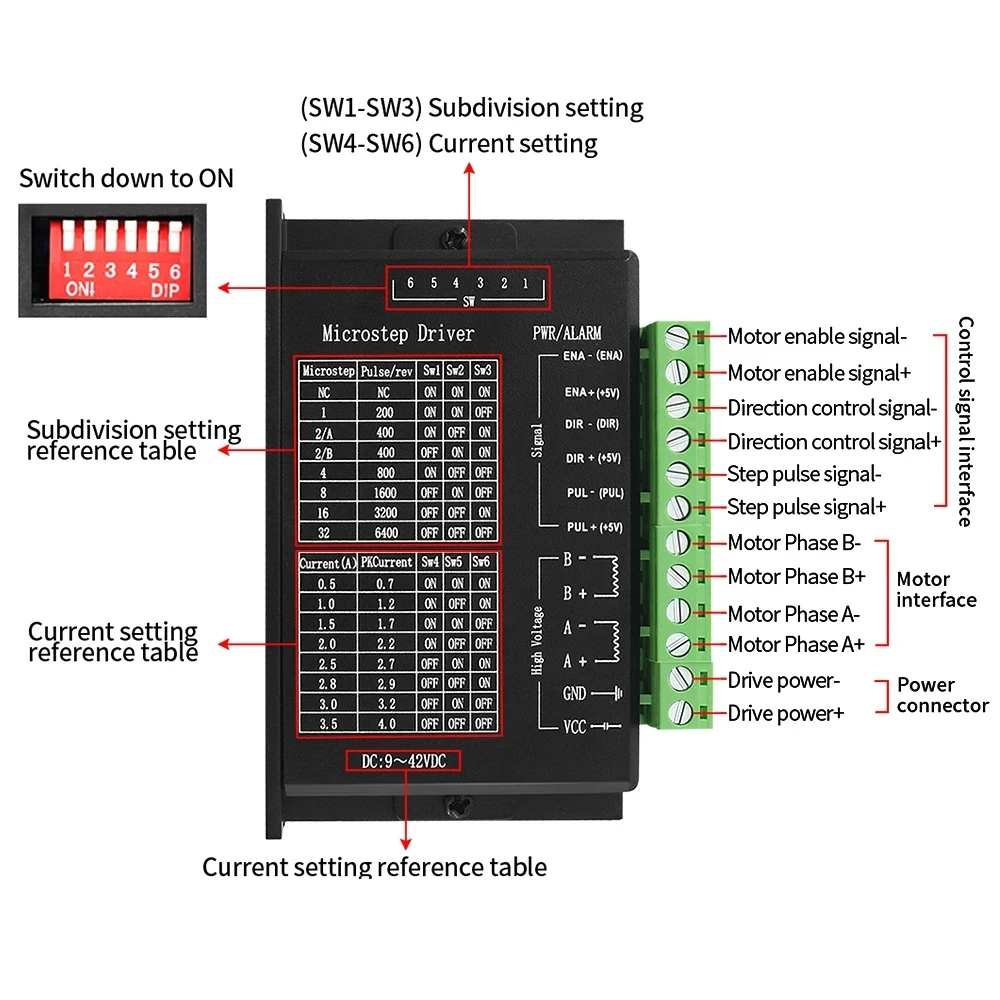

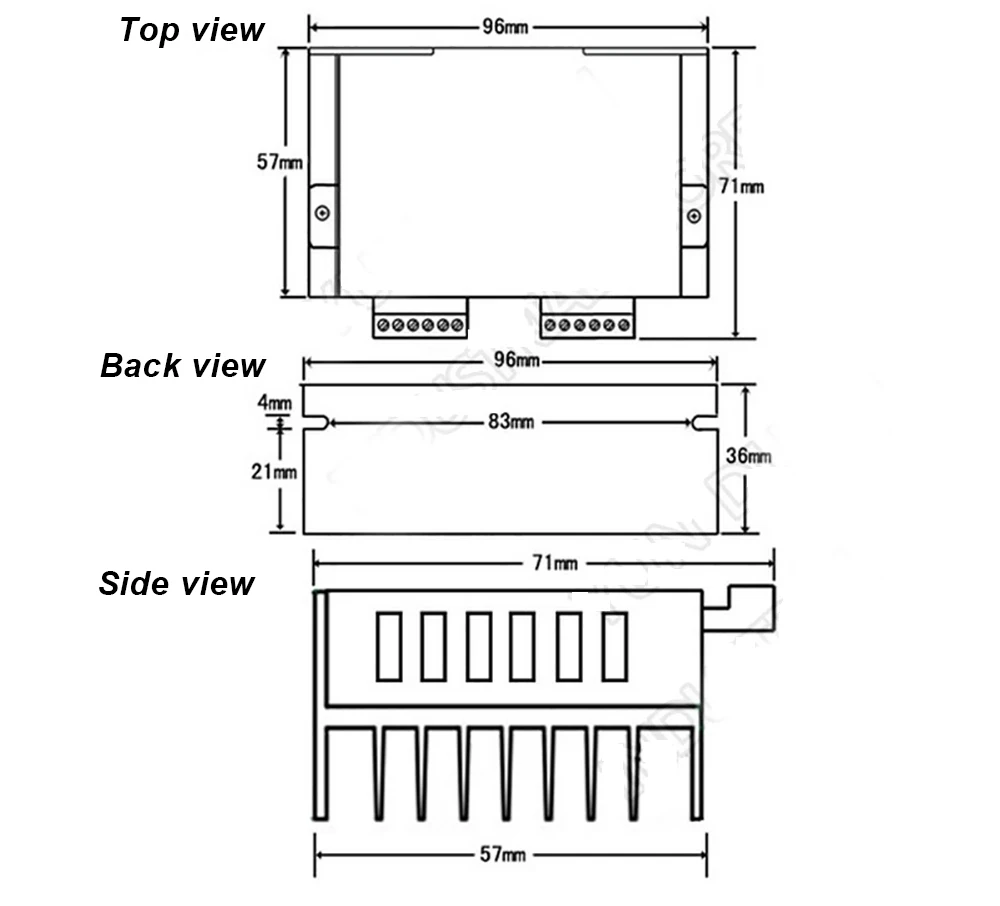

Driver Specifications :
Model:TB6600
* DC 9-42V power supply (12-24V recommended)
* Control signal input voltage 3.3V-24V universal
* 6 subdivision precisions are optional
* The output peak current can reach 4.0A (suitable for stepper motor with 1.8NM and below, 57, 42)
* H-bridge bipolar constant current drive
* Built-in temperature protection and over-current protection
* Automatic half-flow reduces heat
* motor noise optimization
