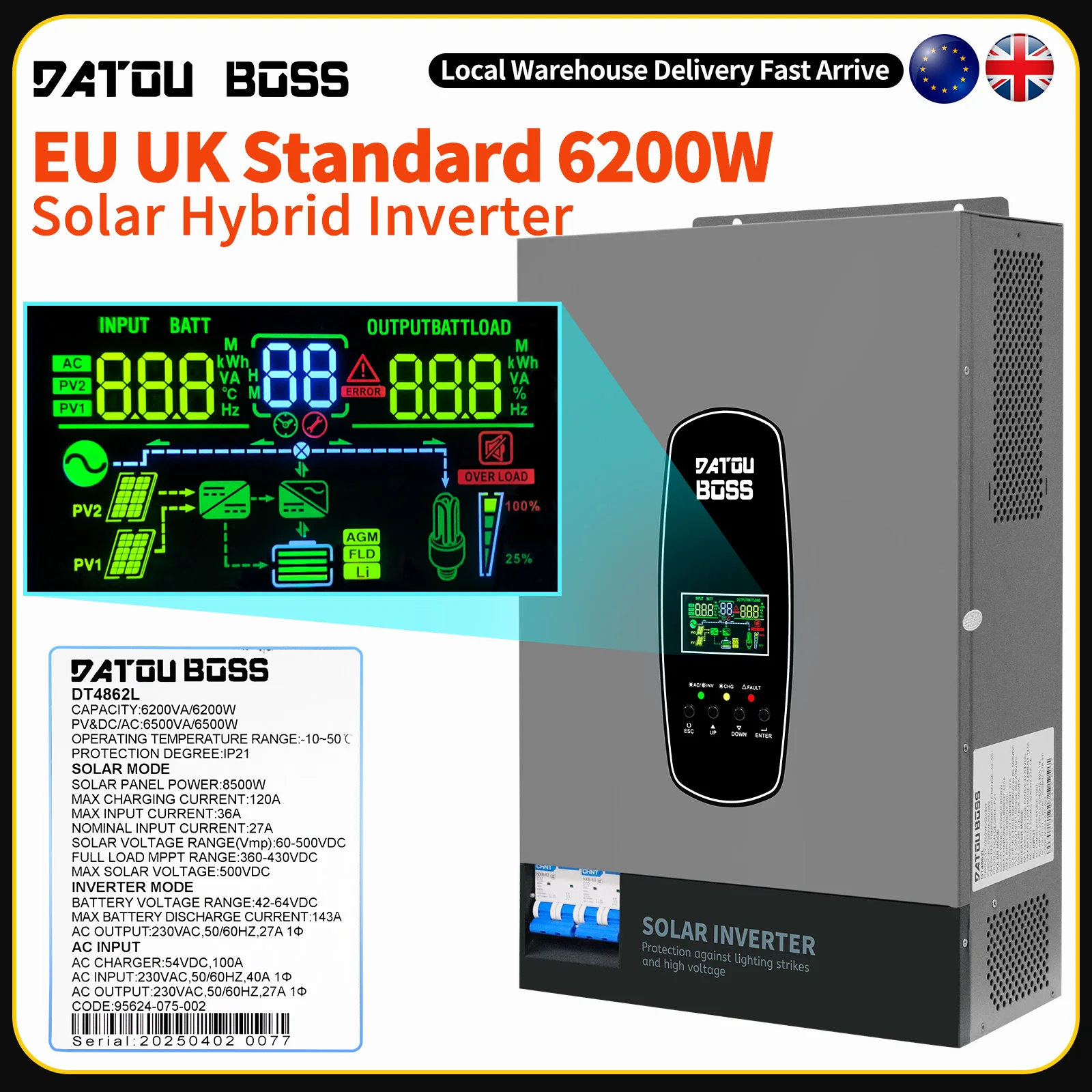

DATOUBOSS 48v Inverter 230v Solar Hybrid 220-240V EU UK Standard Supports Battery Operation BMS Protection System 120A MPPT
Description
- High-concerned chemical: None
- Brand Name: MFUZOP
- Origin: Mainland China
- Certification: CE,FCC,pse
- Input Sources: L+N+PE
- Rated Input Voltage: 220/230/240VAC
- Freqency: 50Hz/60Hz(Auto Adaptive)
- Rated Capacity: 6200W
- Outout Voltage: 220/230/240VAC±5%
- Output Frequency: 50/60Hz±0.1%
- Peak Power: 12400W
- Peak Efficlency (battery Mode): >94%
- Battery Votage: 48Vdc
- Constant Charging Votage Adjustable: 56.4Vdc
- Floate Charging Voltage(Adjustable): 54Vdc

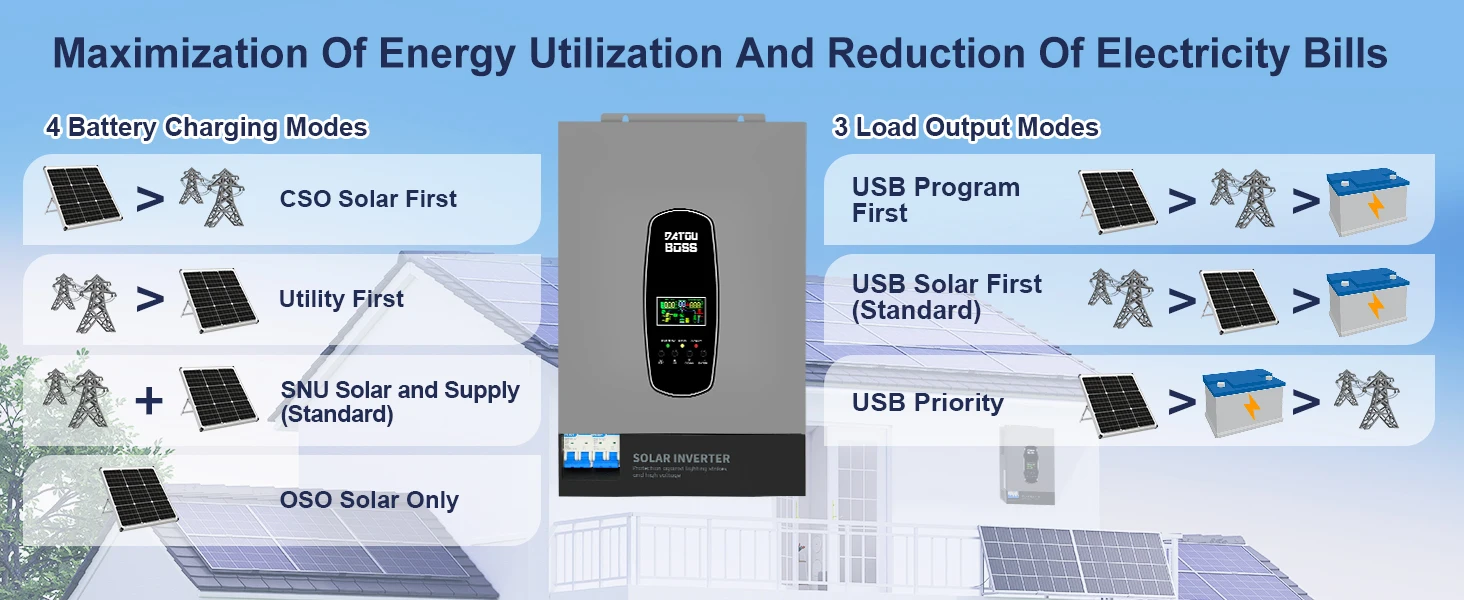

- PV Charging Mode: MPPT
- MAX.PV Input Power: 6200W
- MPPT Tracking Range: 120~500 vdo
- Best Voltage: 300-400V
- MAX.PV Input Voltage: 500Vdc
- MAX.PV Charging Current: 100A
- MAX.AC Charging Current: 80A
- MAX.Charging Current: 120A
- RS232: Baud Rate2400

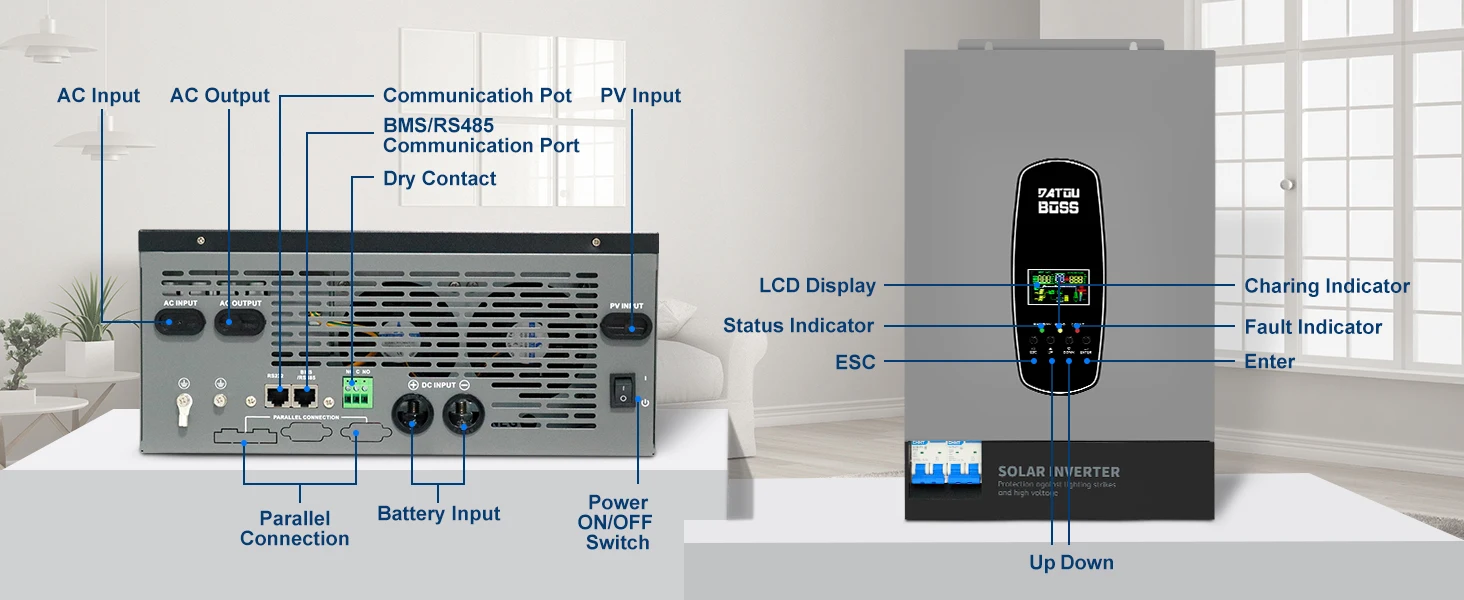

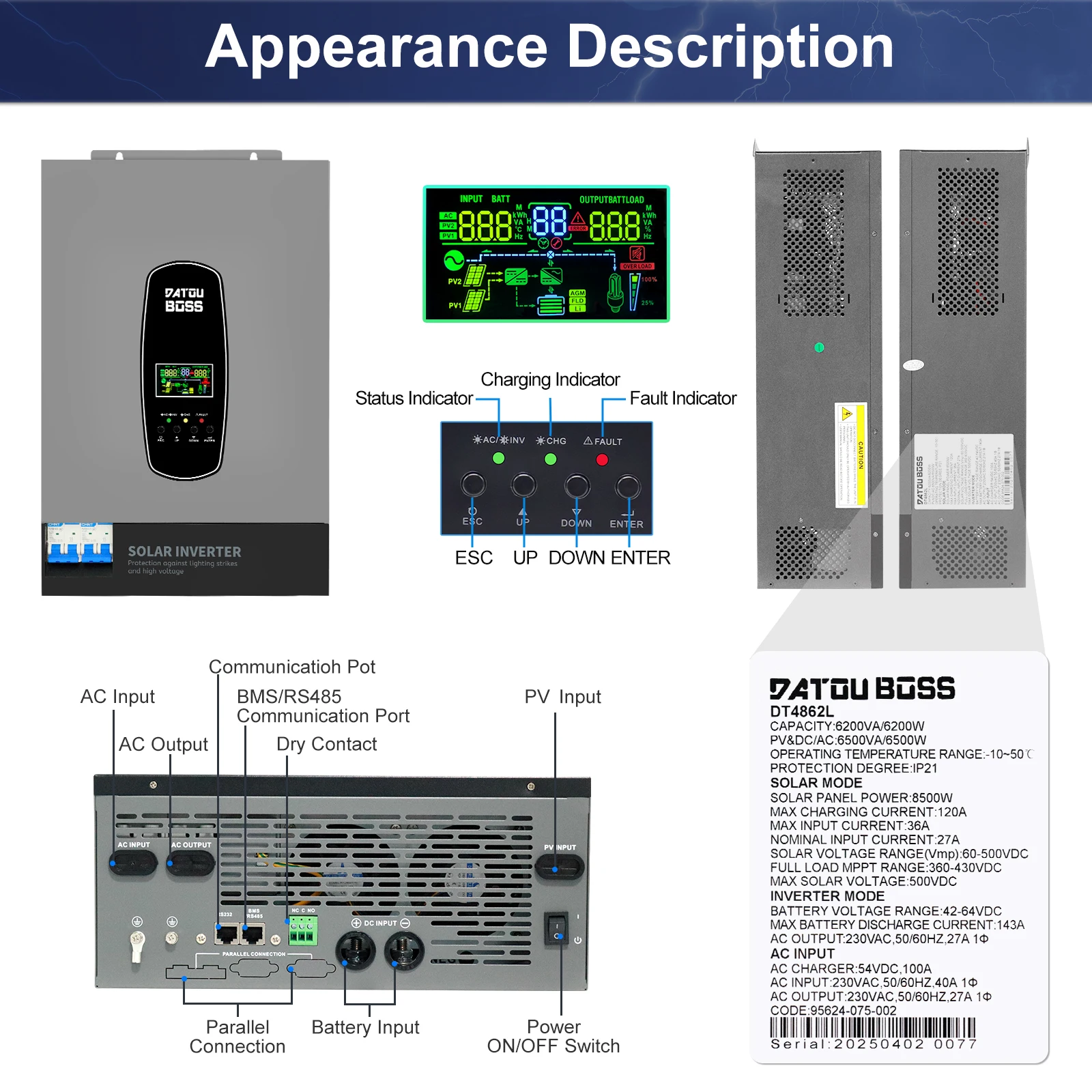

- Cor munication Port: Lithium Battery BMS Communication Card WifiCard, Dry Contact
- Noise: ≤50db
Critical Operational Protocol:
WARNING: Incorrect installation sequence may cause irreversible damage to the inverter.
Commissioning Steps:
Standard Installation Procedure:
a. Connect battery terminals first
b. Close battery circuit breaker
c. Verify battery terminal voltage (＞10.5V DC for 24V systems / ＞21V DC for 48V systems)
d. Connect photovoltaic array input
e. Close PV circuit breaker
f. Confirm display activation and charging status indication
g. Press power button (right side) to switch to “1” (ON position)
h. Measure stable 230V AC output voltage
i. Connect utility grid input
j. Close utility circuit breaker
k. Wait 2 minutes for system stabilization
l. Close output distribution circuit breaker
Circuit Protection Requirements:
Mandatory installation of dedicated circuit breakers for four critical connections:
Battery-to-inverter interface
Additional information
| Ships From | UNITED KINGDOM, Australia, GERMANY, United States |
|---|---|
| High-concerned chemical | None |
| Brand Name | MFUZOP |
| Origin | Mainland China |
| Certification | CE,FCC,pse |
| Input Sources | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Freqency | 50Hz/60Hz(Auto Adaptive) |
| Rated Capacity | 6200W |
| Outout Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Peak Power | 12400W |
| Peak Efficlency (battery Mode) | >94% |
| Battery Votage | 48Vdc |
| Constant Charging Votage Adjustable | 56.4Vdc |
| Floate Charging Voltage(Adjustable) | 54Vdc |
| PV Charging Mode | MPPT |
| MAX.PV Input Power | 6200W |
| MPPT Tracking Range | 120~500 vdo |
| Best Voltage | 300-400V |
| MAX.PV Input Voltage | 500Vdc |
| MAX.PV Charging Current | 100A |
| MAX.AC Charging Current | 80A |
| MAX.Charging Current | 120A |
| RS232 | Baud Rate2400 |
| Cor munication Port | Lithium Battery BMS Communication Card WifiCard, Dry Contact |
| Noise | ≤50db |
| Color | 48V 6200W AU, 48V 6200W EU, 48V 6200W UK, 48V 6200W US |
