Densitometer DS526 DS528 DS530 Suitable printing and packaging industry CMYK and spot color quantization density measurement

Description

DS 526/528/530 densitometer，Suitable for printing and packaging industry, solve the problem of CMYK and spot color quantization, and provide quantitative operation guidance for printing press staff; Horizontal press measurement, physical positioning observation window; More than 30 chroma indicators and 40 evaluation light sources to meet the special needs of users; Support 5 kinds of measuring calibers, to meet the user's different sample size measurement scenarios; The software supports wechat mini program, Android, Apple, Hongmeng, mobile APP, etc., and supports data synchronization；

DS 526：repeatabilitydE*ab≤0.02；caliber5mm

DS 528：repeatabilitydE*ab≤0.02；caliber11mm、5mm、3mm

DS 530：repeatabilitydE*ab≤0.02；caliber11mm、10mm、6mm、5mm、3mm

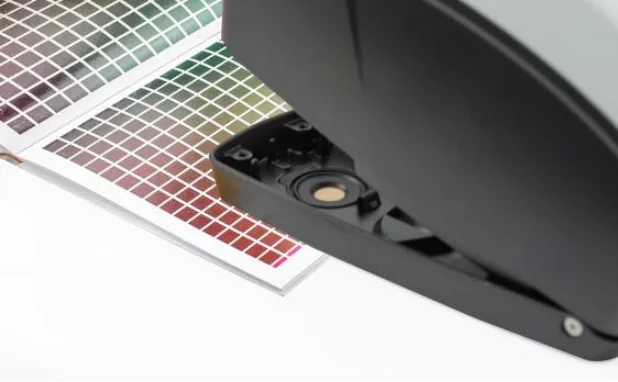

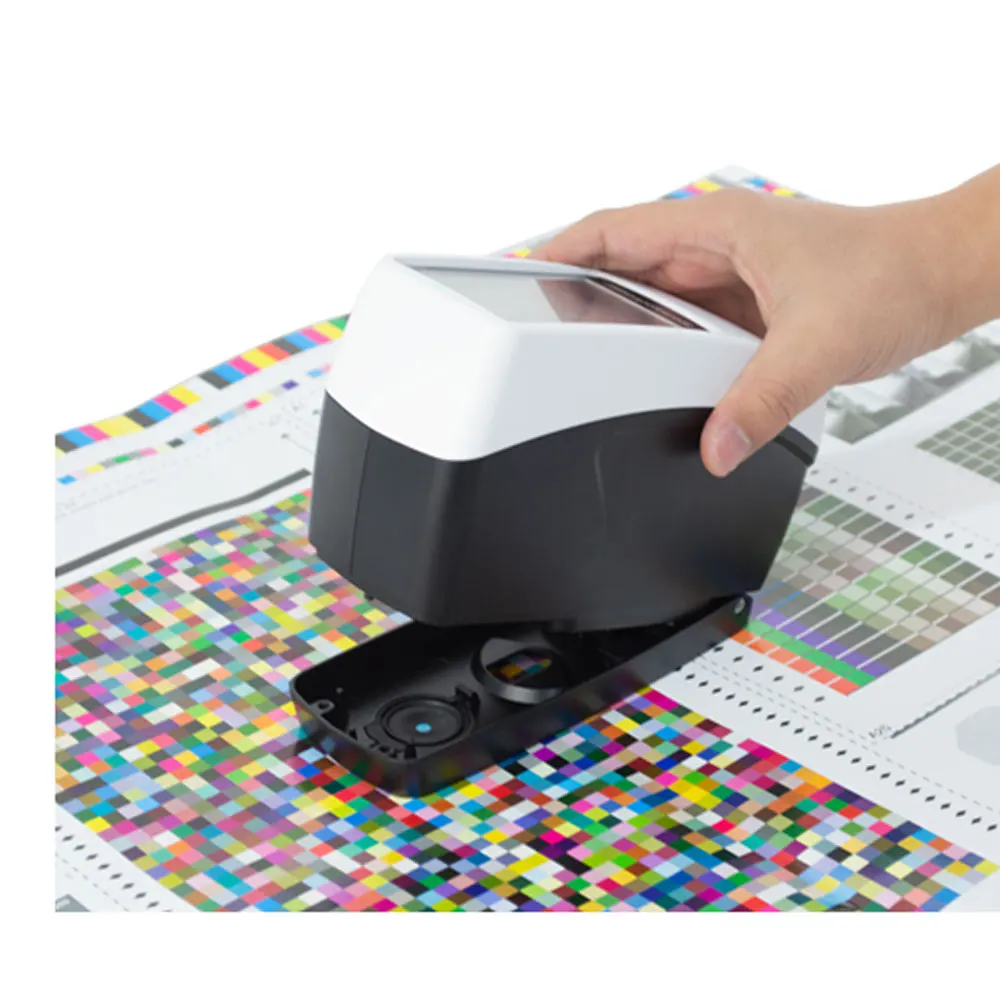

Horizontal press measurement, physical positioning observation window

DS 52X Series spectral density instrument adopts low center of gravity horizontal design, can be stableThe surface under test is measured. During the measurement process, the measurement position can be viewed at any time through the observation window to avoid the measurement position error.

Provide print-specific measurement indicators to help users with efficient color mixing

Color density measurement, dot area measurement, overprint rate measurement, print contrast measurement, tone error and gray scale measurement.

Ultra-high repeatability accuracy dE*ab≤0.02

Repeatability accuracy is the most important index to describe the performance of the spectrometer.DS 52XThe series of spectral density instrument adopts high-precision nano-spectral device, which makes the repeatability accuracy of the instrument reach the level that similar products are difficult to matchdE*ab≤0.02。

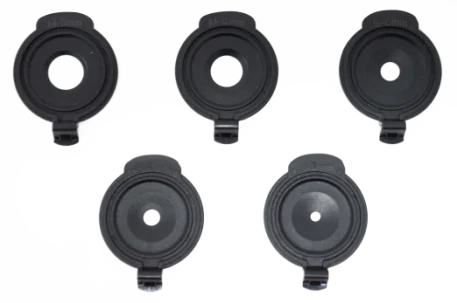

DS 52X series supports 5 measuring calibers

DS 52X series supports 5 measuring calibers，Φ11mm，Φ10mm，Φ6mm，Φ5mm，Φ3mm，It can be flexibly applied to various sample sizes and test conditions.

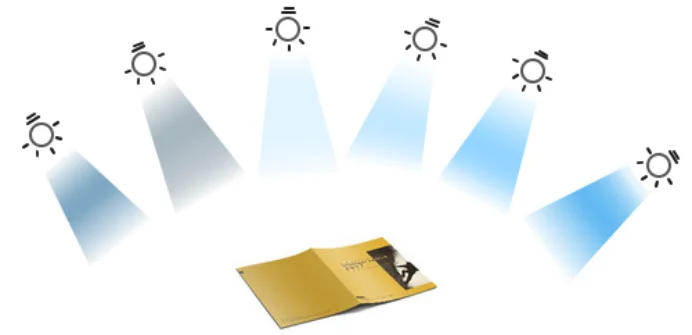

More than 30 measurement parameters and nearly 40 evaluation light sources

DS 52X Series spectrophotometer provides spectral reflectance,CIE-Lab，CIE-LCh，ΔE*ab，Covering power, whiteness, yellowness and other 30+ measurement indicators; Nearly 40 evaluation light sources such as A, B, C, D50, D55, D65 are available, including almost all color measurement indicators and light source types in the industry.

Support wechat mini program, Android, Apple, Hongmeng, mobile APP

1. DS 52X Series spectrodensitometers can be connected to a variety of mobile phones through a wide range of mobile applications.

2. Users no longer need to transfer the color value of the sample and the real object, and can easily transfer the color data through wechat;

3. Users can look for the closest color in multiple color cards;

4. Users can create a personal color database, input printing, coating, textile and other color card information, the created color library can be uploaded to the cloud, multi-device data sharing, color processing more convenient;

5. Enterprise users can create and manage their own color card information base and color formula in the cloud, and share the information base and color formula with their own users through a unique invitation code;

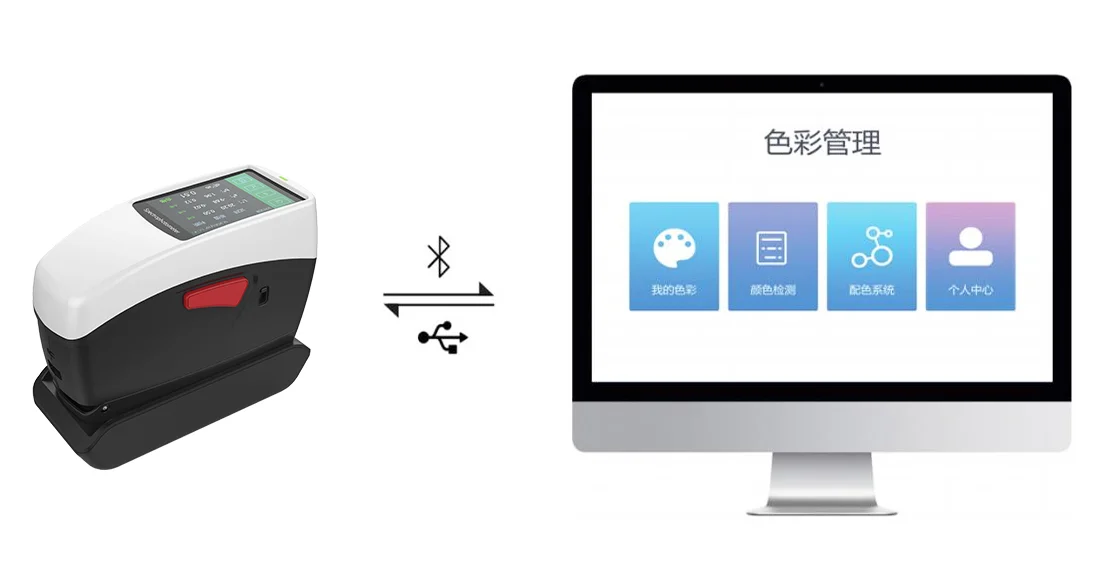

Use a powerful PC color management systemColorExpert

DS 52XSeries spectral densitometers are included with the instrumentWindowsColor management systemColorExpert，Connect via Bluetooth or USB cable DS 52XSeries spectral density instrument.ColorExpert is a full-featured color management software, with four functional modules: My color, color detection, color matching system, personal center.

Technical parameter
