EASUNPOWER Hybrid Solar Inverter 6200W Pure Sine Inverter 120A MPPT Solar Charge Controller 48V 220V PV Input 500V With Wifi
Description
- High-concerned chemical: None
- is_customized: Yes
- Output Frequency: (Auto detection)50Hz/ 60Hz
- Model Number: SMG III 6.2KW Wifi
- Output Power: 1 – 200 KW
- Type: DC/AC Inverters
- Weight: 9.5
- Size: 560*375*185mm
- Output Type: SINGLE
- Brand Name: EASUN POWER
- Origin: Mainland China
- Certification: CE
At present, the ISolar-SMG-III-6.2KW Wifi is about to sell out and will be shipped with a new appearance ISolar-SMG-II-6.2KW Wifi. The interior is the same, only the appearance is different! Please be informed!
ISolar-SMG-II-6.2KW Wifi
Tips1：Brazil uses AliExpress Standard Shipping and DDP channels to clear customs on behalf of buyers!
Tips2：Ukraine uses the Cainiao Heavy Parcel Line, which takes about 30 days to arrive, and remote countries take about 50 days to arrive!
Tips3 : How to avoid VAT for EU country customers
You can place orders from China to avoid VAT ,if we have goods in stock in EU warehouse more than 150 euros, we will ship the products from the EU warehouse for you，On the order page, you can see the price after VAT is reduced for you.
EASUN POWER Soalr Inverter 6200W MPPT 120A 500VDC PV Input 220VAC 48VDC 6.2KW Pure Sine Wave hybrid With WiFI Parallel BMS
Features:
|
MODEL |
ISolar- SMG-111- 6.2KW-Wifi |
|
Capacity |
6.2KVA/6.2KW |
|
Parallel Capability |
NO |
|
Lithium Battery activation |
YES ( By PV or Utility) |
|
Lithium Battery communication |
YES(RS485) |
|
INPUT |
|
|
Nominal Voltage |
230VAC |
|
Acceptable Voltage Range |
170-280VAC(For personal Computer);90-280va(For Home Appliances) |
|
Frequency |
50/60 Hz(Auto sensing) |
|
OUTPUT |
|
|
Nominal Voltage |
220/230VAC+ 5% |
|
Surge Power |
12400VA |
|
Frequency |
50/60Hz |
|
Waveform |
Pure Sine wave |
|
Transfer Time |
10ms(For personal Computer);20ms(For Home Appliances) |
|
Peak Efficiency(PV to INV) |
96% |
|
Peak Efficiency(Battery to INV) |
93% |
|
Overload Protection |
5s@>= 140% load; 10s@110%~140% load |
|
Crest Factor |
3:1 |
|
Admissible Power Factor |
0.6~1 (inductive or capacitive) |
|
BATTERY |
|
|
Battery Voltage |
48VDC |
|
Floating Charge Voltage |
54VDC |
|
OverCharge Protection |
63VDC |
|
Charging Method |
CC/CV |
|
SOLAR CHARGER & AC CHARGER |
|
|
Solar Charger Type |
MPPT |
|
Max.PV Array Power |
6500W |
|
Max.PV Array Open Circuit Voltage |
500VDC |
|
PV Array MPPT Voltage Range |
60VDC~ 500VDC |
|
Max.Solar Input Current |
27A |
|
Max. Solar Charge Current |
120A |
|
Max.AC Charge Current |
80A |
|
Max.Charge Current (PV+AC) |
120A |
|
PHYSICAL |
|
|
Dimensions,D x W x H(mm) |
438*295*105 |
|
Package Dimensions,D x W X H(mm) |
560*375*185 |
|
Net Weight(Kg) |
9 |
|

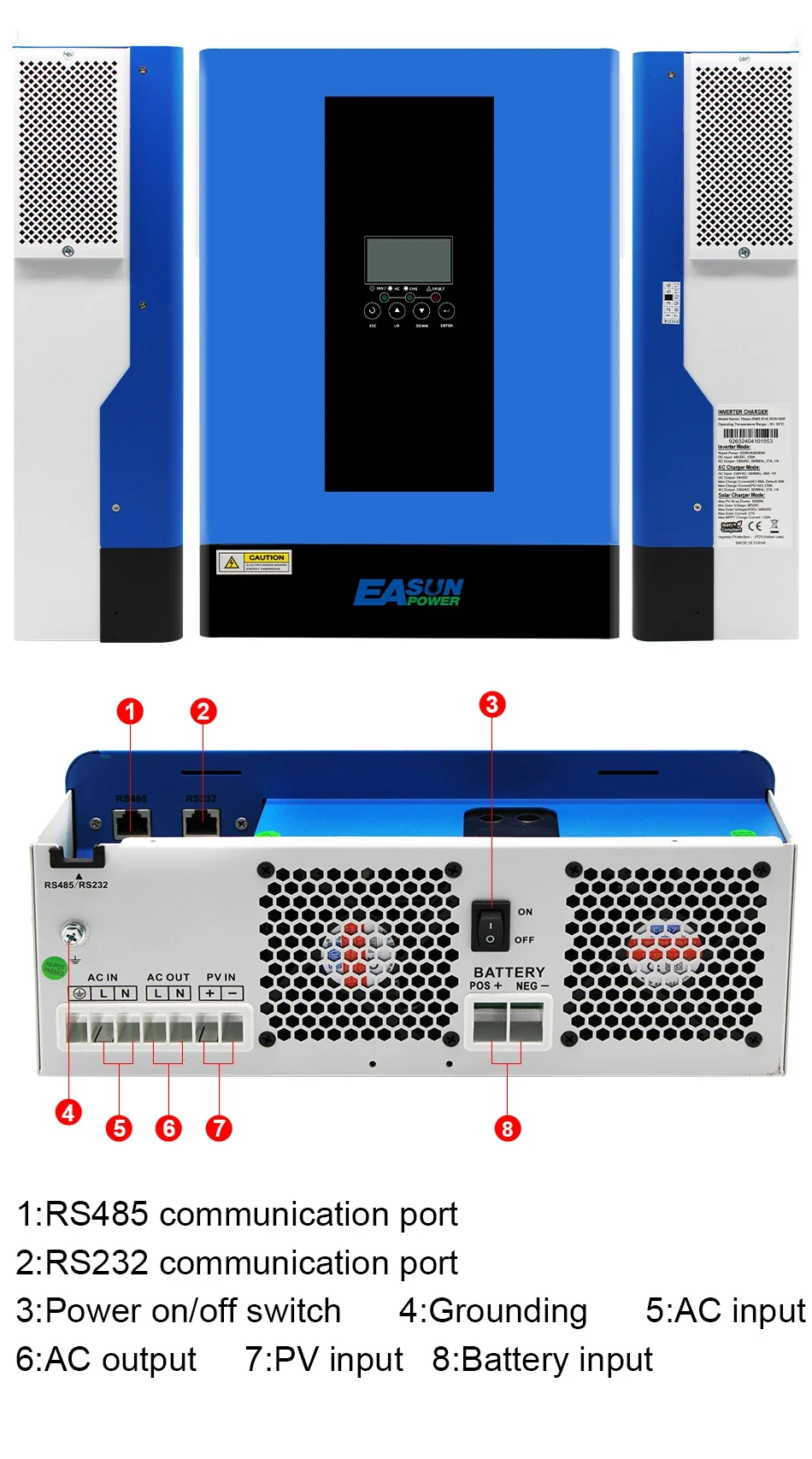

Communication Interface |
RS232+ RS485 |
|
ENVIRONMENT |
|
|
Operating Temperature Range |
(-10°C to 50°C) |
|
Storage Temperature |
(-15°C ~ 50°C) |
|
Humidity |
5% to 95% Relative Humidity ( Non-condensing ) |
Additional information
| High-concerned chemical | None |
|---|---|
| is_customized | Yes |
| Output Frequency | (Auto detection)50Hz/ 60Hz |
| Model Number | SMG III 6.2KW Wifi |
| Output Power | 1 – 200 KW |
| Type | DC/AC Inverters |
| Weight | 9.5 |
| Size | 560*375*185mm |
| Output Type | SINGLE |
| Brand Name | EASUN POWER |
| Origin | Mainland China |
| Certification | CE |
| Color | SMG II 6.2KW Wifi, SMG III 6.2KW Wifi |
