Description
- High-concerned chemical: None
- Capacity: 10 – 20Ah
- Voltage: 48v
- Type: Lithium battery
- Brand Name: ACEBEI-POWER
- Origin: Mainland China
- Certification: CE,RoHS
- Fits for ebikes 1: LAFLY X-3/X-5
- Fits for ebikes 2: JINGHMA R7 R5
- Fits for ebikes 3: samebike LO26/20LVXD30
- Fits for ebikes 4: Engwe ep-2
- Fits for ebikes 5: FIIDO M1 Pro/M21
- Fits for ebikes 6: GORTAT R8
- Fits for ebikes 7: Shengmilo MX-01/MX01

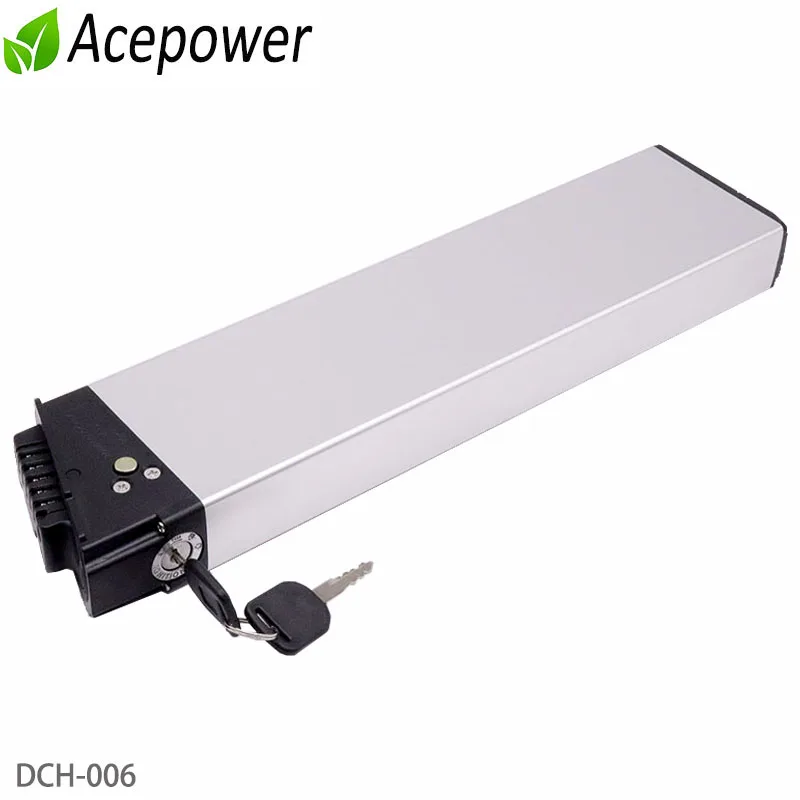

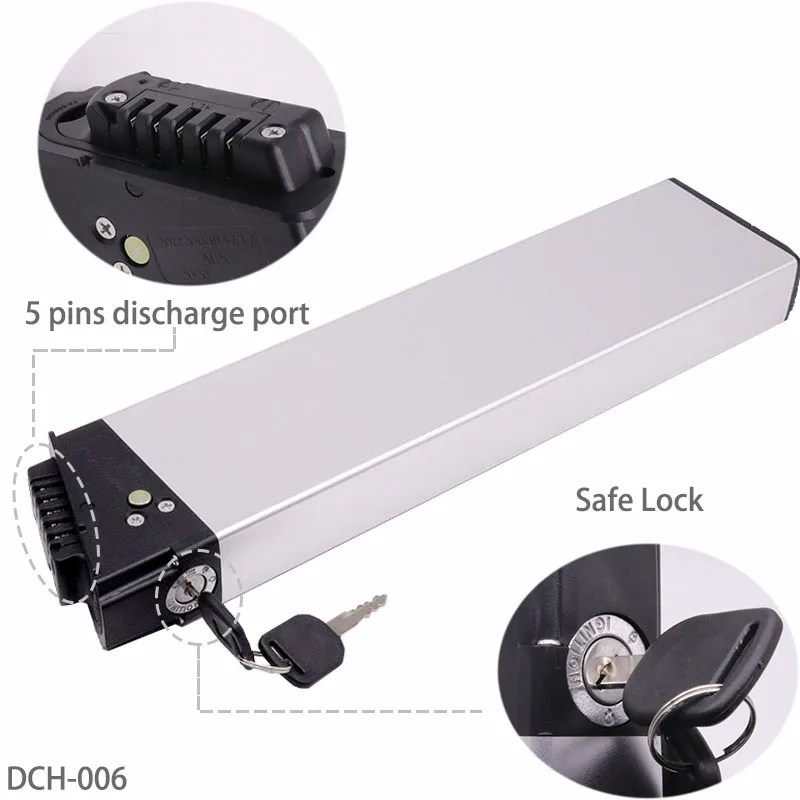

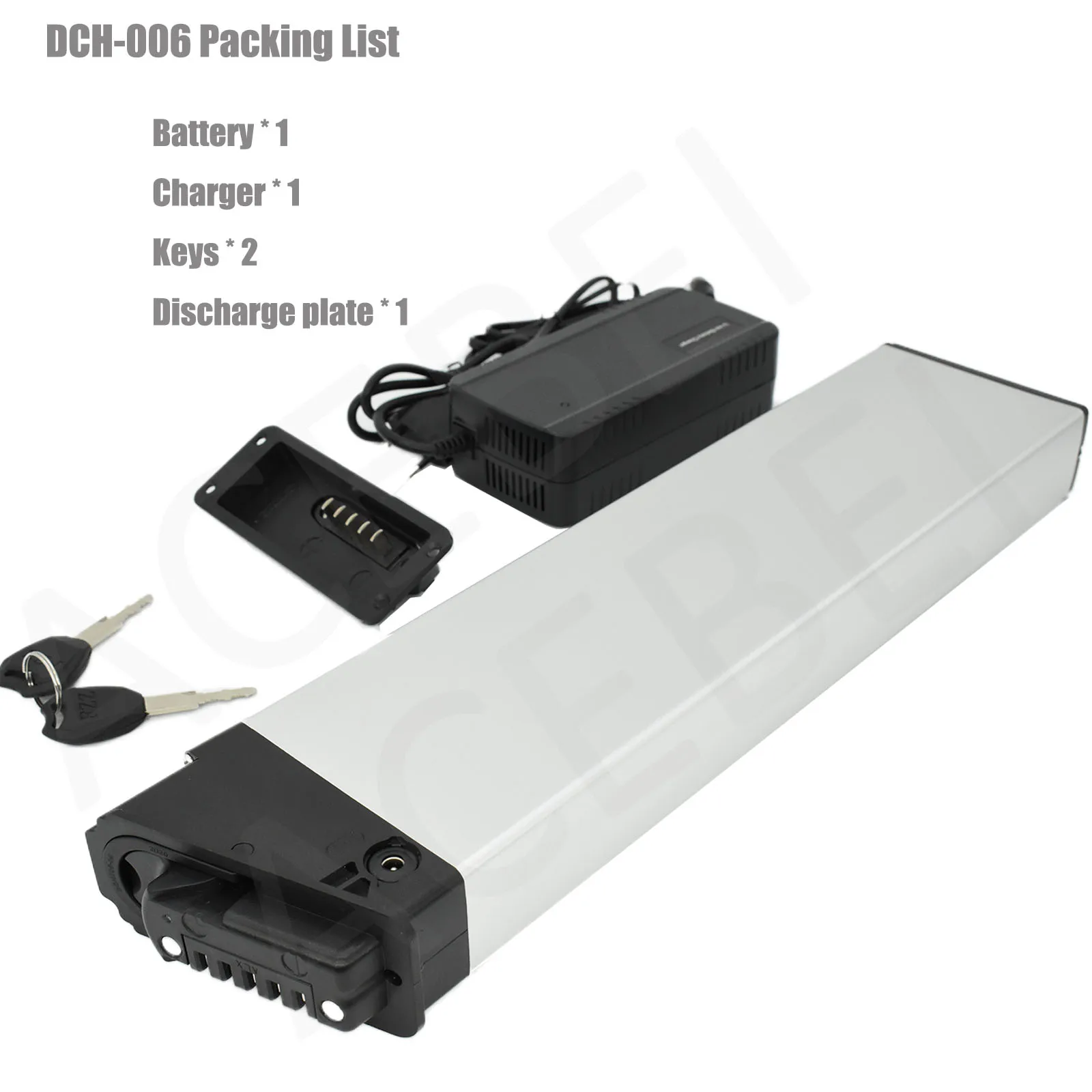

Important Notice for DCH-006's lock design:

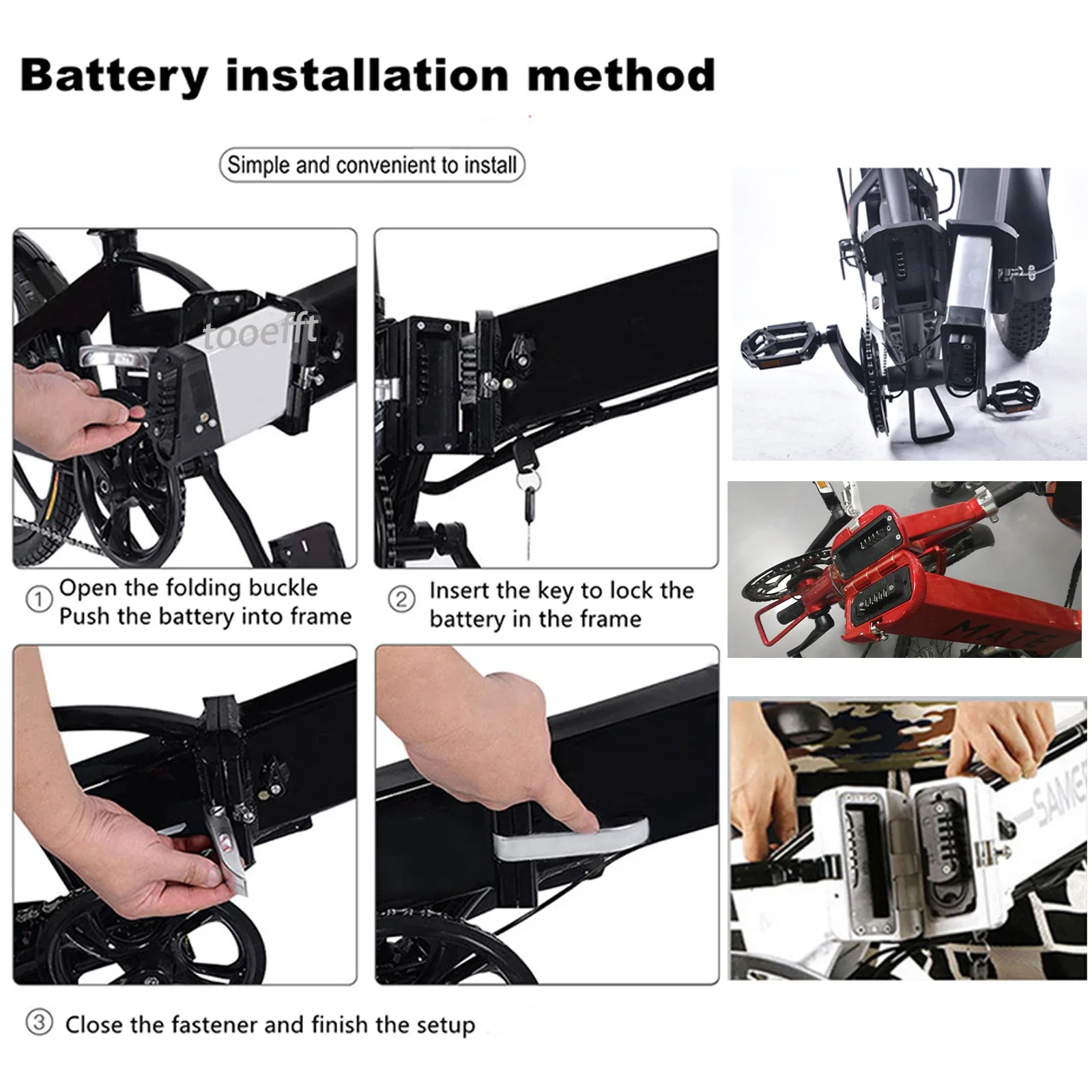

Function 1. Lock the battery inside the bike frame.
Function 2. The lock is also the battery's power (on/off) switch.
If with lock's function 2 (battery switch function), then : Before riding, please turn battery's key to the end to open battery's power on.

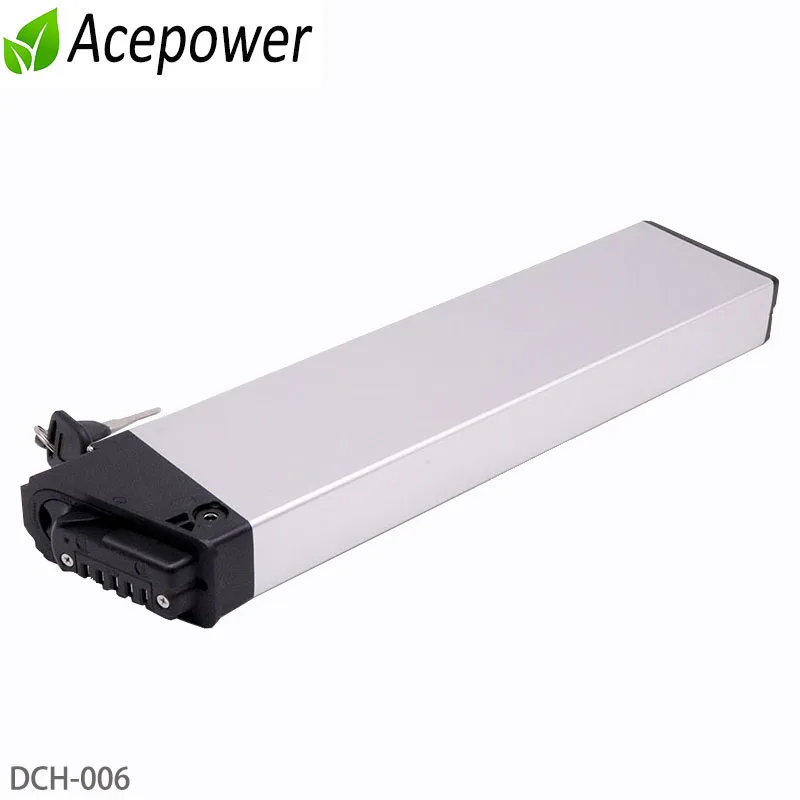

This Battery DCH-006 430mm type fit for below ebike perfectly!
fits for Samebike LO26, 20LVXD30, XWLX09, FIIDO M1 Pro, Fiido M21,Engwe ep-2 pro Engine pro old version etc……
fits for LAFLY X-3/X-5, X3, X5, Shengmilo MX-01/MX01 etc……
The Samebike, Mate bike, Engwe bike, LANKELEISI, rich bit, LAFLY, MYATU ect.. Many bicycles also will use this model or similar model battery on their different model bicycles.
So how to know whether this battery can install inside my bike?
1. Please measure your old battery's size firstly, if size is almost same, then check the apperance, charging port position,
If same as ours, then can install. (This currently link battery is DCH-006 430mm length)
2. Please make sure you order a same voltage's battery as your bike motor.
(If for bike 48V Motor, please choose 48V battery; if for 36v motor, please choose 36V battery)
3. If old battery is 48V 7.5Ah, 8.7Ah, 9.6Ah, 11.6Ah 12.5Ah, can I use with 48V 14Ah battery to replace it?
—Yes, Ah is just the capacity of the battery, have no other influence on using.
Battery Specification:
DCH-006 (430Type) 48V | |||||
Battery Parameter | 48V 10.4Ah | 48V 13.6Ah | 48V 12Ah | 48V 12.8Ah | 48V 14Ah |
Composed Type | 13S 4P | ||||
Cells | Brand 2600mAh | Panasonic 3400mAh | Brand 3000mAh | Brand 3200mAh | Samsung/LG/Panasonic 3500mAh |
Battery Weight(appr.) | 3.15kg | ||||

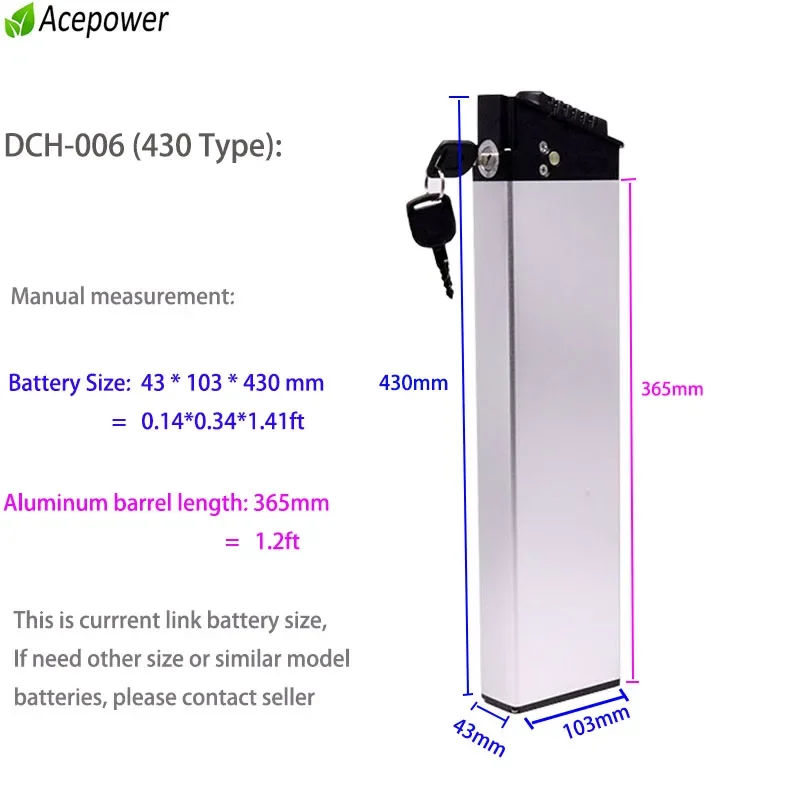

Battery Size(appr.) | 43*103*430mm | ||||
BMS | 13S 18-30A | ||||
Fit for Motors | 48V 10.4Ah, 48V 13.6Ah fits for: 48V 200w 250w 350w | 48V 12Ah, 48V 12.8Ah, 48V 14Ah fits for 48V 200w 250w 350w 500w 48V 750w 800w 1000w (48V 0-1000W motor) | |||
Charging Cut-off Voltage | 54.6V | ||||
Discharge Cut-off Voltage | 39V | ||||
Charger | 2A | ||||
Charging Time | 5-6h | 6-7.5h | 6-7h | 6.5-7.5h | 7-8h |
Common parameters：
Discharge Temperature | -20~65°C |
Charging Temperature | 0~45°C |
Cycle Life | 80% Capacity after 800 cycles |
Warranty | 1 Year |
Warranty
Product: Battery |
12 Months Quality warranty 1. We provide 1 year warranty for all electric bike batteries. |
Condition The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time. Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion. |
Tips
1. The payment isn't include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order. 2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address. |
1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland) 2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules. 3. Japanese customers need to provide Japanese address and contact information |
Your satisfaction and positive feedback is very important for us. It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services. If you have any problems, don't hesitate to contact us, we will do our best to serve with you. |
