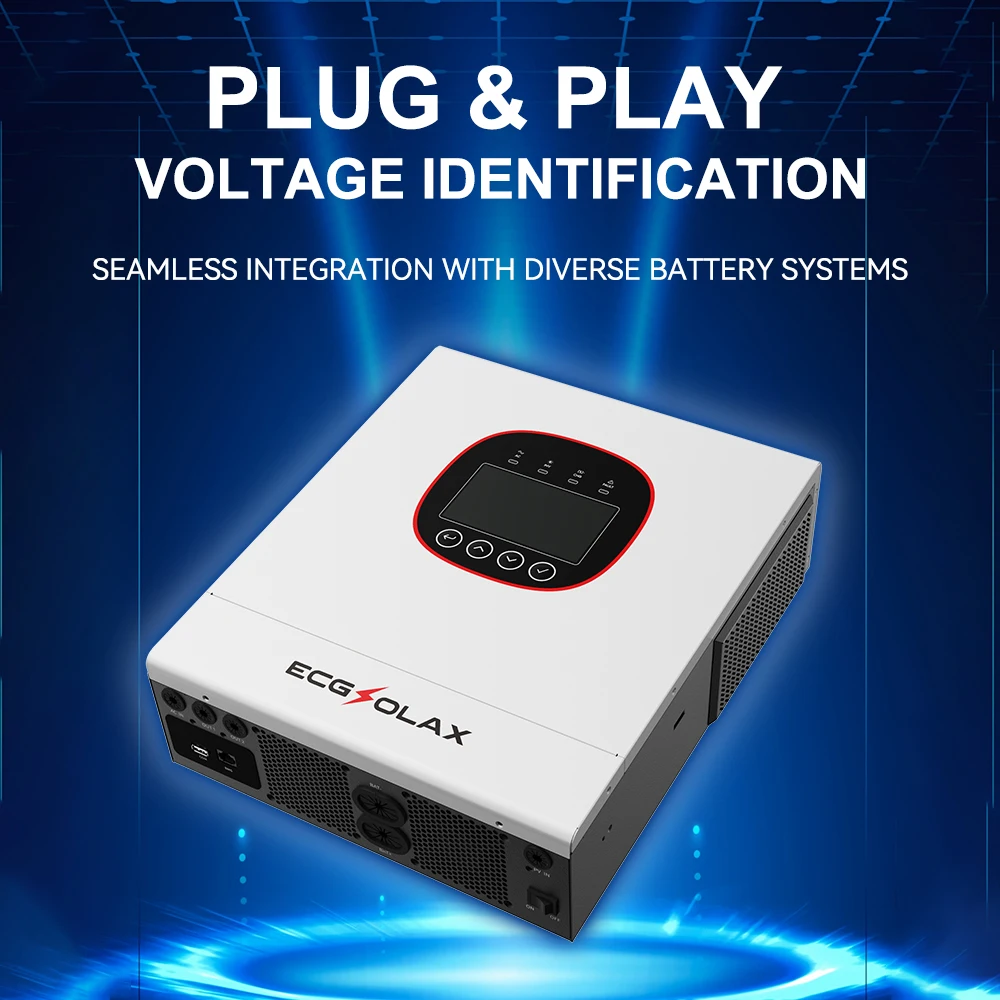

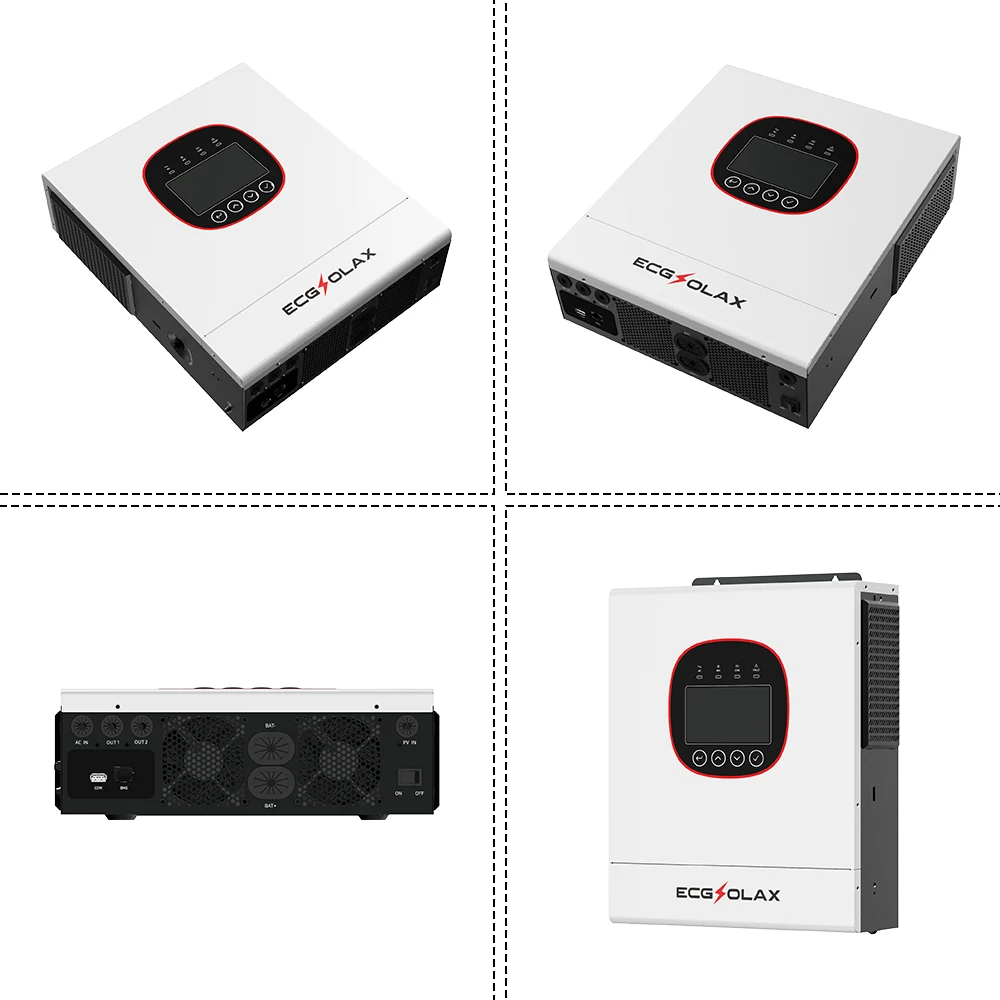

ECGSOLAX 6.5KW 5KW Hybrid Solar Inverter Pure Sine Wave 24V 48V 230V Off Grid Inverter 160A 120A Mppt Solar Controller With WIFI
Description
- High-concerned chemical: None
- Output Current: 27A
- Model Number: ECG-HVM
- Size: 410*336*110mm
- Output Type: SINGLE
- Weight: 8.4kg
- Brand Name: ECGSOLAX
- Output Frequency: 50Hz-60Hz
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- SolarChargerType: MPPT
- MaxPVInputCurrent/Power: 27A 9000W
- MPPTRange@OperatingVoltage(VDC): 60 -450
- PV Start-upVoltage: 60Vdc
- MaxPVOpen Circuit Voltage(VDC): 500
- MaxPV Charge Current(A): 120
- Feature 1: built-in WIFl
ECGSOLAX 6.5KW 5KW Hybrid Solar Inverter Pure Sine Wave 24V 48V 230V Off Grid Inverter 160A 120A Mppt Solar Controller With Built-in WIFI
Performance characteristics:
1.Pure sine wave inverter，Built-in MPPT solar charge controller
2.Built-in WIFI-GPRS remote monitoring
3.Supports connection of lead-acid battery and lithium battery,Compatible to mains voltage or generator power
4.Possessing complete short circuit protection, overvoltage and undervoltage protection, overload protection, back filling protection, etc.
5.Configurable input voltage range for home appliances and personal computers via LCD setting
6.Configurable battery charging current based on applications via LCD setting
Features1：
·Rated power 5KW/6.5KW , power factor 1
·MPPT range 60V~450V，500Voc
·High frequency with small size and light weight
·Pure sine wave AC output

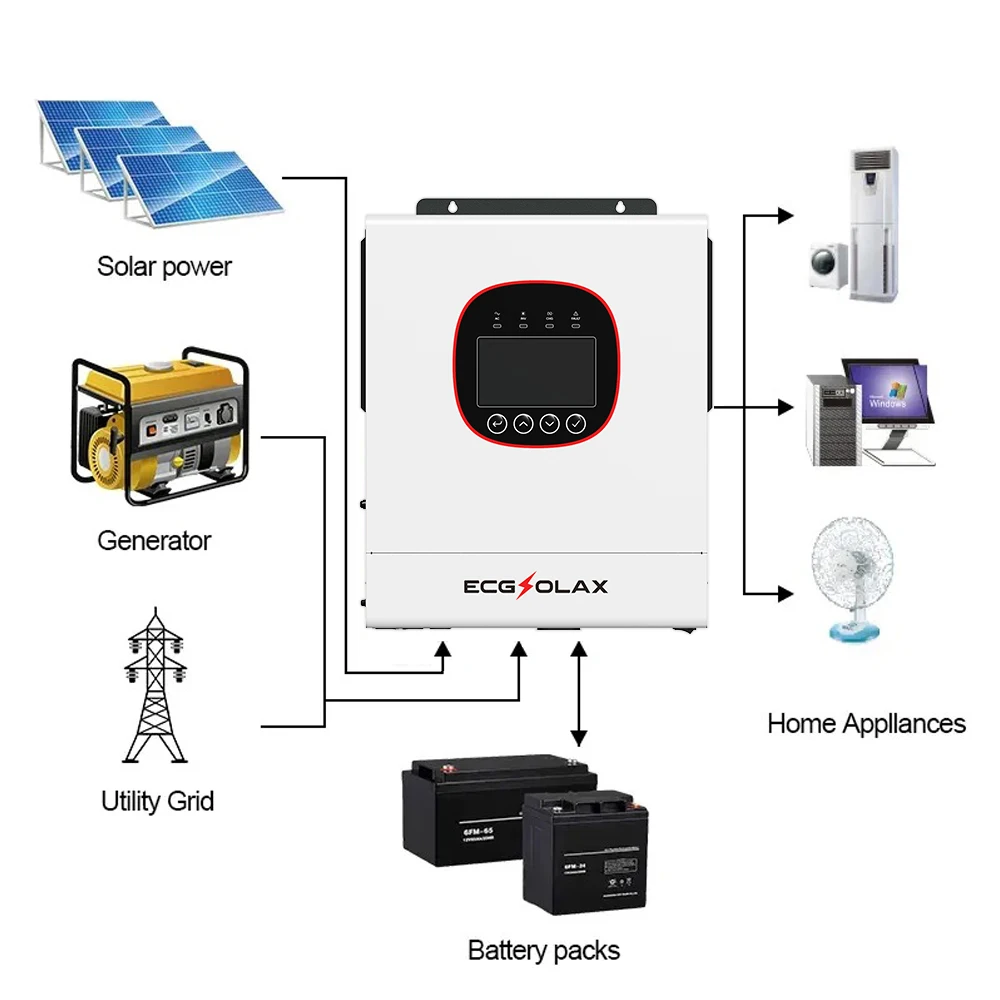

·Solar and grid power loads at the same time
Features2：
·CAN/RS485 for BMS communication
·Ability to work without battery
·WIFl remote monitoring（built-in)
·Dual AC output
·Feed-in to grid
Additional information
| Color | 5KW 24V, 6.5KW 48V |
|---|---|
| High-concerned chemical | None |
| Output Current | 27A |
| Model Number | ECG-HVM |
| Size | 410*336*110mm |
| Output Type | SINGLE |
| Weight | 8.4kg |
| Brand Name | ECGSOLAX |
| Output Frequency | 50Hz-60Hz |
| Is Smart Device | Yes |
| Origin | Mainland China |
| Certification | CE |
| SolarChargerType | MPPT |
| MaxPVInputCurrent/Power | 27A 9000W |
| MPPTRange@OperatingVoltage(VDC) | 60 -450 |
| PV Start-upVoltage | 60Vdc |
| MaxPVOpen Circuit Voltage(VDC) | 500 |
| MaxPV Charge Current(A) | 120 |
| Feature 1 | built-in WIFl |
| Output Voltage | 220-240V |
