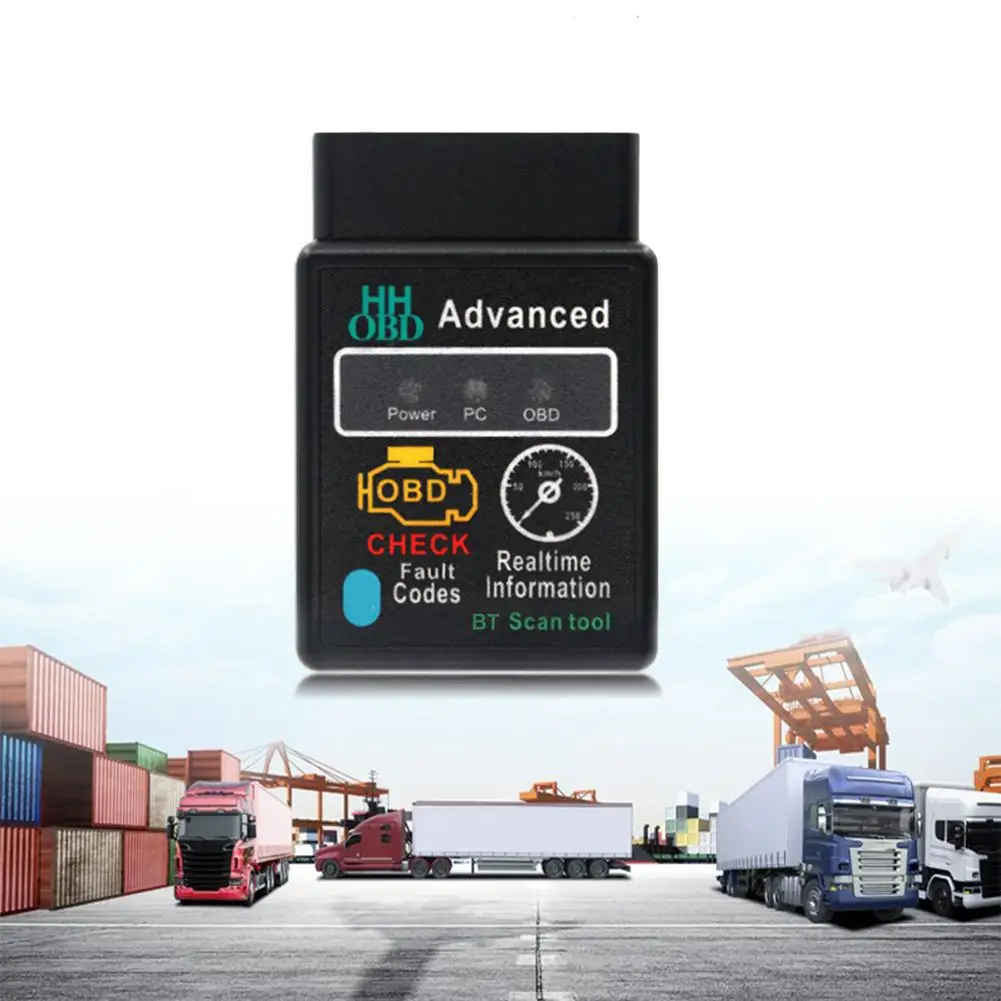

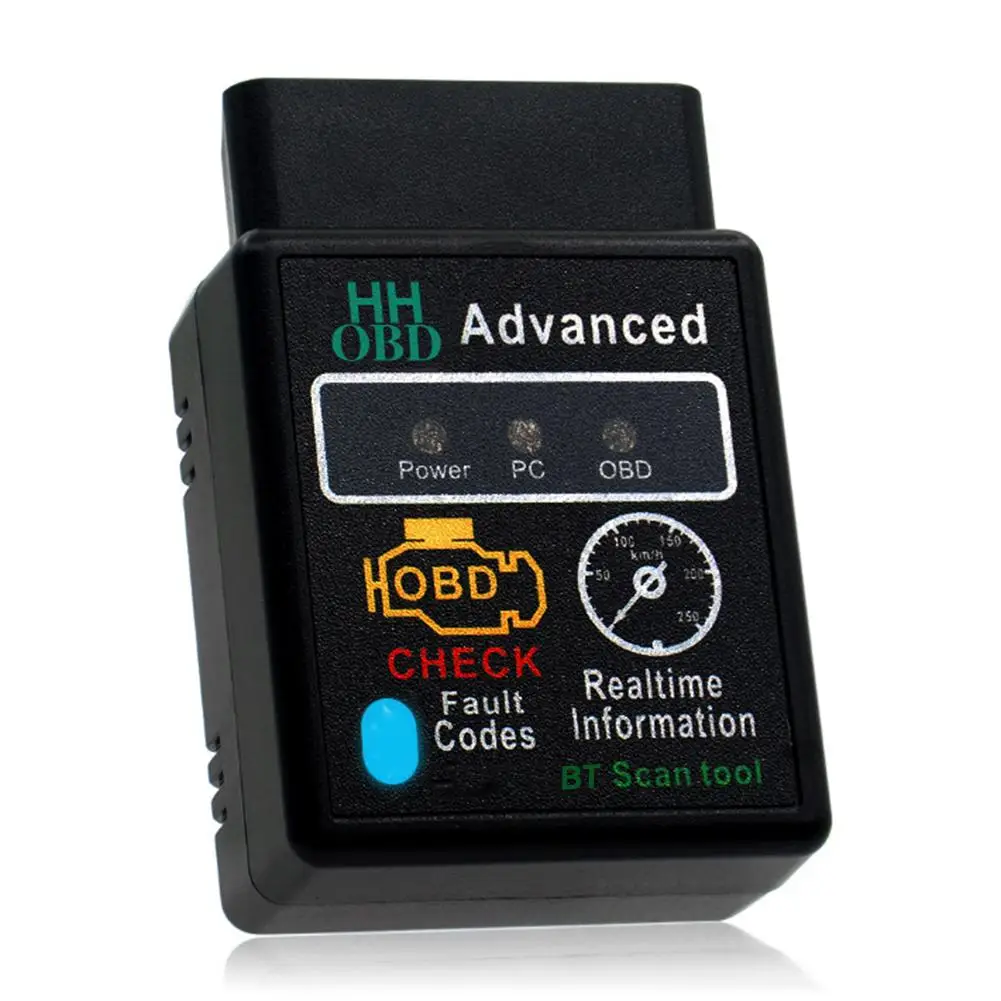

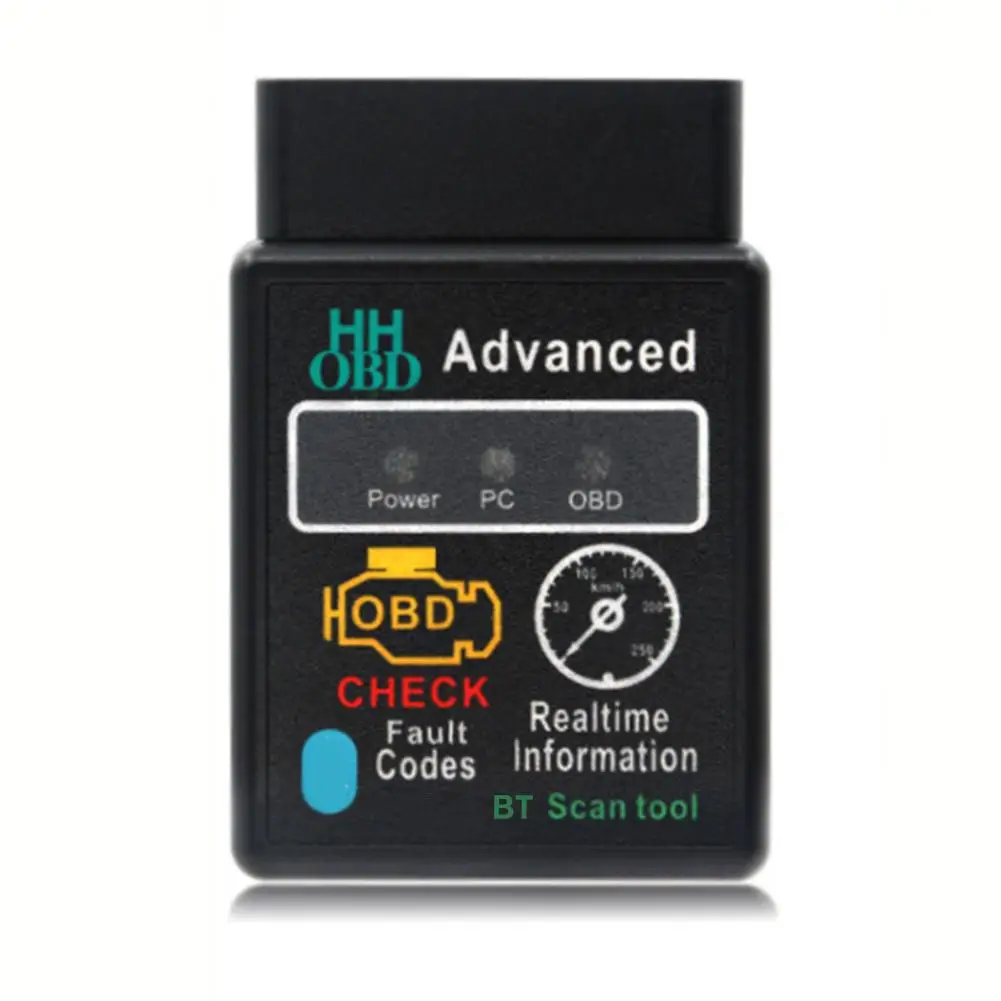

ELM327 V1.5 OBD2 Diagnostic Tool Bluetooth 5.1 HH OBD V2.1 Car Code Reader for iOS Android Windows Check Engine Light Scanner

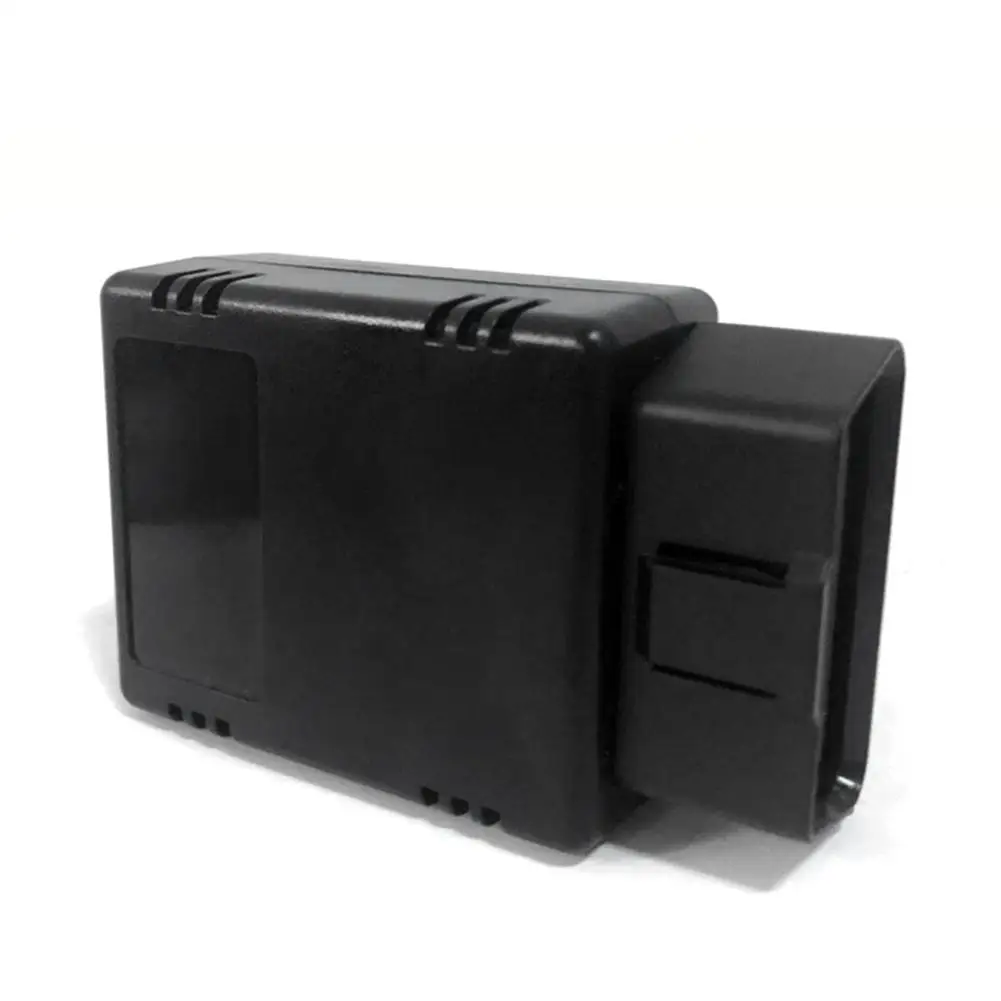

Car OBD2 Scanner Elm327 V1.5 Code Reader OBDII Diagnostic Tool

Specification
Category:V1.5 Auto fault detector
Material: ABS

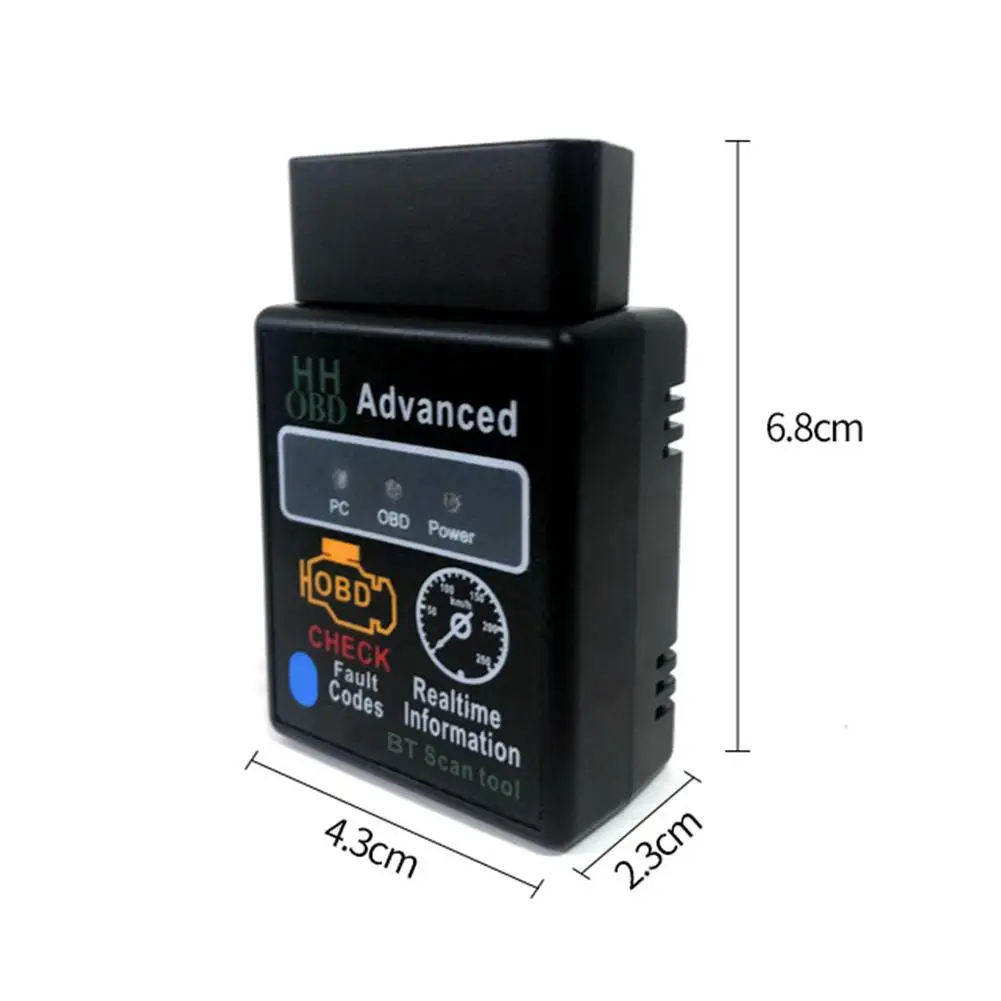

Size: about 6.5*4.5cm
Communication: for Bluetooth 5.1
Support system: IOS, Android, Symbian, Windows
Working voltage: 9v16v
Working temperature: -40℃65℃
Package includes: 1*OBD2 Bluetooth V1.5 car scanner (with teaching QR code on the back of the box)
Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian, Windows PC
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android: Torque, DashCommand, OBD Auto Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

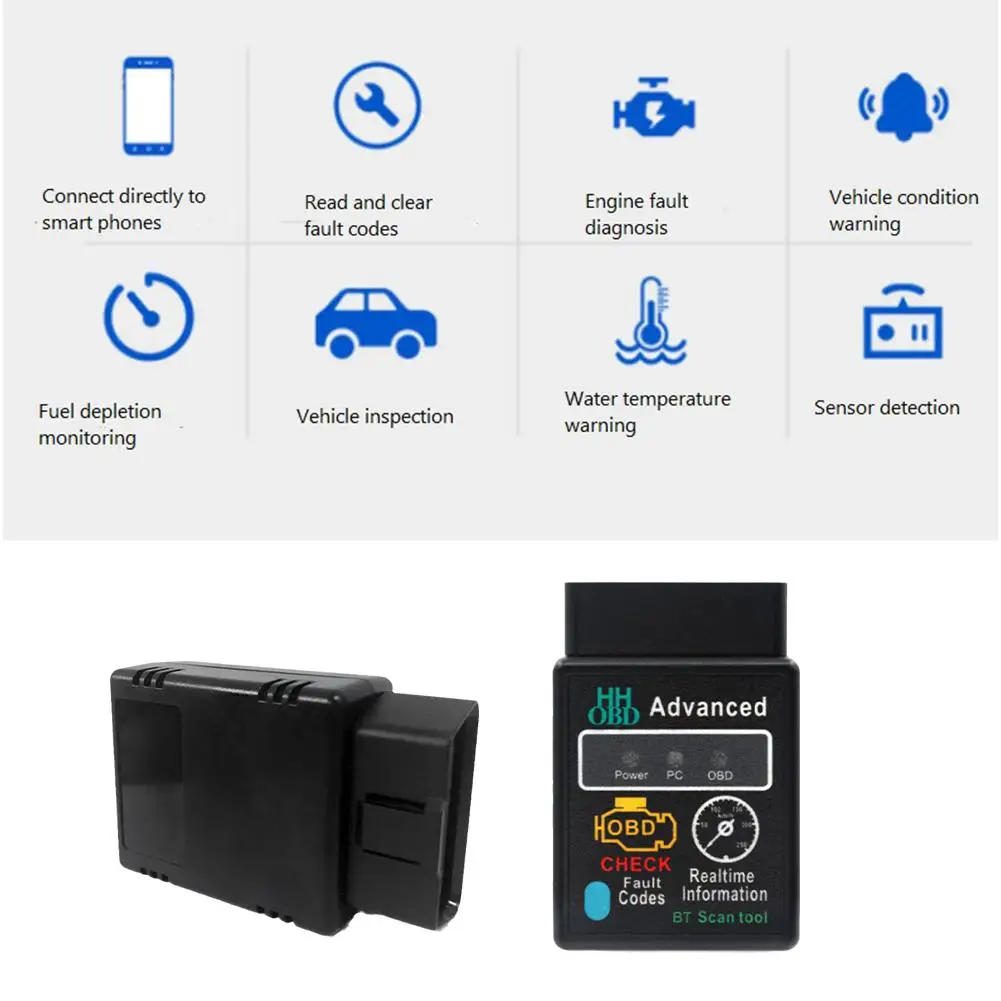

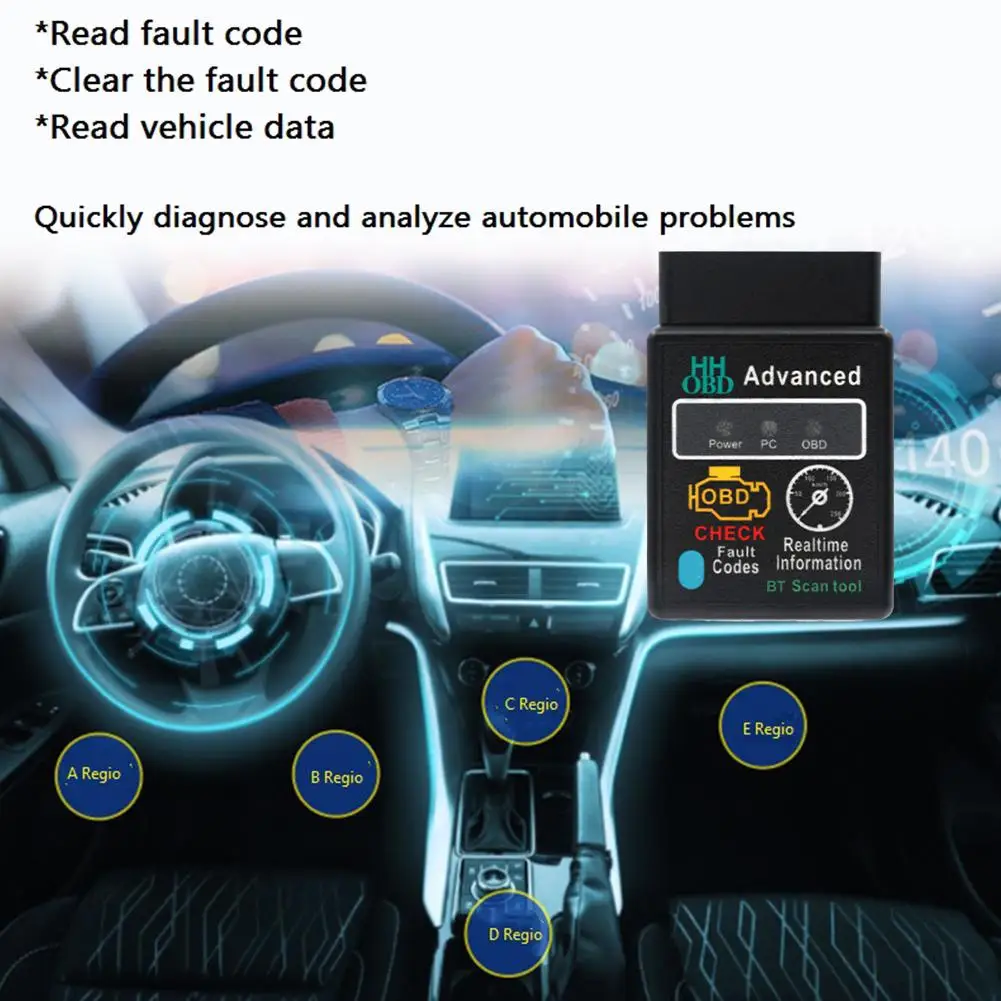

Basic functions
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL (‘Check Engine’ light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Fuels System status
7: Fuels System Status
8: Vehicle Speed
9: Short Term Fuels Trim
10: Long Term Fuels Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Fuels Pressure
16: Oxygen sensor voltages / associated short term fuels trims
17: Many others
