ELP 5Megapixel Industrial Machine Vision Mini USB Camera OV5640 PC Webcam for Video Surveillance Robot ATM Kiosk

Description

ELP 5Megapixel Industrial Machine Vision Mini USB Camera OV5640 PC Webcam for Video Surveillance Robot ATM Kiosk

The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials) is ideal for many applications like security systems, portable video system, video phones, industrial

machine monitoring and toys. It use high quality image sensors made by OmniVision OV5640,

one of the world leaders in this field of electronics.

The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.

*Ultra 5MP HD USB Camera Board

*Max resolution 2592 (H) x 1944 (V)

*5 Megapixel USB Camera Module with 1/4" OV5640 Sensor

*Camera module with High Speed USB2.0 Connector

*With 3m cable (Many other Length optional 1m/2m/3m/5m…)

*low light performance – ideal for any lighting condition.

*Super small outline and thin profile for embedded applications. Mini micro usb camera 38x38mm/compatible 32x32mm

*With 3.6mm lens (Many other lens optional, 2.1mm/2.8mm/3.6mm/6mm/8mm/12mm… fisheye lens L170 etc)

*Parameters adjustable, Exposure, Hue, Brightness, White Balance, Contrast, Sharpness, Gamma…

*Camera with UVC, free driver, Plug & Play

*Support different operating system & Software

Model	ELP-USB500W02M-BL36 (3.6mm lens, about 55 degree)
Optional Models	ELP-USB500W02M-BL21 (2.1mm, about 70 degree) ELP-USB500W02M-BL28 (2.8mm,  about 71 degree) ELP-USB500W02M-BL36 (3.6mm, about 55 degree) ELP-USB500W02M-BL60 (6mm, about 33 degree) ELP-USB500W02M-BL80 (8mm, about 26 degree) ELP-USB500W02M-BL12 (12mm, about 15 degree) ELP-USB500W02M-BFV (2.8-12mm varifocus lens) ELP-USB500W02M-BL100 (No distortion lens, about 61 degree) ELP-USB500W02M-BL170 ( fisheye lens, about 140 degree)
Item	High resolution 5MP USB camera module with 6mm lens
Resolution & FPS	2592×1944@ 15fps MJPEG                             2048×1536@ 15fps MJPEG 1600×1200@ 15fps MJPEG                             1920×1080@ 15fps MJPEG 1280×1024@15fps MJPEG                              1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG                              800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG                                  320×240@ 30fps MJPEG
Sensor	Omnivision OV5640	Connecting Port Type	USB2.0 High speed
Sensor Size	1/4 inch	Support free driver	USB Video Class(UVC)
Pixel Size	1.4µm x1.4µm	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	2592 (H) *1944 (V)	AEB  AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	6mm, optional: 2.1/2.8/3.6/8/12mm/fisheye lens	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1m / Optional 2m,3m,5m	work temperature	DEGREES(-20~70)
Board Size	38x38mm/32x32mm	Certifications	FCC and CE
Mini illumination	0.1lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	150mW- 200mW
OTG protocol	USB2.0 OTG
Night vision	without night vision (Can connect IR LED board to get night vision function)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 etc. Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC,   Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

 simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

 credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

With OV5640 Sensor

With CE FCC RoHS certificate

5MP High resolution

HD USB Camera

Can make with different lens

Max Resolution:

2592(H) X 1944(V) 5Megapixel

5megapixel high pixel technology for sharp image and accurate color reproduction

Camera board+lens mount+lens

Plug and Play/Free Driver

UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

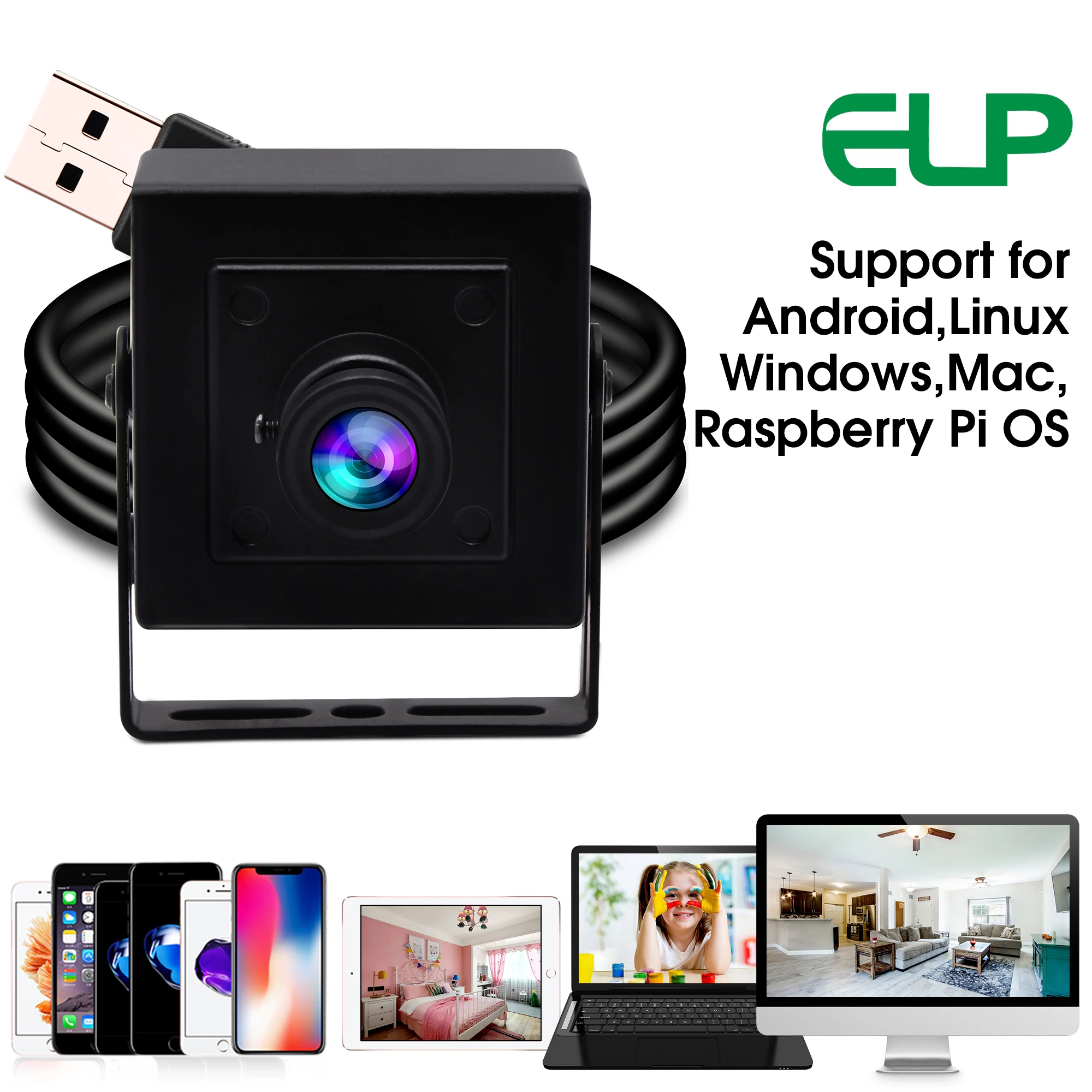

High Compatibility:

Can Work With Most OS:

Windows,Linux,Mac Raspberry Pi,Android,etc.

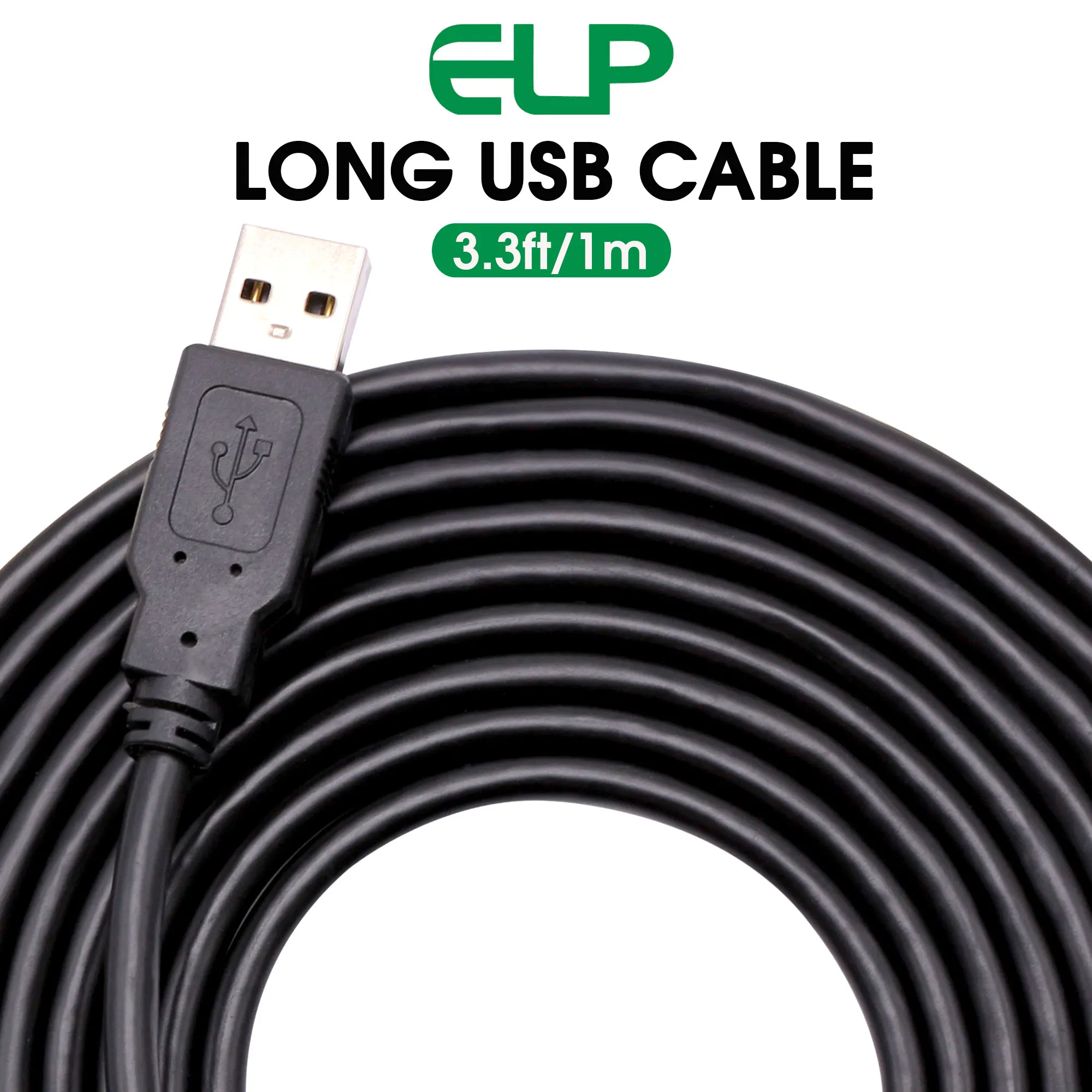

With 3m cable (Many other Length optional 1m/2m/3m/5m…)

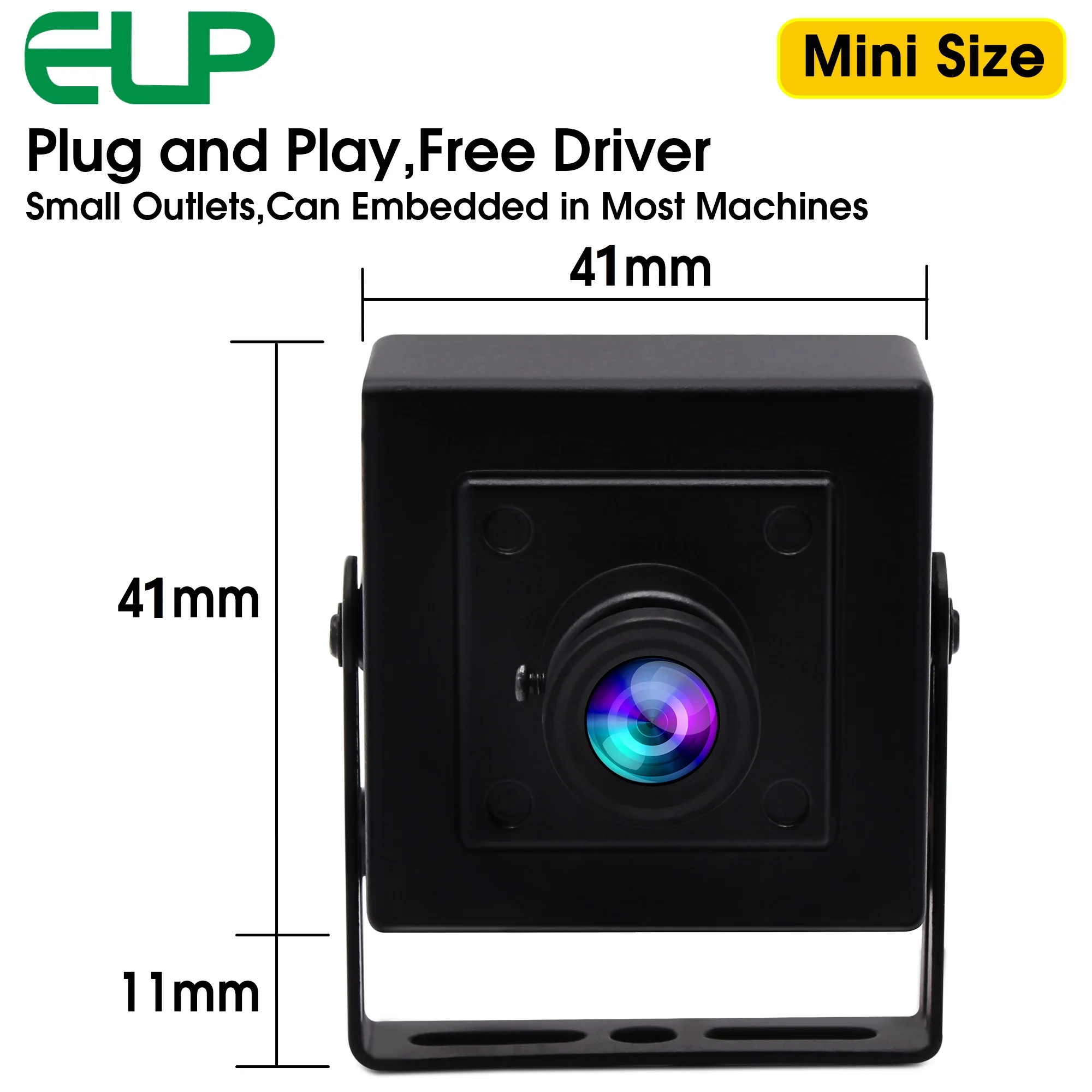

Mini Size:

Super 41*41mm small and Mini Size for your lightburn laser engraver, compact lightburn laser camera for all kinds of machine vision.

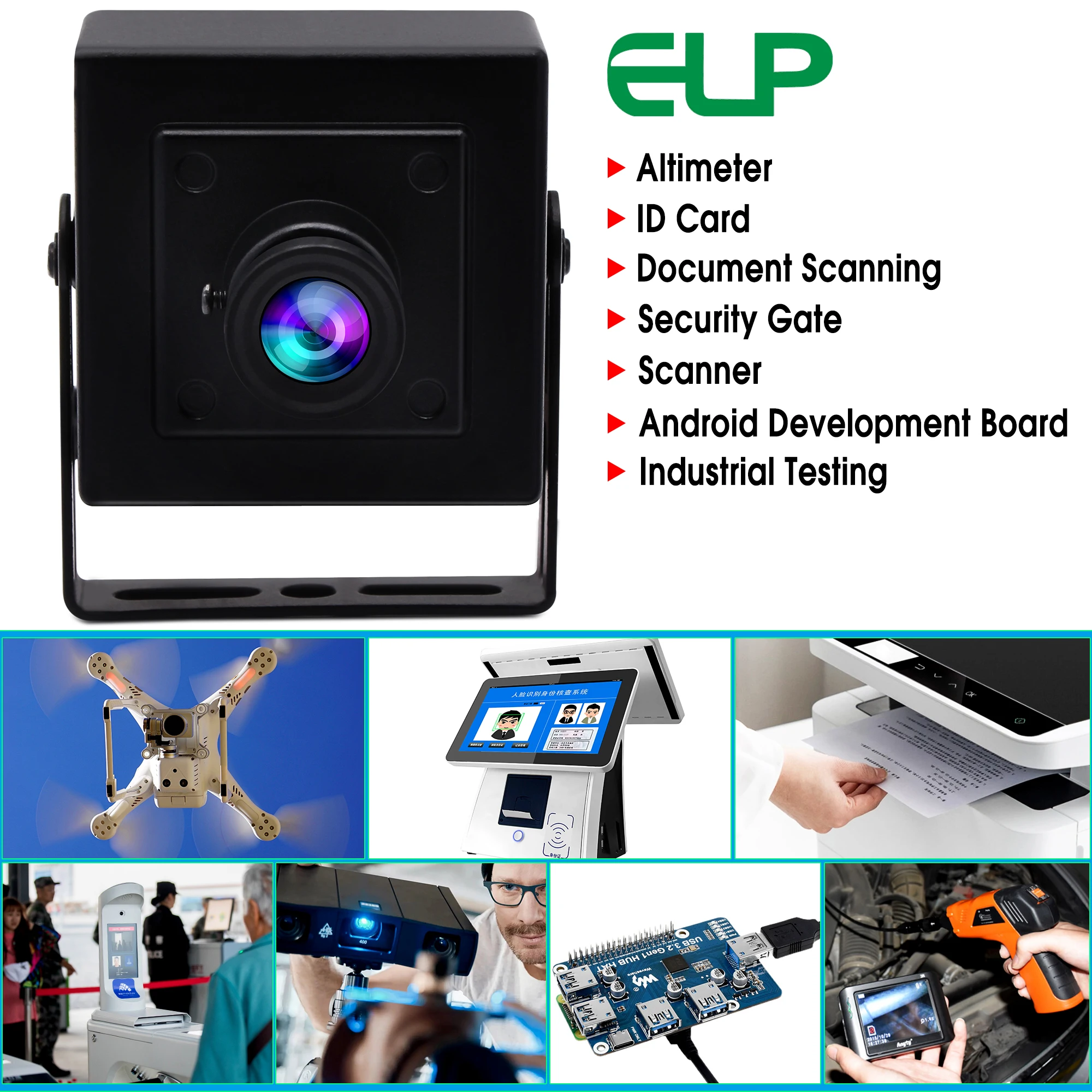

Wide Application

For all kinds of machine vision.

Wide application for 3D scanner,VR camera,electronic microscope,medical machine,automated image acquisition system.



Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
