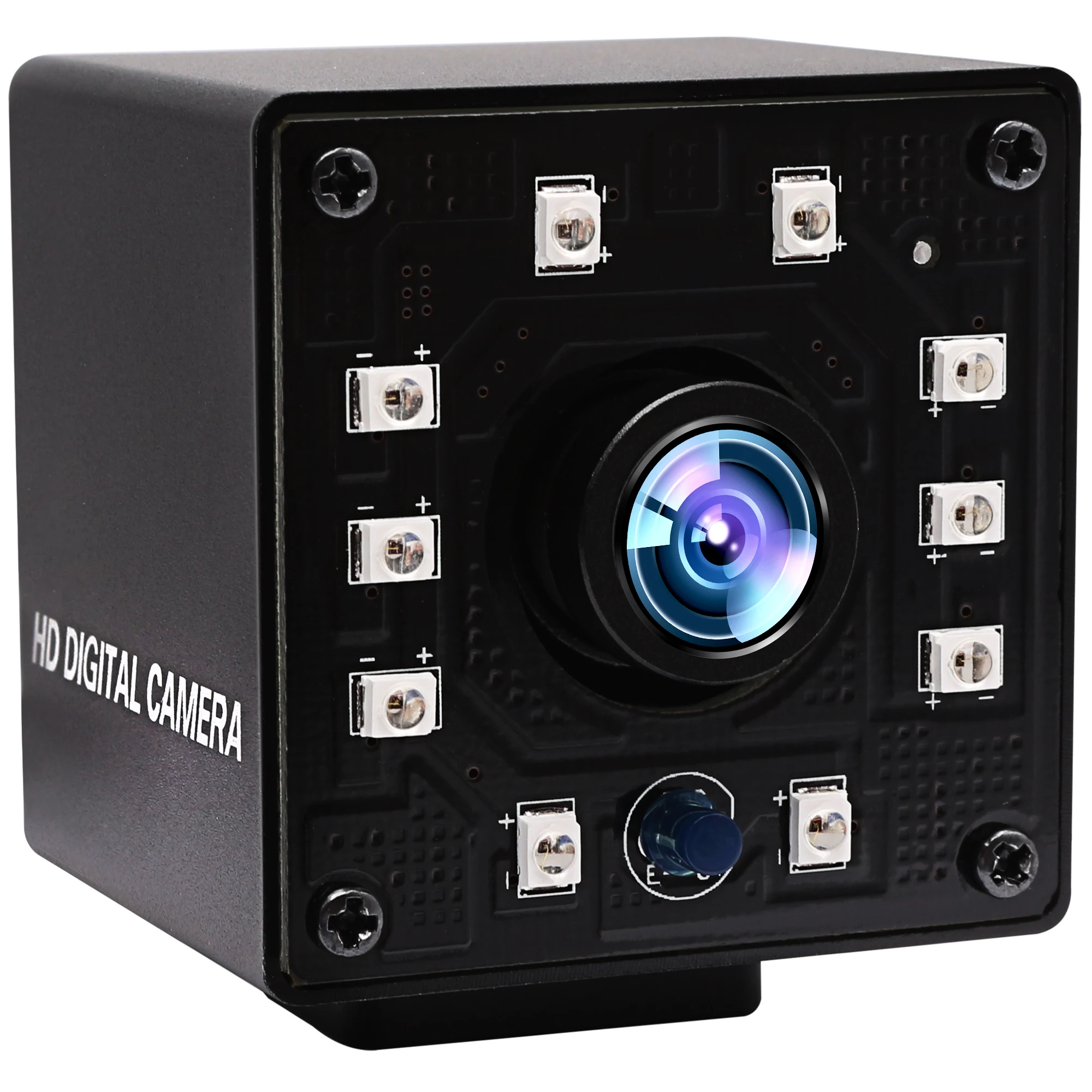

ELP IR 1080P Camera Night Vision HD Industrial USB Camera Infrared USB2.0 Webcam Board with IR LEDs for Windows Linux Mac

Description

ELP IR 1080P Camera Night Vision HD Industrial USB Camera Infrared USB2.0 Webcam Board with IR LEDs for Windows Linux Mac

High-quality USB camera adopted CMOS OV2710 image sensor with max resolution 1920×1080 for great picture performance, keep the purity and clarity of images. High frame rate: 1080P@30fps, Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable

M12 lens, 2.1/2.8/3.6/6/8/12mm,fisheye lens optional,which provides the different Field of View to choose

High frame rate– deliver 120fps in 640X480 resolution, 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.

With IR CUT and IR LEDS, use for day and night

Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

Applications: this tiny 38mmx38mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application.

Optional models	ELP-USBFHD05MT-KL21IR(2.1mm lens) ELP-USBFHD05MT-KL28IR(2.8mm lens) ELP-USBFHD05MT-KL36IR(3.6mm lens) ELP-USBFHD05MT-KL60IR(6mm lens) ELP-USBFHD05MT-KL80IR(8mm lens) ELP-USBFHD05MT-KL12IR(12mm lens) ELP-USBFHD05MT-KLFVIR(2.8-12mm varifocus lens) ELP-USBFHD05MT-KL170IR(1.95mm fisheye lens) ELP-USBFHD05MT-KL156IR(1.56mm fisheye lens)
Sensor	1/2.7" CMOS OV2710
Lens size	200W, 2.0megapixel, 1920(H)x1080(V)pixels
Max. Resolution	1920X1080
Picture format	MJPEG
USB Protocal	USB2.0 HS/FS, USB1.1 FS
Support free driver	USB Video Class(UVC)1.1
Auto exposure AEC	Support
Auto white blance AEB	Support
Frame rate	1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps 1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps 1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps 1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps 800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps 640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps 352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps 320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps
Adjustable parameters	Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision	optional, can choose IR board
view angle	30-150 degree optional
voltage	DC 5V
current	150mA
work temperature	DEGREES(-20~70)
Size	32x32mm/38*38
Support OS	WinXP/Vista/WIN7/WIN8/WIN10/WIN11 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

 simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

 credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

2MP 1080P day/nigh vision usb camera

High speed 100fps 640*480

YUY2 and MJPEG optional

Full HD 1080P

High Frame Rate USB Camera can drive 30fps@1080p, 60fps@720p, 100fps@VGA

Fast frame for high speed moving objects capturing

Day/Night Vision:

IR-CUT Filter switched in and out automatically based on light condition (only visible light during the daylight and infrared sensitivity during the night with 850 IR LEDs on)

Plug&Play

Support Operation System "Windows/Linux with UVC/Mac-OS X 10.4.8 or later/Android 4.0 or above"

Support Application "Skype, Amcap, Quick time, PC Default Webcam Software, ZOOM etc."

Support computer,laptop,pc,Android development board,Raspberry Pi development board,Jetson Nano,etc

Applications:

home secutiry system，parking lot management，car truck school bus interior monitoring，industrial machine vision.Dashcam，baby dog pet camera，video conference，high speed video shooting device,observing gold

Daytime effect

Night vision effect

Package
