Description
- Bafang Model: M092 010.D
- Wattage: 201 – 300w
- Design: Brushless
- Voltage: 36V
- Brand Name: BAFANG
- Motor: Brushless Gear Hub Motor
- Certification: CE
- Origin: Mainland China

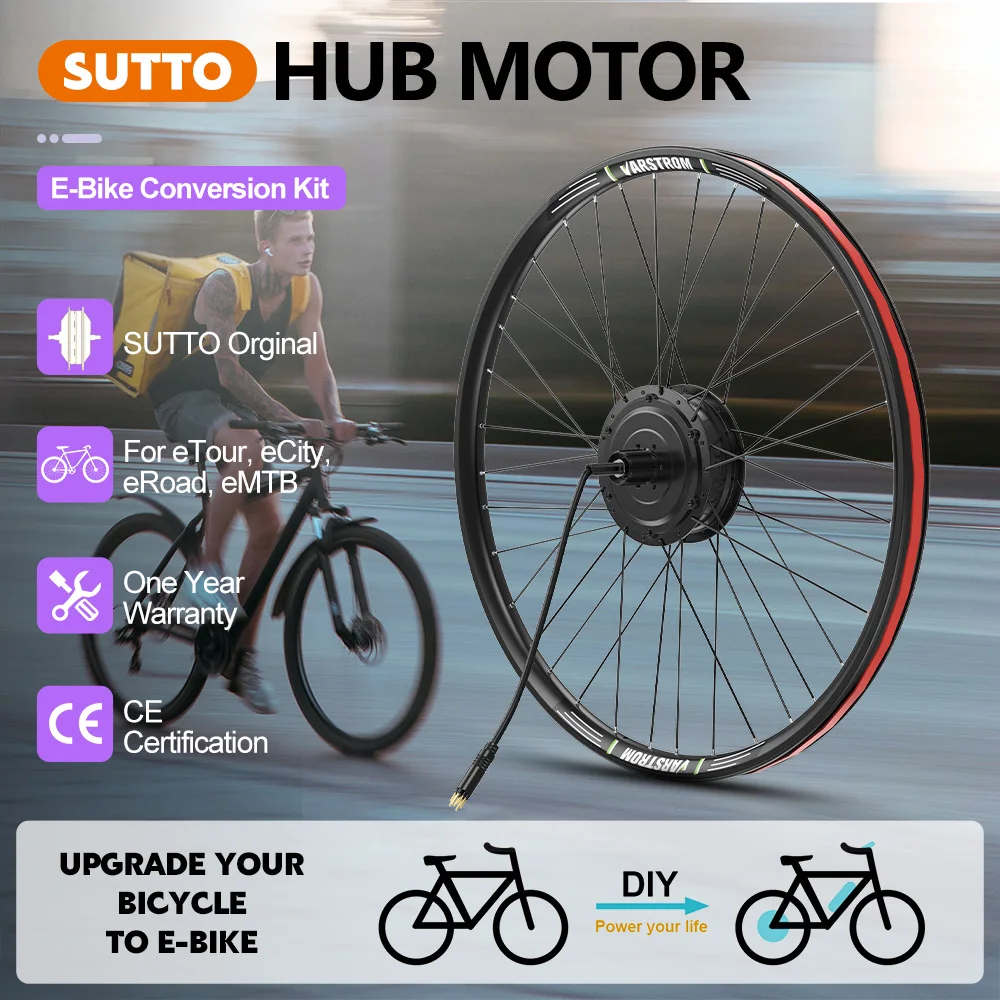

- Motor Model: SUTTO M092 010.D
- Motor Position: Rear Drive Hub Motor
- Compatible Gear Shift Type: Cassette Type (DC)
- Rated Power (W): 250W

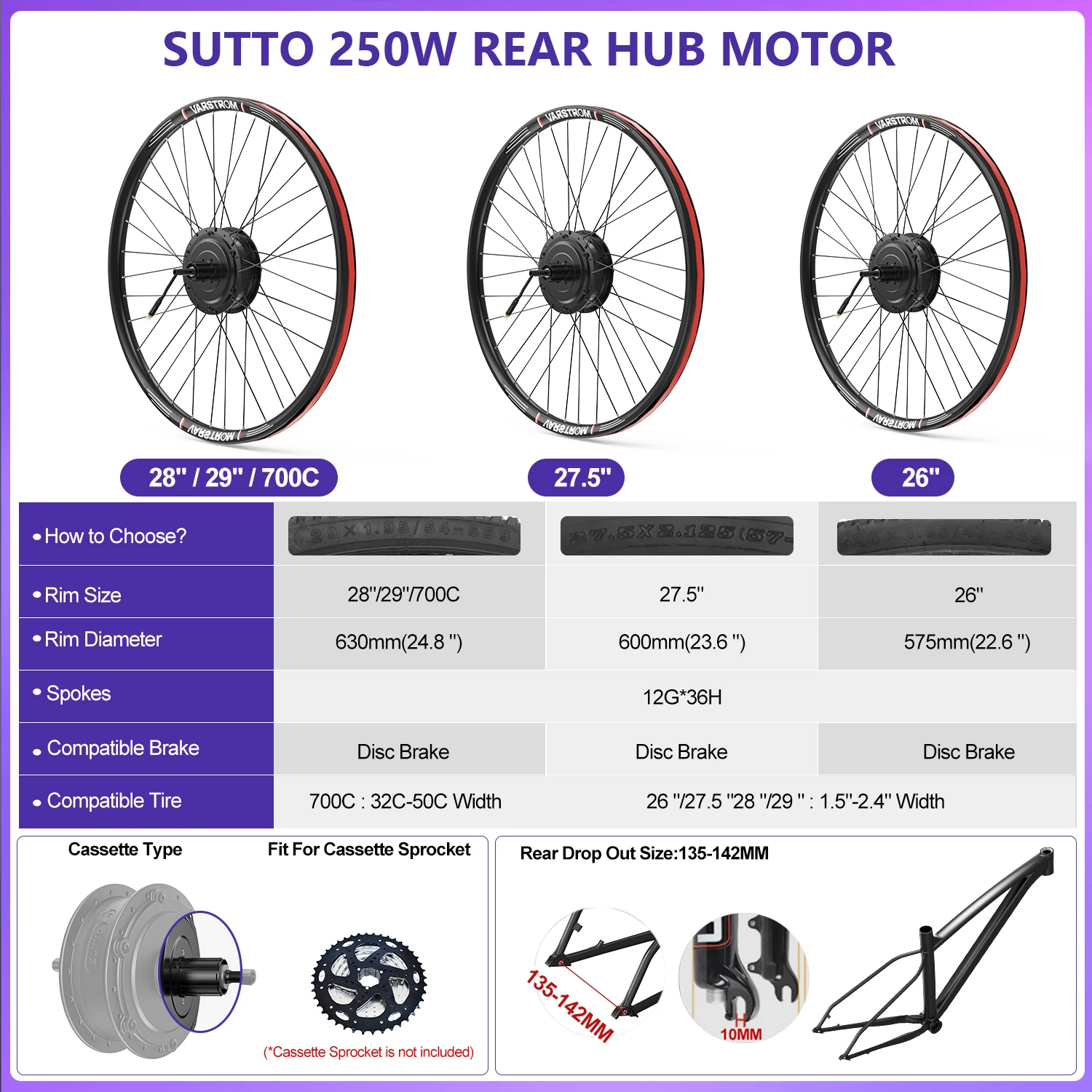

- Rim Size: 26" / 27.5" / 28" / 29" / 700C
- Max Torque: 45N.m
- Usage: eTour, eCity, eRoad
- Noise Grade (dB): <55dB
- Efficiency (%): ≥ 80%
- Construction: Gear drive
- Compatible Brake System: Disc Brake
- Operation Temperature: -20℃ ~ 45℃
- Controller Max. Current: 15A
- Controller Rated Current: 7A

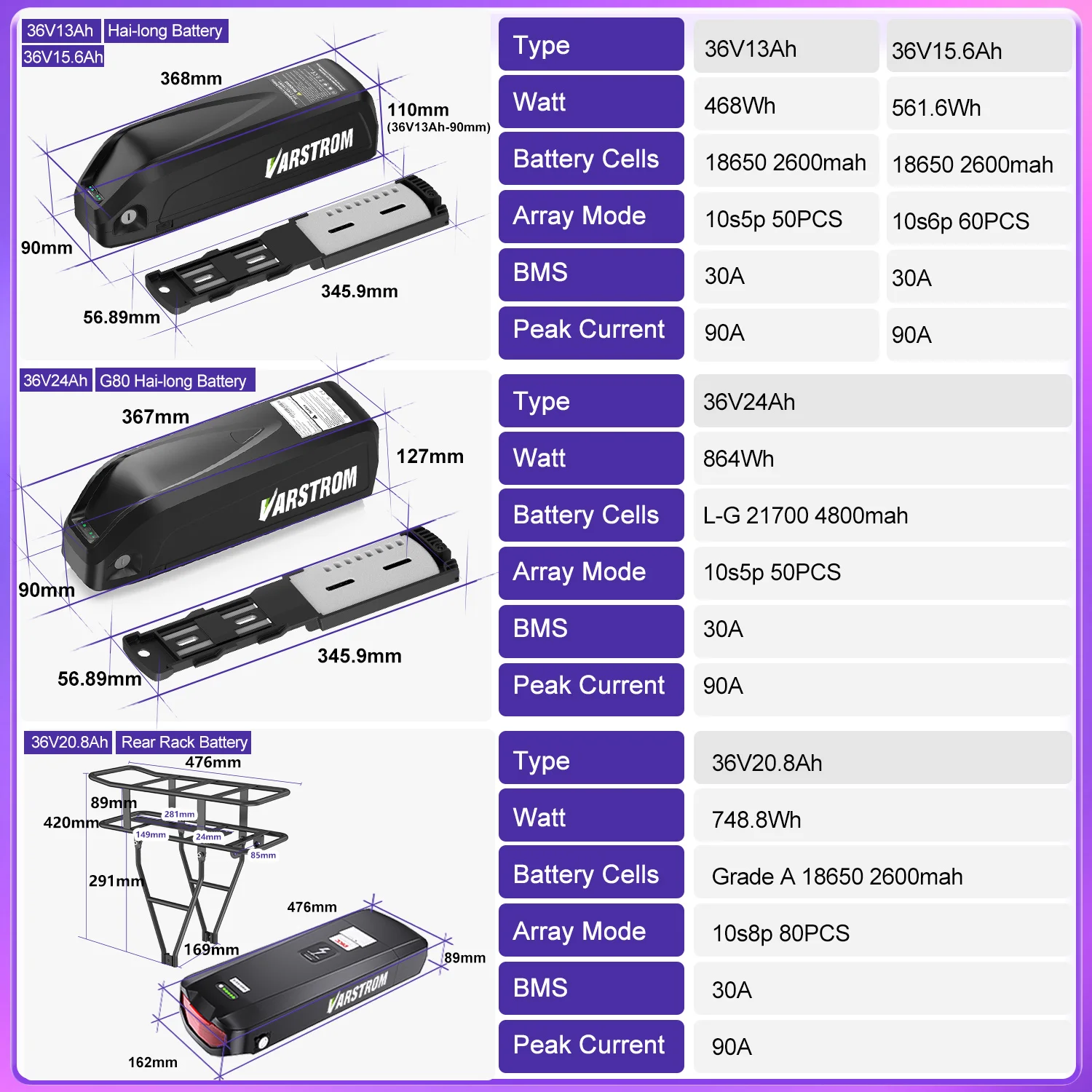

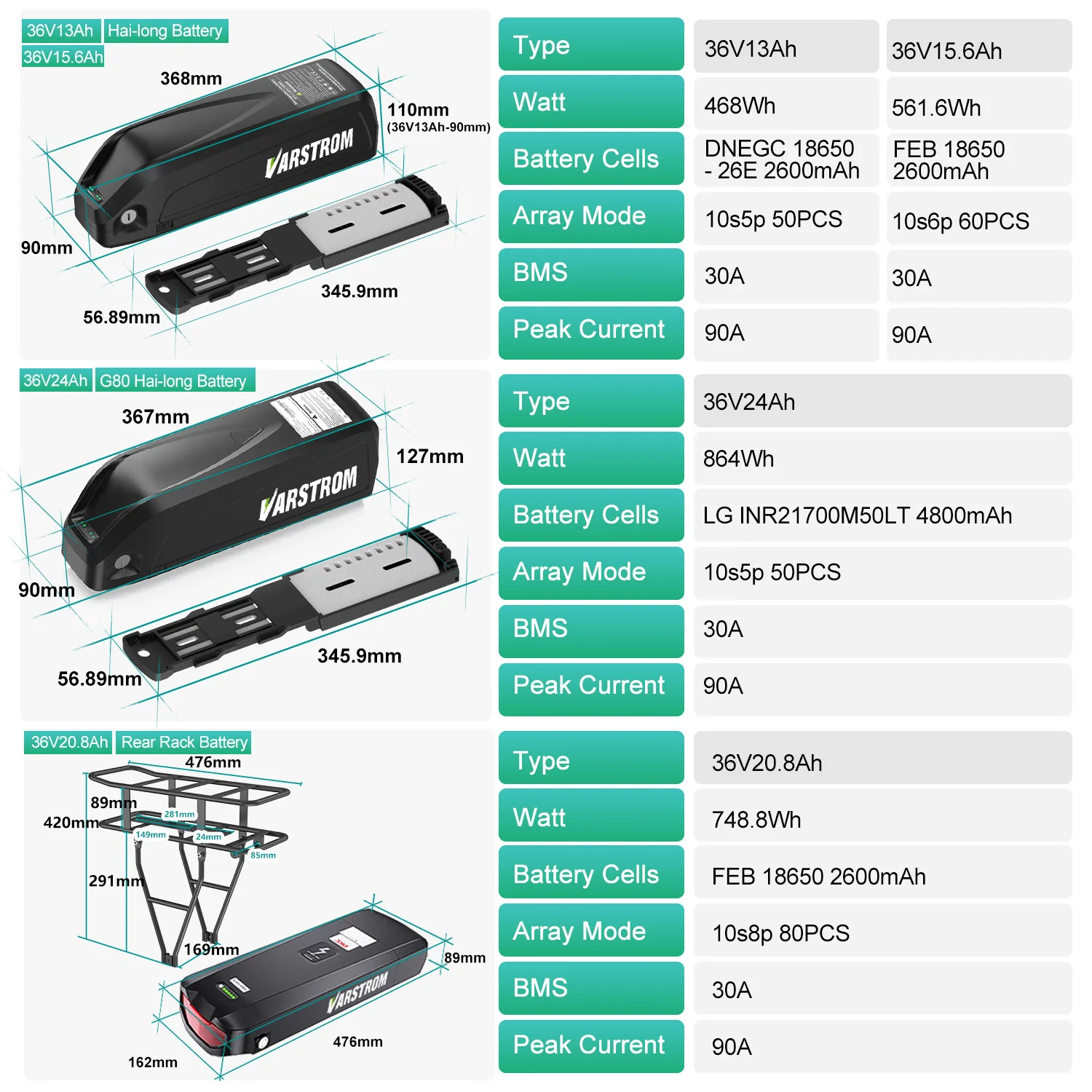

- 36V13Ah Hailong Battery: Grade A 18650 2600mah 10s5p 50PCS (2A Charger)
- 36V15.6Ah Hailong Battery: Grade A 18650 2600mah 10S6P 60PCS (4A Charger)
- 36V24Ah Hailong G80 Battery: L-G 21700 4800mah 10s5p 50PCS (4A Charger)

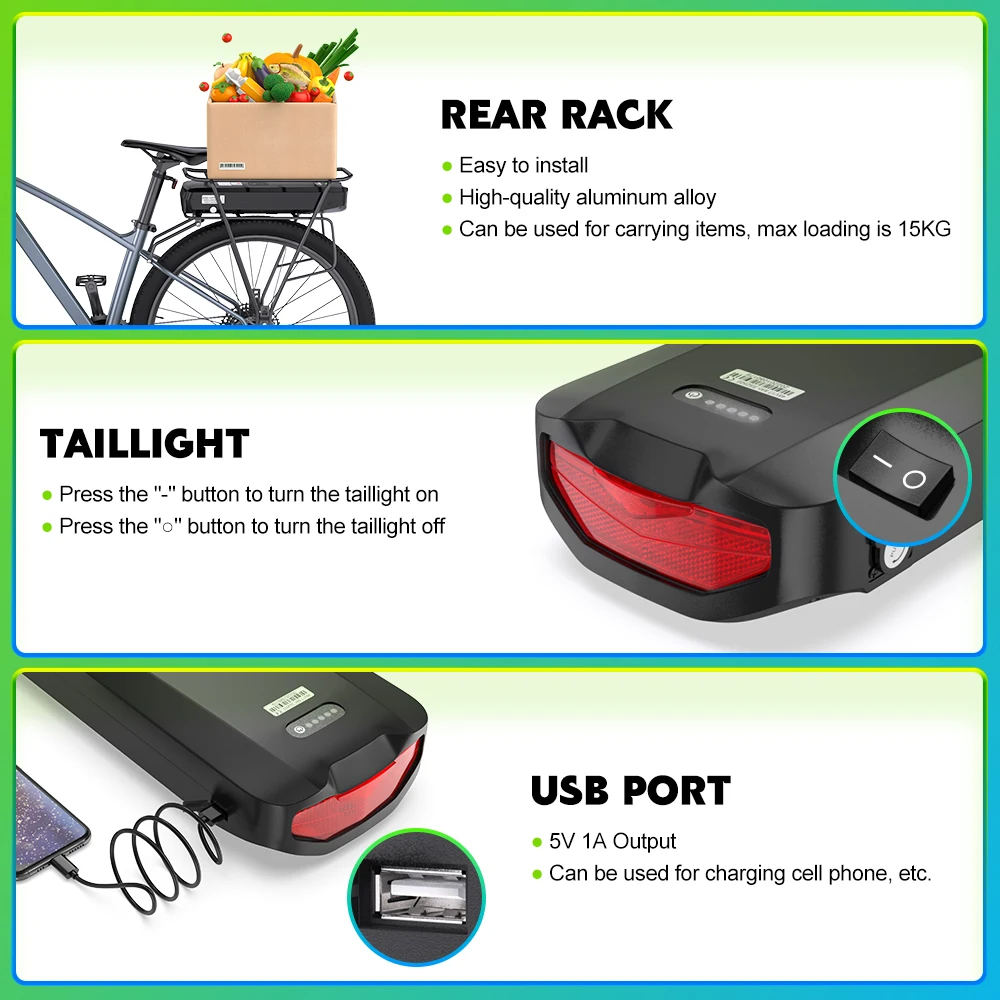

- 36V20.8Ah Rear Rack Battery: Grade A 18650 2600mah 10S8P 80PCS (4A Charger)
- BMS: 30A
- Charge voltage: 42V
- Discharge cut off voltage: 28V
- USB Port: YES
- Cycle Life: 1000 times
- Charing Current: 2A – 4A
- Charge Temperature: 0℃ ~ 45℃
- Discharge Temperature: -15℃ ~ 65℃
- Way of Charge: CC/CV

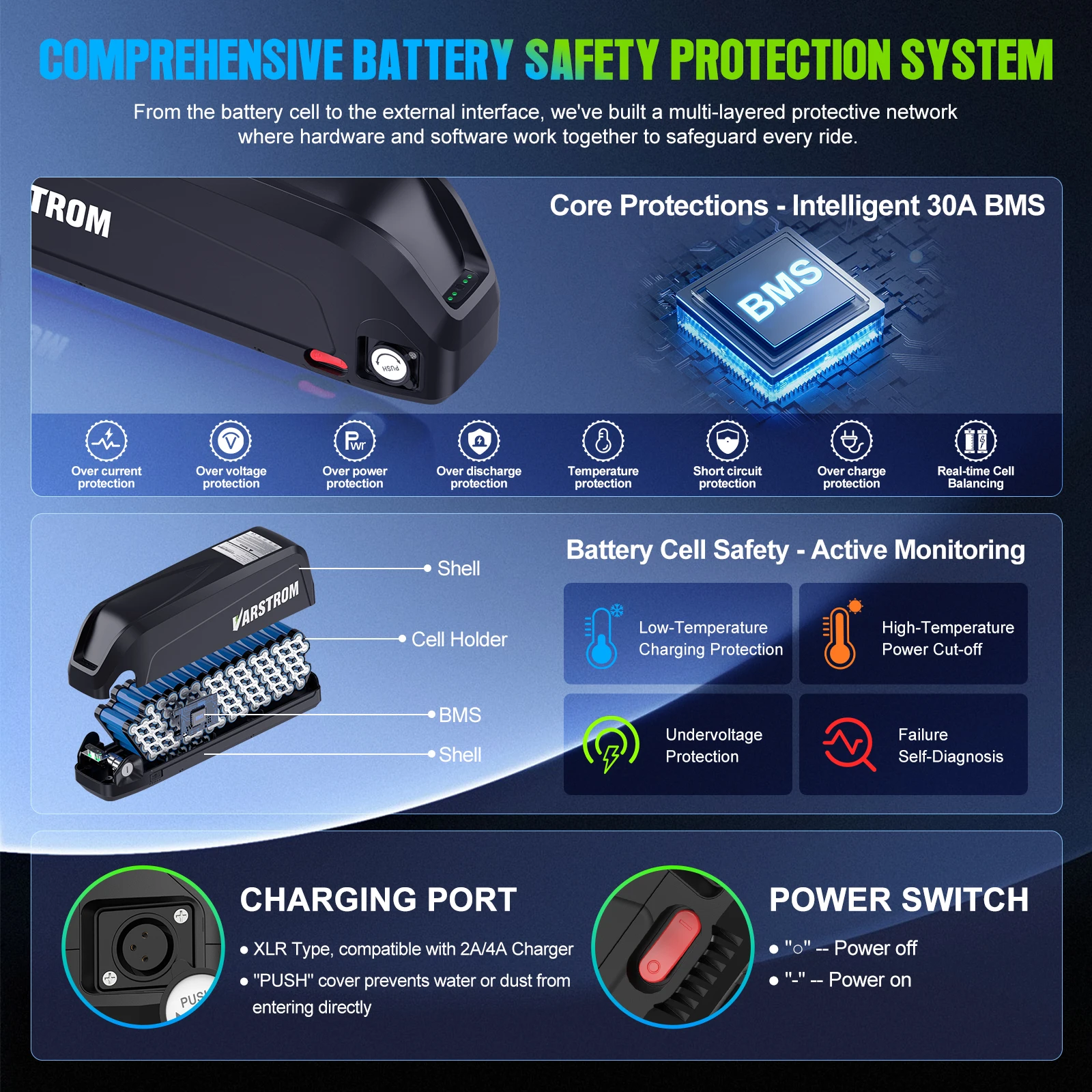

- Protection Function: Over charge, Over discharge, Over current, Short circuit, Balance
- Waterproof Grade: IP X5,IP X5
- Warranty: One Year
- Repair point: France / Spain /Poland /Italy
- Delivery Time: 2 – 7 Day Delivery

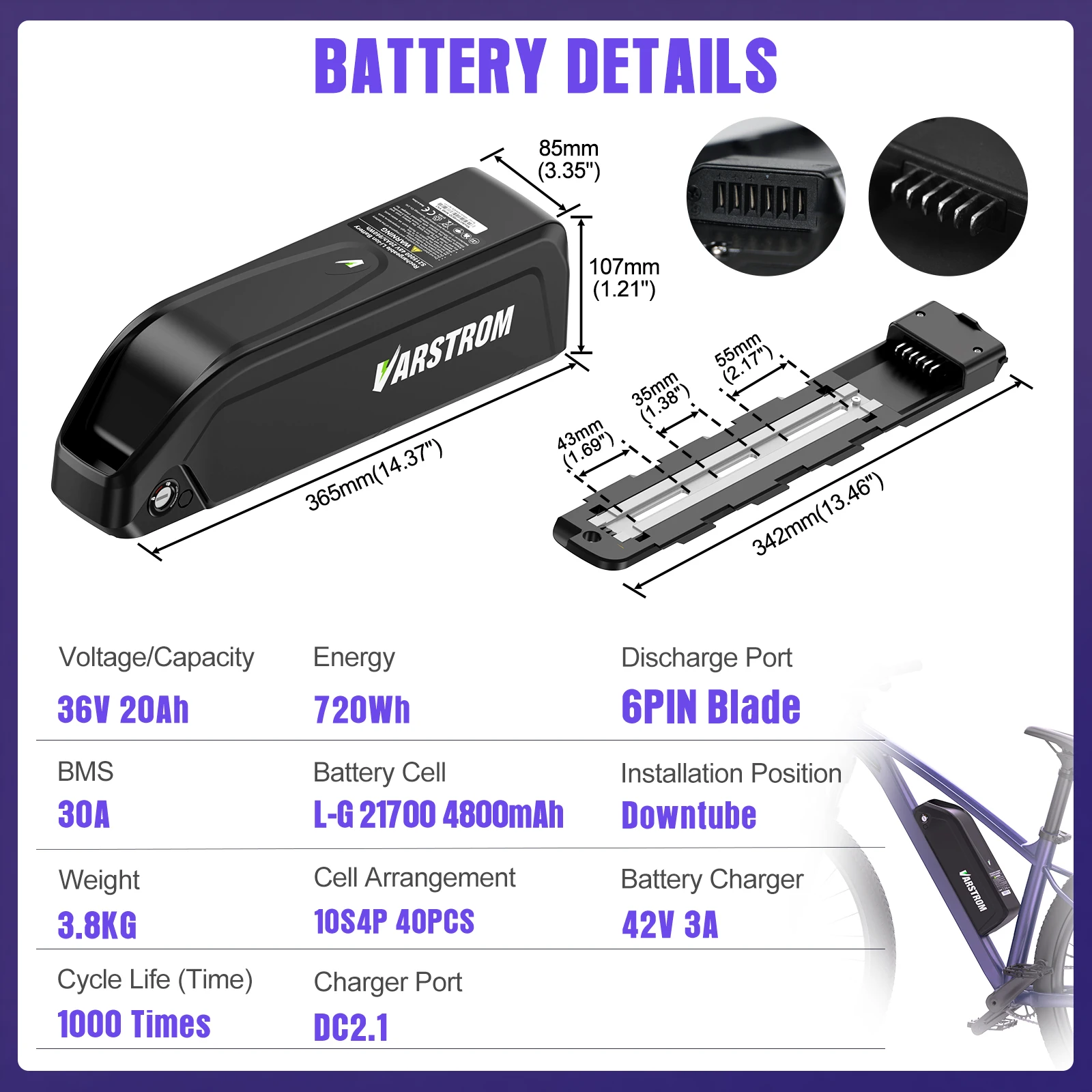

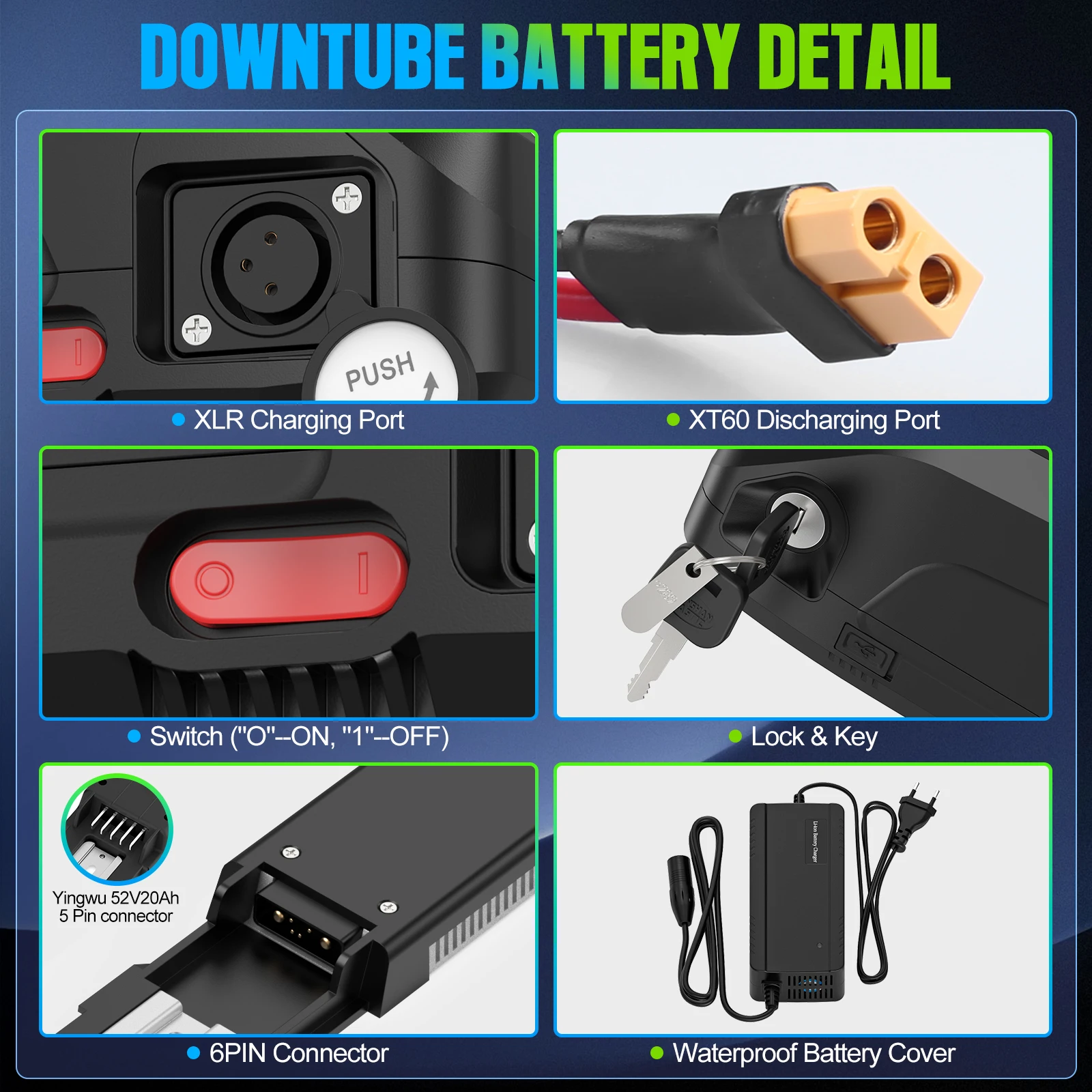

- 36V20Ah 720Wh HY Battery: L*G INR21700M50LT 4800mAh 10S4P 40PCS (3A Charger)
- Certificate:
Varstrom X BAFANG
Global Warehouse & Service CommitmentOur Commitment to You
🔹 Delivered Duty Paid(DDP)Assurance
For customers in the following countries, all taxes and import duties are pre-paid by us, ensuring a hassle-free delivery experience:
France, Spain, Netherlands, Italy, Bulgaria, Belgium, Latvia, Poland, Denmark, Finland, Portugal, Sweden, Slovakia, Slovenia, Greece, Hungary, Czech Republic, Lithuania, Luxembourg, Romania, Ireland, Estonia, Croatia.
🔹 Rapid, ReliableDelivery
Your order will be dispatched from our nearestEU or UKwarehouse for lightning-fast transit. Most deliveries arrive within2–7business days (excluding remote regions).
Note:For logistical reasons, we currently cannot deliver to island addresses. If your location is on an island, kindly provide an alternative mainland address during checkout.
🔹 ComprehensiveWarranty& Support
Motor & Battery:12months quality warranty for motor and battery
Accessories & Parts:30-daywarranty for quality assurance.
Local Expertise:Our network of certified service centers across the EU and UK ensures prompt repairs and support.

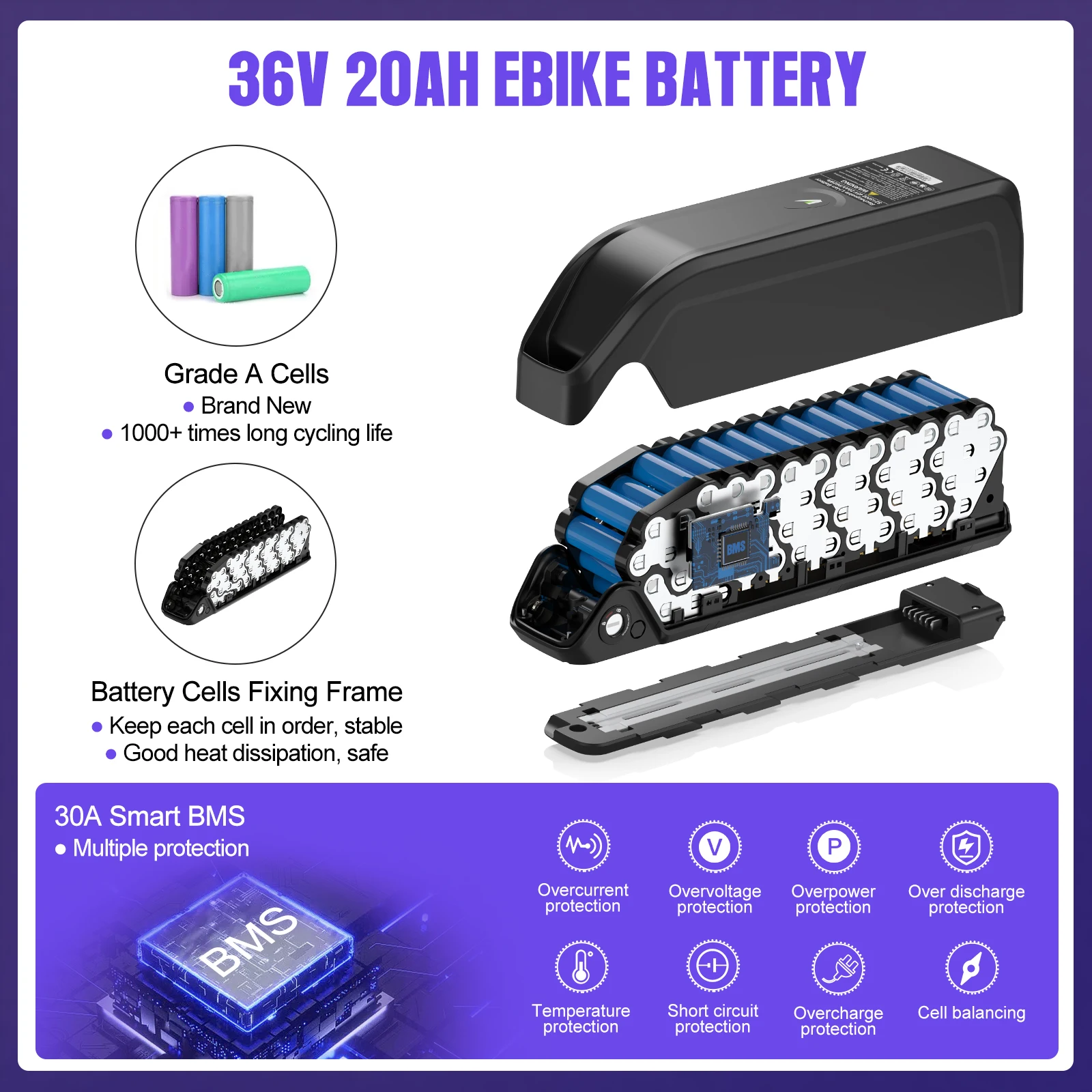

2026NEW HY 36V 20AH BATTERY

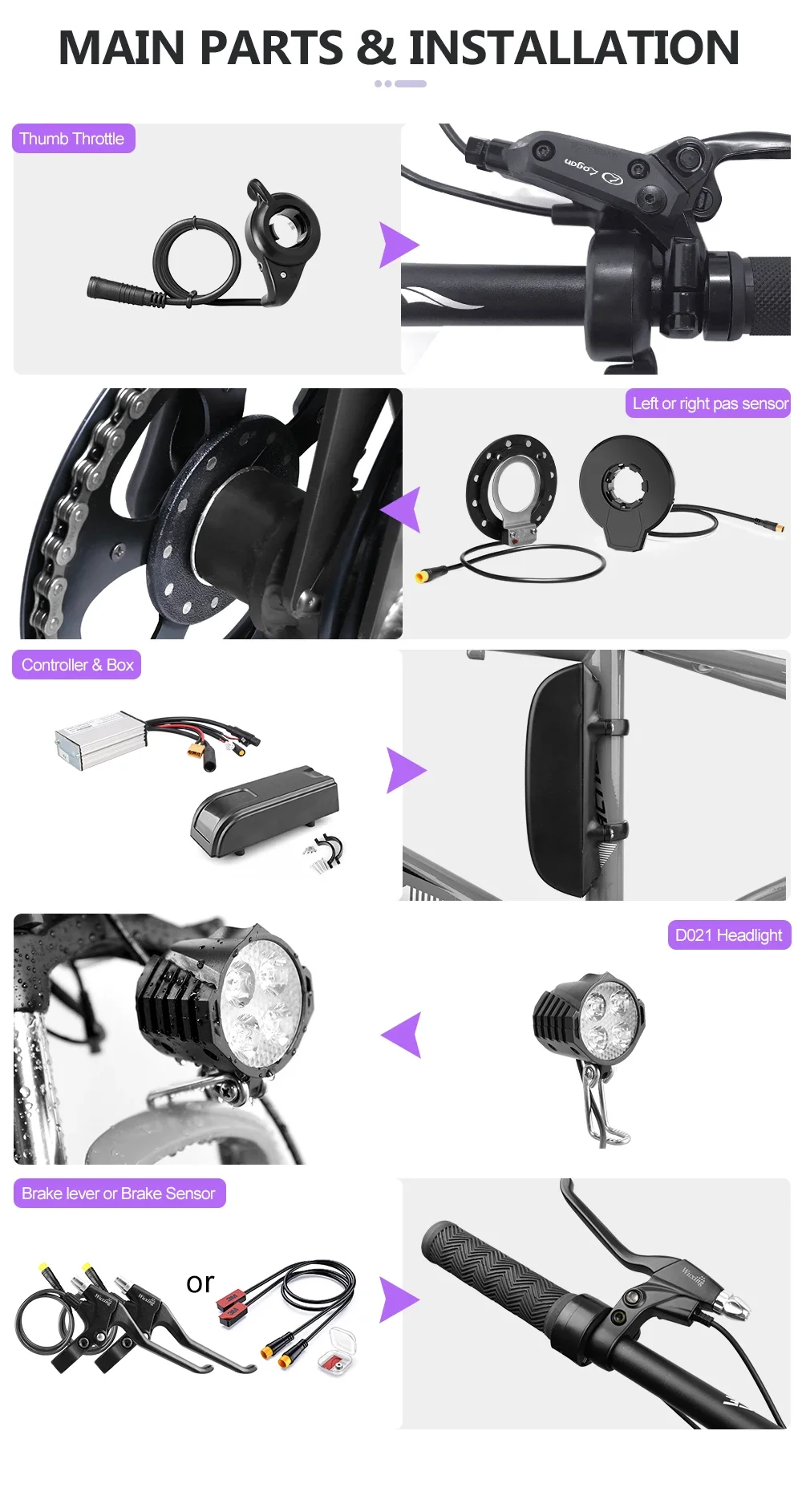

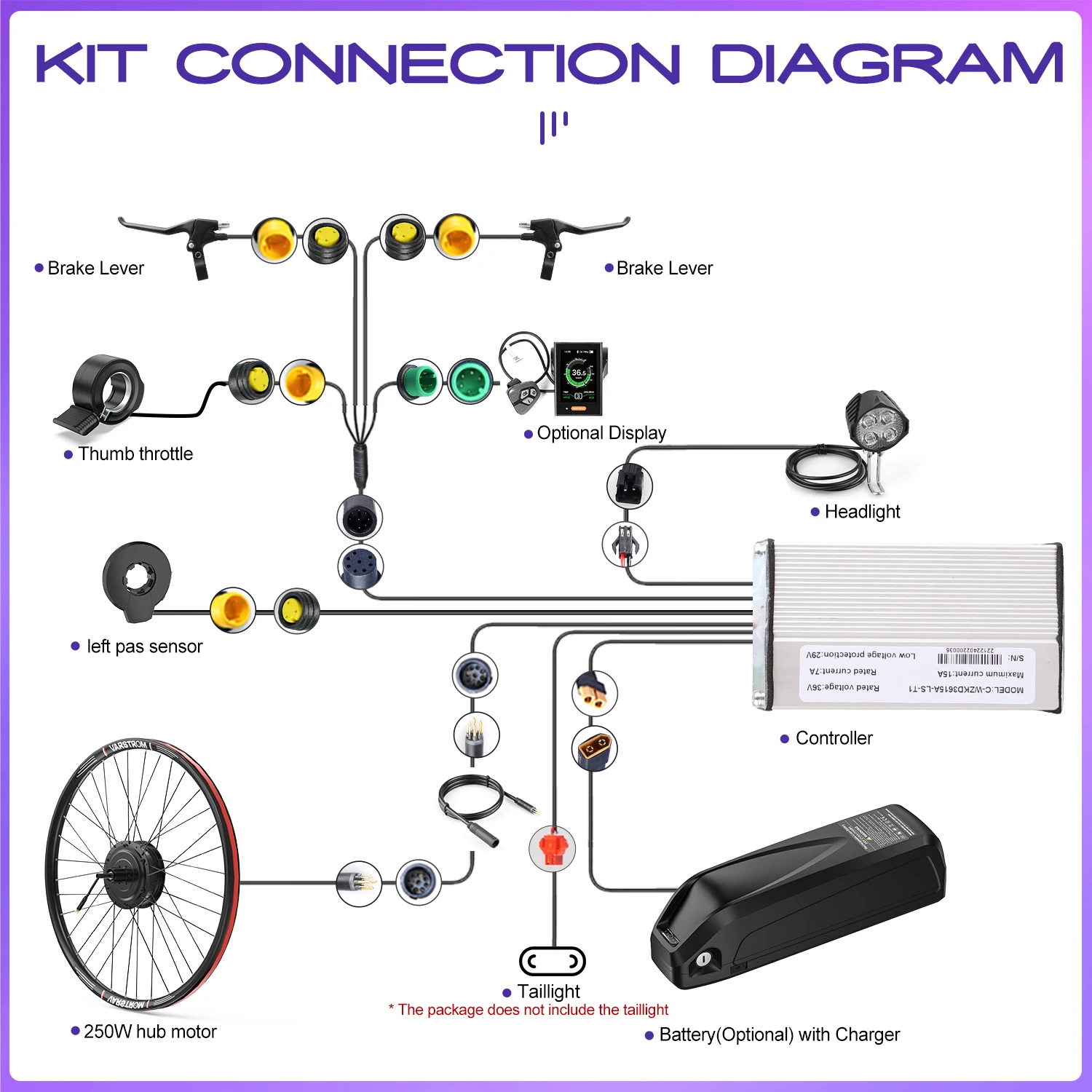

➤ 【Packing List】🧾：
1 pc SUTTO Hub Motor Wheel
1 pc Controller
1 pc Controller Box (Not Battery)

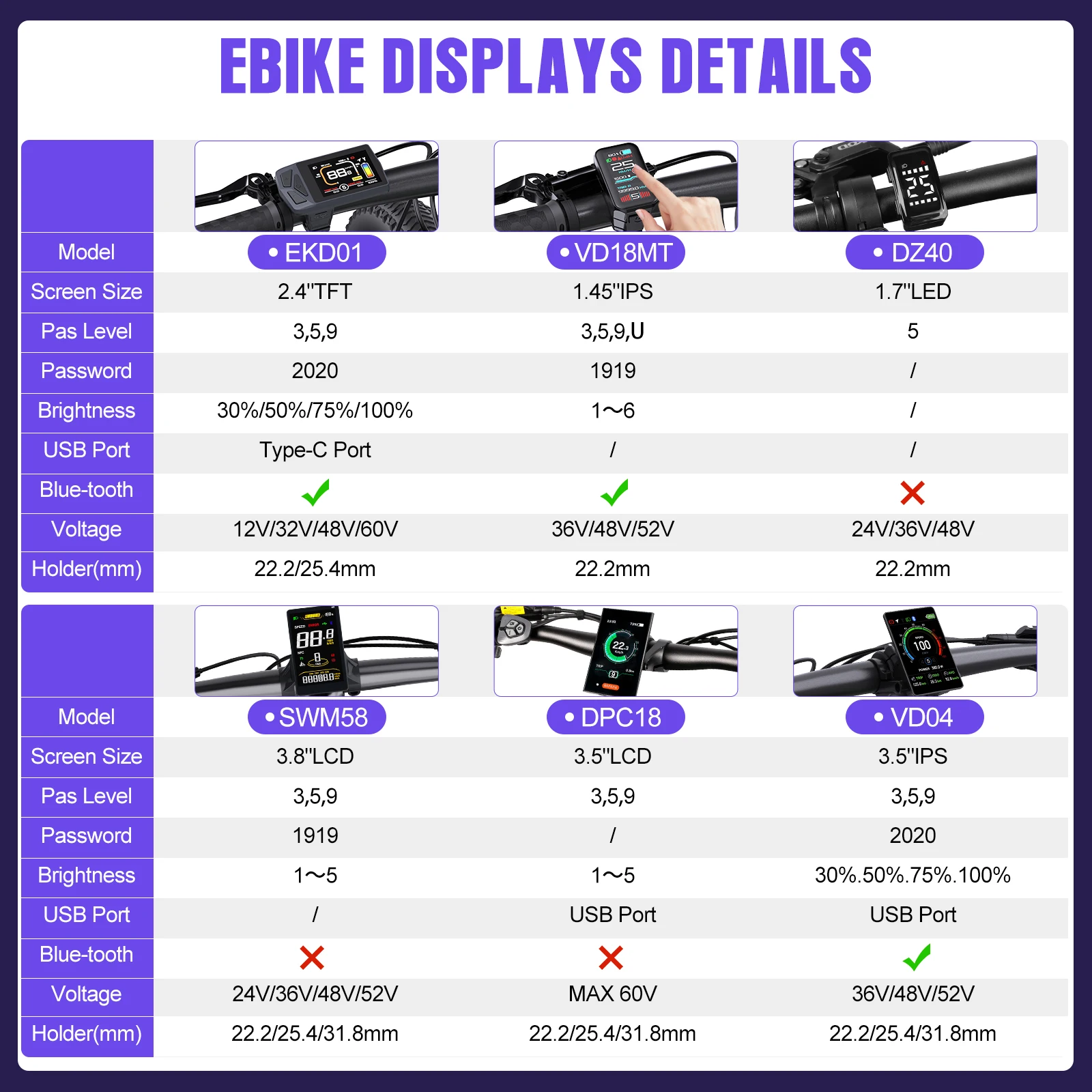

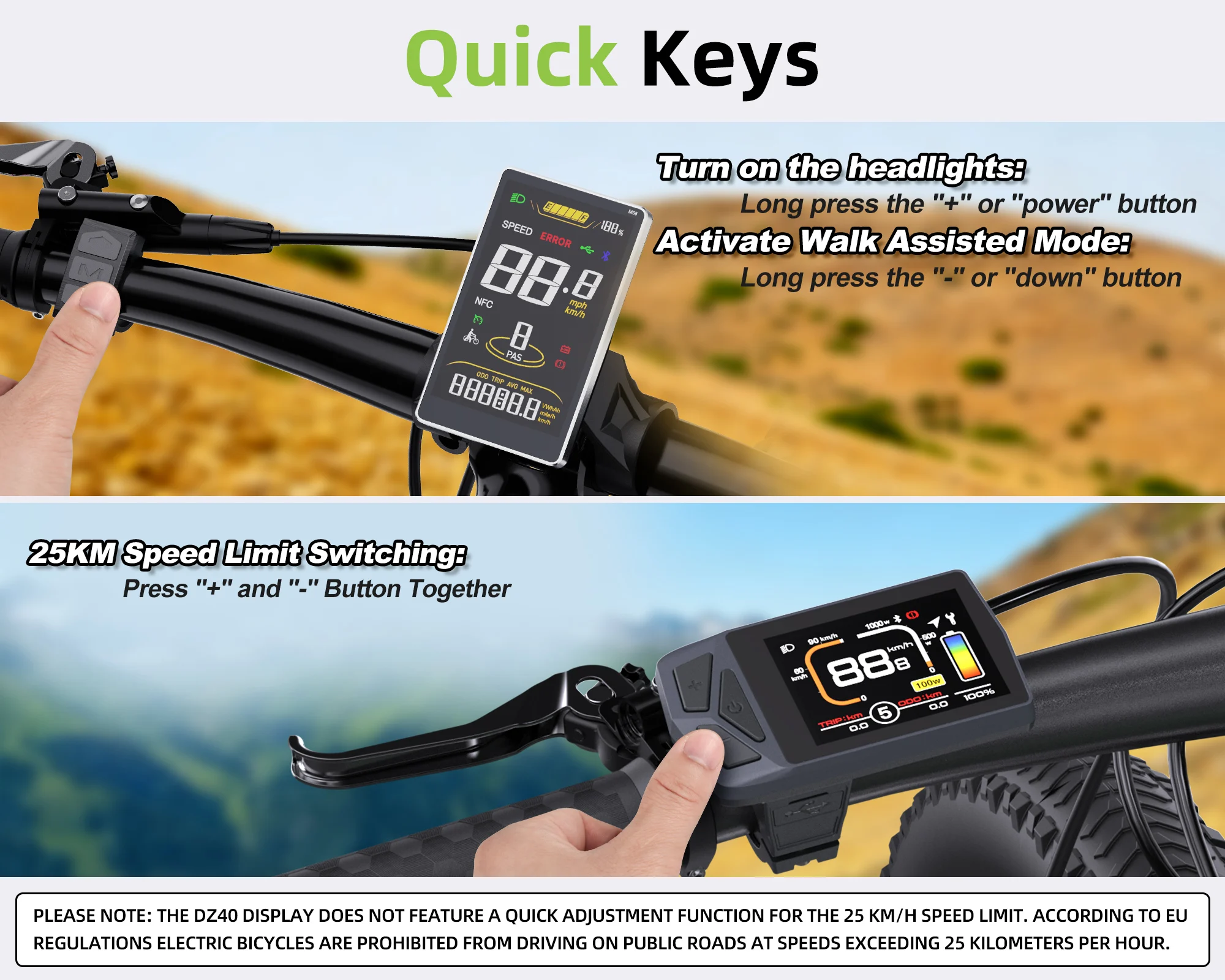

1 pc Display
1 pc 1T4 Cabl
1 pc Thumb Throttle
1 pc PAS Sensor (Small One – Left)
1 pair Brake Levers or Brake Sensor (Optional)
Free Gifts 🎁：
1 pc Headlight
1 set Plastic Straps
1 pc Manual

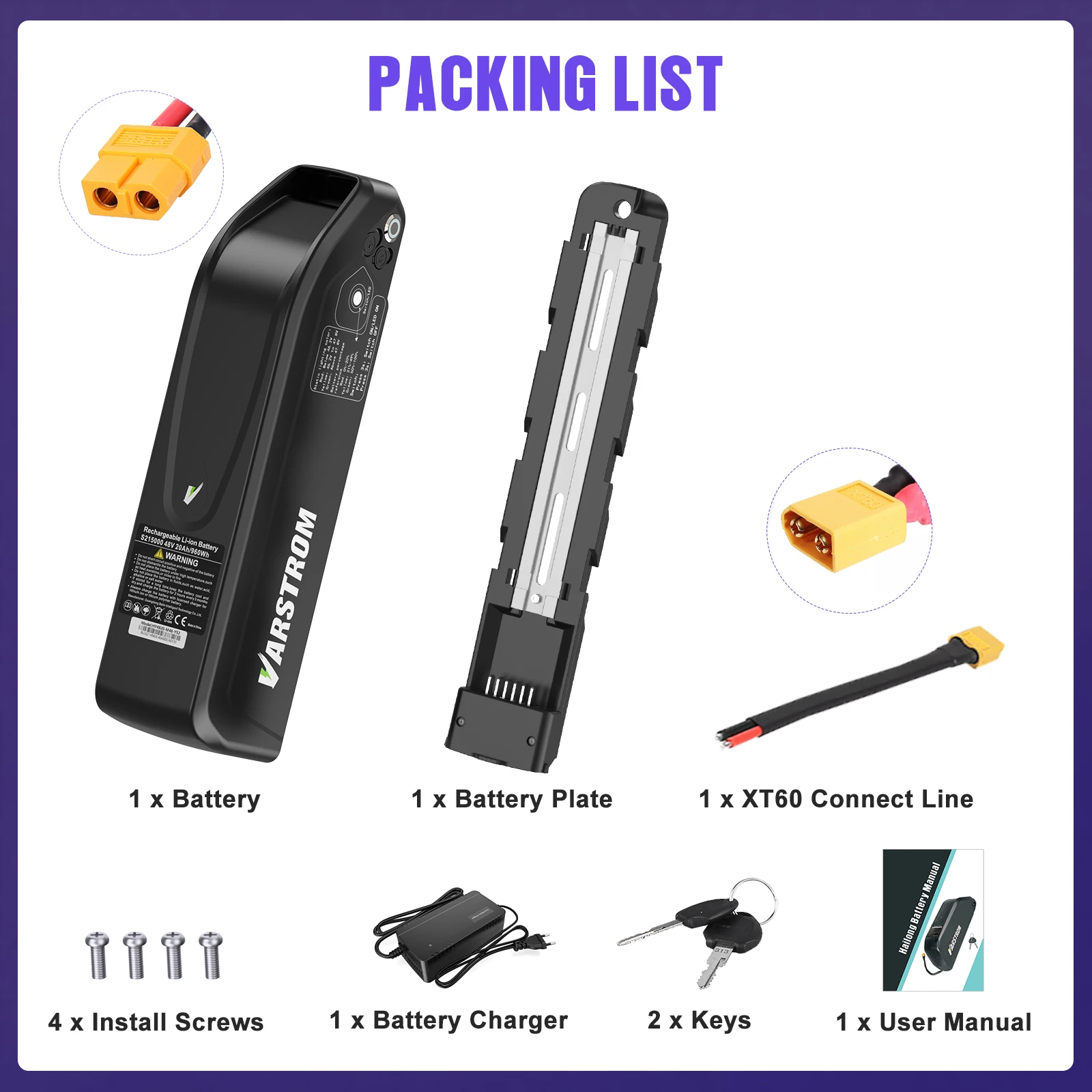

Battery PackingList📝:
1 pc Battery (Optional)
1 pc Battery Charger
1 pc Battery Manual
1 pc XT60 Port Motor Battery Connector Cable
1 set of Screws
1 set Rear Bracket（Only for Rear Rack Battery）

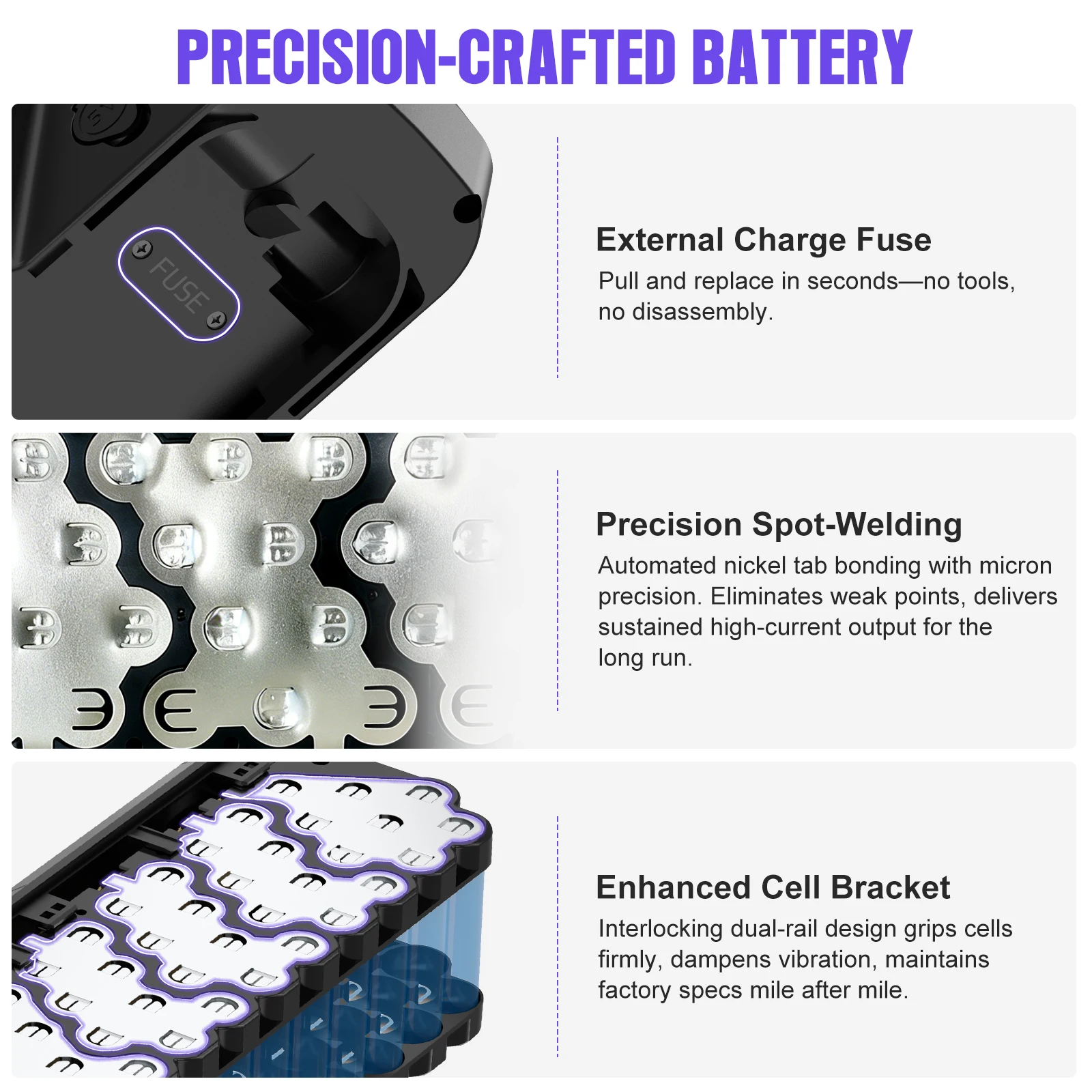

1 pc Backup Battery Fuse（Only for Rear Rack Battery）
2 pcs Battery Keys
